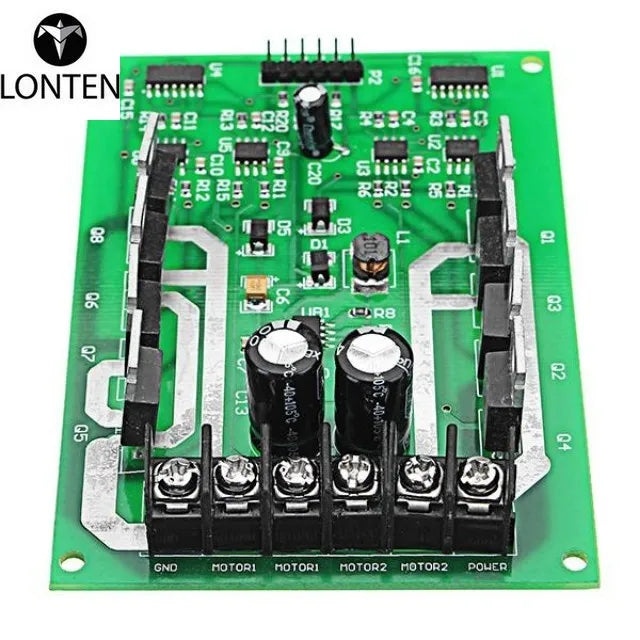

Custom Lonten DC 3-36V 15A-30A PWM DC Dual Channel Motor Driver Board Industrial Grade High Power Bridge Control Module Strong Braking Manufacturer
Custom Lonten DC 3-36V 15A-30A PWM DC Dual Channel Motor Driver Board Industrial Grade High Power Bridge Control Module Strong Braking Manufacturer
Couldn't load pickup availability
Note: The price is Bundle(optiona)1,Lonten is a manufacturer and provider of electronic component ,for more please contact.
- :
- Type:Voltage Regulator
- Condition:New
- Supply Voltage:other
- Dissipation Power:other
- Operating Temperature:other
- Model Number:other
- is_customized:Yes
Specifications:
Rated voltage: DC 3V~36V
Rated current: 15A
summit current: 30A
Size: 108 x 58mm
The drive uses the full two half-bridge driver chip + low resistance N-channel MOSFET components. Complete two half-bridge driver chip reliable drive mode, the MOSFET switching losses to a minimum. Improve power utilization. MOSFET driver chip comes with hardware brake function and power feedback.
N-channel MOSFET IRF3205 MOSFET, use two dedicated half-bridge driver chip on the top tube using the bootstrap capacitor, so that the tube has enough drive voltage of the MOSFET channel can be opened quickly, improve motor acceleration curvature, but also quickly for the motor brake. This allows the trolley can quickly start can quickly kill the car.
The driver can operate at 0% -99% of the duty cycle of the PWM modulation, the motor drive voltage can be obtained sufficiently.
Package included:
1 x DC dual channel motor driver board
1) We accept Alipay, West Union, TT. All major credit cards are accepted through secure payment procor ESCROW.
2) Payment must be made within 15 days of order.
3) If you can't checkout immediately after auction close, please wait for a few minutes and retry Payments must be completed within 15 days.
Item are shipped within 5 busin days once full payment is settled.If you can't get your items in time,please contact to us first,we wil check and solve it for you soon.We will reply your mail within 24 hours normally. sometimes have a little delay due to the weekend or holiday.If you can't get our mail after 48 hours,please check your spam or contact to us with other mail addr.
Return:
If item DOA(Dead of Arrival),Buyers Can return it in 14 Days,We will Replace it with New item after we receive DOA item.Please Contact us Before you sent the item back
Warranty:
All item Comes with Basic 3 Month Sellers Warranty,if item defective in 3 Month,We will offer replacement withour extra Charger(including shipping fee)After we Receive the Defective item.
If item Defective after 3 Month,Buyers can still send it back,We will contact suppliers or Manufactory for Warranty.Buyers Might Need pay the Shipping fee For resend the replaced item.
We maintain high standards of excellence and strive for 100% customer satisfaction! Feedback is very important We request that you contact us immediately BEFORE you give us neutral or negative feedback, so that we can satisfactorily addr your concerns.
It is impossible to addr issues if we do not know about them!
- Unit Type:piece
- Package Weight:0.07kg (0.15lb.)
- Package Size:16cm x 10cm x 1cm (6.30in x 3.94in x 0.39in)
