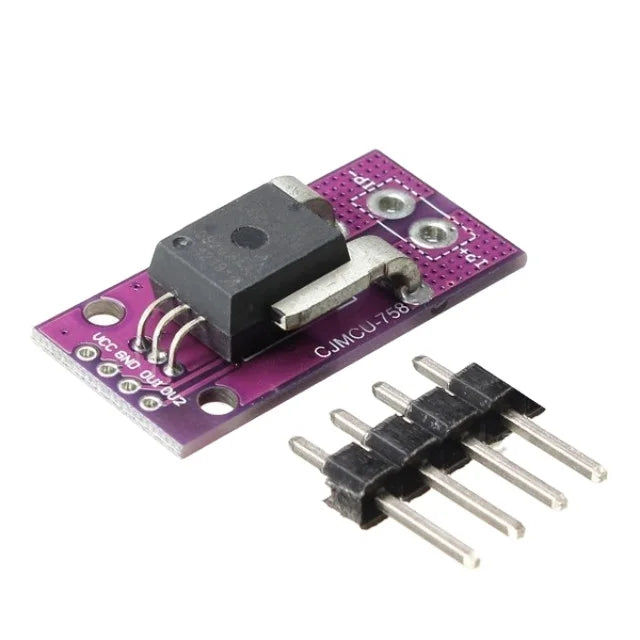

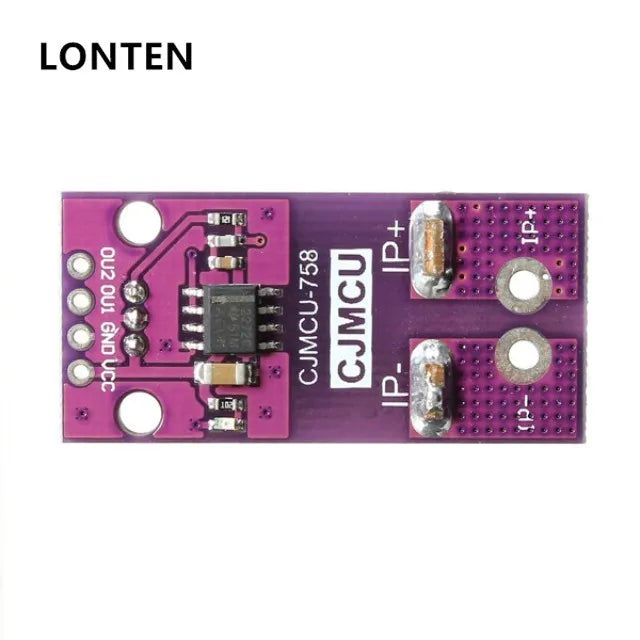

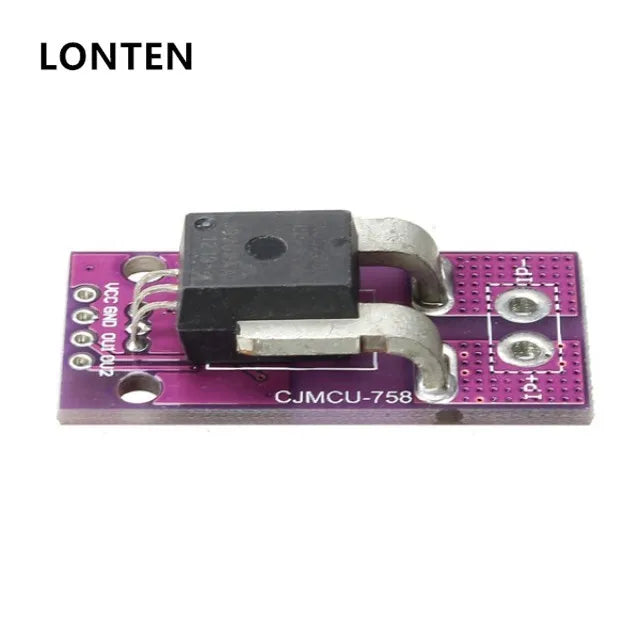

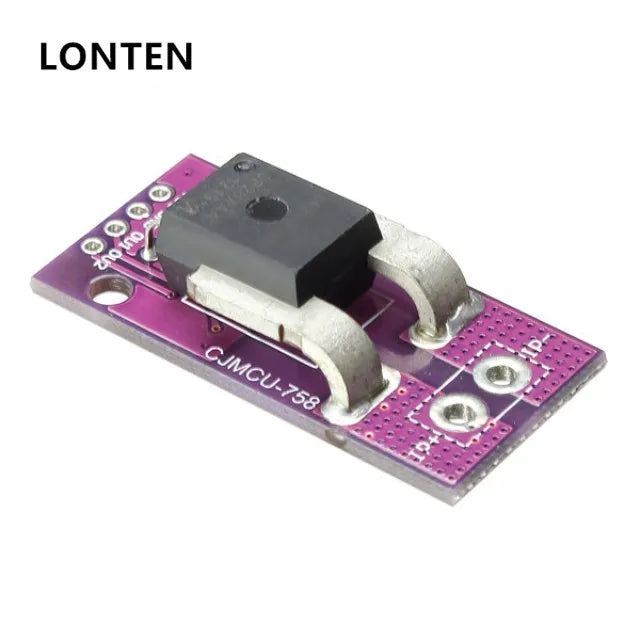

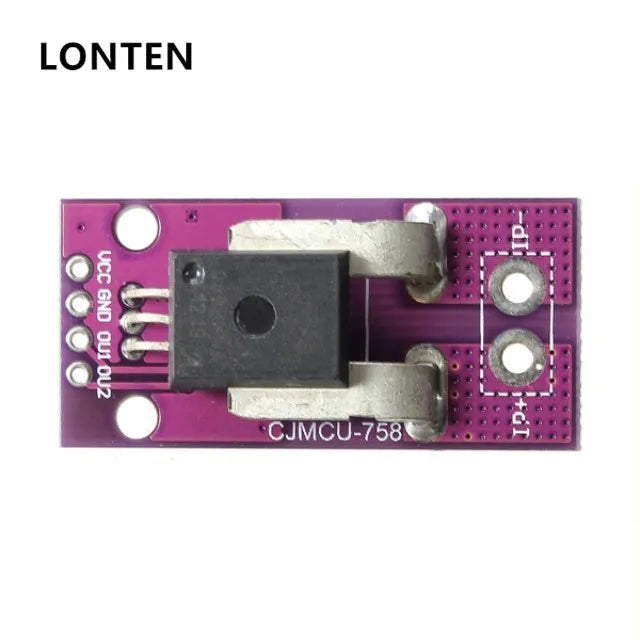

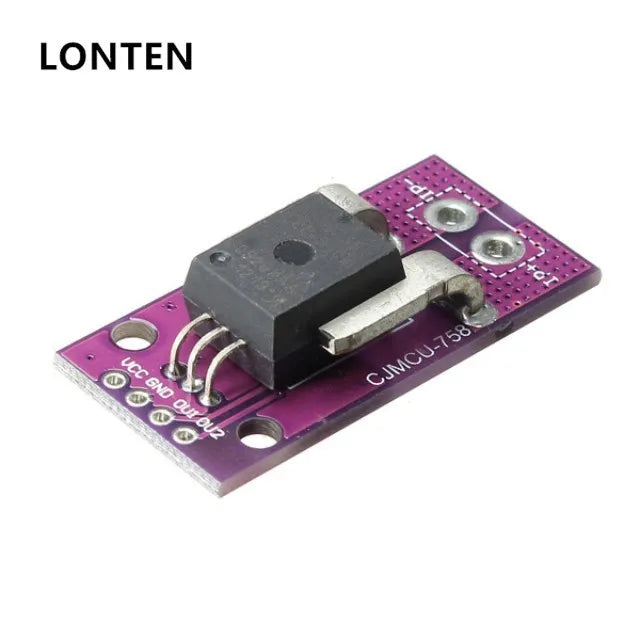

Custom Lonten CJMCU-758 ACS758LCB-050B-PFF-T Linear Current Sensor Hall Current Module For DIY Manufacturer

Features:


- Industry-leading noise performance through proprietary amplifier and filter design techniques

- Integrated shield greatly reduces capacitive coupling from current conductor to die due to high dV/dt signals, and prevents offset drift in high-side,
   high voltage applications

- Total output error improvement through gain and offset trim over temperature

- Small package size, with easy mounting capability

- Monolithic Hall IC for high reliability

- Ultra-low power loss: 100 μΩ internal conductor resistance

- Galvanic isolation allows use in economical, high-side current sensing in high voltage systems

- 3.0 to 5.5 V, single supply operation
- 50A working current, -40℃ ~ +150 ℃ working temperature

- 120 kHz typical bandwidth

- 3 μs output rise time in response to step input current

- Output voltage proportional to AC or DC currents

- Factory-trimmed for accuracy

- Extremely stable output offset voltage

- Nearly zero magnetic hysteresis

Package included:

1 x Linear Current Sensor Hall Current Module
