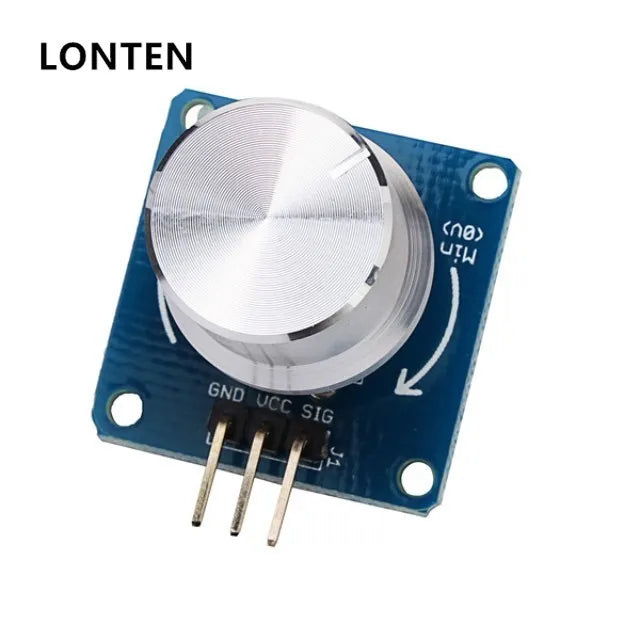

Adjustable Potentiometer Volume Control Knob Switch Rotary Angle Sensor Module For
Description:
Rotary Angle Sensor is based on the 10k the adjustable potentiometer knob Angle sensor module, the output is 0 ~ VCC simulation values, the output voltage will be as the potentiometer rotation Angle and linear changes. Apply to 3.3 V and 5 V of the SCM system, and the board are compatible. Especially suitable for the volume regulator, such as lighting regulator DIY project
Feature:
Easy to use
Electronic building blocks Interface
Power supply is 3 ~ 5.5VDC
4 M2 screw positioning holes for easy installation
Parameter:
| Item | Minimum | Typical Value | Maximum | Unit |
| VCC | 3 | 5 | 5.5 | V |
| VOUT | 0 | N/A | VCC | V |
| Rotation Angle | 0 | N/A | 280 | Deg |
| Size | 24 x 29 x 27 | mm | ||
| Weight | 8 | g | ||
Interface:

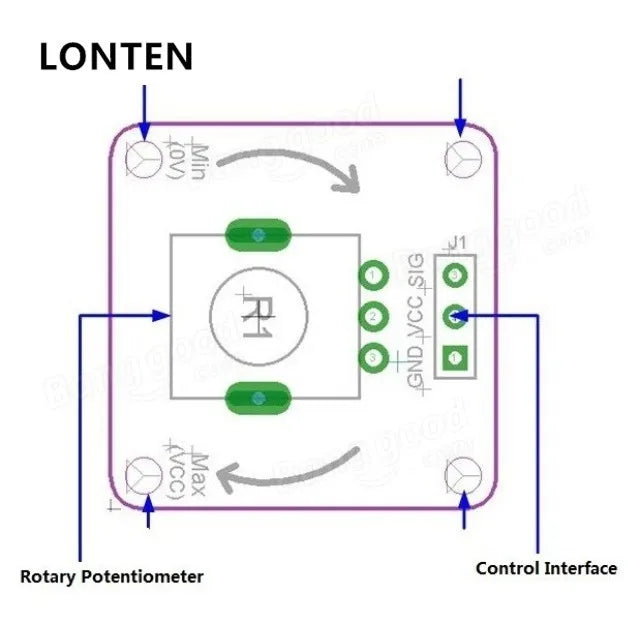

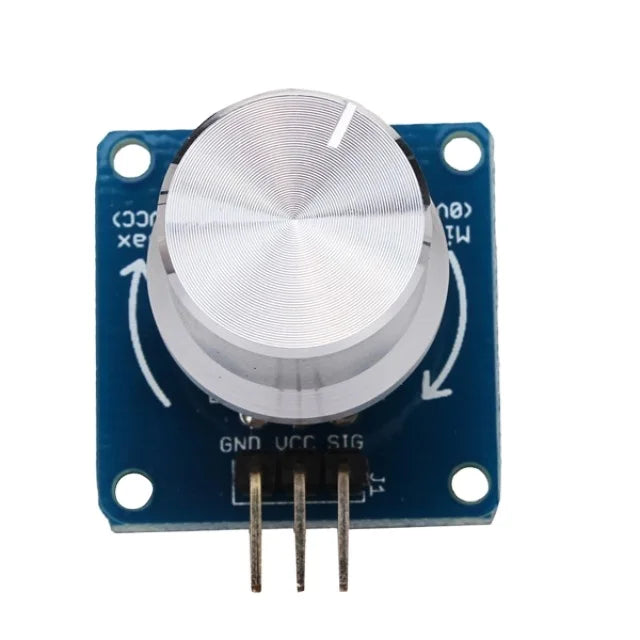

Control Interface: GND to ground, VCC power supply, SIG is the signal output pin.

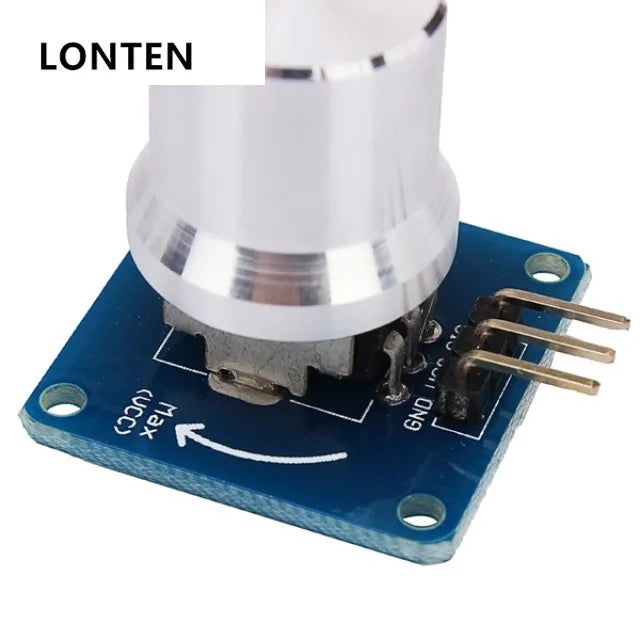

Knob Potentiometer: 10K ohm linear adjustable potentiometer, add aluminum knob cap.
Positioning holes: 4 M2 screws positioning holes with a diameter of 2.2mm, easy to install, implement the module combinations.
http://img..com/file/products/20141126005847Rotary%20Angle%20Sensor%20Schematic.pdf
Package included:
1 x Rotary Angle Sensor
