Custom Lonten AC220V 20A Digital Voltage Meter Meter LCD 5KW Power Voltmeter Ammeter Current Amps watt meter tester detector indicator Manufacturer
Custom Lonten AC220V 20A Digital Voltage Meter Meter LCD 5KW Power Voltmeter Ammeter Current Amps watt meter tester detector indicator Manufacturer
Regular price
$9.30 USD
Regular price
$9.30 USD
Sale price
$9.30 USD
Unit price
per
Couldn't load pickup availability
Note: The price is Bundle(optiona)1,Lonten provide electronic component for tics,welcome OEM ,ODM,for more please contact.
Item specifics
- :
- Type:Voltage Regulator
- Condition:New
- Application:Computer
- Supply Voltage:220V
- Dissipation Power:1
- Operating Temperature:1
- Model Number:P06S-20
- is_customized:Yes
- Package:SMD
Product Description
AC220V 20A Digital Voltage Meter Meter LCD 5KW Power Voltmeter Ammeter Current Amps watt meter tester detector indicator
Active power is calculated as: P = U I cos, cos represents the power factor, purely resistive loads (such as incandescent, heater, etc.) the power factor is generally close to 1, inductive and capacitive load load power factor 0-1; therefore purely resistive load test time, P is substantially equal to or close to U I; test inductive or capacitive loads (such as refrigerators, washing machines, teions, computers, etc.) when, P L than U I As for the specific number to keep the power factor related to power factor different for each appliance, please show table prevail.
Specification

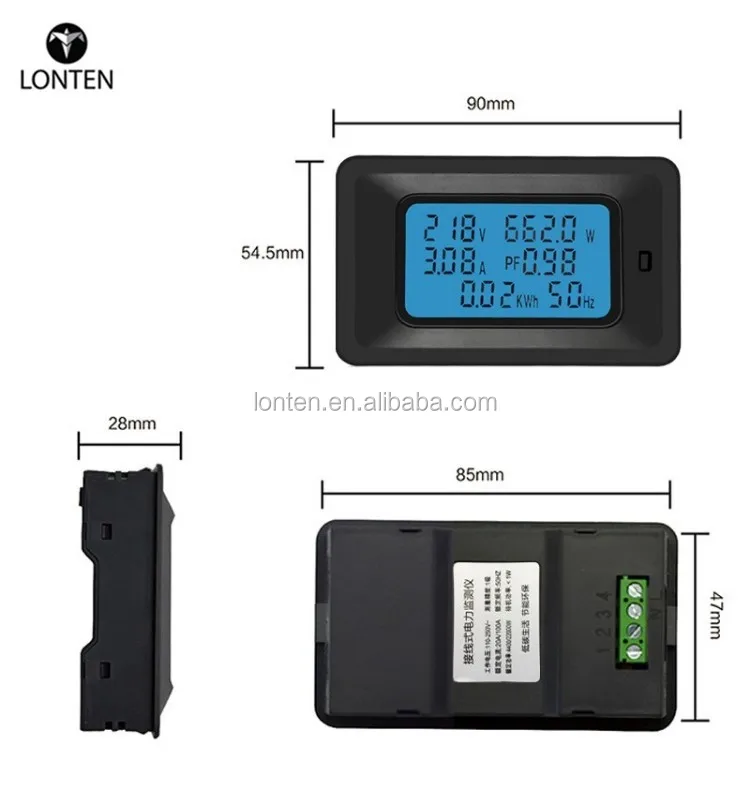

Size: 90x54.5x28mm
Apply to power grid voltage range 110V-220V
Working voltage: 85 ~ 250VAC
Test voltage: 85 ~ 250VAC
Rated power: 20A / 5000W
Working Frequency: 45-65Hz
Measurement accuracy 1.0
Feature
network voltage direct power supply, no external power supply, measurement precision, large-screen LCD liquid crystal screen display clearly.
A. Function
1. electrical parameter measurement function (voltage, current, active power, power).
2. overload alarm function (over power alarm threshold, the backlight and power flicker tips).
3. The power alarm threshold preset function (can set up their own power alarm threshold).

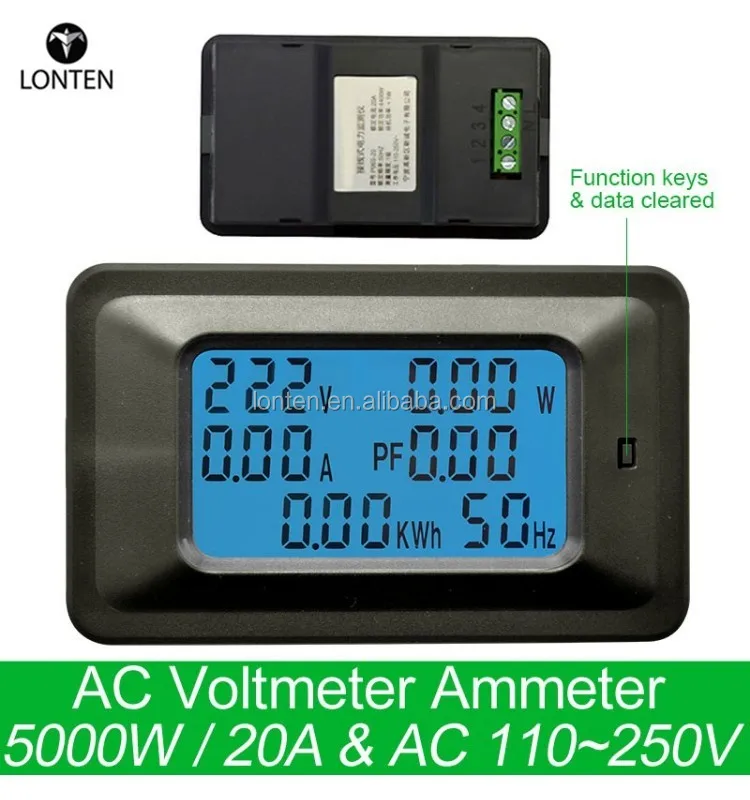

The power button clear function.
5. Power-down data storage function.
6. Large-screen LCD screen full display function (display voltage, current, active power, power).
7. Backlight.
B. display and key
Display Interface

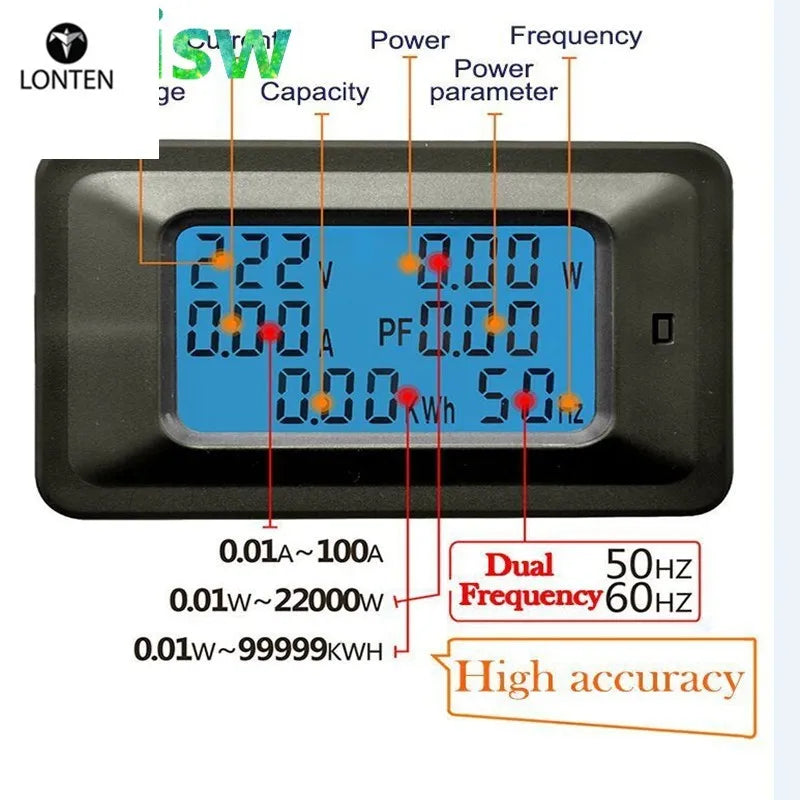

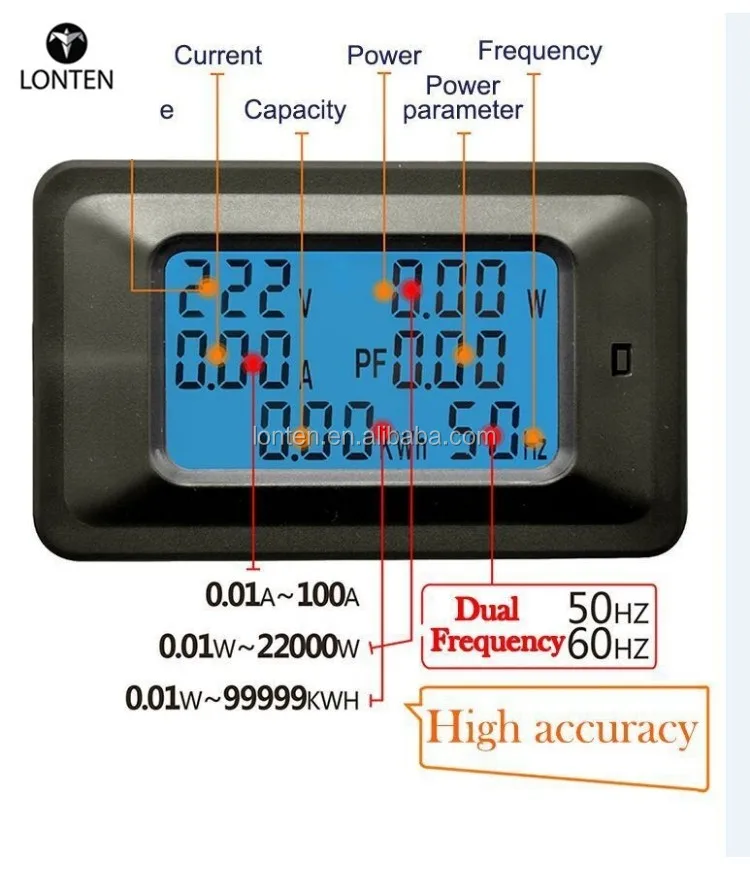

Display voltage, current, power, parameters from the large-screen LCD screen simultaneously.
1.20A digital voltmeter 1pcs(not include external shunt,include built-in 20A shunt)

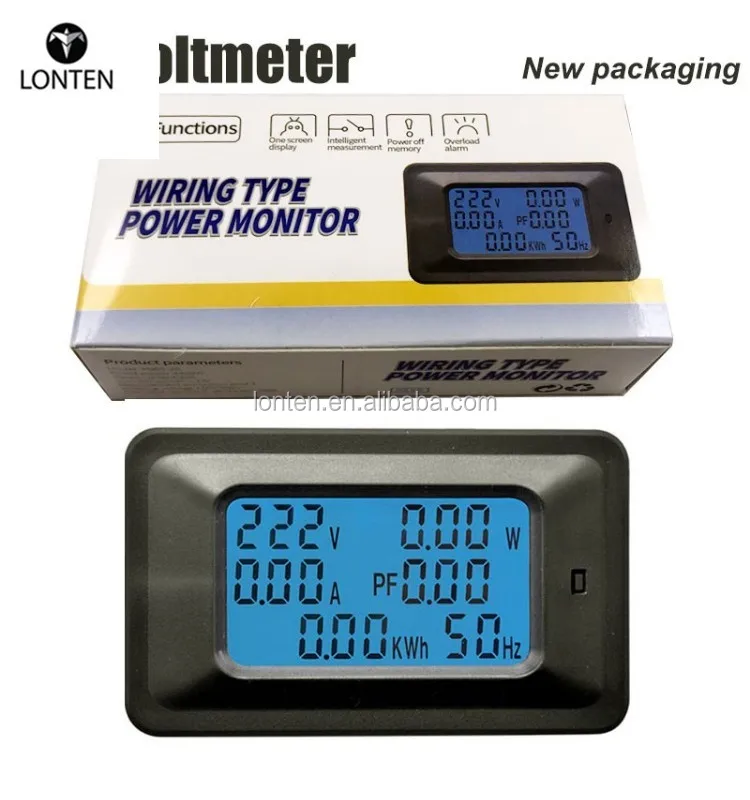

2.Packing Box 1pcs
'
Packaging Details
- Unit Type:piece
- Package Weight:0.1kg (0.22lb.)
- Package Size:10cm x 5cm x 10cm (3.94in x 1.97in x 3.94in)
