Custom Lonten 5pcs/lot JDY-31 DC 3.6-6V wireless to Serial Adapter Module SPP Protocol Android Compatible with HC-05/06 JDY-30 Manufacturer
Custom Lonten 5pcs/lot JDY-31 DC 3.6-6V wireless to Serial Adapter Module SPP Protocol Android Compatible with HC-05/06 JDY-30 Manufacturer
Regular price
$11.99 USD
Regular price
$11.99 USD
Sale price
$11.99 USD
Unit price
per
Couldn't load pickup availability
The price is only for Bundle(optiona)1, Lonten provide electronic component ,welcome OEM ,ODM,for more please contact.
Product introduction:

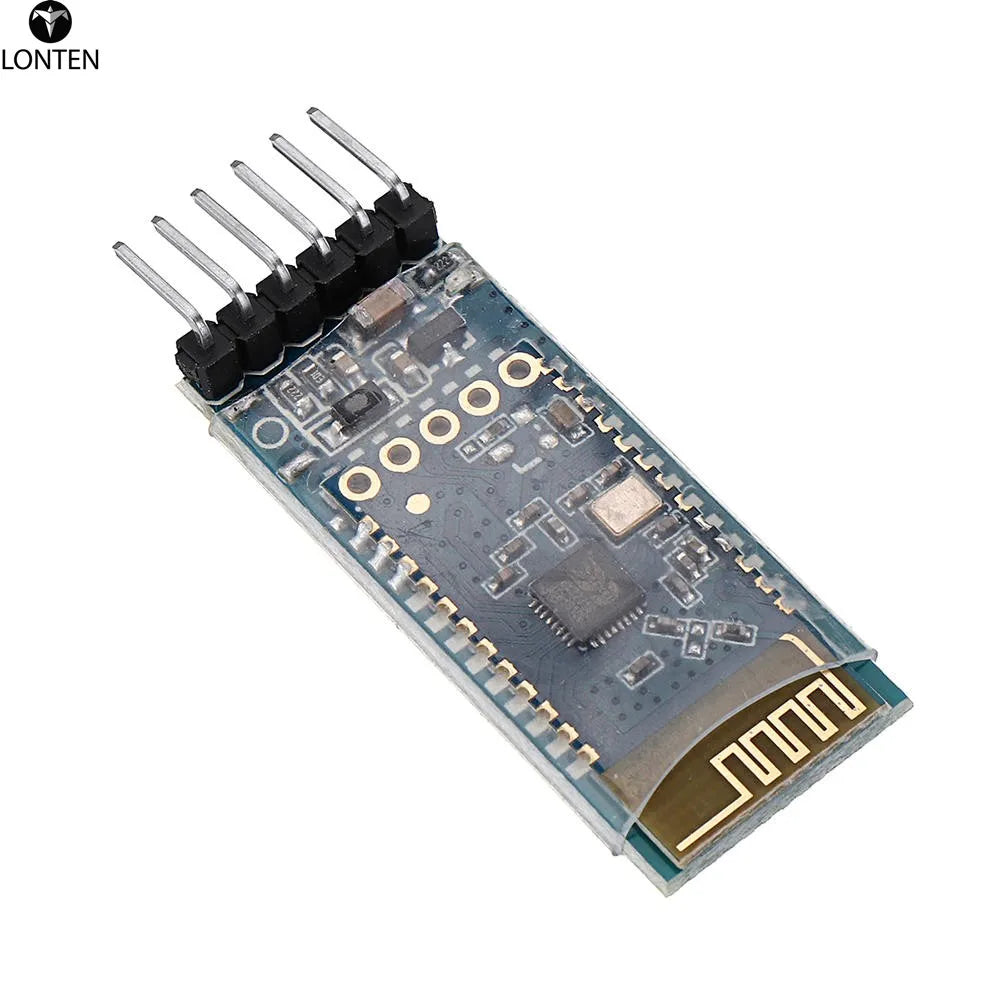

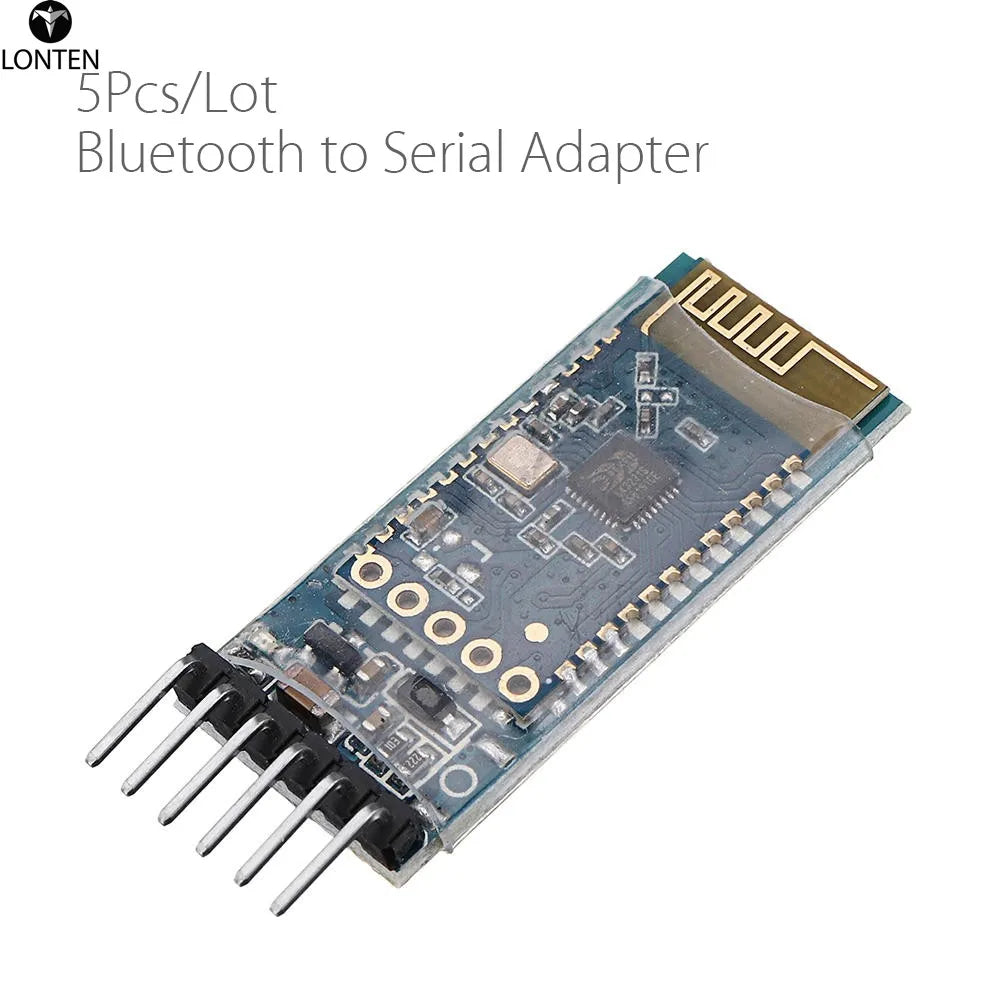

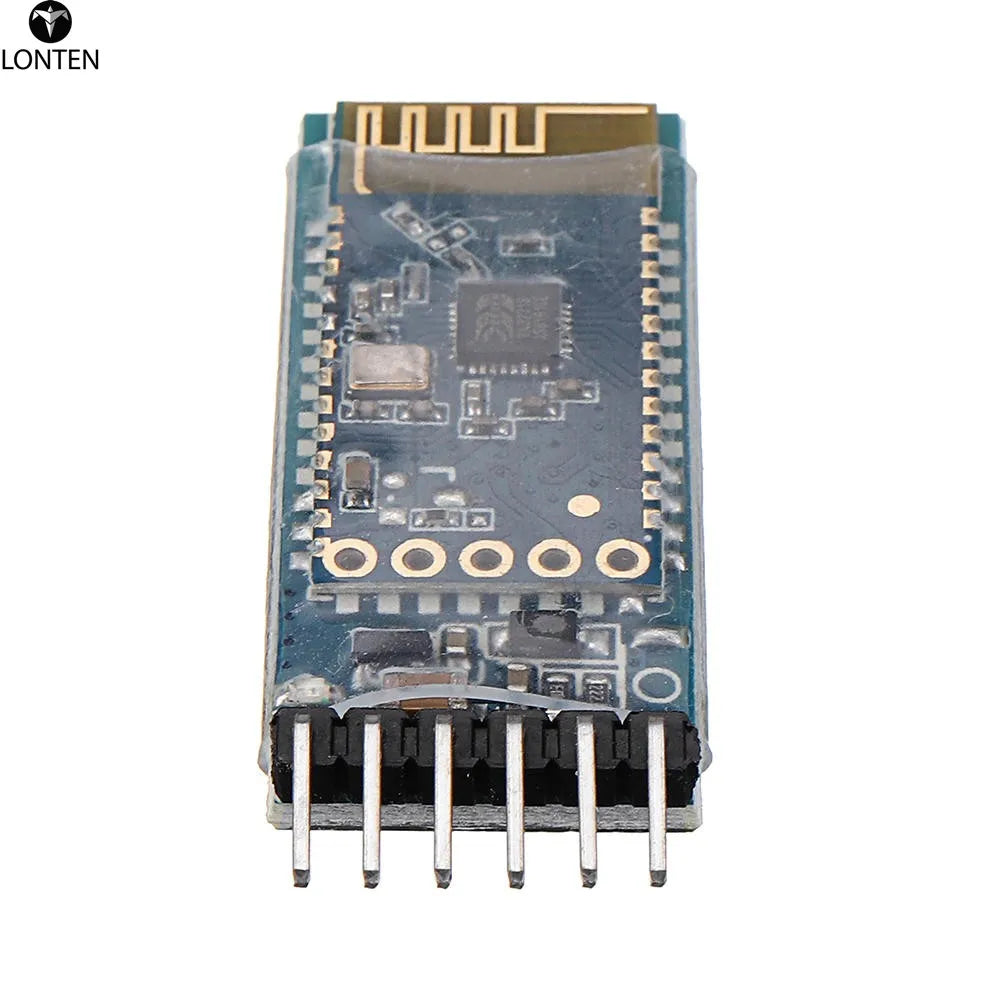

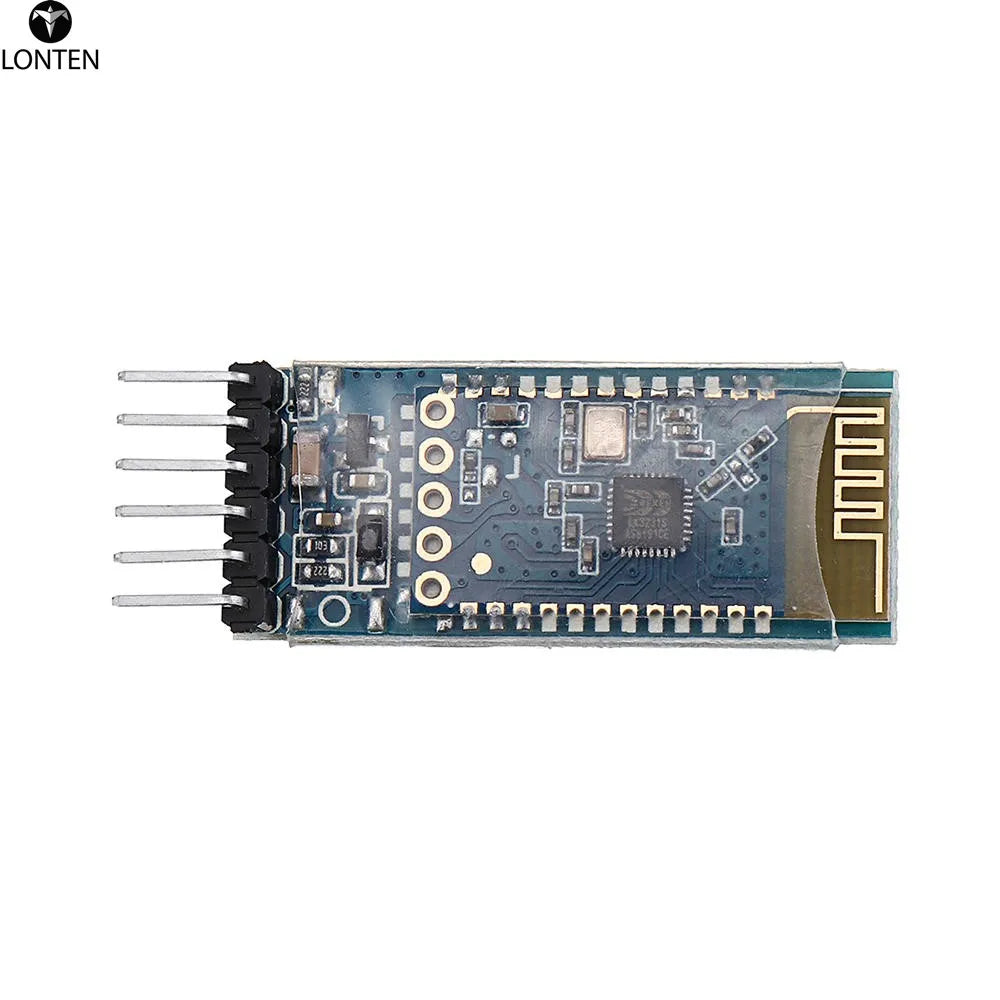

JDY-31 Bluetooth is based on Bluetooth 3.0 SPP design, which can support Windows, Linux, android data transmission, working frequency 2.4GHZ, modulation mode GFSK, maximum transmission power 8db, maximum transmission distance 30 meters, support users to modify device name through AT command The baud rate and other instructions are convenient and quick to use.
Applications:
JDY-31 is a classic Bluetooth protocol that can communicate with Bluetooth-enabled computers (desktops, notebooks) and mobile phones (android). Can be applied
Windows computer Bluetooth serial port transparent transmission
Android Bluetooth serial port transparent transmission
Smart home control
Automotive ODB testing equipment
Bluetooth toy
Share mobile power, share weight
Medical equipment
| Model | JDY-31 |
| Working frequency | 2.4GHZ |
| Communication Interface | UART |

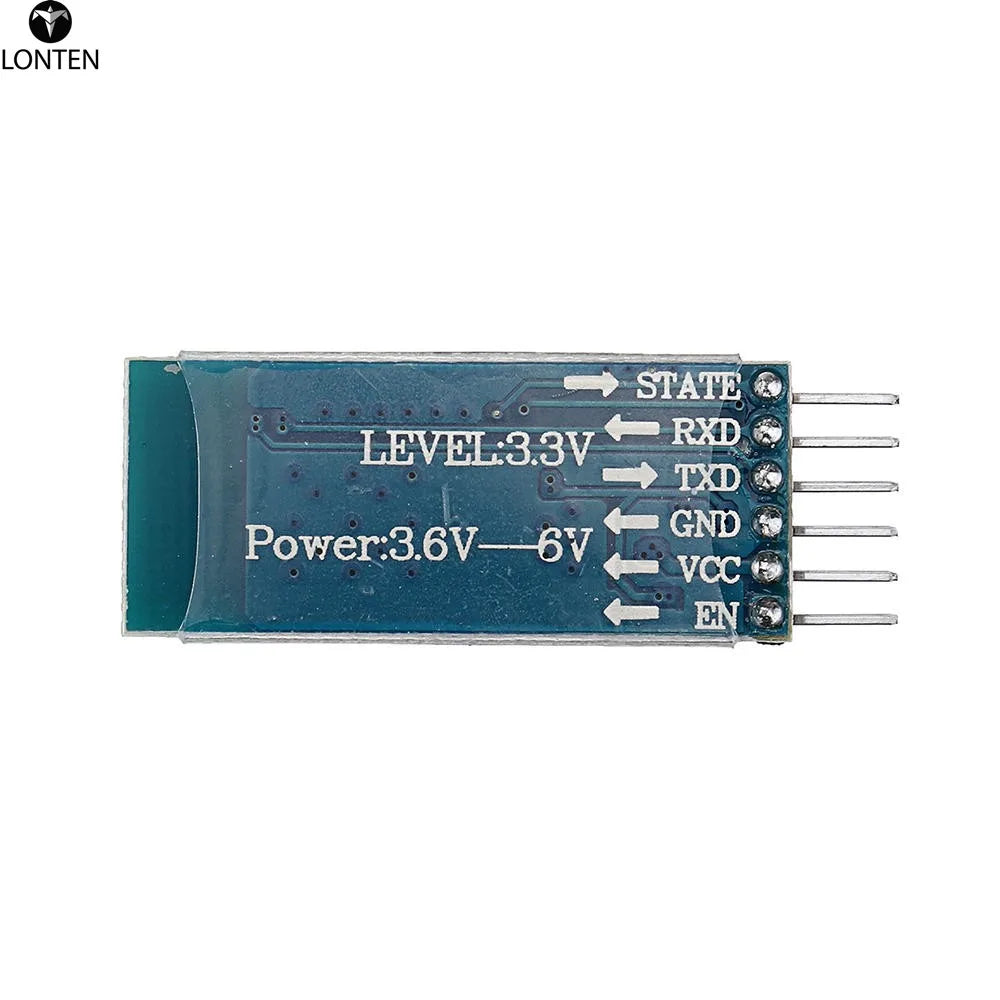

| Operating Voltage | SMD type: 1.8-3.6V (3.3V recommended) with backplane: 3.6-6V (recommended 5V) |
| Operating temperature | -40 ° C - 80 ° C |
| Antenna | Built-in PCB antenna |
| Transmission distance | 30 meters |
| ma-ster-slave support | Slave |

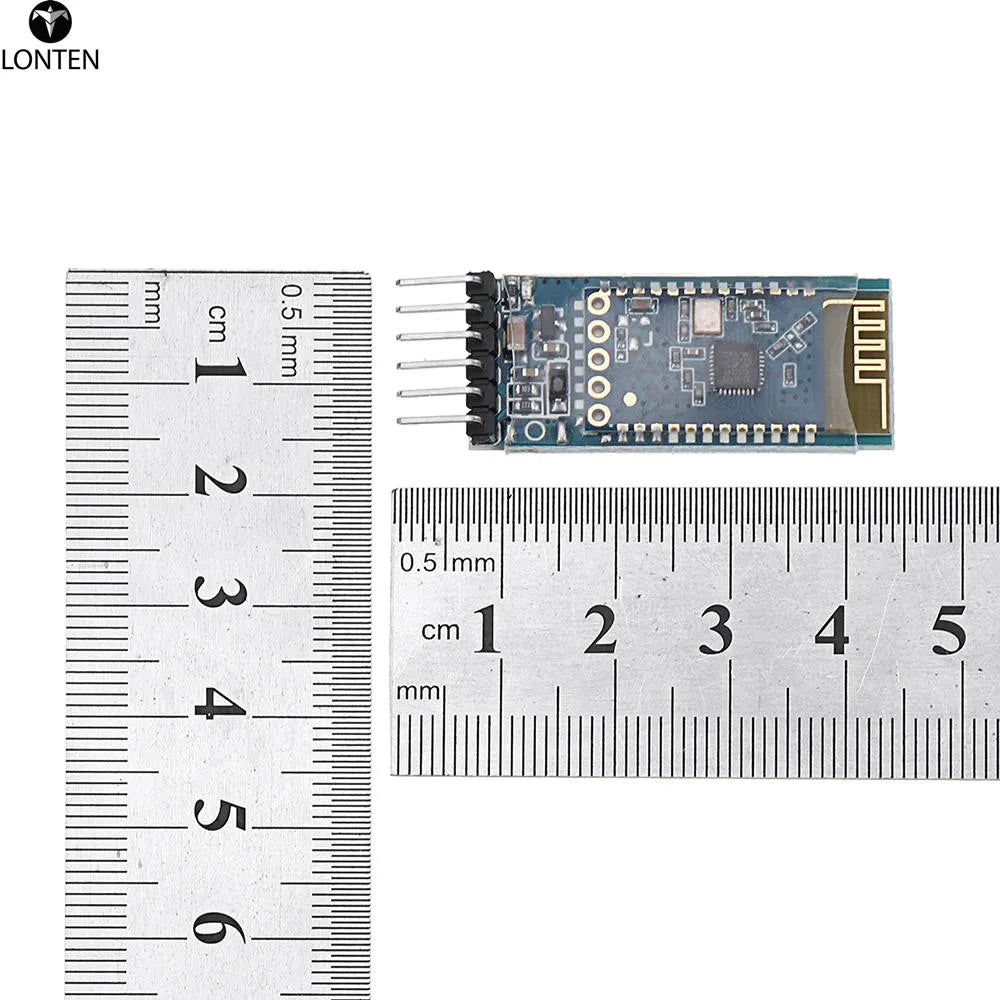

| Module size | 19.6 * 14.94 *1.8 mm (length, width, height) |
| Bluetooth version | Bluetooth 3.0 SPP |
| STM soldering temperature | <260°C |
| Unconnected operating current | 4.7mA |
| Current after BLE connection | 7.3mA |
| Transmit power | 8db (maximum) |
| Receiving sensitivity | -97dbm |
| SPP maximum throughput | 16K bytes/s (android, windows) |
Package includes:
5 x Module
