Custom Lonten 5MP 1080P 720P For Raspberry pi Camera Wide Angle Fisheye Night Vision Video Camera Compatible Raspberry Pi 3 Model B+ Pl Manufacturer

5MP 1080P 720P For Raspberry pi Camera Wide Angle Fisheye Night Vision Video Camera Compatible Raspberry Pi 3 Model B+ Plus 3/2

Specification:

Sensor type: Mini Vision OV5647 Color CMOS QSXGA (5-megapixel)

Sensor size: 3.67 x 2.74 mm (1/4" format)

Pixel Count: 2592 x 1944

Pixel Size: 1.4 x 1.4 um

Lens: f=3.6 mm, f/2.9

Angle of View: 65-75 degrees

Field of View: 2.0 x 1.33 m at 2 m

Full-frame SLR lens equivalent: 35 mm

Fixed Focus: 1 m to infinity

Video: 1080p at 30 fps with codec H.264 (AVC)

Up to 90 fps Video at VGA

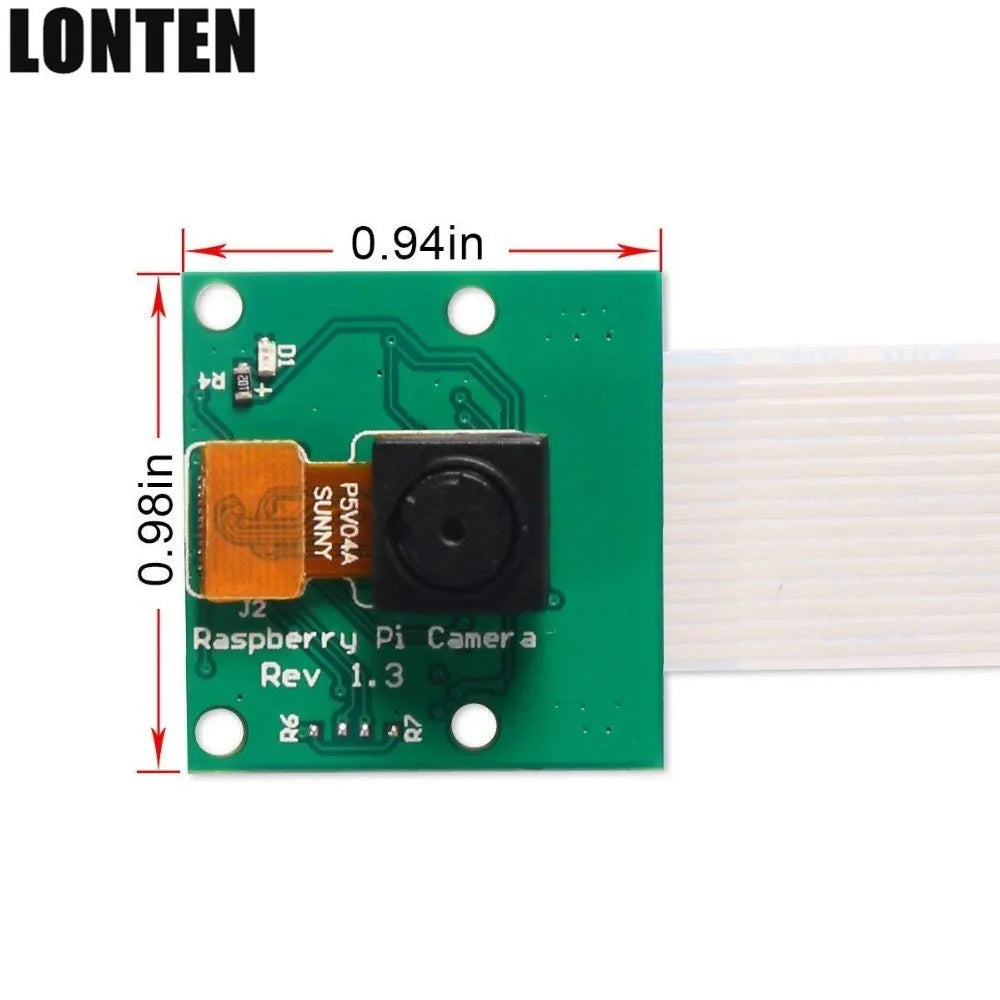

Board size: 25 x 24 mm (not including flex cable)

Because the focal length of the lens is roughly the same as the width of the sensor, it is easy to remember the field of view: at x meters away, you can see about x meters horizontally, assuming 4x3 stills mode. Horizontal field of view in 1080p video mode is 75% of that (75% H x 55% V sensor crop for 1:1 pixels at 1920x1080).

References: Focal length and f-stop measurements ,depth of field & angle of view calculators sensor info f-stop measurement

Features:

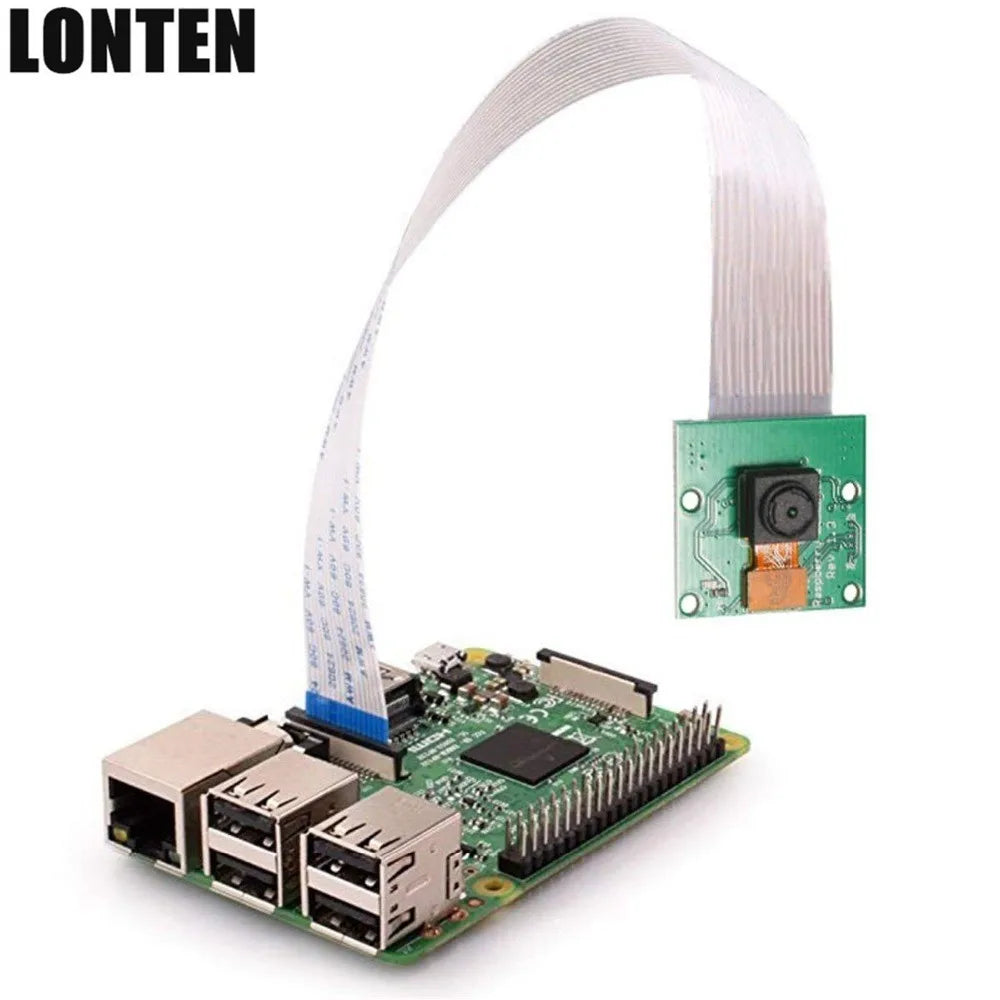

1. Use for : Raspberry Pi 3B+/3/2

2. 5 million high pixels

3. Suport 1080P

4. Mini size

Package list:

1 x Raspberry Pi Camera(not include the Raspberry Pi)

1x 15cm FFC cable





Introduction:

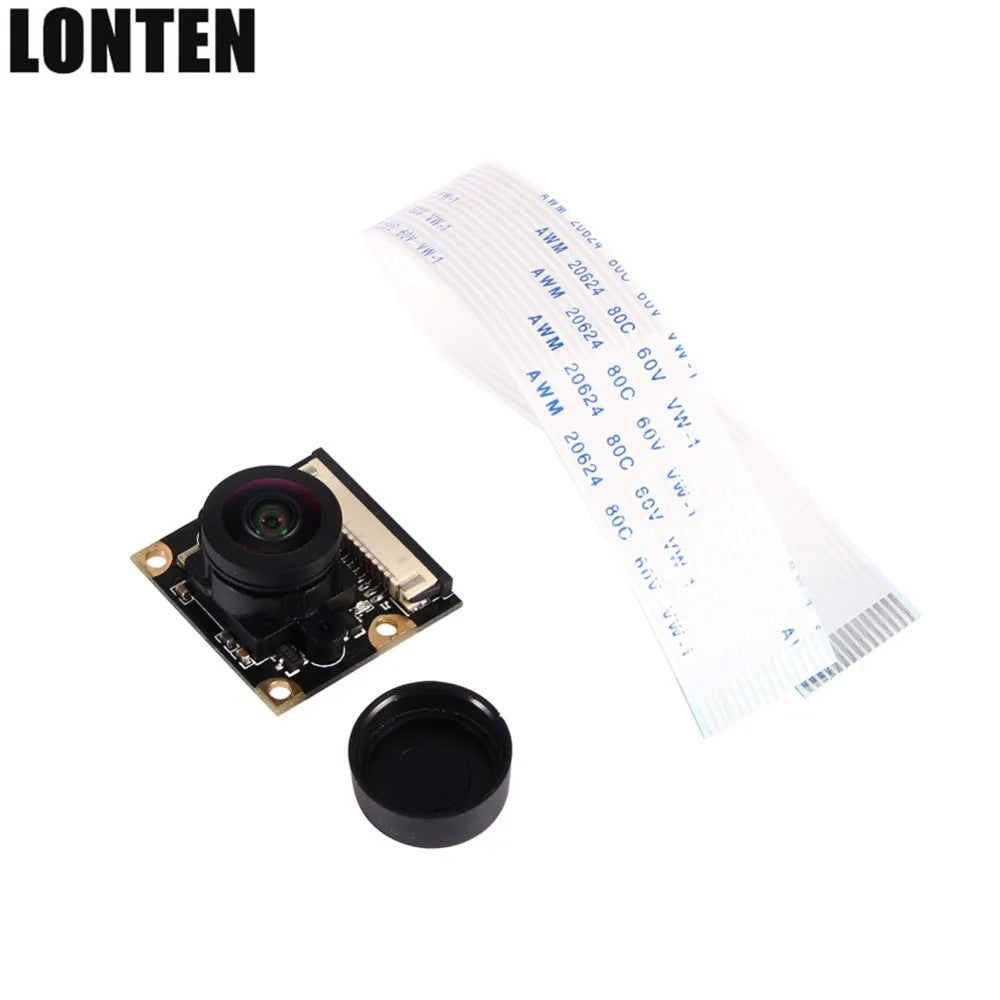

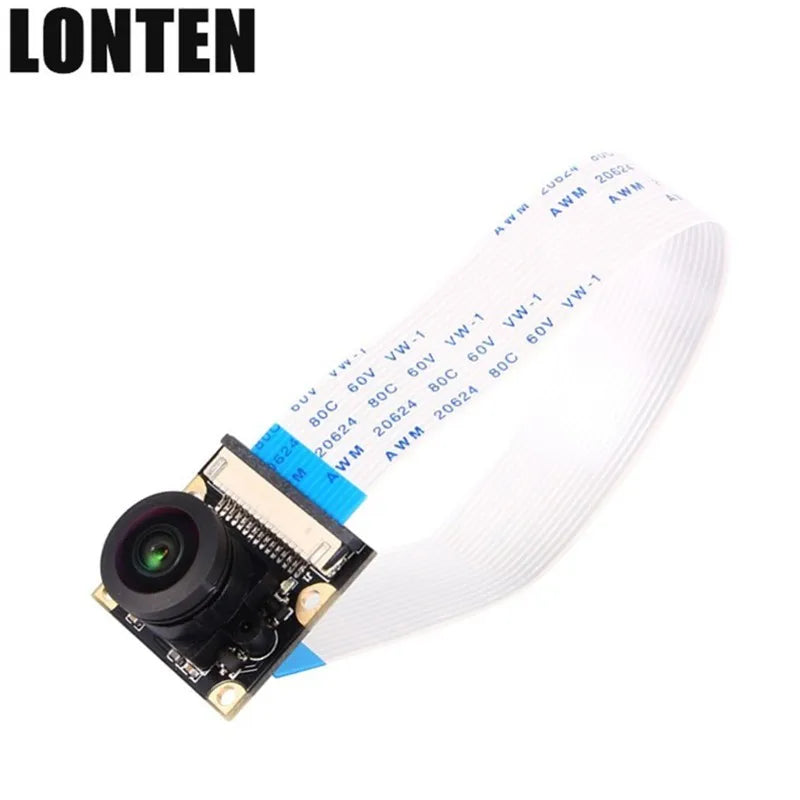

This is a fish eye ( wide angle ) night vision camera for raspberry pi . You can use it to take a wide angle picture or video by this camera .

To use the night vision function , it must be installed 2 infrared LED lights on the camera .

There 4 screw hole on the camera , which is used to both fix the infrared lights and though the power for the lights .You can use a small screwdriver to install the lights easily .









Feature:



1. Fish eye wide angle lens

2. Night vision camera ( must use with the infrared lights )

3. 5 MP pixel

4. Support 1080P resolution





Specifications:



5 megapixel OV5647 sensor

CCD size : 1/4inch

Sensor best resolution : 1080p

4 screw holes: used for attachment , connect 3.3V power output

Focal length : 2.1

Diagonal angle : 130 degree

Dimension: 25mm x 24mm




Package Iist:



1 x Raspberry Pi Wide Angle Camera
