Remark:The price is only for Bundle(optiona)1 ,welcome OEM ,ODM,If you want Smart home Price List please contact.
Description:
100% New and High Quality!

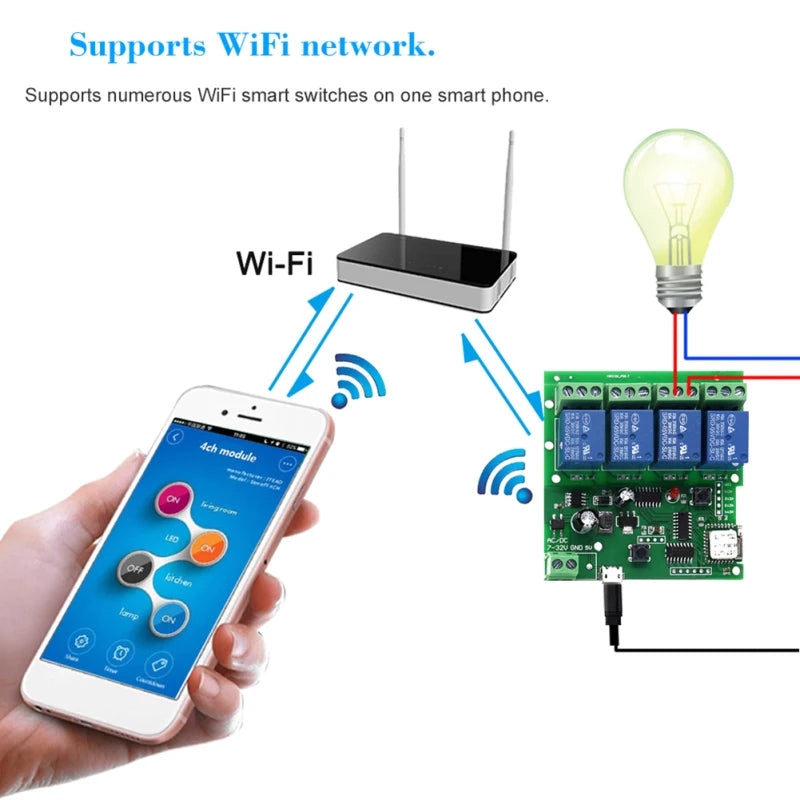

This is a easy wireless switch module, no programming, only need to download an APP and link WiFi then can control the own cloud.
As long as the module links WiFi, the connected appliance of different types and s can be controlled via phone APP from anywhere & anytime.
Meanwhile, by setting timing schedules for your appliances and sharing control your smart home together with your family.
Supports remotely turn on or off connected appliances, for example light, electric kettle, electric rice cooker, electric curtain, etc.
Supports max 8 enabled scheduled/countdown/loop timers for each device.
Voice control which is compatible perfectly for Amazon Alexa, for IFTTT, etc
Specification:
Item Name: 4CH WiFi Switch Module
Working Voltage: According to your choice
Indicator: With A Signal Indicator, Relay Pull the Light
Two Input Interfaces: According to your choice
Board Consumption: <1W
Standby Current: 80mA
Input Current: ≤10A
Wattage: ≤2200W
4 Channel Total Load: 10A/2200W
Single Load: 10A/2200W
Relay lifespan: ≥1000000 Times
Electrical Insulation Resistance: 100M
Electric Shock Voltage: 1000V
Relay Maximum Suction Time: 15ms
Relay Maximum Release Time: 5ms
Working Mode: Inching/Self-Locking, Interlock
Transmission Mode: WiFi Communication
Wireless Standard: 2.4GHz, 802.11 b/g/n
Control Distance: Infinity
Controlled Lines: 4
Enclosure Material: Fire-Retardant ABS
Operating Temperature: -40℃ to 70℃
Operating Humidity: 40% - 80% RH
Module Size: 7.4cm x 7.3cm x 2.4cm/2.91" x 2.87" x 0.94" (Approx.)

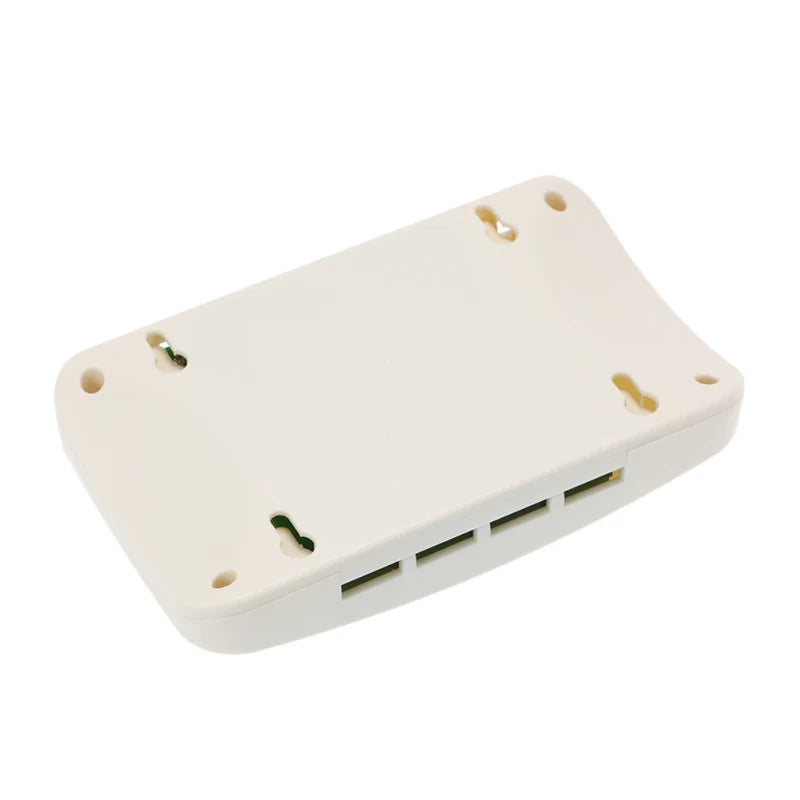

Shell Size: 13.3cm x 8cm x 2.8cm/5.24" x 3.15" x 1.1" (Approx.)
Specifications:
Item Name: 4CH WiFi Switch Module
Working Voltage: According to your choice
Indicator: With A Signal Indicator, Relay Pull the Light
Two Input Interfaces: According to your choice
Board Consumption: <1W
Standby Current: 80mA
Input Current: ≤10A
Wattage: ≤2200W
4 Channel Total Load: 10A/2200W
Single Load: 10A/2200W
Relay lifespan: ≥1000000 Times
Electrical Insulation Resistance: 100M
Electric Shock Voltage: 1000V
Relay Maximum Suction Time: 15ms
Relay Maximum Release Time: 5ms
Working Mode: Inching/Self-Locking, Interlock
Transmission Mode: WiFi Communication
Wireless Standard: 2.4GHz, 802.11 b/g/n
Control Distance: Infinity
Controlled Lines: 4
Enclosure Material: Fire-Retardant ABS
Operating Temperature: -40℃ to 70℃
Operating Humidity: 40% - 80% RH
Module Size: 7.4cm x 7.3cm x 2.4cm/2.91" x 2.87" x 0.94" (Approx.)
Shell Size: 13.3cm x 8cm x 2.8cm/5.24" x 3.15" x 1.1" (Approx.)
Package Included:
1 x 4CH WiFi Switch Module
1 x Protective Case(According to your choice)
1 x User Manual
Notes:
Due to the light and screen setting difference, the item's color may be slightly different from the pictures.
Please allow slight dimension difference due to different manual measurement.
