Custom Lonten 4.3inch 480x272 Touch LCD (A) 480*272 DOTS Multicolor Graphic LCD with touch screen no Touch Controller Manufacturer
Custom Lonten 4.3inch 480x272 Touch LCD (A) 480*272 DOTS Multicolor Graphic LCD with touch screen no Touch Controller Manufacturer
Regular price
$20.63 USD
Regular price
$20.63 USD
Sale price
$20.63 USD
Unit price
per
Couldn't load pickup availability
Item specifics
- :
- Resolution: 640x480
- Display Ratio: 16:9
- Feature: Touch Screen
- Products Status: Stock
- Model Number: 4.3inch 480x272 Touch LCD (A)
- Screen Type: LCD
- Panel Type: TFT
- Screen Size: 4.3"
- LCD Type: TFT
- LCD Interface: 24-bit parallel
- Touch Screen Interface: Touch Screen Interface
- Backlight: LED
- Response Time (ms): 30
- Contrast: 500 : 1
- Display Size (mm): 95.04 (W) * 53.86 (H)
- Dot Pitch (mm): 0.006 (W) * 0.198 (H)
- Power Consumption: 56mW
- Backlight Current: 20mA
Product Description
4.3 inch 480*272 DOTS Multicolor Graphic LCD, with touch screen
Key Parameters
| LCD Type | TFT |
|---|---|
| LCD Interface | 24-bit parallel |
| Touch Screen Interface | 4 wires resistive |
| Backlight | LED |
| Response Time (ms) | 30 |
| Contrast | 500 : 1 |
| Brightn (cd/m) | 280 |
| Display Size (mm) | 95.04 (W) × 53.86 (H) |
| Dot Pitch (mm) | 0.006 (W) × 0.198 (H) |
| Colors | 16,777,216 |
| Aspect Ratio | 16 : 9 |
| Resolution | 480 * 272 (Pixel) |
| Power Consumption | 56mW |
| Backlight Current | 20mA |
| Operating Temp. (℃) | -20 ~ +70 |

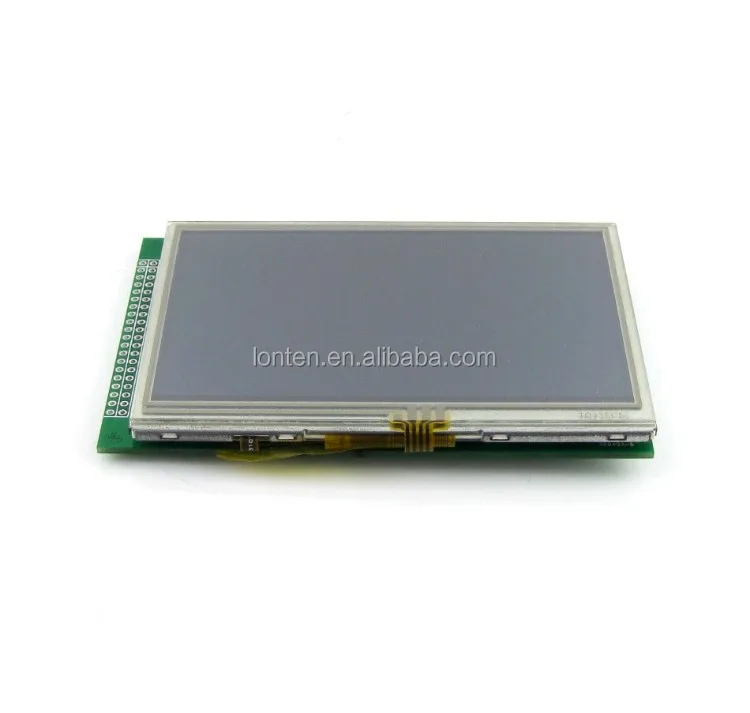

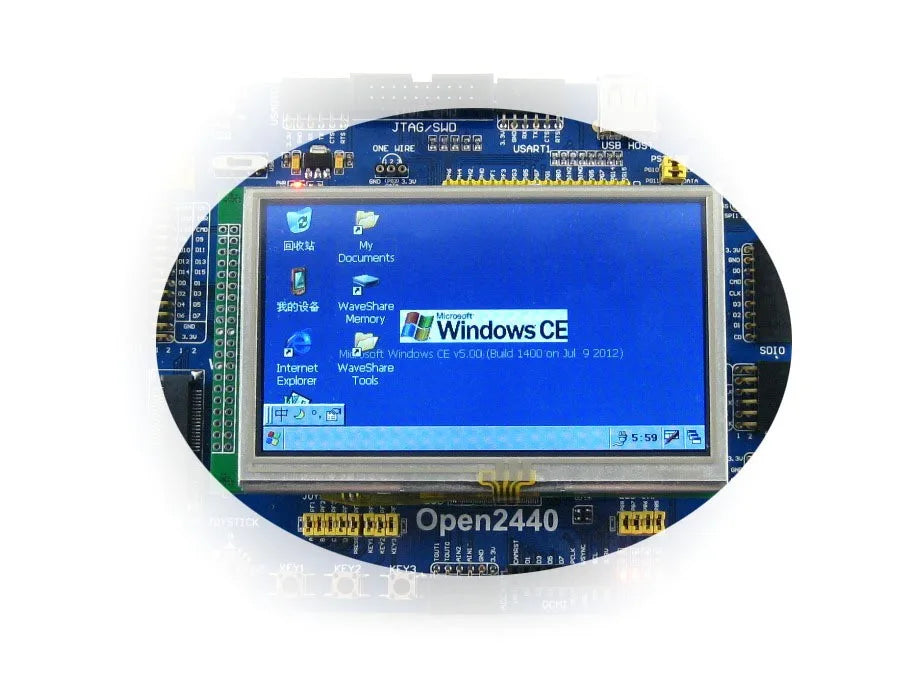

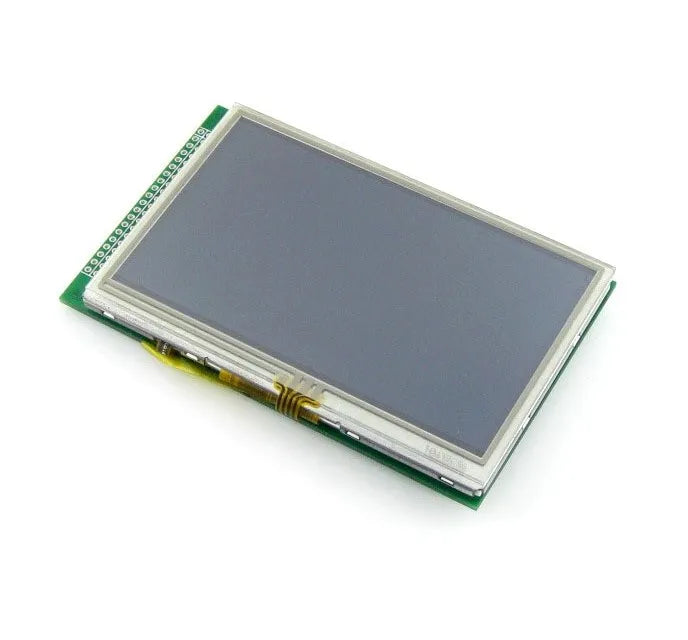

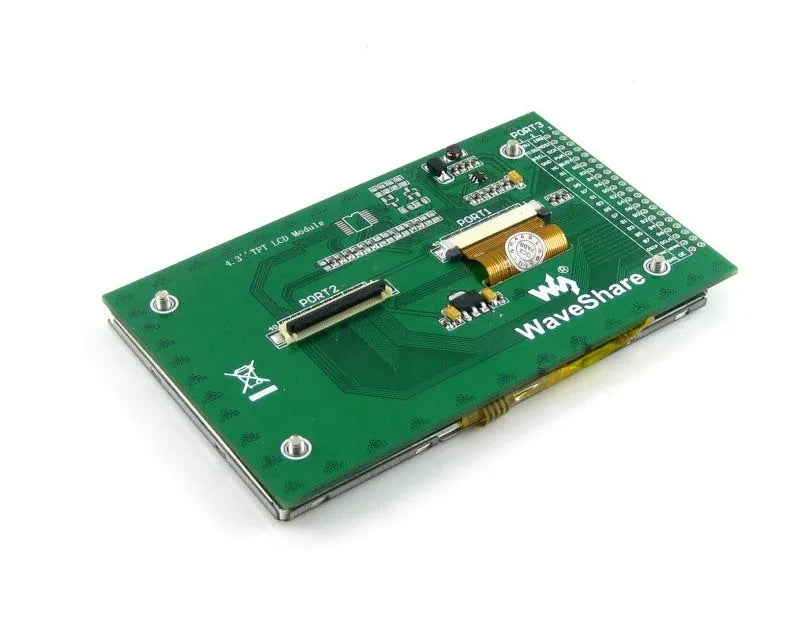

Photos

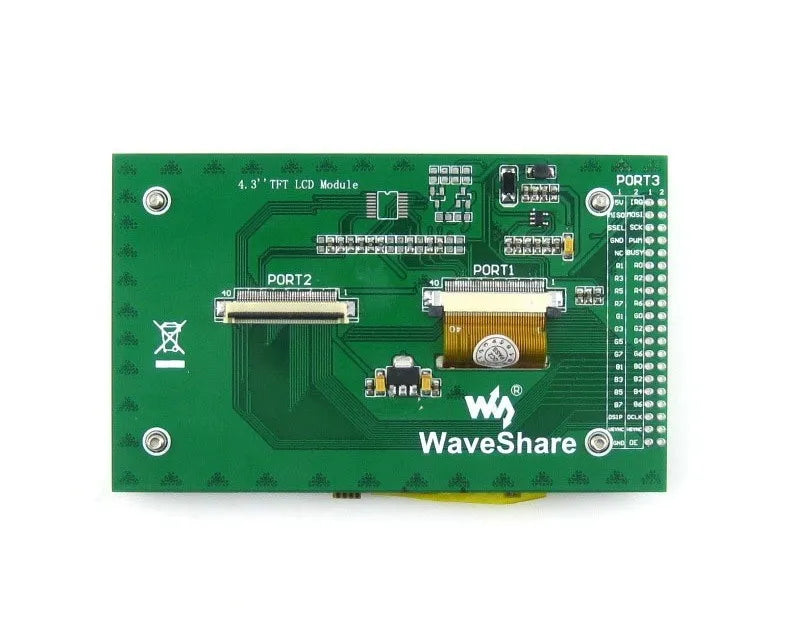

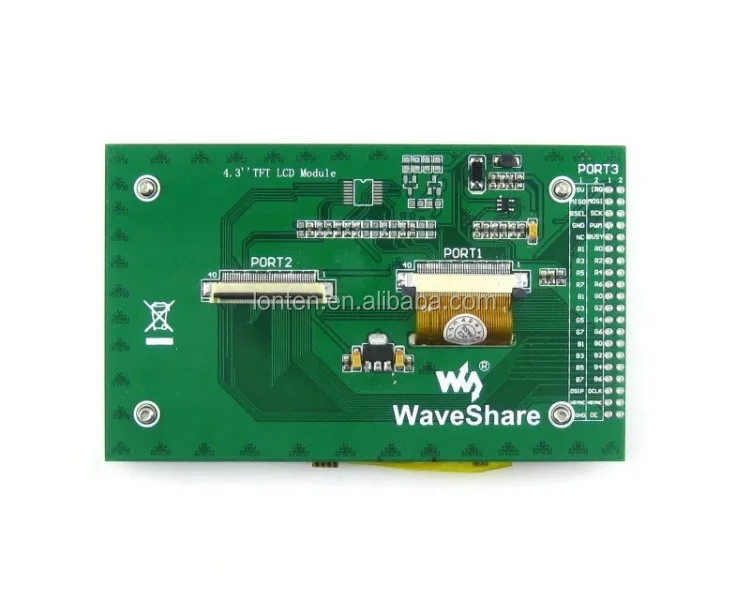

PORT2 Definition
| PIN NO. | SYMBOL | DESCRIPTION | Type | FUNCTION |
|---|---|---|---|---|
| 1 | 5V | 5V power supply | input | 5V power supply |
| 2 | ||||
| 3 | B0 | Data pin | input | Blue data |
| 4 | B1 | |||
| 5 | B2 | |||
| 6 | B3 | |||
| 7 | B4 | |||
| 8 | B5 | |||
| 9 | B6 | |||
| 10 | B7 | |||
| 11 | GND | Ground | input | GND |
| 12 | G0 | Data pin | input | Green data |
| 13 | G1 | |||
| 14 | G2 | |||
| 15 | G3 | |||
| 16 | G4 | |||
| 17 | G5 | |||
| 18 | G6 | |||
| 19 | G7 | |||
| 20 | GND | Ground | input | GND |
| 21 | R0 | Data pin | input | Red data |
| 22 | R1 | |||
| 23 | R2 | |||
| 24 | R3 | |||
| 25 | R4 | |||
| 26 | R5 | |||
| 27 | R6 | |||
| 28 | R7 | |||
| 29 | GND | Ground | input | GND |
| 30 | BL_EN | Backlight on/off | input | 1 : Backlight on 0 : Backlight off |
| 31 | PWM | Backlight brightn adjustment | input | Control the backlight brightn via PWM |
| 32 | NC | |||
| 33 | DE | Control mode selection | input | DE = 0 : SYNC mode DE = 1 : DE mode |
| 34 | VSYNC | Vertical Synchronization | input | Vertical synchronous signal input |
| 35 | HSYNC | Horizontal Synchronization | input | Horizontal synchronous signal input |
| 36 | DCLK | LCD clock | input | LCD clock signal |
| 37 | Y+ | Touch screen Y+ | output | Resistive Touch screen Y+ analog output |
| 38 | Y- | Touch screen Y- | output | Resistive Touch screen Y- analog output |
| 39 | X+ | Touch screen X+ | output | Resistive Touch screen X+ analog output |
| 40 | X- | Touch screen X- | output | Resistive Touch screen X- analog output |
Downloads
Development resources:user manual, schematic, code, datasheets, etc.
: //4.3inch_480x272_Touch_LCD_(A)

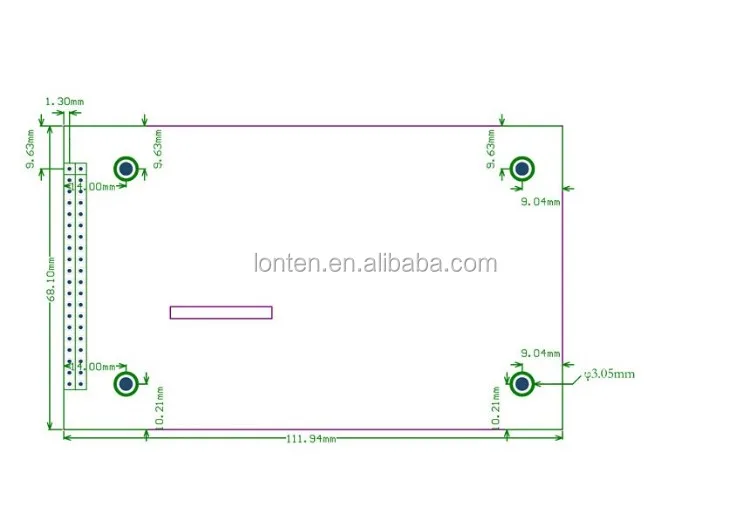

External Dimension
Selection Guide
| PartNumber | Touch Panel Type | Resolution | LCD Data Interface | Touch Controller | For Use With |
|---|---|---|---|---|---|
| 4.3inch 480x272 Touch LCD (A) | Resistive | 480x272 | 24PIN RGB | None | MCU with LCD controller and ADC |
| 4.3inch 480x272 Touch LCD (B) | Resistive | 480x272 | 24PIN RGB | XPT2046 | MCU with LCD controller, without ADC |
PACKAGE CONTENT
Weight: 0.107 kg
- 4.3inch 480x272 Touch LCD (A) × 1
- 40-pin FFC 0.5 150mm (opposite sides contact) x1
- 4.3inch LCD screws pack x 1
Packaging Details
- Unit Type: piece
- Package Weight: 0.1kg (0.22lb.)
- Package Size: 13cm x 10cm x 4cm (5.12in x 3.94in x 1.57in)
