Custom Lonten 3Pcs/lot XN297L 2.4G Long Distance Ultra Low Power RF Module Wireless Transceiver Module Manufacturer
Custom Lonten 3Pcs/lot XN297L 2.4G Long Distance Ultra Low Power RF Module Wireless Transceiver Module Manufacturer
Regular price
$7.58 USD
Regular price
$7.58 USD
Sale price
$7.58 USD
Unit price
per
Couldn't load pickup availability
Lonten provide electronic component ,welcome OEM ,ODM,for more please contact.

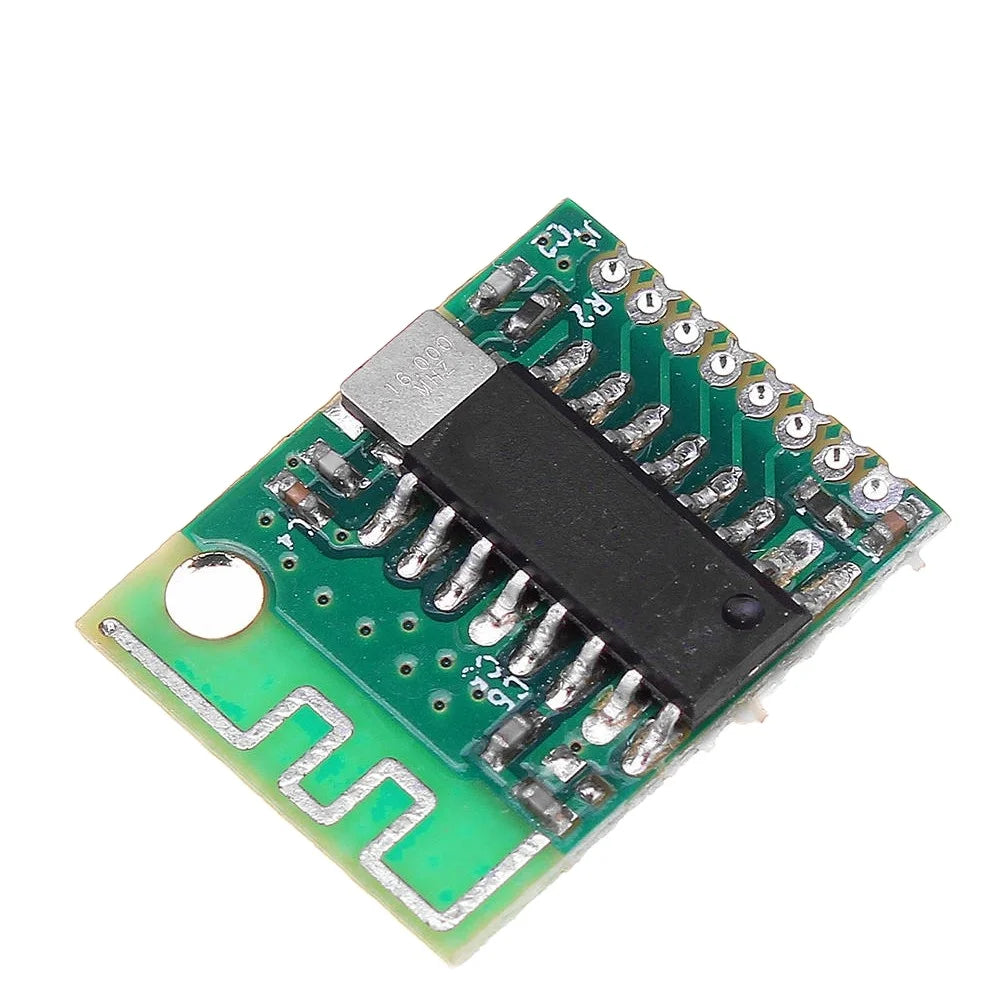

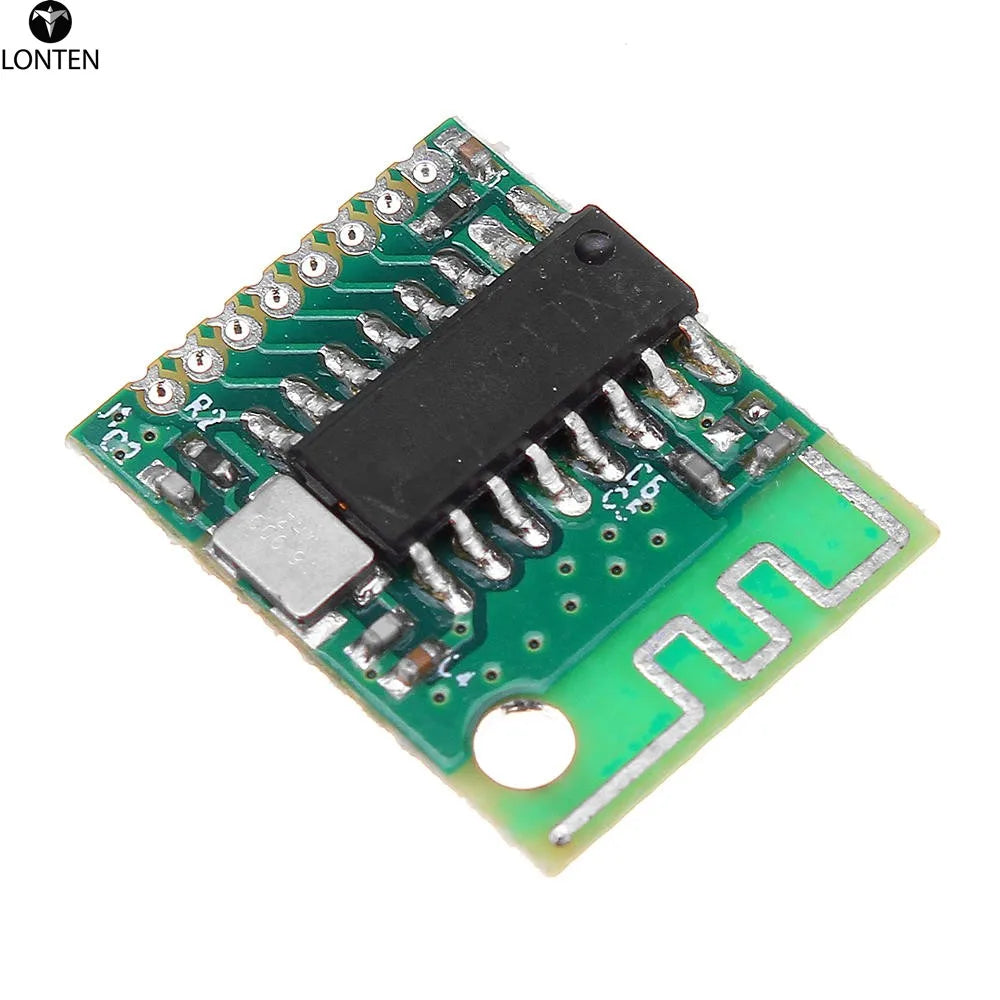

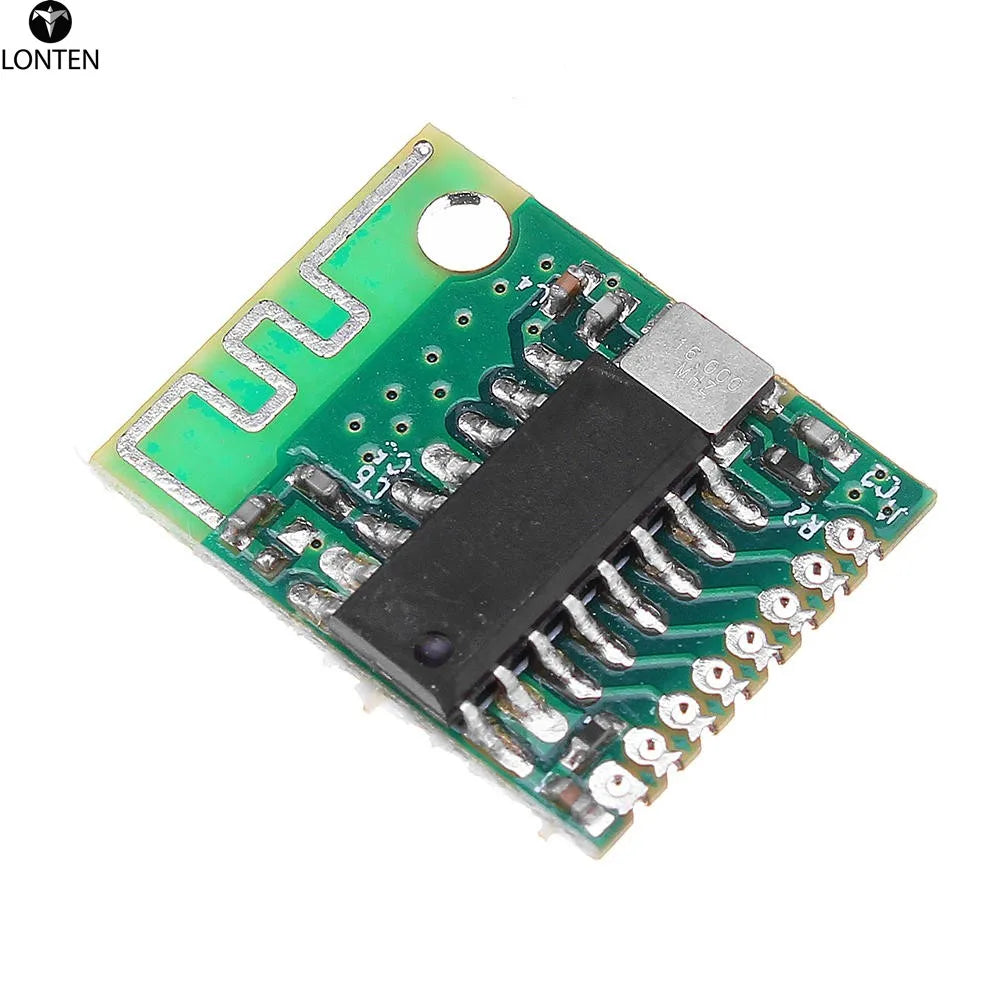

Specifications:

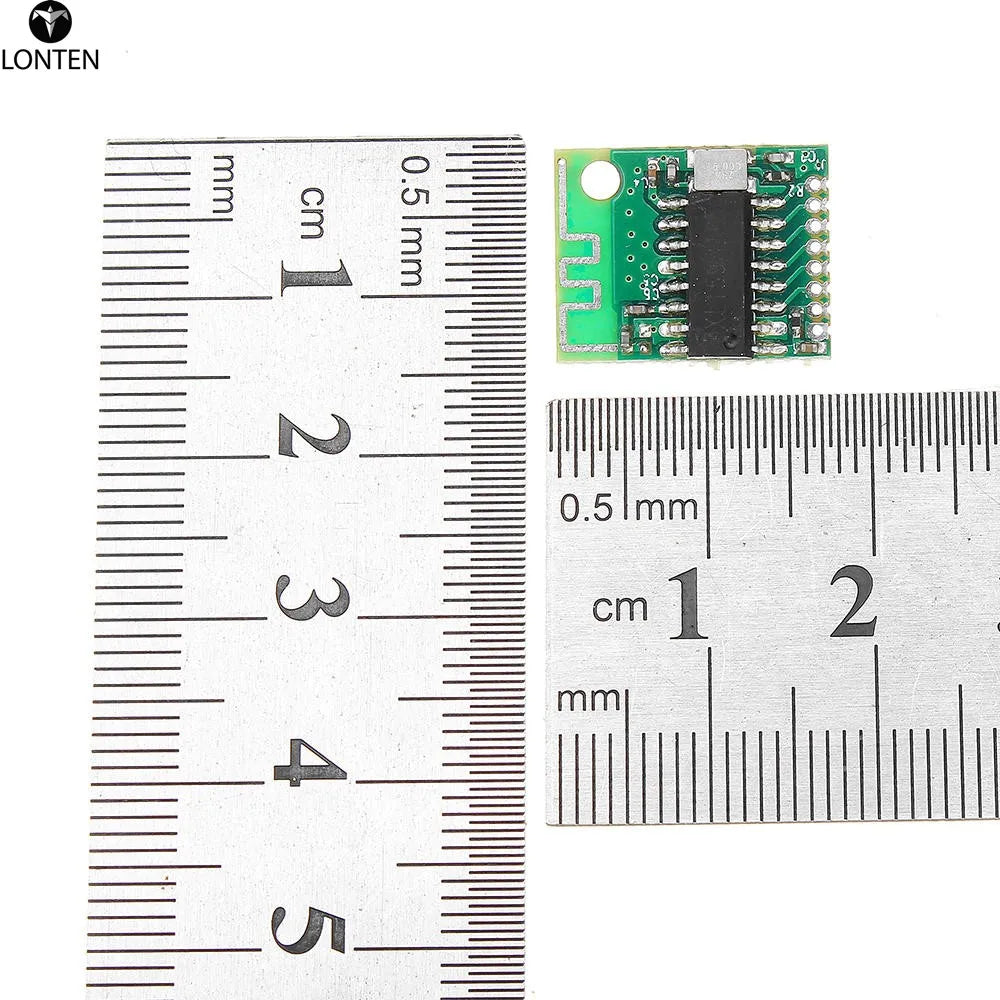

Size: 30.25 × 8.5 × 1mm3
Model: KSL703B
Working voltage: 1.9V~3.6V
Application range:
Ø Wireless mouse / machine keyboard
Ø Wireless PC peripherals
Ø Active RFID
Ø Toys
Ø Remote consumer electronic equipment RF terminal
Features:
WL703B is a 2.4G short-range transceiver module with GFSK modulation. The module integrates RF transceiver channels, GFSK modems and data links. Users only need to make simple settings for the receiving/transmitting channel to communicate. In Auto Transceive mode, the chip can automatically judge whether the data is transmitted/received successfully according to the response information, thereby re-transmitting, losing packets, continuing to send and waiting, etc., simplifying the user program.
Ø Adopt ASK demodulation mode, the receiving sensitivity reaches -110dBm;
Ø 2.4GHZ ISM bandwidth
Ø Code rate: 2Mbps/1MBbps
Ø Very low power consumption (normal temperature):
Emission current: 14.8mA (P0=0dBm)
Receive current: 17.5mA
Shutdown current: 2.5uA
Standby current: 0.9mA
Ø 1.9~3.6V power supply
Ø Auto Transceive data packet automatic retransmission
Ø Automatic packet processing
Ø 6 data channels
Ø 5V withstand voltage

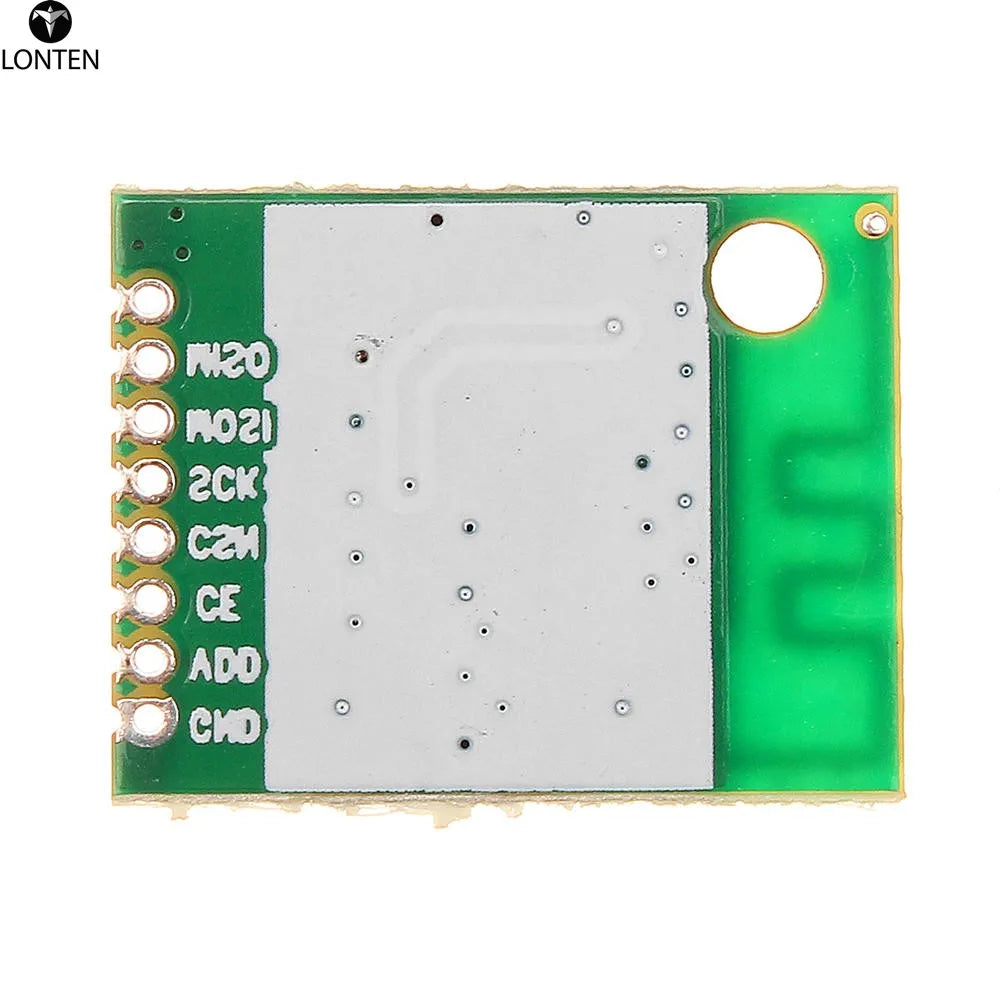

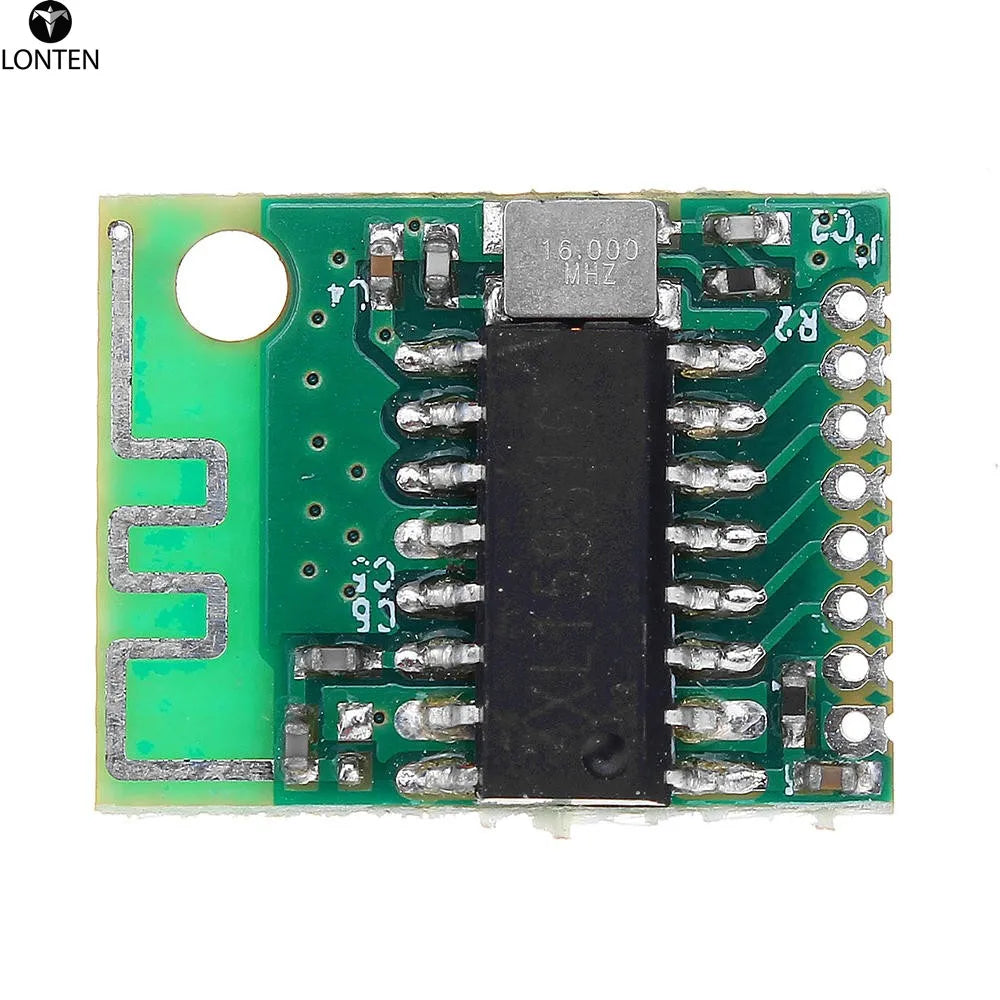

| Lead number | symbol | Name |
| 1 | IRQ | Interrupt signal, active low |
| 2 | MISO | SPI data input signal |
| 3 | MOSI | SPI data output signal |
| 4 | SCK | SPI clock signal |
| 5 | CSN | SPI chip select signal |
| 6 | CE | Chip chip select signal |
| 7 | VDD | power input |
| 8 | GND | Ground |
Package Included:
3 x Wireless Transceiver Module
