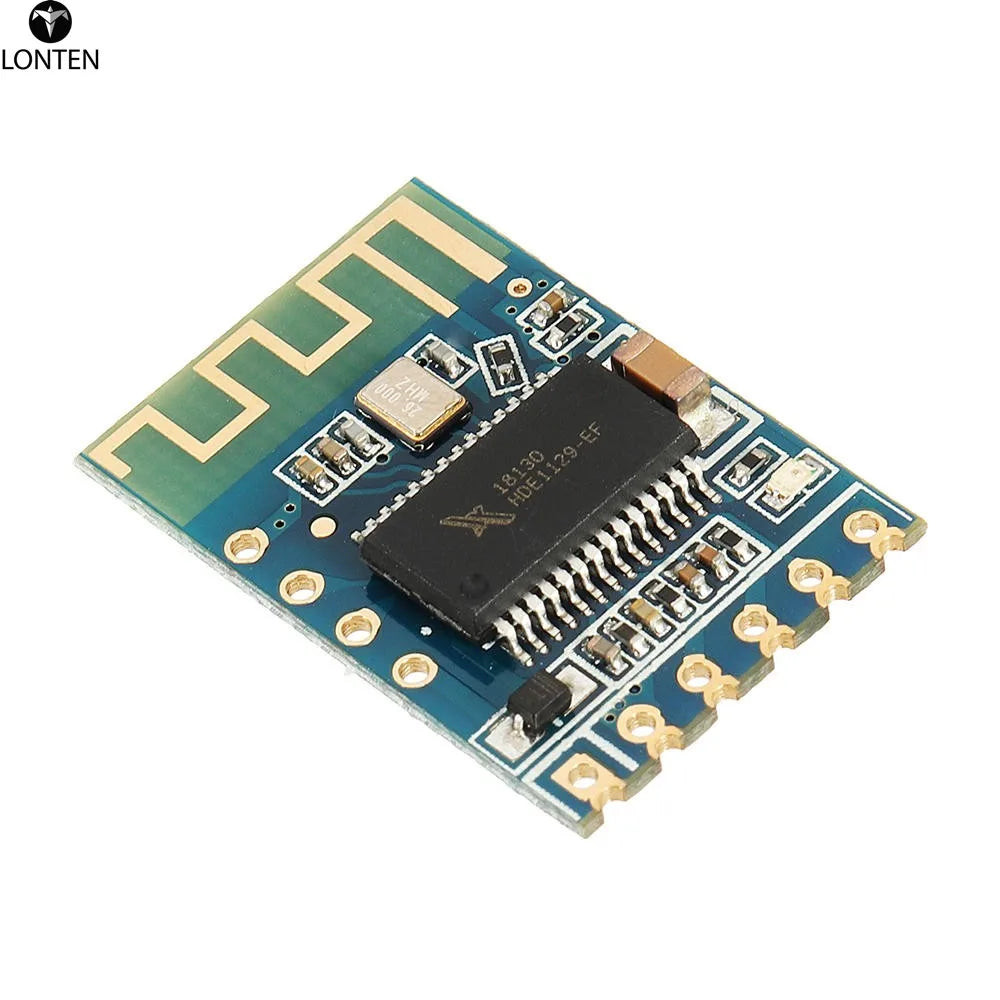

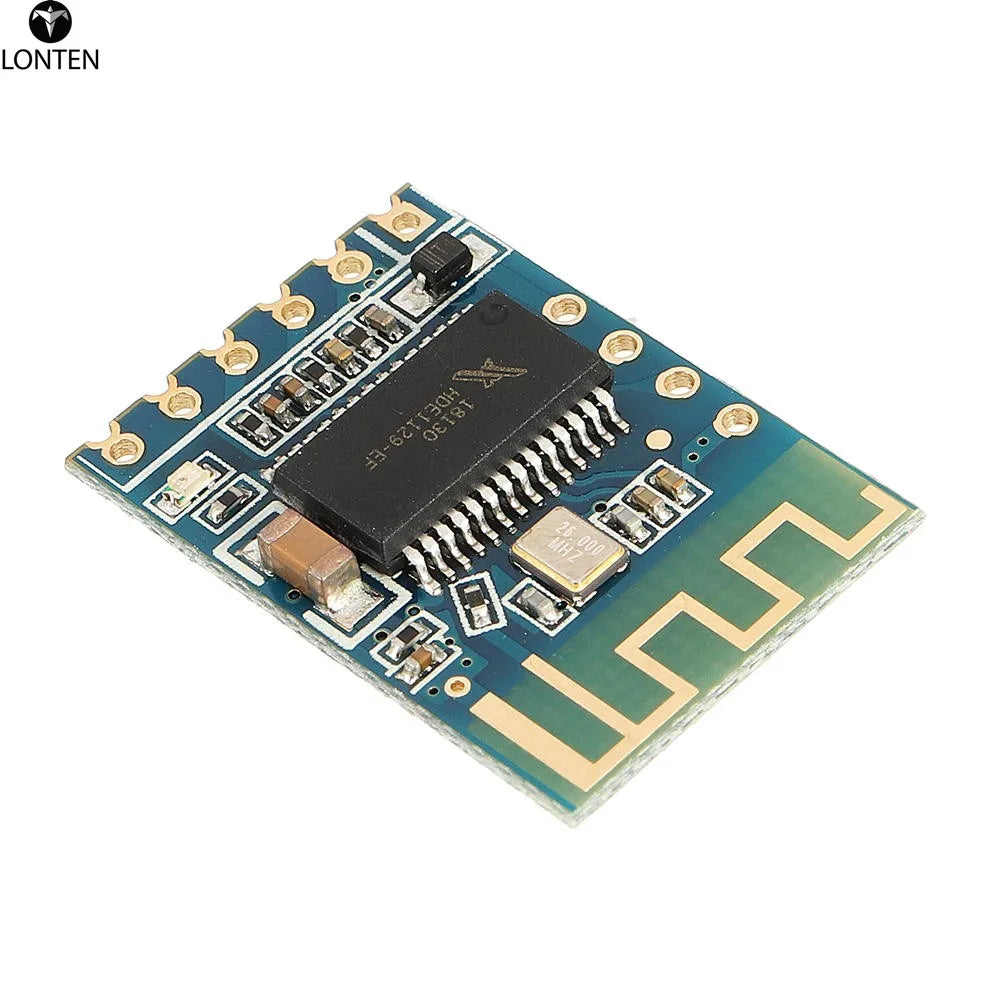

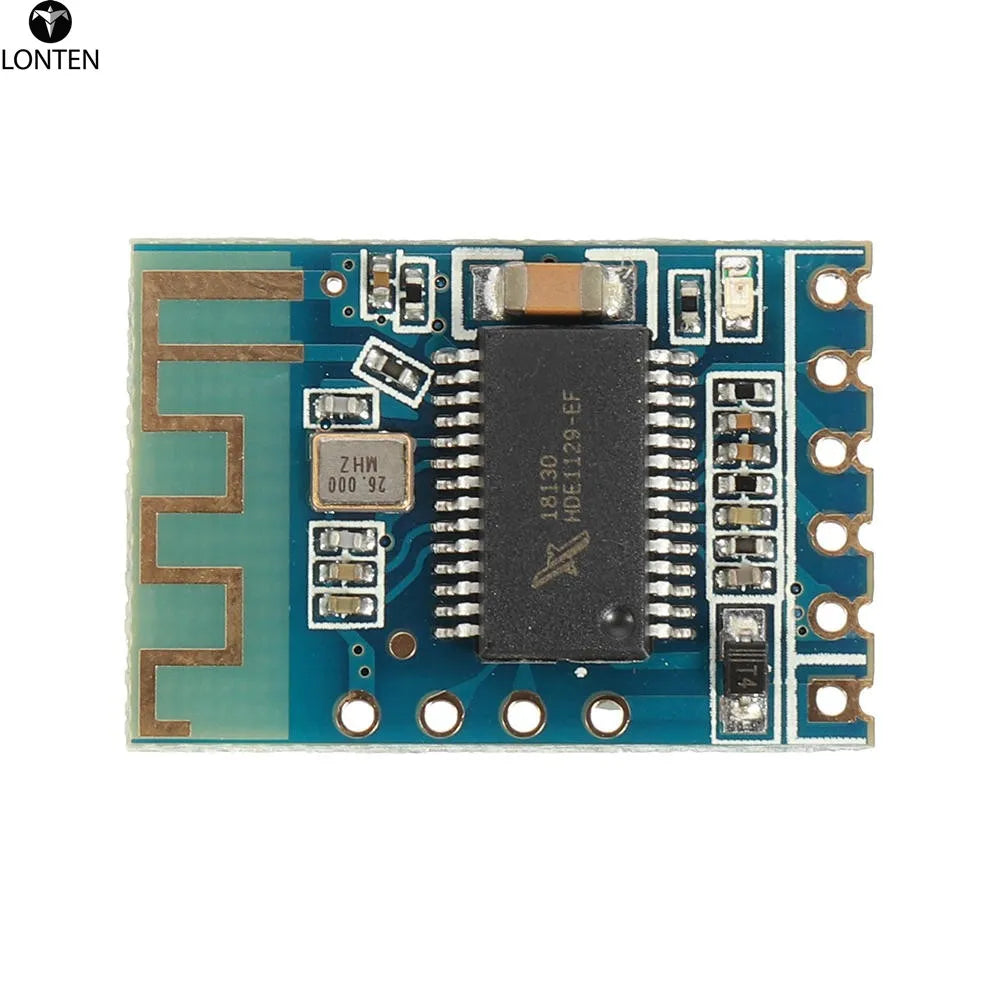

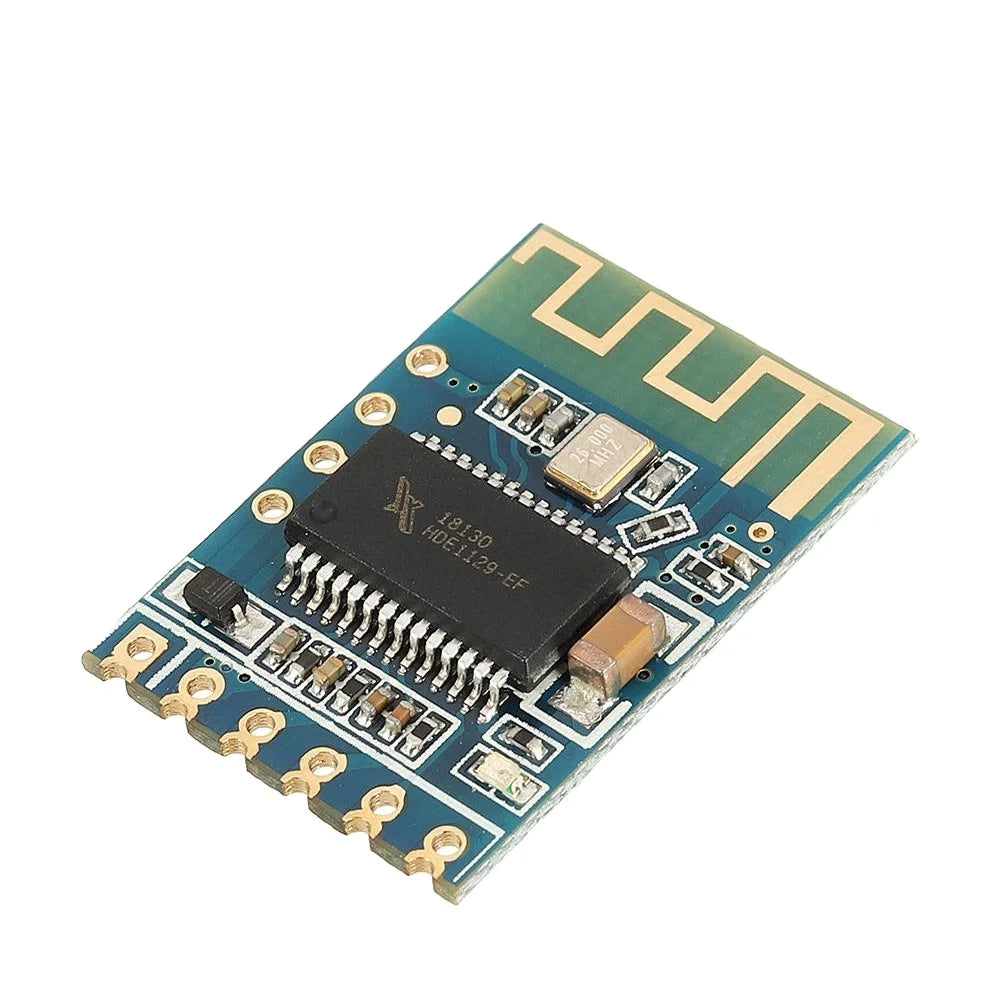

Custom Lonten 3Pcs/lot wireless 4.0 o Receiver Module For Stereo Dual Channel o Speaker Amplifier JDY-62 Manufacturer
Custom Lonten 3Pcs/lot wireless 4.0 o Receiver Module For Stereo Dual Channel o Speaker Amplifier JDY-62 Manufacturer
Regular price
$7.14 USD
Regular price
$7.14 USD
Sale price
$7.14 USD
Unit price
per
Couldn't load pickup availability
The price is only for Bundle(optiona)1, Lonten provide electronic component ,welcome OEM ,ODM,for more please contact.
Note: Pins can be soldered to pins or patches with 2.54mm pitch and 2.54 pin headers

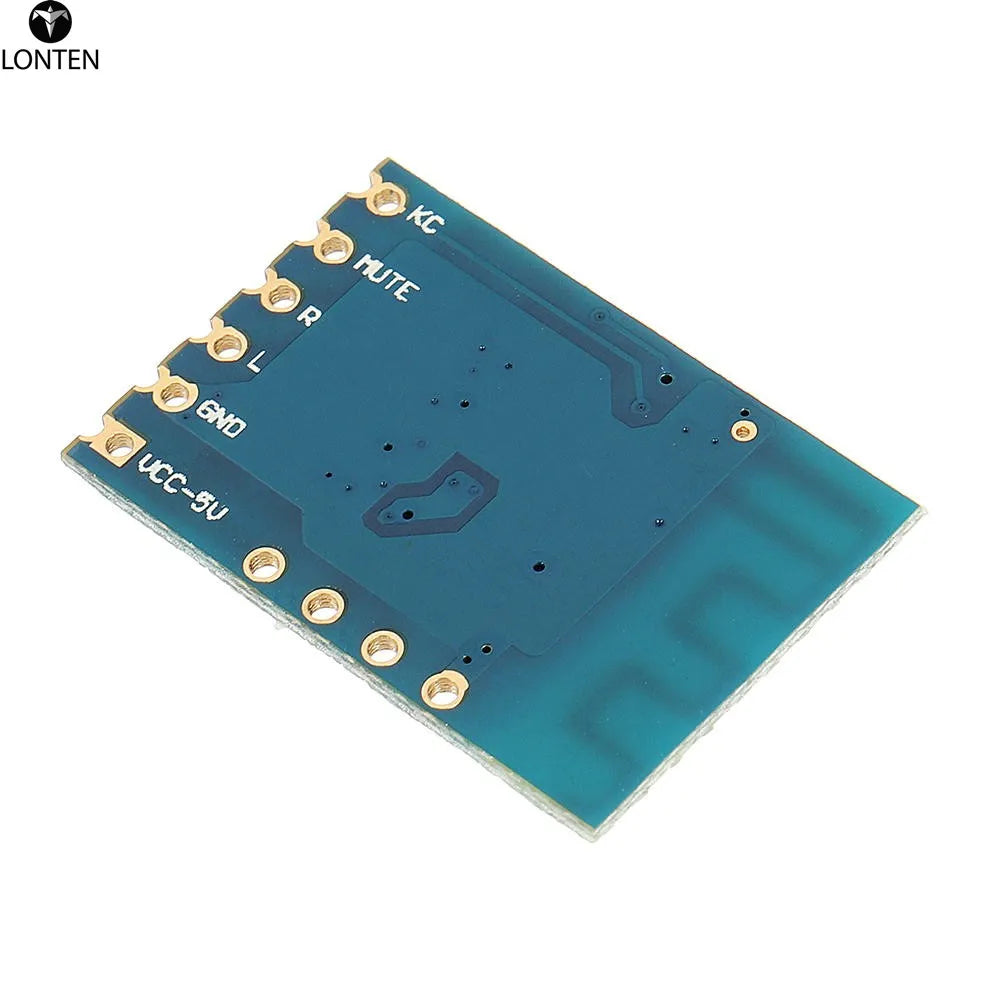

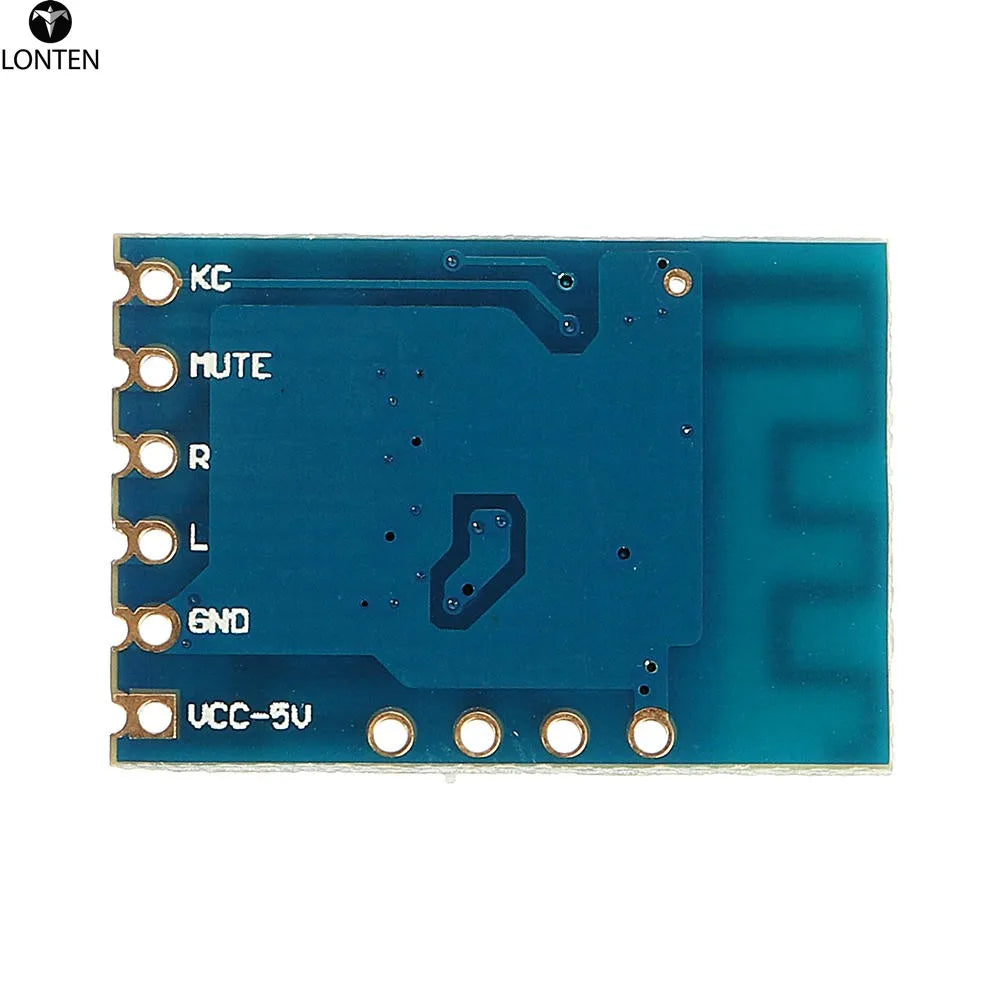

| Pins | Function | Description |
| 1 | VCC | Voltage range 4.2 to 5V, cant exceed 5V |
| 2 | GND | Power GND |
| 3 | L | Left channel output |
| 4 | R | Right channel output |
| 5 | MUTE | High level when mute, usually low level |
| 6 | KC | Empty pin |
Common problem:
1. No wirelesss earch:
Generally caused by power supply interference, the power supply line must be added with LC filter circuit.
2. Support 3.7 power supply or not:
The module is powered by 5 volts by default. You can replace the upper diode of the JDY-62 module with the 0805 package 0R resistor, or short the wire, so you can use the lithium battery.
3. wireless signal is too weak
Do not wire or copper under the wireless module antenna, or there should be no metal shielding around the antenna.
4. The current sound is too loud
Generally caused by power ground interference, it is recommended that the power amplifier wiring should not be too long, and the wireless ground should be separated from the power ground.
Pakage includes:
3 x Receiver Module
