Welcome OEM ,ODM,for more please contact. Make your DIY KIT!
Description:
Kit Name: SMD Round Sound Control Light Kit
Kit Name: SMD Round Sound Control Light Kit

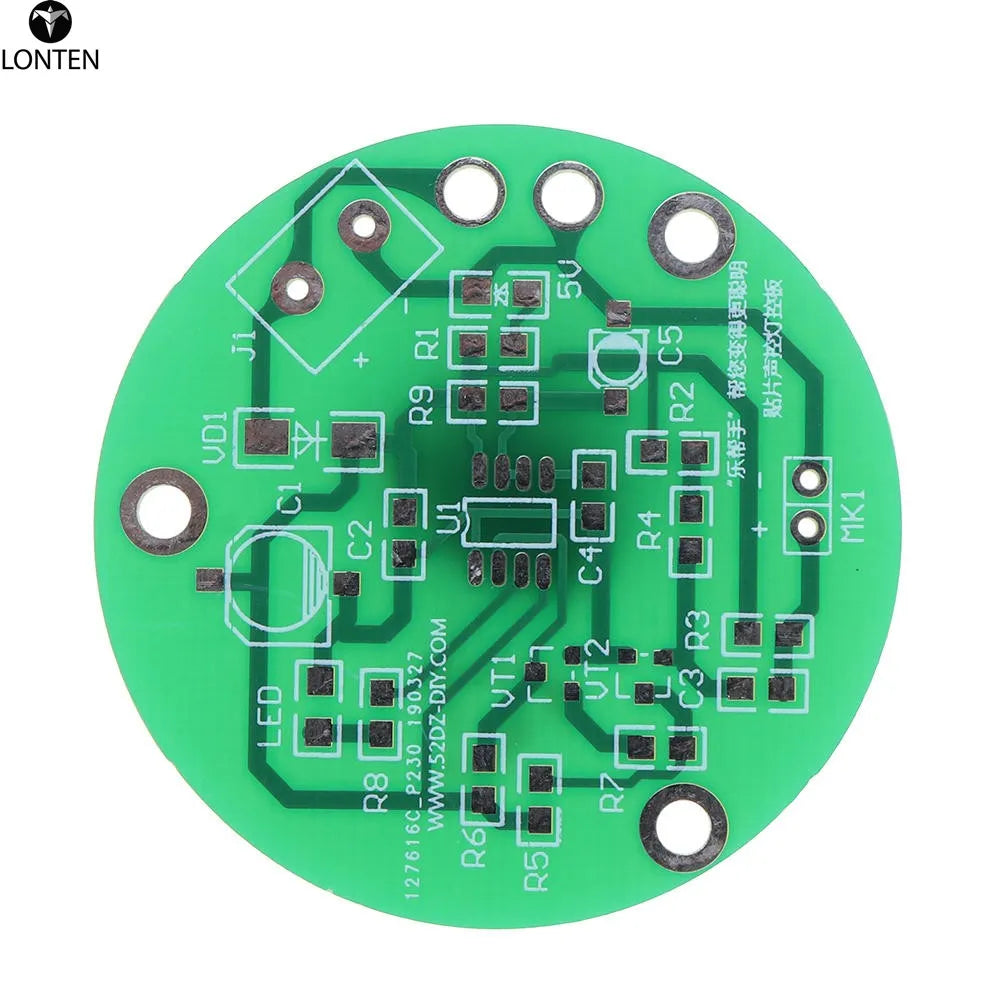

Board size: 45*45mm
Board material: single side 1.6mm FR-4
Supply voltage: 5V
Number of LEDs: 2 x 5mm LEDs
LED color: red
Package included:| Name | Parameter | PCB mark | Quantity |

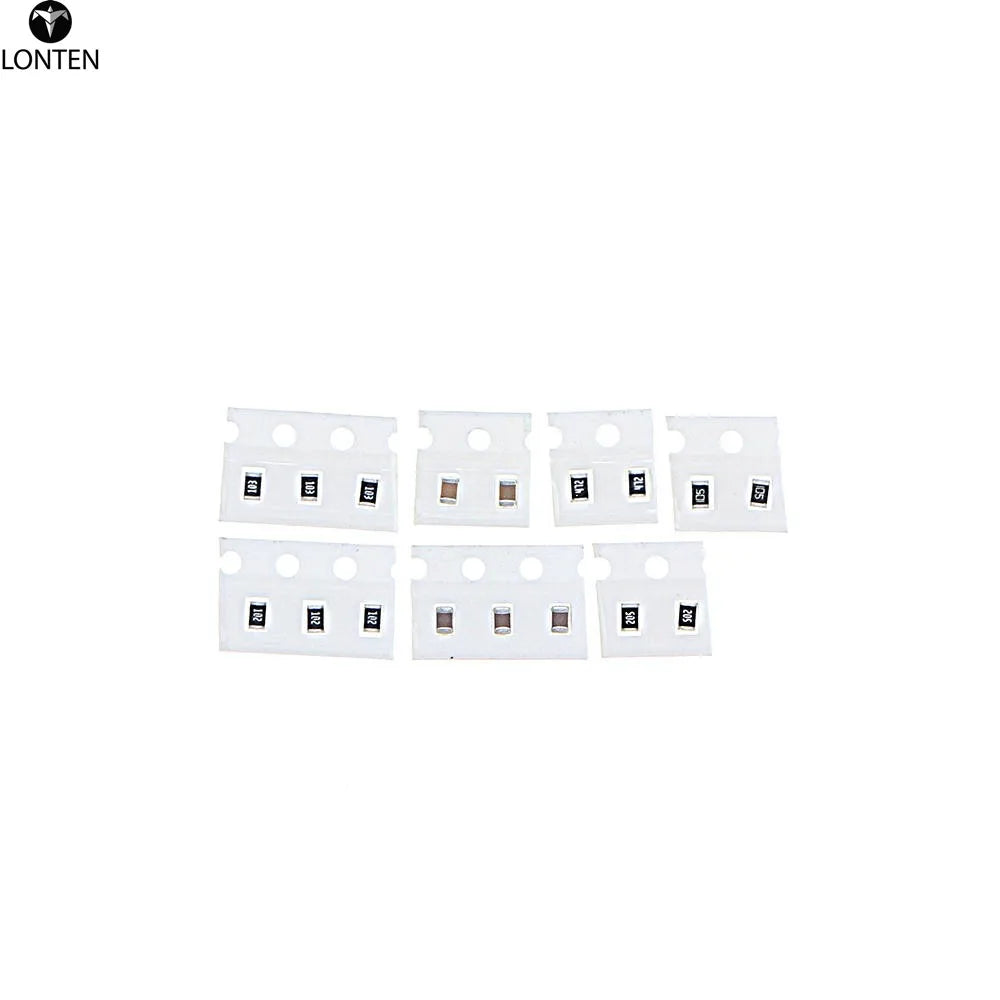

| 0805 SMD resistor | 1K | R1,R8 | 2 |
| 1M | R4 | 1 | |
| 2M | R2 | 1 | |
| 4.7K | R7 | 1 | |
| 10K | R3,R6 | 2 | |
| 510K | R9 | 1 | |

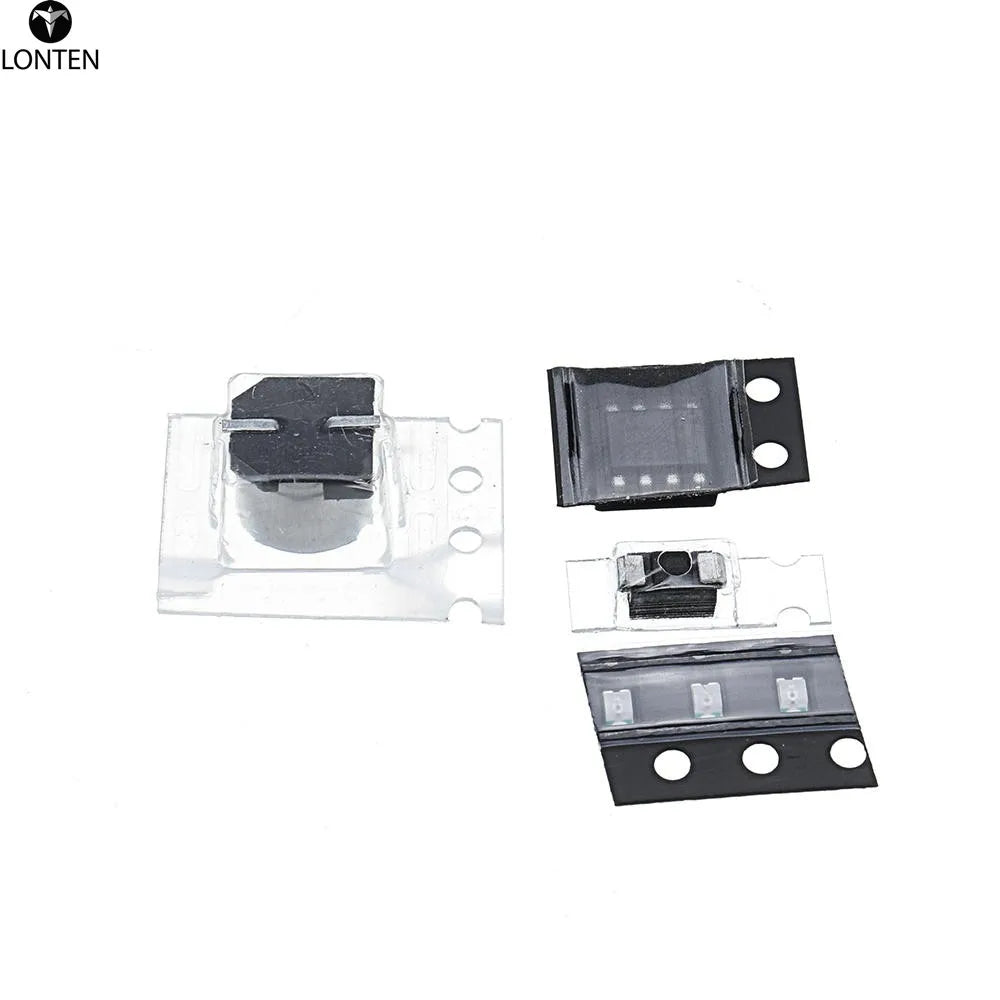

| SMD electrolytic capacitor | 100uF | C5 | 1 |

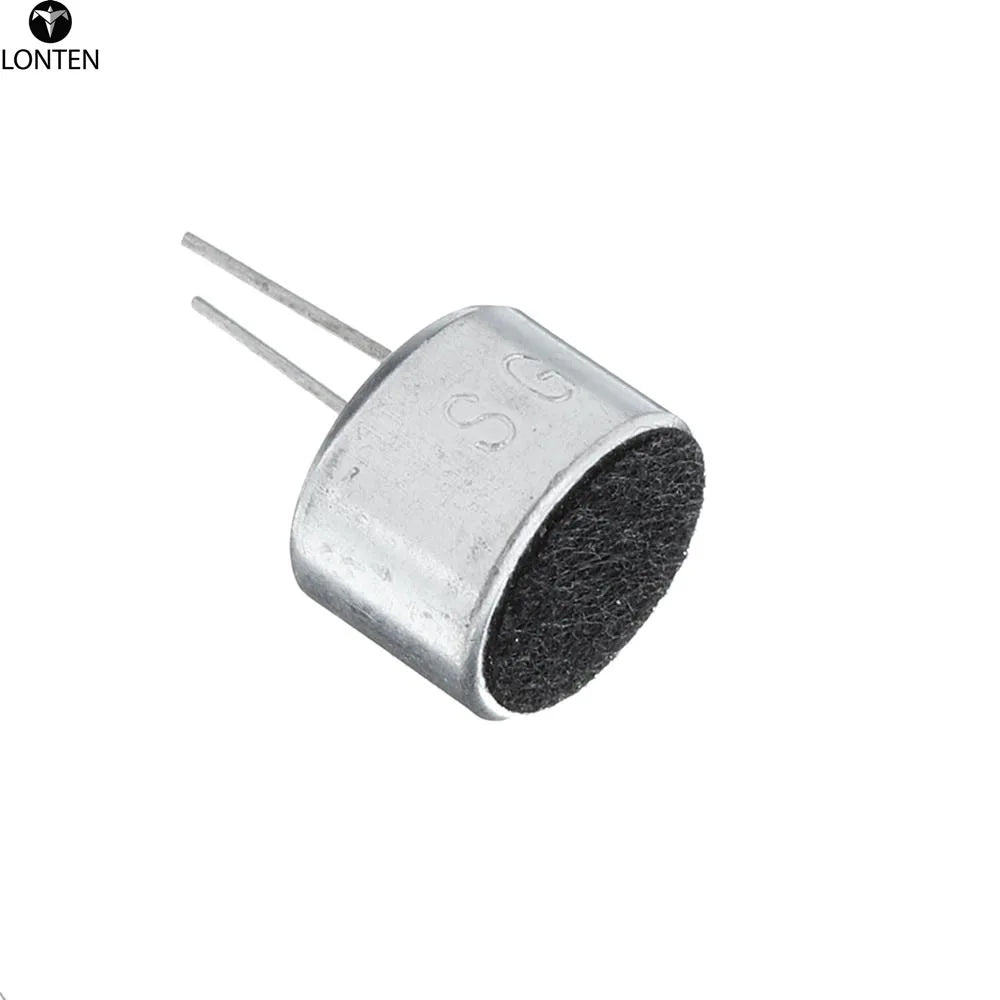

| Electret microphone | MK1 | 1 | |
| SMD capacitor | 103 | C4 | 1 |
| 104 | C2,C3 | 2 | |
| SMD integrated circuit | NE555 | IC1 | 1 |
| SMD transistor SOT-23 | 8050 | VT1,VT2 | 2 |
| Terminal | 2p | J1 | 1 |
| SMD diode Do-214 | 1N4007 | VD1 | 1 |
| SMD LED 0805 | Red | 5V LED2 | 1 |

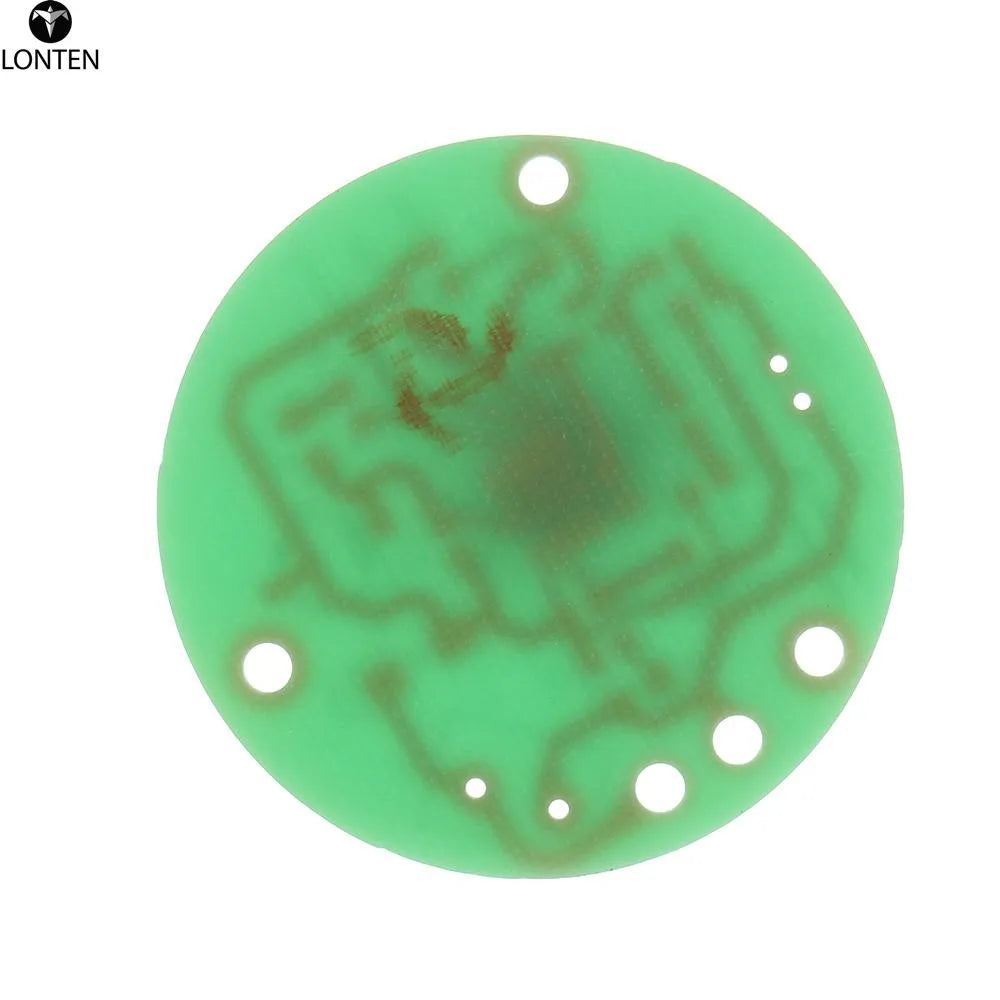

| PCB | 1 |

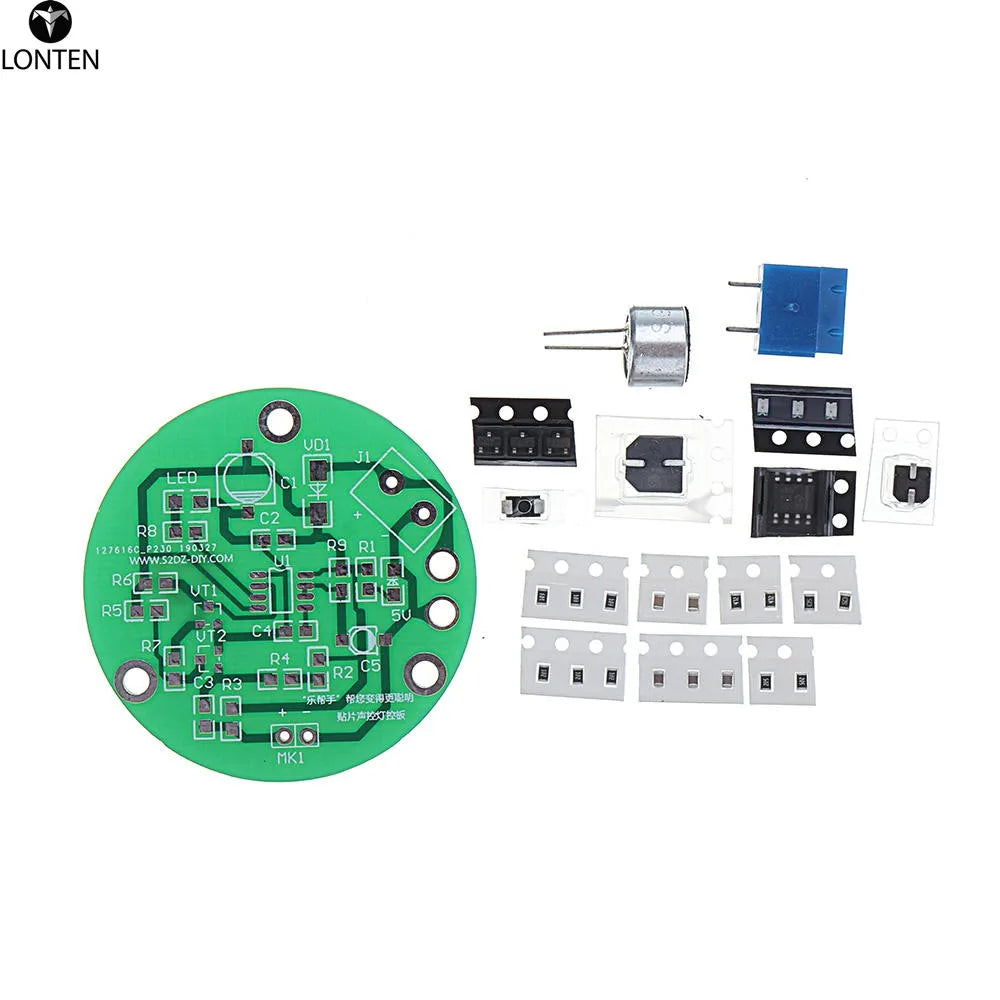

3 x DIY SMD Round Sound Control LED Light Electronic Kit
