Lonten provide electronic component ,welcome OEM ,ODM,for more please contact.
Technical Data:
Input Power:AC 85V-250V
Standby Current:<8.5MA
RF Frequency: 433/315MHz (optional)
RF working mode: superheterodyne
Receive sensitivity: > 97 dbm
Decoding mode: MCU software decoding
Learnable Transmitters: 1-16 transmitters
Support remote type: Learning code (1527)
Switching Modes: Both Momentary & Toggle
Wiring type: Fixed terminal
Switch Output: Normally open & normally closed.
The dimension of PCB: 35*30*18mm (L*W*H)

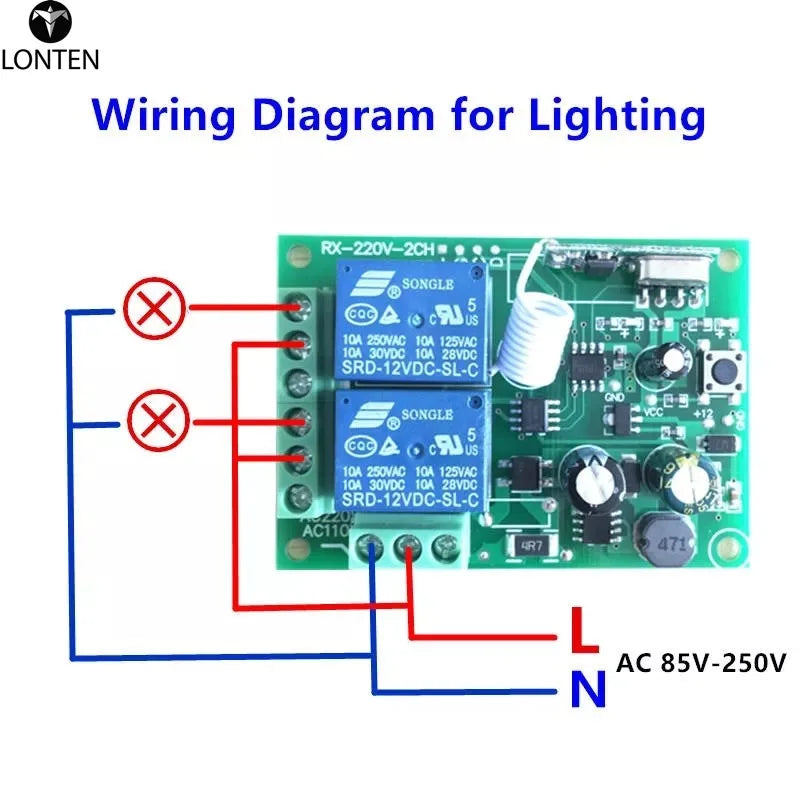

Switch Output:
NO: normal open
COM: common
NC: normal close

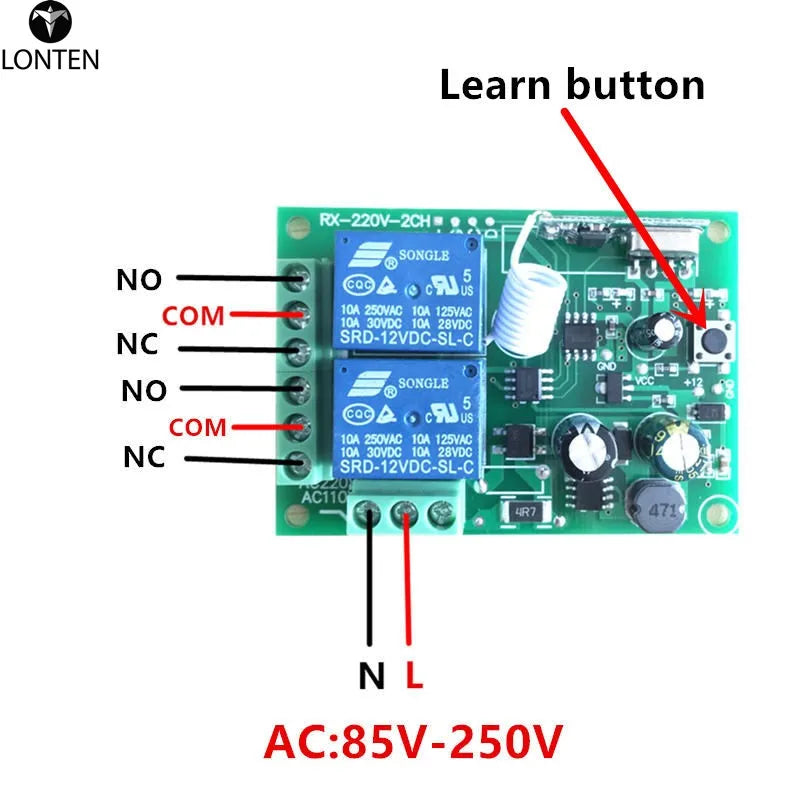

Wire port:
NO: normal open
COM: common
NC: normal close
Working Modes explanation:
Momentary Mode:
Push the remote button, the relay activates, release the remote button the relay deactivates.
Toggle Mode:
Push and release the remote button, the relay activates.
Push and release the remote button again and the relay deactivates.
Clearing All Stored Transmitters:
*Note: After clearing the stored transmitters, all transmitters will need to be relearned by the receiver.
Push the learning button on the receiver 8 times, and the codes will be cleared.
Learning the transmitter: (momentary Mode)
Programming a 2 button transmitter as momentary mode transmitter.
STEP 1:
Push and release the learning key on the receiver ONCE.
Wait for a moment, the LED will turn off, indicating you entered the learning state.
STEP 2:
Push and release the first button on your transmitter, the LED on the receiver board will flash on then off indicating the button was learned.
STEP 3:
Press and release the second button, watching the LED go on and off again.
Wait 3 seconds, the LED will turn on again, the indicating system is ready for use.
Learning the transmitter : ( Toggle Mode )
Programing a 2 button transmitter as toggle.
STEP 1:
Press and release the learning key on the receiver TWICE.
Wait for a moment, the LED will turn off, indicating you entered the learning state.
STEP 2:
Press and release the first button on your transmitter, the LED on the receiver board will flash on then turn off.
Indicating the button was learned.
STEP 3:
Next press and release the second button, watching the LED go on and off again.
Wait 3 seconds, the LED indicator will turn on again, indicating system is ready for use
**Notice**
Two-button transmitters can only be used as toggle or momentary.
One mode per 2 button transmitter.
(Please note: You let the control panel to learn the remote control, you must press the "A" and "B" button; Rather than just pressing one of them)
However, you can program another transmitter in the other mode.
Package includes:
1 x Module
