Custom LONTEN 2.4 inch TFT LCD screen display module 240*320 resistive touch LCD module screens Manufacturer

2.4-inch color screen, wide viewing angle, delicate display, rich 65K color

320×240 resolution, clear display effect

Support Atomic full series of development board plug and play, and no need to modify the code

Resistive touch version

Support 8-bit/16-bit parallel data bus switching, refresh fast military-grade process standards, and work stably for a long time

Provide STM32/C51 source code, WIKI data online update

Display color: 16BIT RGB 65K color

Screen size: 2.4(inch)

Screen Type: TFT

Driver chip: IL19341

Resolution: 320*240 (Pixel)

Module interface: 16Bit parallel lel interface

Effective display area (AA area): 48.96*36.72(mm)

Touch screen type: resistive touch screen

Touch IC: XPT2046

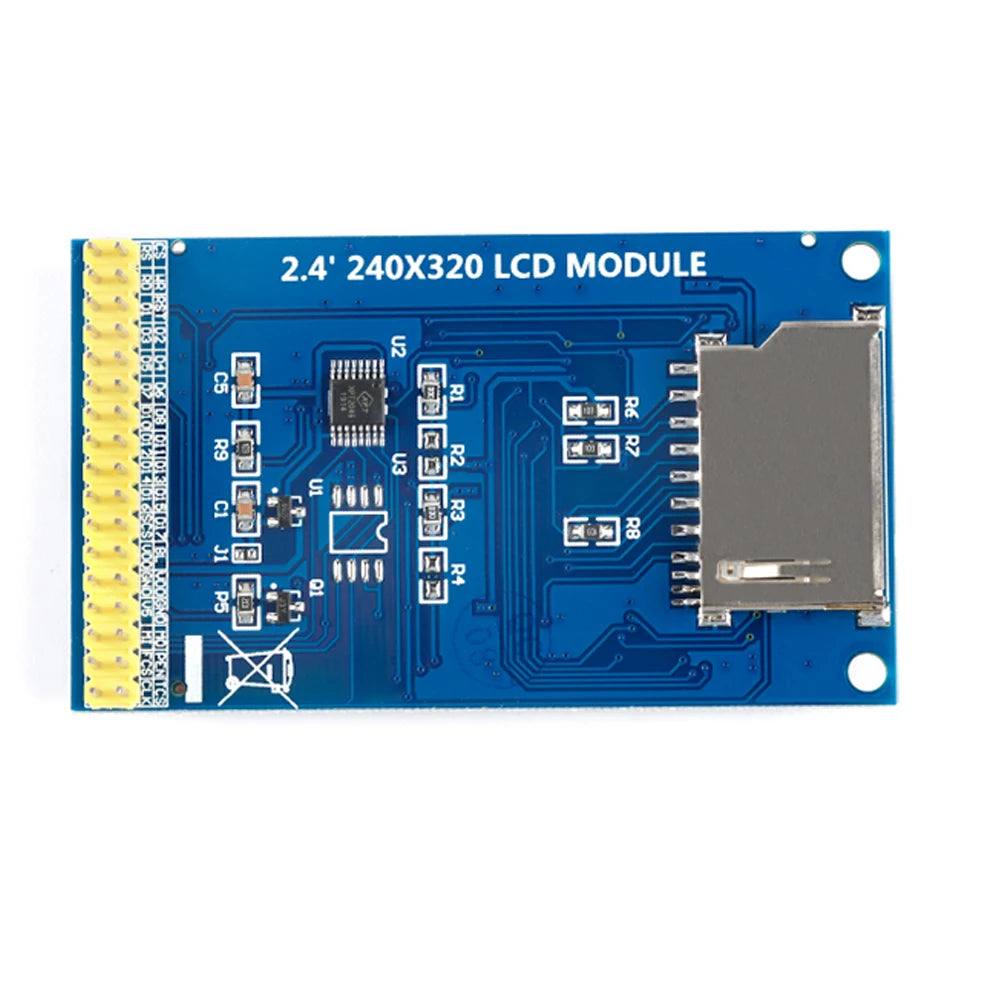

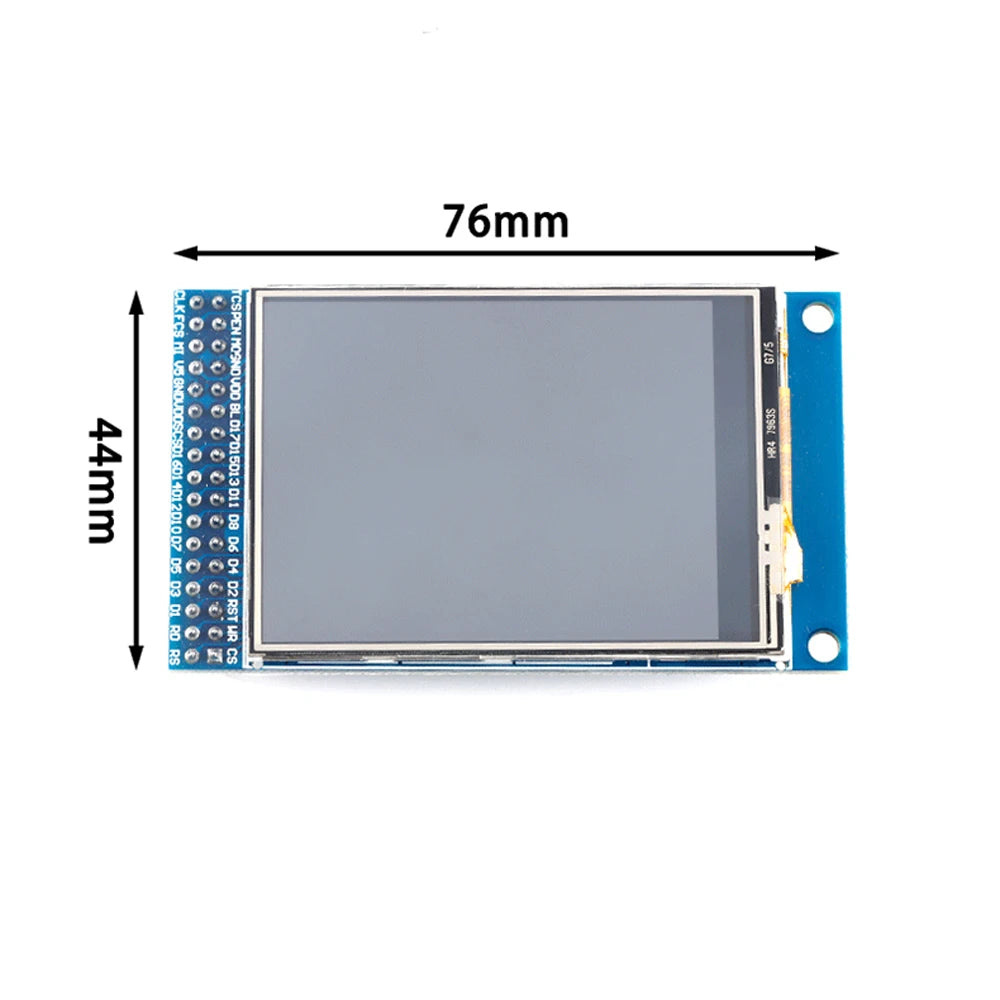

Module PCB backplane size: 44.25x76.00 (mm)

Working temperature: -20℃60c

Storage humidity: -30℃~70c

vCC power supply voltage: 3.3V~5v

Weight: 35(g)
