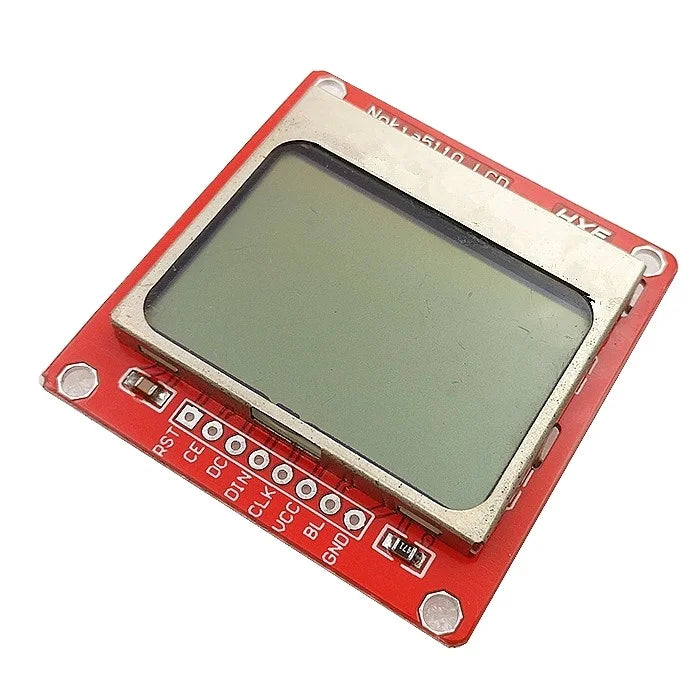

Custom Lonten 1pcs White Backlight 84*48 84x84 LCD Display Module Adapter PCB for Nokia 5110 for ard DIY KIT Manufacturer

Specification:
Note:
1. \"LIGHT\" linked with GND, the backlight to be lit.
2. Need you to compr the screen and PCB tighter, might got loose after the delivery.
3 Use a 3.3V controller, otherwise the display could be quite vague.

LCD5110 Module:
Power supply voltage:2.7V-3.3V,5V is OK,but part of the screen becomes black when tested?
Data interface level:2.7-5V?
Backlight power supply voltage:highest 3.3V?
Module size:43.6mm x 43.1mm(width X height)?
Installation diameter:2mm?
Backlight:White
Document for Download:Data

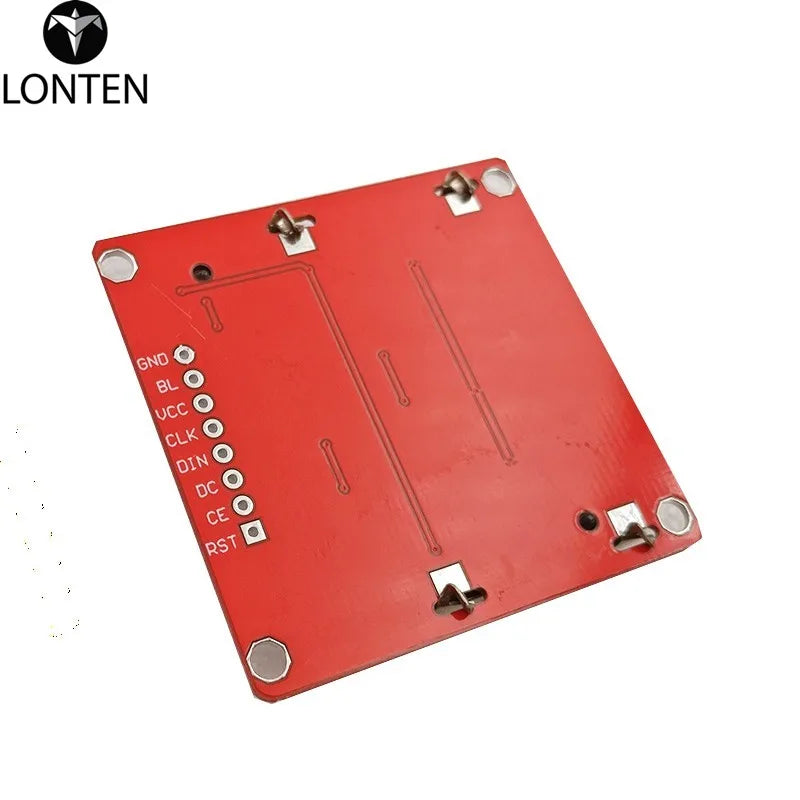

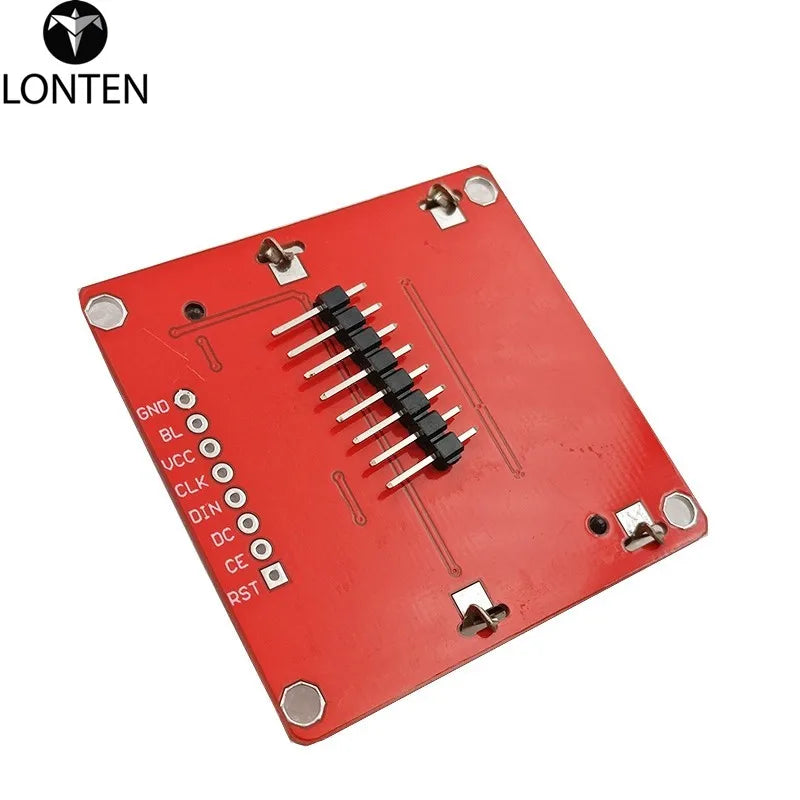

1RST--------- reset?
2CE------------chip selection?
3DC-----------data/commands choice?
4DIN-----------serial data line?
5CLK------------serial Clock Spee

63.3V------------VCC?
7LIGHT--------- backlight control terminal?
8GND-----------power negative
Features:
84 X 84 dot matrix LCD,can show 4 lines of characters
Use serial interface communicate with the master procor,the number of interface signal line reduced greatly, only 8 signal lines including power and GND.Support different types of MCU,such as the SPI,MCS51 serial mode 0 of A.Transfer rate up to 4Mbps,can full speed write display data without waiting time.
Can use the conductive glue to connect the module with the printed board,without connecting cable.The metal hooks on the module can fix the module on the printed board,which is very easy to install and replace.
LCD controller/driver chip has been bound to LCD chip,the volume of LCD is small
Low power supply,the working current in normal situation is lower than 200A,and has power-down mode
Shipping Included:

1PCS*for Nokia 5110 LCD Disply Module
