Custom Lonten 1PC CN6009 DC-DC boost power regulator module output adjustable 5V / 6/9 / 12V liters 24v current 4A Wholesale Manufacturer
Custom Lonten 1PC CN6009 DC-DC boost power regulator module output adjustable 5V / 6/9 / 12V liters 24v current 4A Wholesale Manufacturer
Note: The price is Bundle(optiona)1,Lonten is a manufacturer and provider of electronic component ,for more please contact.
- Condition:New
- Supply Voltage:other
- Dissipation Power:other
- Operating Temperature:other
- Model Number:CN6009
- is_customized:Yes
- Type:CN6009
- Application:CN6009

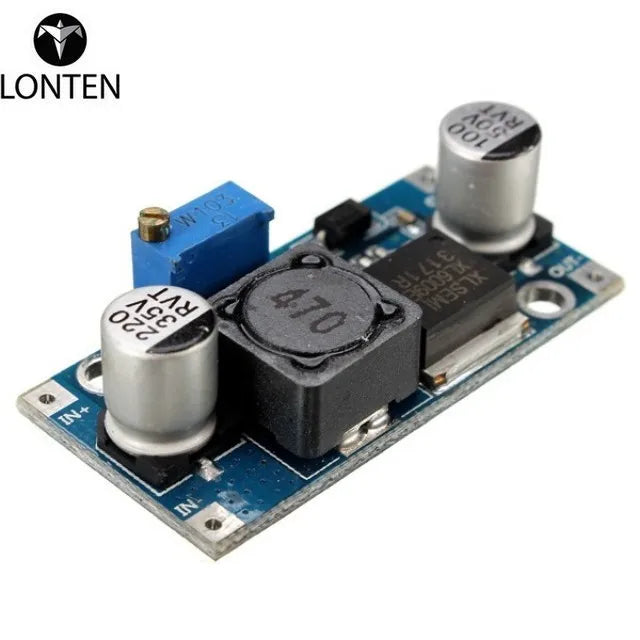

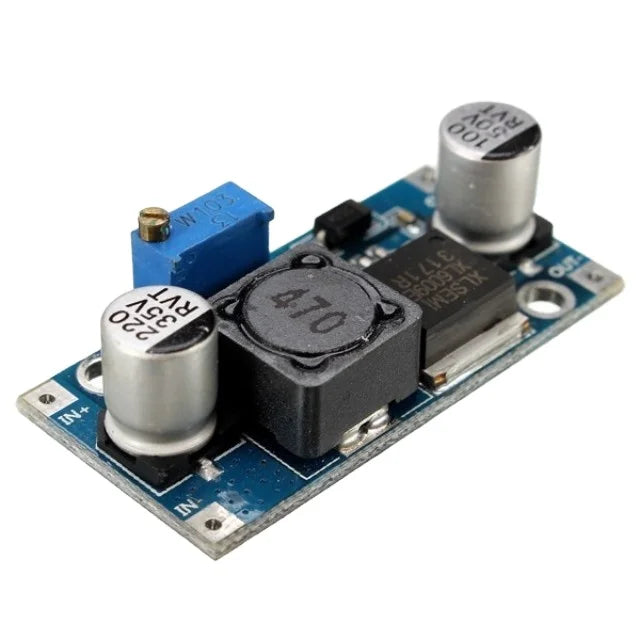

The XL6009 is a high-performance step-up (BOOST) module with 4A switching current.
The module uses the second generation of high frequency switching technology XL6009E1 as the core chip,
performance far beyond the first generation of technology LM2577.
XL6009 step-up module cost lower, more excellent performance, LM2577 module is about to be eliminated.
Specifications:
ultra-wide input voltage 3V ~ 32V, the best working voltage range is 5 ~ 32V;
ultra-wide output voltage of 5V ~ 35V;
built-in 4A high efficiency MOSFET switch, the efficiency of up to 94%; (LM2577 current only 3A)
ultra-high switching frequency 400KHz, you can use a small capacity filter capacitor that can achieve very good results,
smaller ripple, smaller. (LM2577 frequency only 50KHz)
Package included:
1 X Controller Shield Board
Technical Parameters:
| XL6009 Boost module |
Module nature | Non-isolated boost(BOOST) |
Rectification method | Non-synchronous rectification |
Enter range | 3V~32V |
Output range | 5V~35V |
Input Current | 4A(Max),No load18mA(5V Input,8V Output,No load is l than 18mA.The higher the voltage, the greater the no-load current) |
Conversion efficiency | <94%(The greater the prure, the lower the efficiency) |
Switching frequency | 400KHz |
Output ripple | 50mV(The higher the voltage, the greater the current, the larger the ripple) |
Load Regulation | ±0.5% |
Voltage regulation | ±0.5% |
Operating temperature | -40℃~ +85℃ |
Dimension | 43mm * 21mm * 14mm(Long X wide x high) |
|
|
Precautions:
This module is more efficient than the LM2577's triode-driven mode conversion

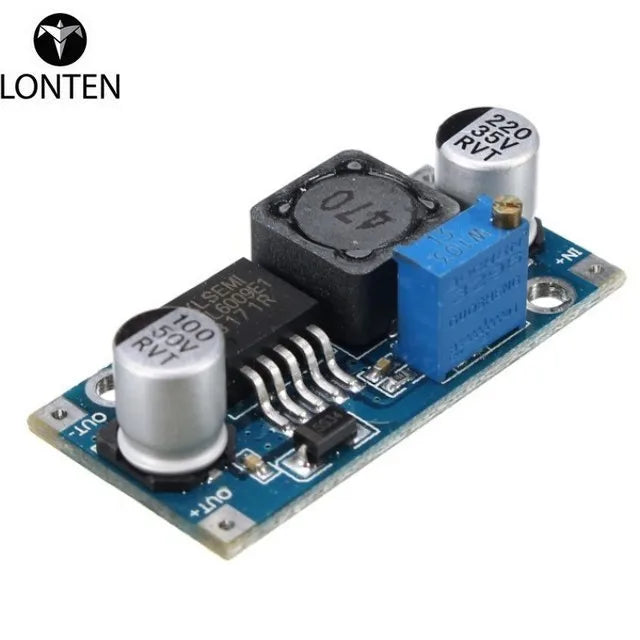

The module is adjustable step-up module, you can adjust the module through the above-mentioned multi-turn adjustable potentiometer
To change the output voltage. The maximum output voltage is 45V. Turn up the prure, reverse the buck.

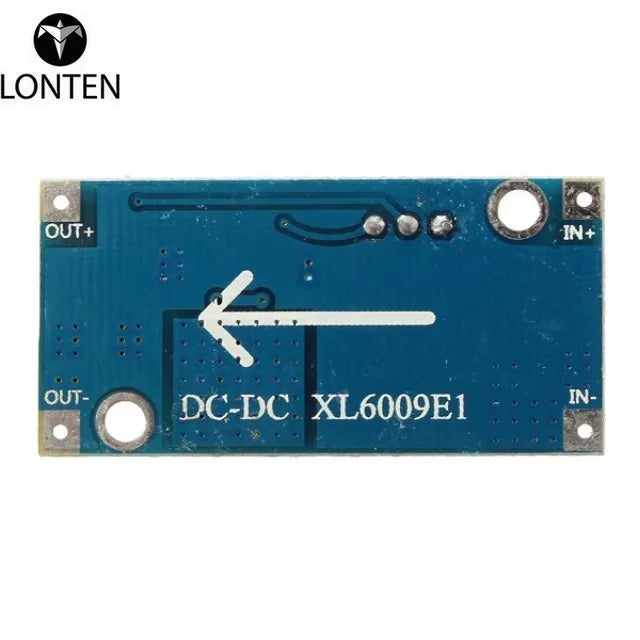

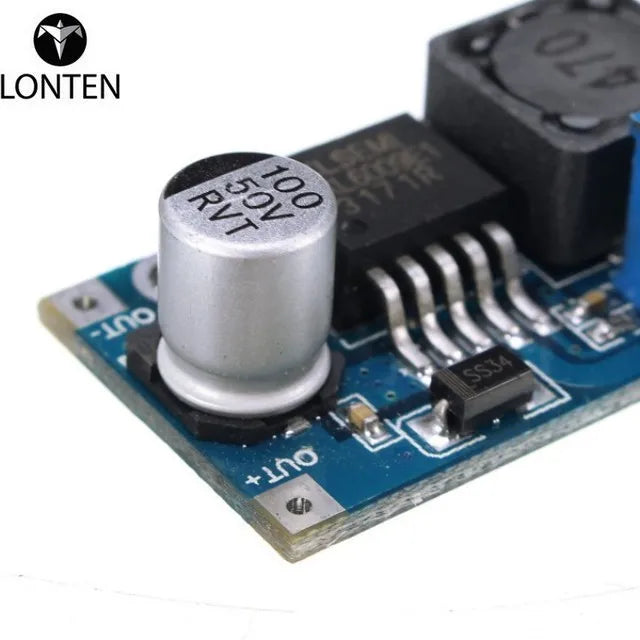

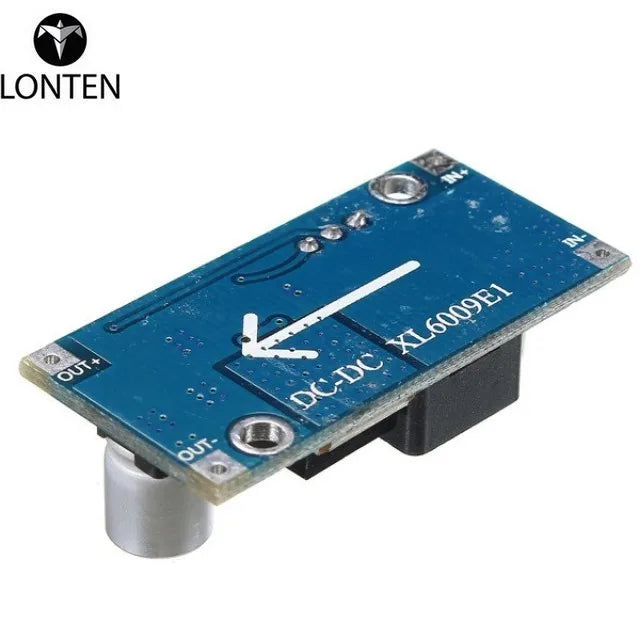

The module indicates GND (input negative), IN + (input positive), GND (output negative), OUT + (positive output)
Operating temperature: industrial grade (-45 ℃ ~ +85 ℃) (ambient temperature exceeds 40 degrees,
please reduce the power to use, or strengthen the heat)
remind:
If the output voltage is not higher than the input voltage when you test, adjust the potentiometer counterclockwise and the output voltage will rise.
Remember not to counterclockwise to adjust the use of antihypertensive modules trying to do,
must ensure that the output voltage is set higher than the input voltage, so as not to damage the module!
- Unit Type:piece
- Package Weight:0.031kg (0.07lb.)
- Package Size:6cm x 8cm x 1cm (2.36in x 3.15in x 0.39in)
