Custom Lonten 1pc 40khz 35W Ultrasonic Piezoelectric Cleaning Transducer Ultrasonic Plate Low heat High New Electric Unit Acoustic Comp Manufacturer
Custom Lonten 1pc 40khz 35W Ultrasonic Piezoelectric Cleaning Transducer Ultrasonic Plate Low heat High New Electric Unit Acoustic Comp Manufacturer
Regular price
$3.99 USD
Regular price
$3.99 USD
Sale price
$3.99 USD
Unit price
per
Couldn't load pickup availability
Lonten provide electronic component ,welcome OEM ,ODM,for more please contact.
Item specifics
- Model Number:No
- is_customized:Yes
- Type:Cleaner
Product Description

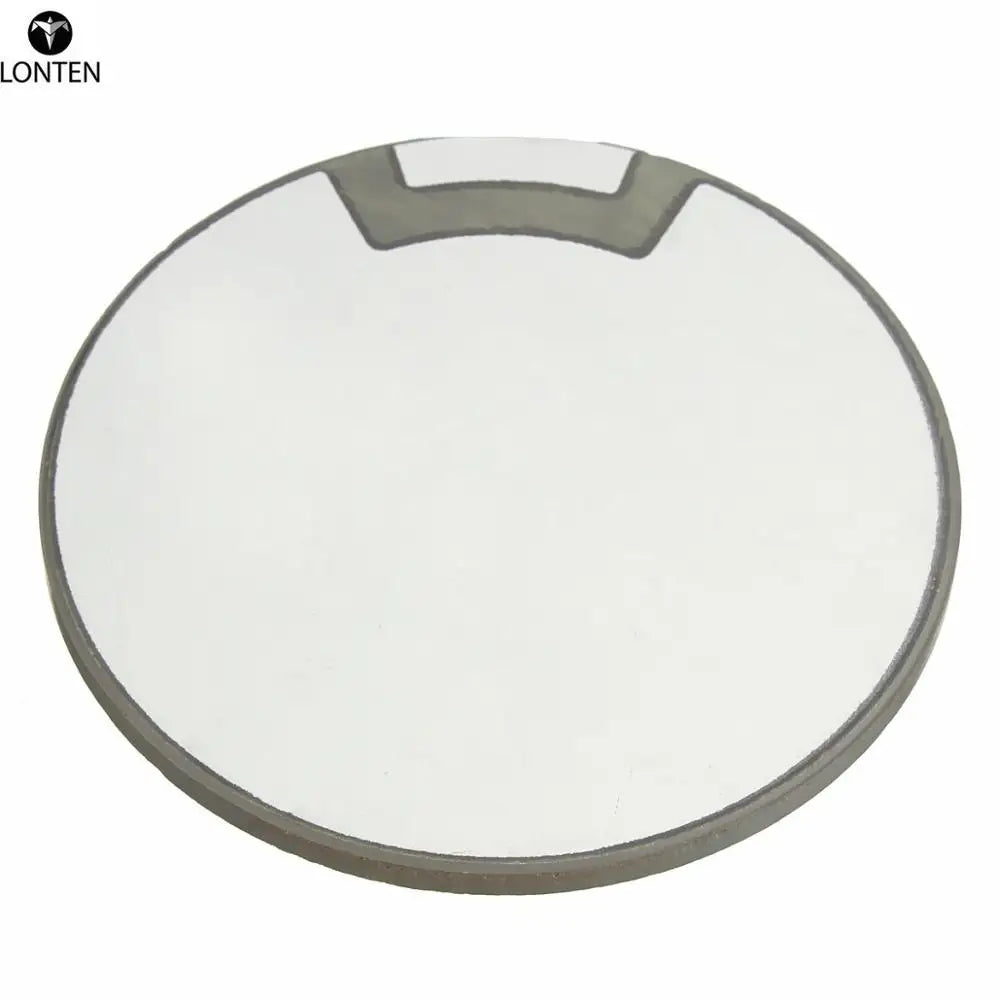

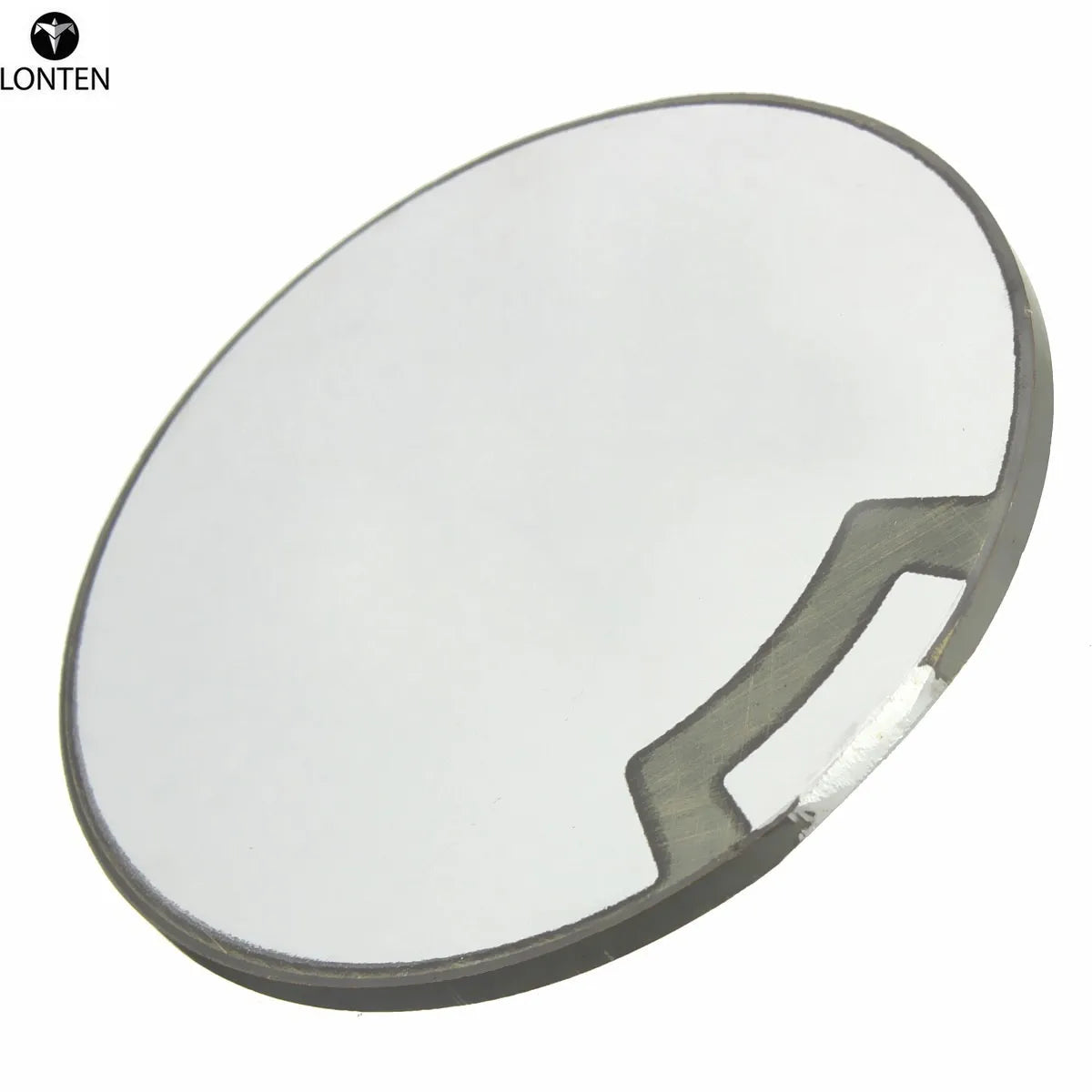

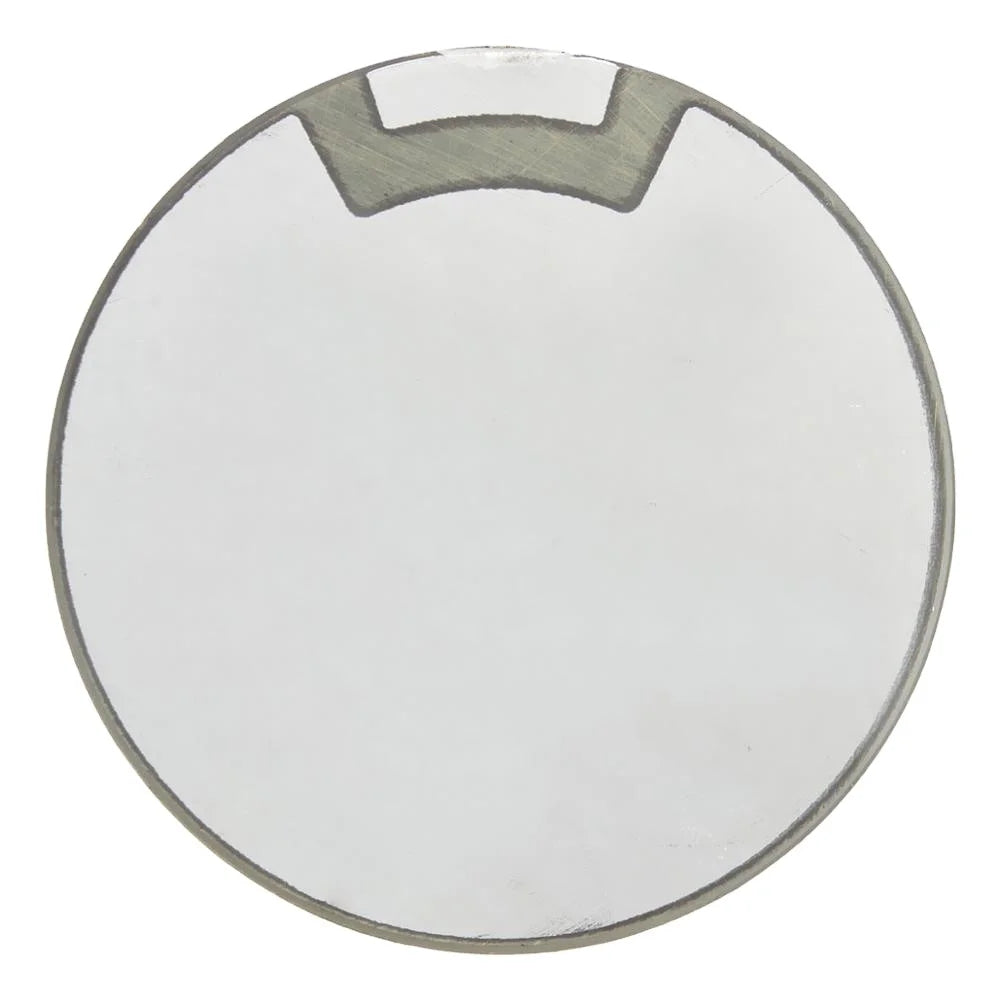

Ultrasonic piezoelectric ceramics diameter 50mm 40K 35W
Product size and performance parameters:
4. Electrical performance at room temperature
Size: 50 * 2.6mm (diameter * height)
Item 50 45 2.6
Resonance frequency (KHz) 45±2
Resonance impedance (Ω) ≤20
Static capacitance (pF): 8000 ± 10%
KP (%) ≥55
d33 (10-12C/N) ≥280
tgδ ≤0.005
Product size and performance parameters:
4. Electrical performance at room temperature
Size: 50 * 2.6mm (diameter * height)
Item 50 45 2.6
Resonance frequency (KHz) 45±2
Resonance impedance (Ω) ≤20
Static capacitance (pF): 8000 ± 10%
KP (%) ≥55
d33 (10-12C/N) ≥280
tgδ ≤0.005
Features:
1. Low heat. 2. Good thermal stability.
3. Frequency and static capacitance strong consistency.
4. Resonant impedance is low. 5. The average length of life.
6. It can be widely used in a variety of ultrasonic cleaning equipment.
7. High performance: mechanical Q value, high vibration efficiency
Special Note:
Received ceramic sheet is not terminal and connecting terminals
Package contains:
1 x Ultrasonic electric ceramic sheet
1. Low heat. 2. Good thermal stability.
3. Frequency and static capacitance strong consistency.
4. Resonant impedance is low. 5. The average length of life.
6. It can be widely used in a variety of ultrasonic cleaning equipment.
7. High performance: mechanical Q value, high vibration efficiency
Special Note:
Received ceramic sheet is not terminal and connecting terminals
Package contains:
1 x Ultrasonic electric ceramic sheet
Packaging Details
- Unit Type:piece
- Package Weight:0.06kg (0.13lb.)
- Package Size:5cm x 5cm x 1cm (1.97in x 1.97in x 0.39in)
