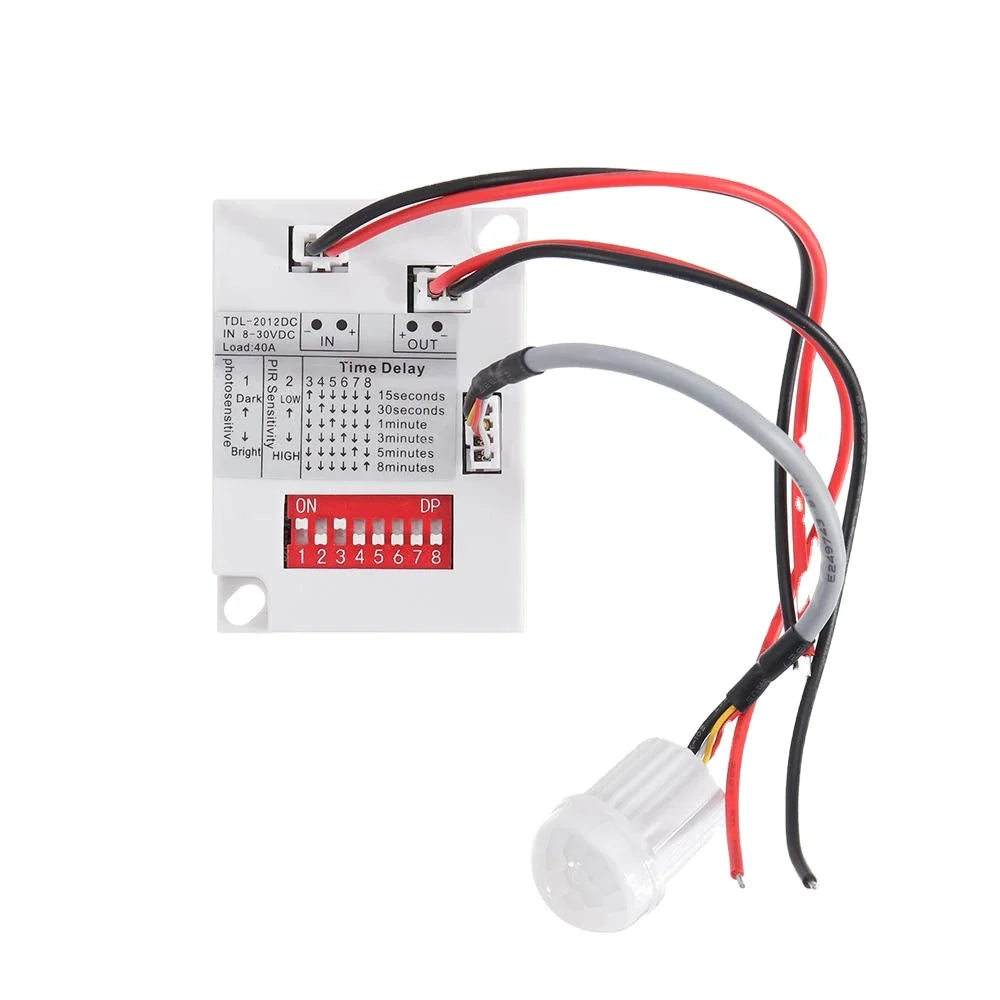

Custom Lonten 12V 24V 7-10M PIR Motion Sensor Switch IR Infrared Human Body Induction Sensor Detector Switch for LED Light Corridor Ais Manufacturer
Custom Lonten 12V 24V 7-10M PIR Motion Sensor Switch IR Infrared Human Body Induction Sensor Detector Switch for LED Light Corridor Ais Manufacturer
Regular price
$7.66 USD
Regular price
$7.66 USD
Sale price
$7.66 USD
Unit price
per
Couldn't load pickup availability
Lonten provide electronic component ,welcome OEM ,ODM,for more please contact.
Features:
1. Infrared technology based automatic motion sensor switch.
2. Automatic turn on while detected people come, after the people left delay automatically turn off the lights. Applicable to the corridor, passageway, toilet, basement, warehouse, garage and other places of automatic lighting.
3. Brightness metering: Using photosensitive control, It won't turn on the light in the daytime or strong light environment, Also can adjust induction lights in any light environment.
4. Random Delay: After it opens, during the delay period if there is no human activities, has the delay time on the job, properly adjust ly within the scope of delay time.
5. Status indication: Induction effective LED indicator, convenient installation and failure analysis.
6. Temperature compensation: With temperature compensation, reduce the induction distance is iuenced by temperature.
7. Automatic locked in day time to save .
8. Easy to install or replace existing switch.
Specification:
Model: TDL-2012-DC
Color: White
Working Voltage: 8-30VDC
Load: 40A
Working temperature:-20 °C - +50 °C
Load capacity: LED lighting (for constant voltage/constant current LED light)
Sensor angle: Cone angle of 140 degrees
Induction distance:7-10M

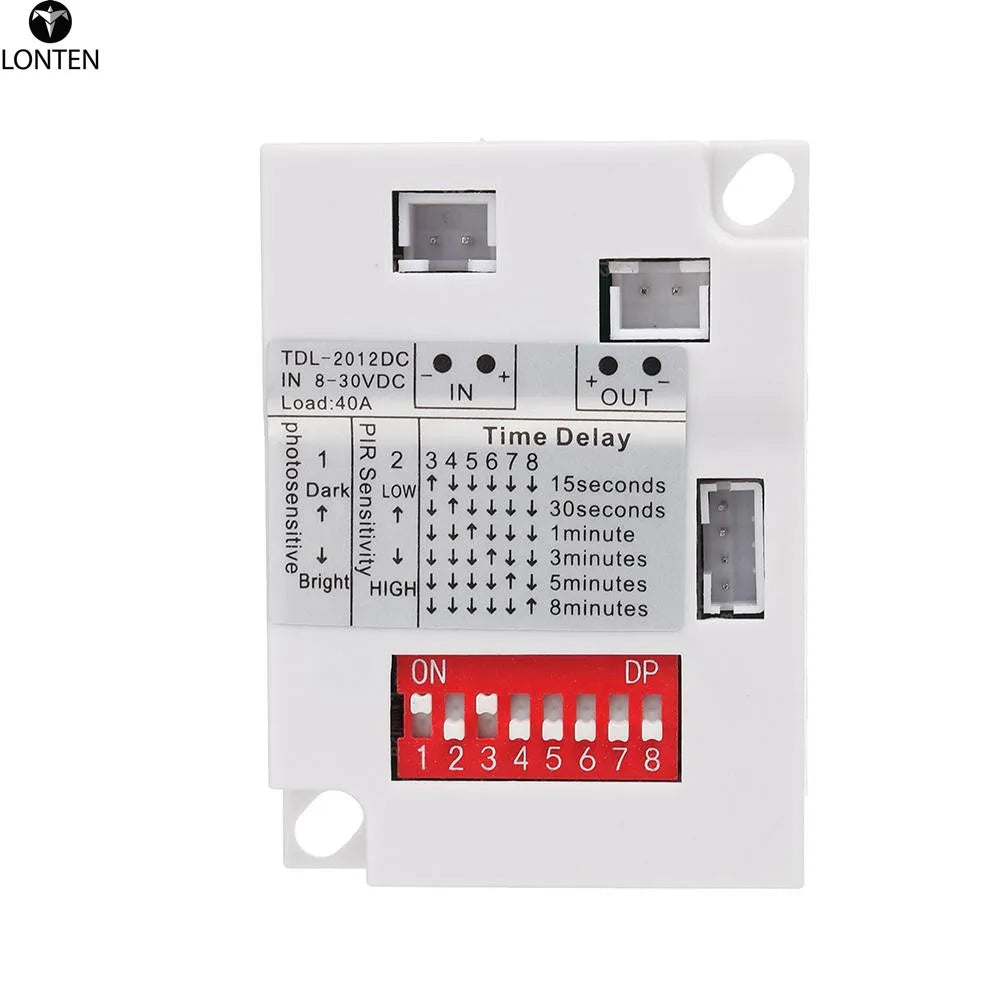

Time extension: 5~480s ± 30%(Switch can be set up)
Size (L*W*H): 5.8 x 4.2 x 1.3cm/2.28"x1.65"x0.51"
Package Included:
1 x TDL-2012-DC PIR Motion Sensor Switch
