Custom Lonten 10PCS MAX7219 Dot led module Matrix Mode MCU LED Display Control Mode Kit for arduinos Manufacturer
Custom Lonten 10PCS MAX7219 Dot led module Matrix Mode MCU LED Display Control Mode Kit for arduinos Manufacturer
Note: The price is Bundle(optiona)1,Lonten provide electronic component for robotics,welcome OEM ,ODM,for more please contact.
- Type:Timer
- Condition:New
- Supply Voltage:general
- Dissipation Power:general
- Operating Temperature:general
- Model Number:MAX7219
- is_customized:Yes
- Application:max7219
Features:
Condition: New
A single mode can drive an 8 8 common cathode lattice
Mode Operating voltage: 5V
Mode size: 5 x 3.2 x 1.5cm (L x W x H)
With four screws hole, aperture 3mm, by using our M3 Tongzhu fixed
Mode with input and output interfaces, supports mtiple modes cascade
Wiring instructions:
1. The mode left as an input port to the output port on the right
2. The control of a single mode, simply input port to the CPU
3. Mtiple modes cascade input termination CPU, 2 output termination mode, a mode of the input of the input terminal, the output terminal of the first two modes of the first three modes, and so on ...
Take 51 MCU, for example:
VCC 5V
GND GND
DIN P22
CS P21
CLK P20

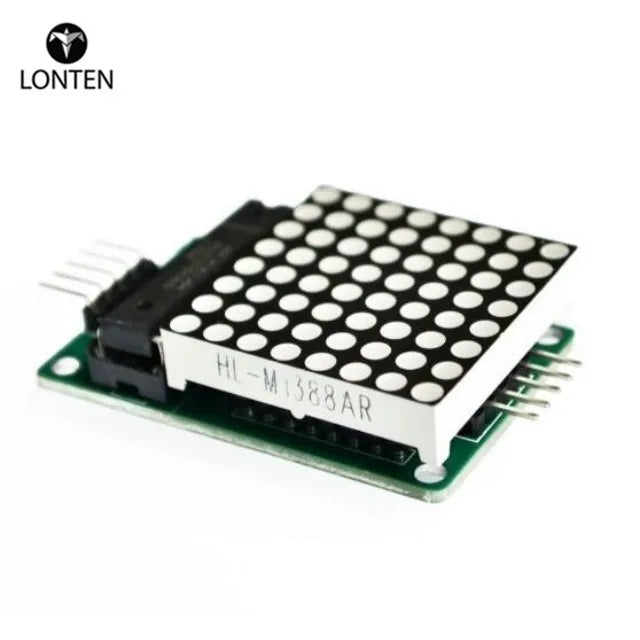

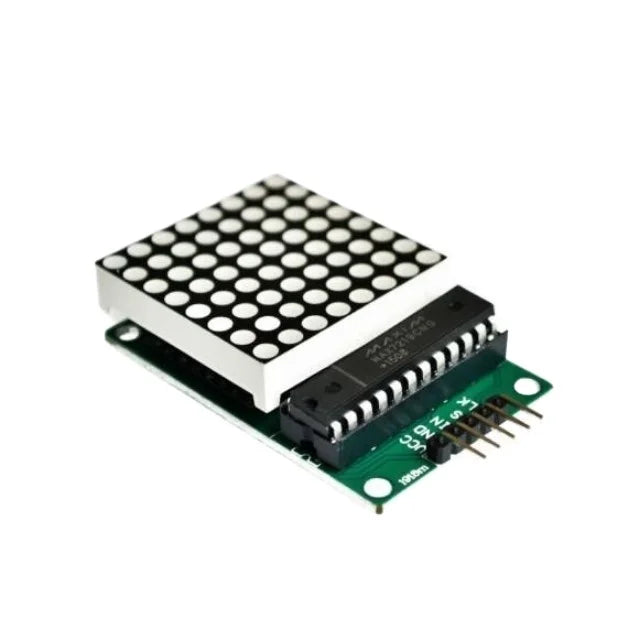

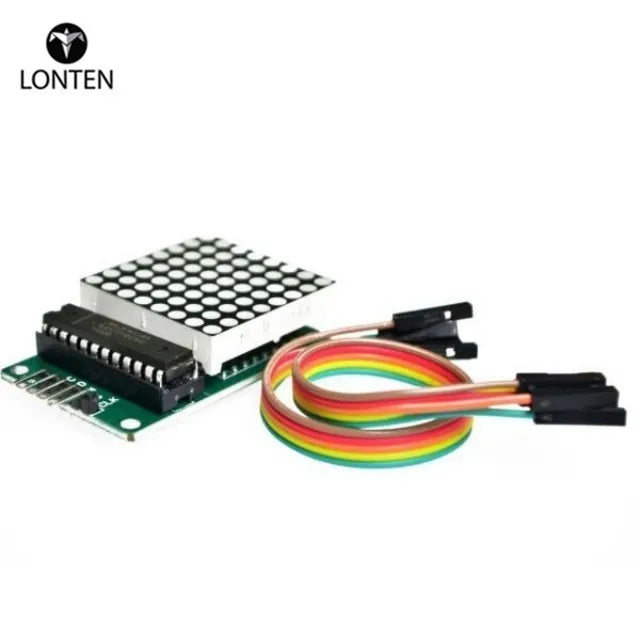

Color and more details are shown as pictures
PLS NOTE that due to lighting effects, monitor's brightn/ contrass settings ect, there cod be some slight differences in the color tone of the pictures and the actual item!
10PCS x MAX7219 dot matrix Mode
- Unit Type:lot (10 pieces/lot)
- Package Weight:0.3kg (0.66lb.)
- Package Size:10cm x 10cm x 5cm (3.94in x 3.94in x 1.97in)
