Lonten Tech
Custom Lonten 0.3M Pixel Serial JPEG Camera Module For arduinos Manufacturer
Custom Lonten 0.3M Pixel Serial JPEG Camera Module For arduinos Manufacturer
Regular price
$43.66 USD
Regular price
$43.66 USD
Sale price
$43.66 USD
Unit price
/
per
Couldn't load pickup availability
The price is only for Bundle(optiona)1, Lonten provide electronic component ,welcome OEM ,ODM,for more please contact.
INTRODUCTION

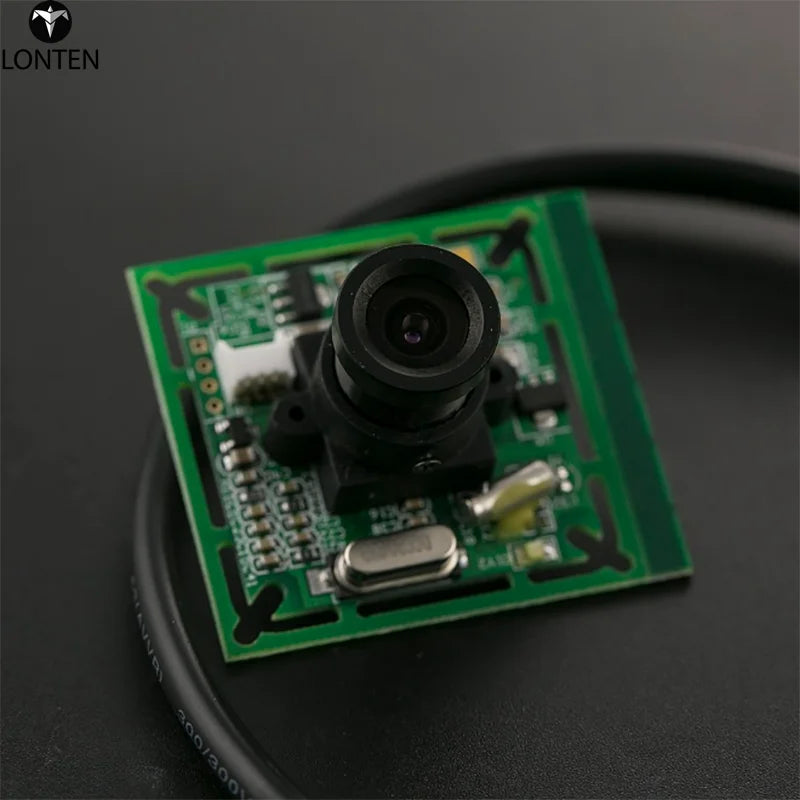

The ZM 0.3 Megapixel serial JPEG still camera module has a compact size, low power consumption, and stable operation. 5.0V DC Supply. UART: Up to 115200bps for transferring JPEG images. The camera uses the advanced OmniVision OV7725 VGA color sensor JPEG CODEC for different resolutions. The camera also features down sampling, clamping and windowing circuits for VGA, QVGA, and no need for external DRAM. The use of the OmniVision CMOS VGA color sensor makes this a low powered comsuption unit.
As this camera uses RS232 interface, a RS232-TTL converter For is required to work with standard .
NOTE: The interface of this module is using RS232 protocol.
APPLICATIONS
Embedded systems for imaging acquisition and control
Security and Control systems,
Remote or public monitoring.
Retrieved/object detection and recognition.
Robot/Industrial control, vehicle and medical systems.
SPECIFICATION
5V power supply
Current consumption: 80-100mA
Communication interface/protocol: RS232
VGA/QVGA/160x120 resolution
Support capture JPEG from serial port
Default baud rate of serial port is 115200
Size:1.51x1.51x1.26"(38.35x38.35x32mm)

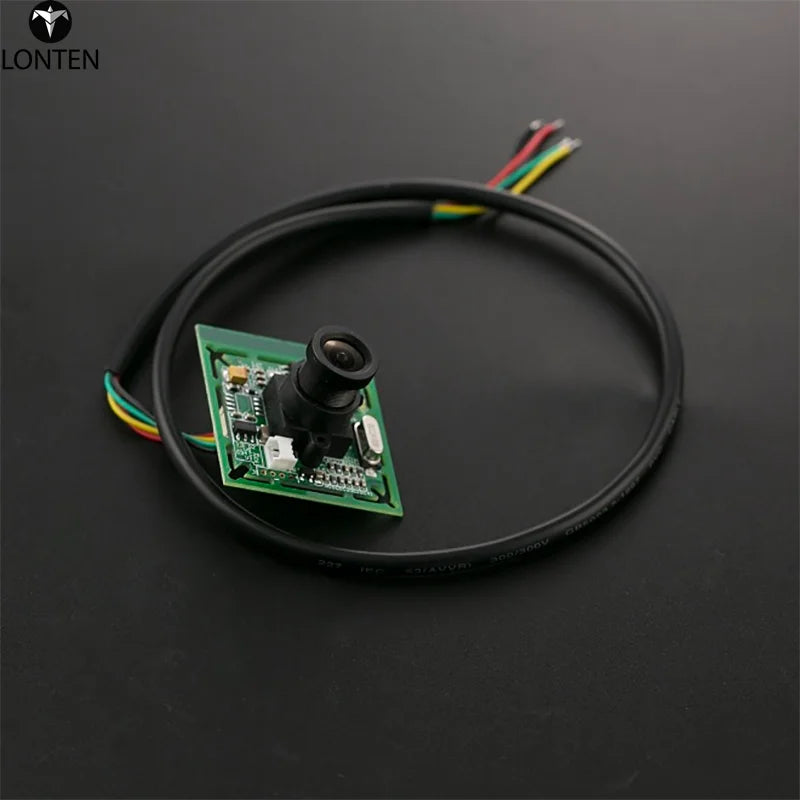

Wiring description (For included cable)
Red wire +5v
Black wire GND
Green wire RS232 RX line
Yellow wire RS232 TX line
SHIPPING LIST
0.3M pixel serial JPEG camera module x1
4 wires cable x1
