Custom LNURLPoS T-Display Keyboard Kit ESP32 Wireless Module 1.14 Inch LCD Display Controller Development Board WiFi BT Manufacturer
Custom LNURLPoS T-Display Keyboard Kit ESP32 Wireless Module 1.14 Inch LCD Display Controller Development Board WiFi BT Manufacturer
Regular price
$31.07 USD
Regular price
$31.07 USD
Sale price
$31.07 USD
Unit price
per
Couldn't load pickup availability
Renew：

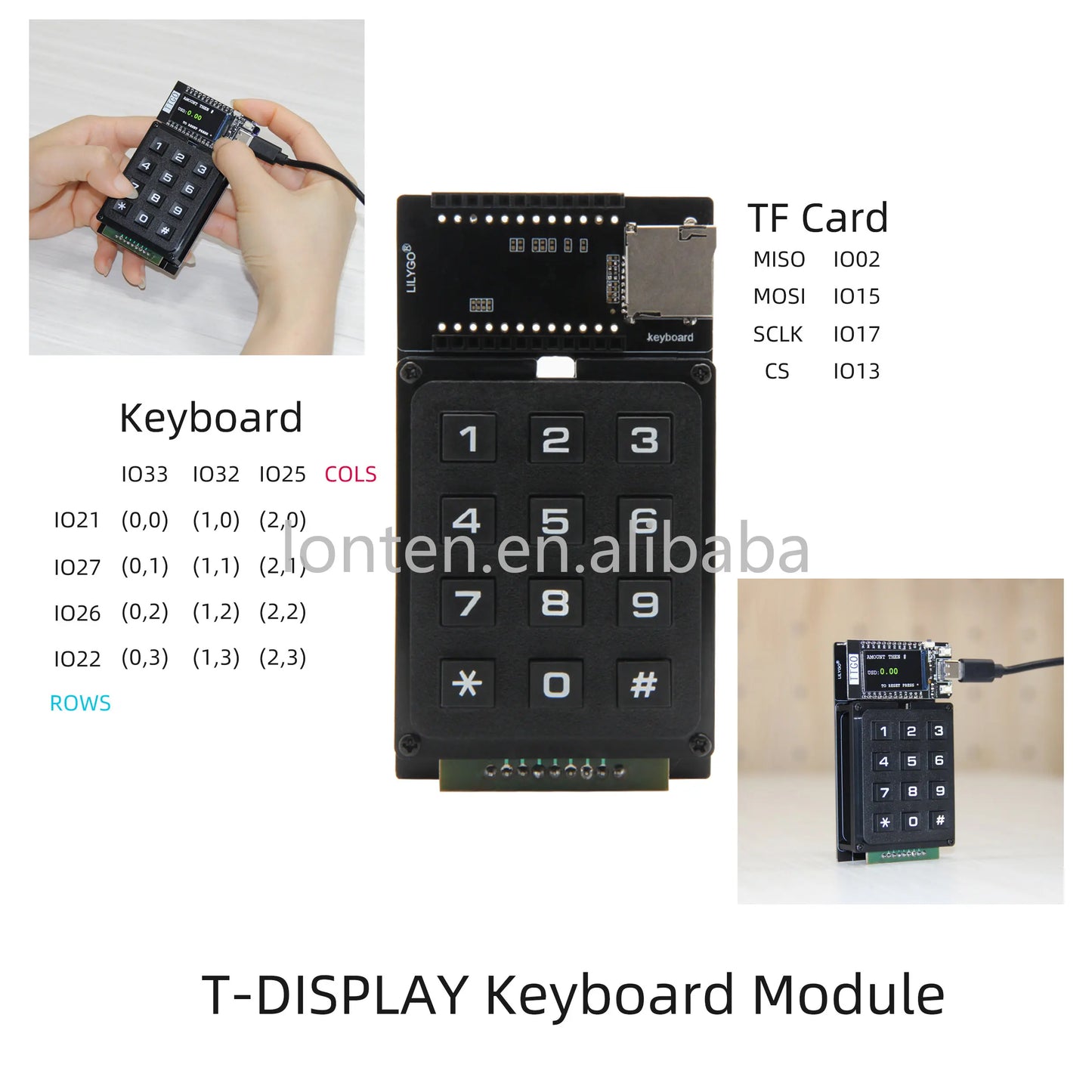

T-Display Keyboard Kit adds T-Display on the basis of Keyboard, and increases the function of display.

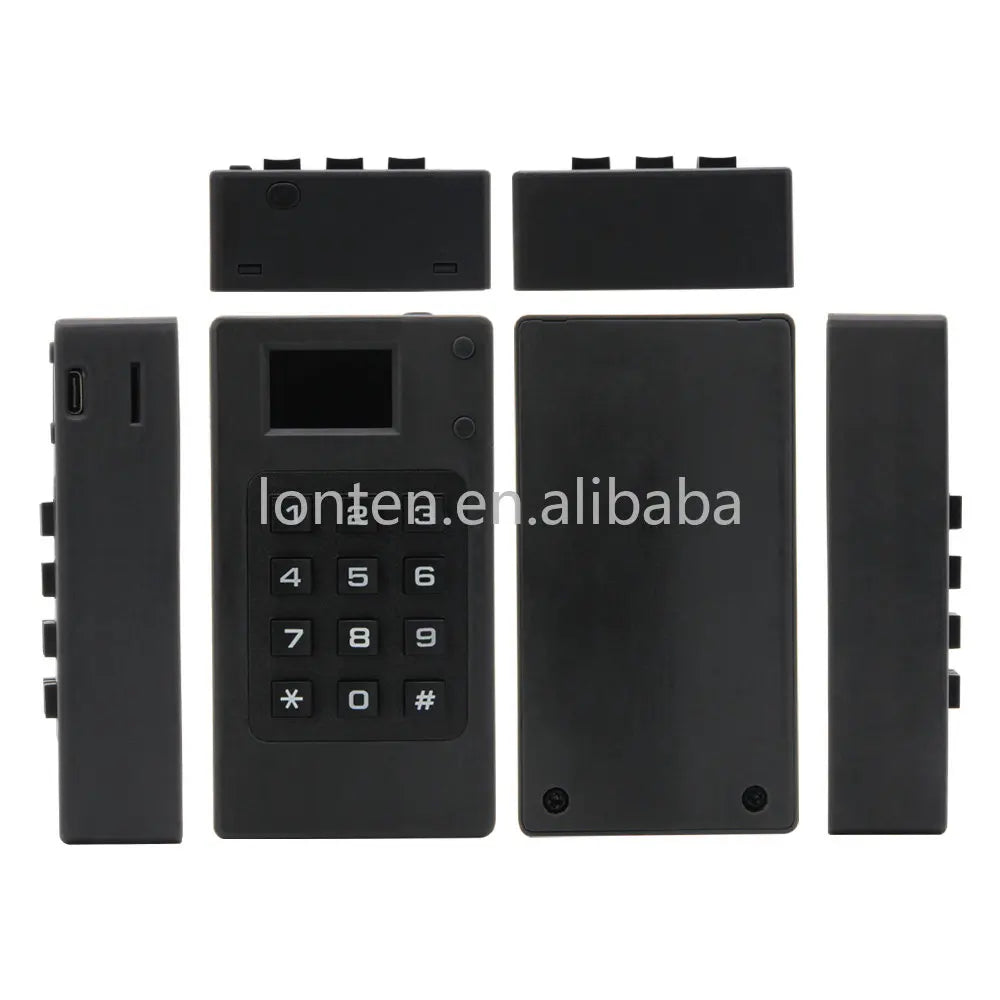

The T-Display Keyboard Shell Kit is based on the T-Display Keyboard Kit, with a 3D printed casing and 500mA battery added.
It is more convenient to use and abandons the shackles of data lines.

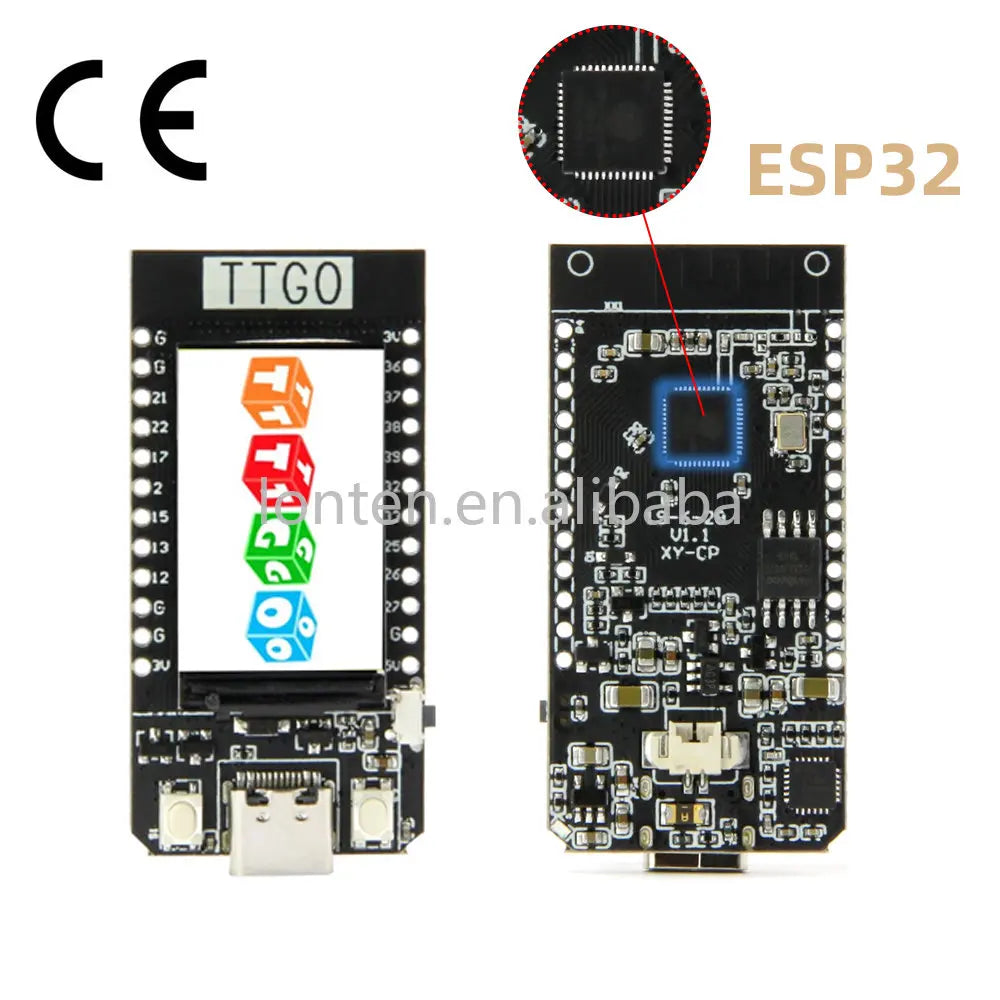

| T-DisplaySpecifications | |
| Chipset | ESPRESSIF-ESP32 240MHz Xtensa® single-/dual-core 32-bit LX6 microprocessor |
| FLASH | QSPI flash 4MB /16MB |
| SRAM | 520 kB SRAM |
| Button | Reset |
| Modular interface | UART、SPI、SDIO、I2C、LED PWM、TV PWM、I2S、IRGPIO、ADC、DACLNA pre-amplifier |
| Display | IPS ST7789V 1.14 Inch |
| Working voltage | 2.7V-4.2V |
| Power Supply Specifications | |
| Power Supply | USB 5V/1A |
| Charging current | 500mA |
| JST Connector | 2Pin 1.25mm |
| USB | Type-C |
Keyboard + T-Display 4MB/16MB
1 X Keyboard
1 X T-Display(4MB/16MB)(The product is welded and shipped by default)
1 X USB Type-C
1 X Jst 2Pin 1.25mm Power cable
Notice:There is no battery by default.

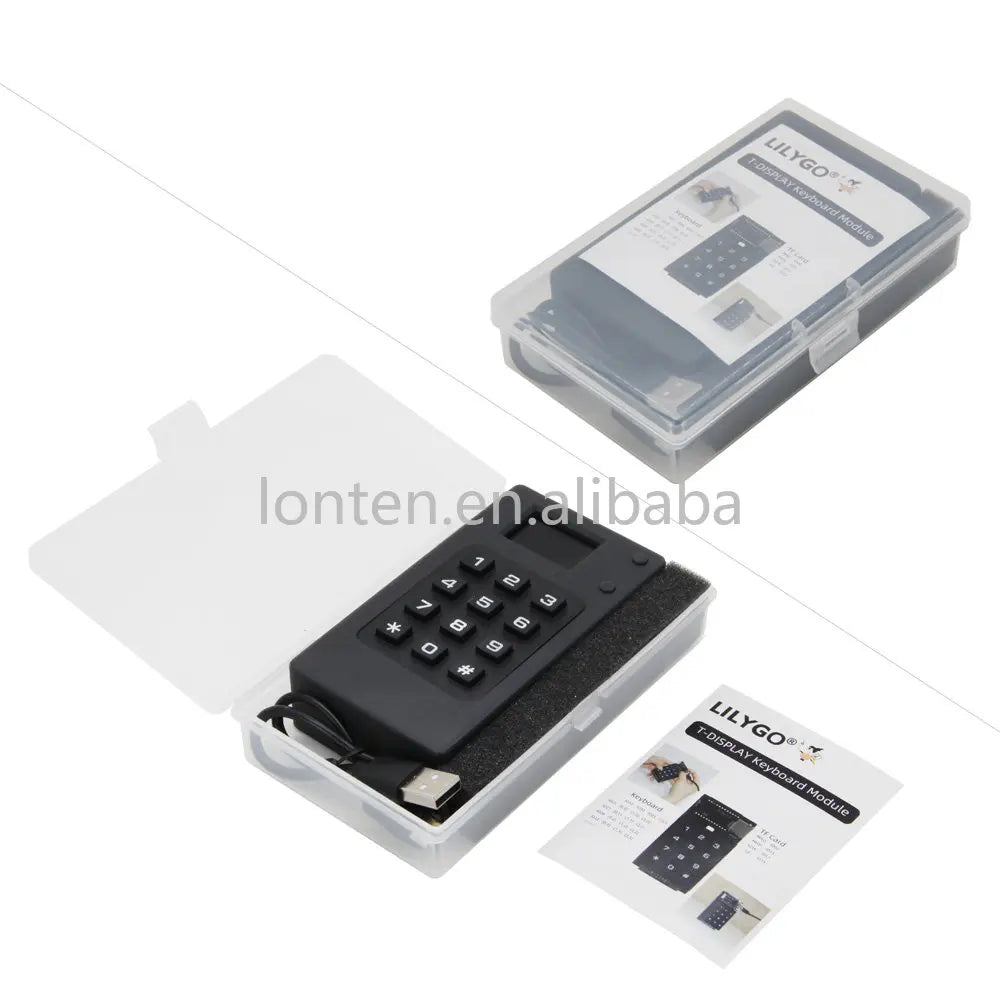

Keyboard + Shell + T-Display 4MB/16MB
1 X T-Display Keyboard (4MB/16MB) (The product is welded Assembly shipped by default)
1 X USB Type-C
Notice:Contains Type 805050 2800MAH lithium battery.
Welcome Customize Order!
