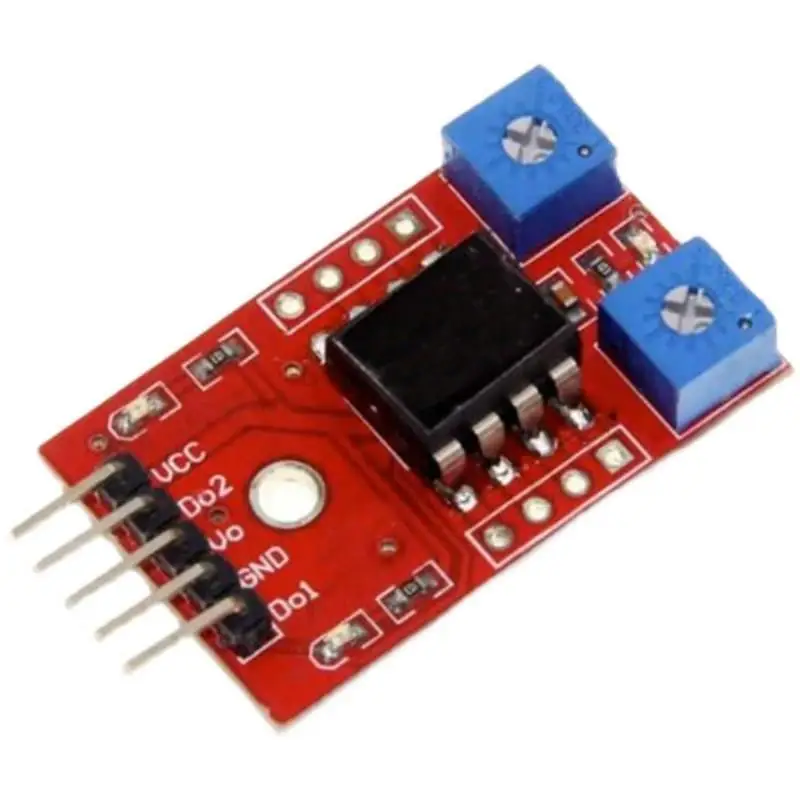

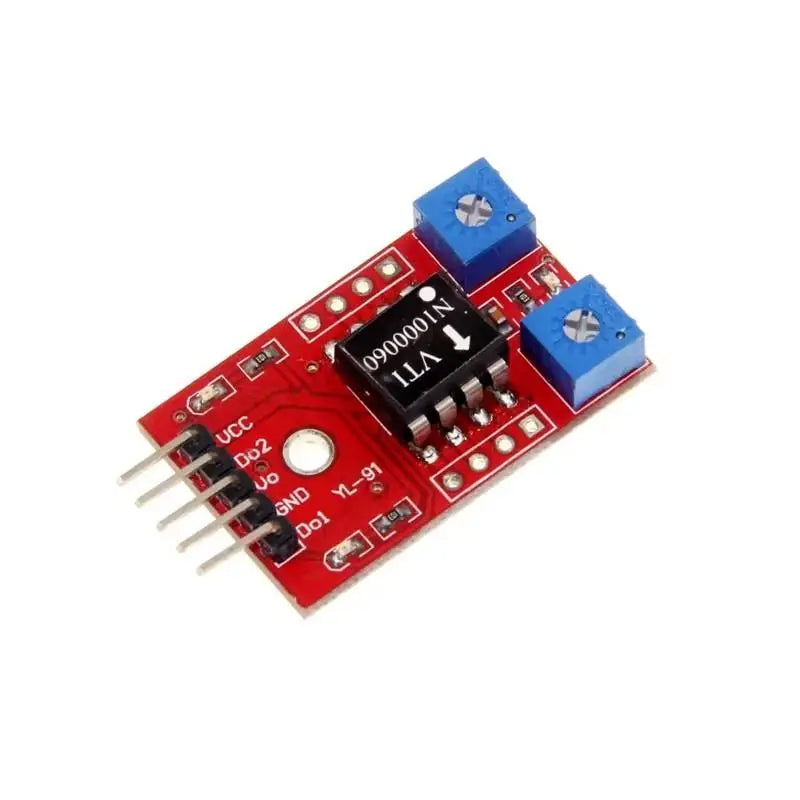

Custom LM393 Axis tilt sensor module SCA60C Tilt detection sensor module

Module description

1. size：3.1cm X wide2.1cmX high1.5cm

2.Main chips：LM393 、Tilt sensor

3.working voltage ：DC 5V

4.Angle signal analog voltage output【0-180 °corresponding0.5-4.5V 】Programmable single chip microcomputerAD collection；

5.Bidirectional tilt signal alarm output；

6.The output valid signal low level indicator light is on；

7.Left and right tilt angle alarm range0-90°90-180°Full range adjustable，The adjustment accuracy is±1°

8.With mounting hole，Easy to fix and install；

9.The circuit board tilt signal isTTL High and low level，It can be directly connected to MCUIO mouth。

10.application：Intelligent body balance detection、Demonstration of teaching experiment、Product development and so on；

two Module interface description（4Wire system）

1 VCC  External connection5VVoltage

2 GND  External connectionGND

3 DO1Left tiltTTL Level output port，Directly connected to MCUIO mouth，Is the threshold signal；

4 DO1Tilt rightTTL Level output port，Directly connected to MCUIO mouth，Is the threshold signal；

5VO   Convert the corresponding voltage signal for the angle，The output is analog voltage value，【0-180 °corresponding0.5-4.5V 】You can take the tapeAD The input port of single chip microcomputer based on FPGA

Data download：http://pan.baidu.com/s/1jGsXUaq
