Custom Lichee Tang Nano Minimalist FPGA Development Board Straight Insert Breadboard Manufacturer

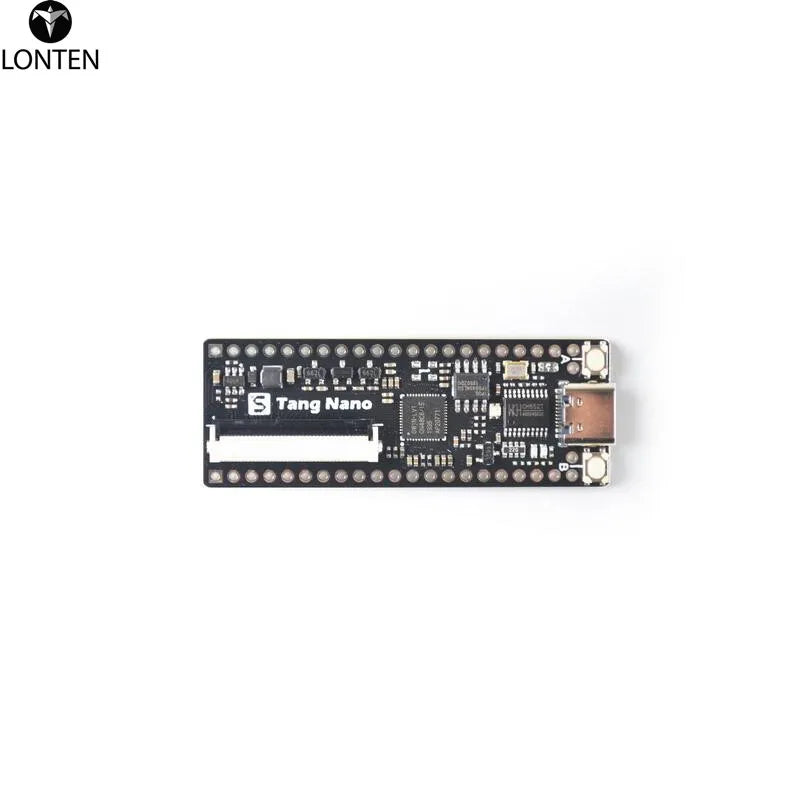

Lichee Tang Nano is a simple development board based on the high cloud bee series GW1N-1 FPGA. The chip is equipped with 1K LUT4 logic resources, 1 PLL and 4 Block RAM, and the development board brings out all I/O interfaces for small digital logic design and experimentation. The onboard 64Mbits PSRAM provides a rich storage resource for the FPGA. At the same time, the development board has an RGB interface, which can be connected to peripherals such as LCD screens and VGA converters, and is very suitable for applications such as screen display.







  The board's onboard 24MHz crystal and USB to JTAG downloader make it easy to connect to a PC for development without the need for an external debugger and clock input. The onboard RGB LEDs can be used for indication and debugging, while the FPGA IOBANK group's adjustable IO levels allow the development board to easily interface to externally different level specifications.

  Onboard resources:

  GW1N-1

  64Mbit QSPI PSRAM

  RGB LED

  RGB LCD 40P interface and drive circuit

  24MHz crystal

  USB debugger based on Type-C communication interface

  DIP40 IO leads
