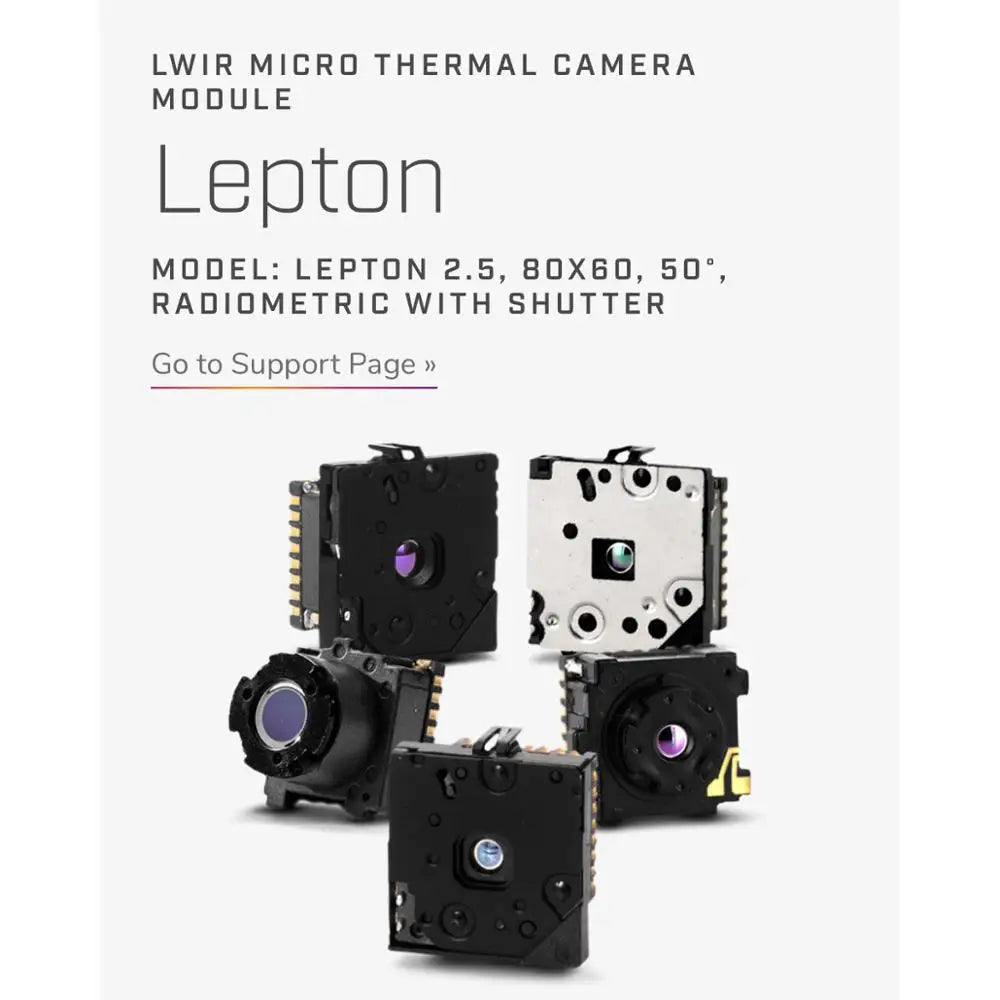

Thermal imaging module for OpenMV4 Infrared imaging module
Temperature measurement module includes lepton3.5 (resolution 160x120, with temperature measurement),
lepton3.0 (resolution 160x120, without temperature measurement),
lepton2.5 (resolution 80x60, with temperature measurement),
lepton2.0 (resolution 80x60, without temperature measurement) four cameras are optional,
Infrared thermal imaging with temperature measurement,
2.5 resolution is: 80x60;
The 3.5 resolution is: 160x120 resolution, the refresh is: 9hz.

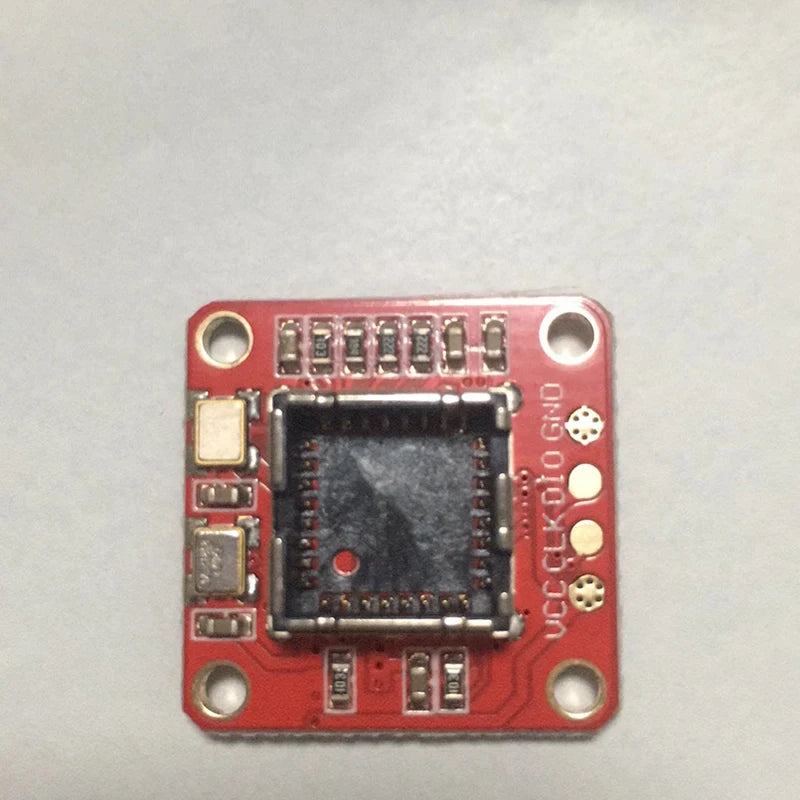

Buy infrared thermal imaging camera to send usb or spi base, with complete development information.

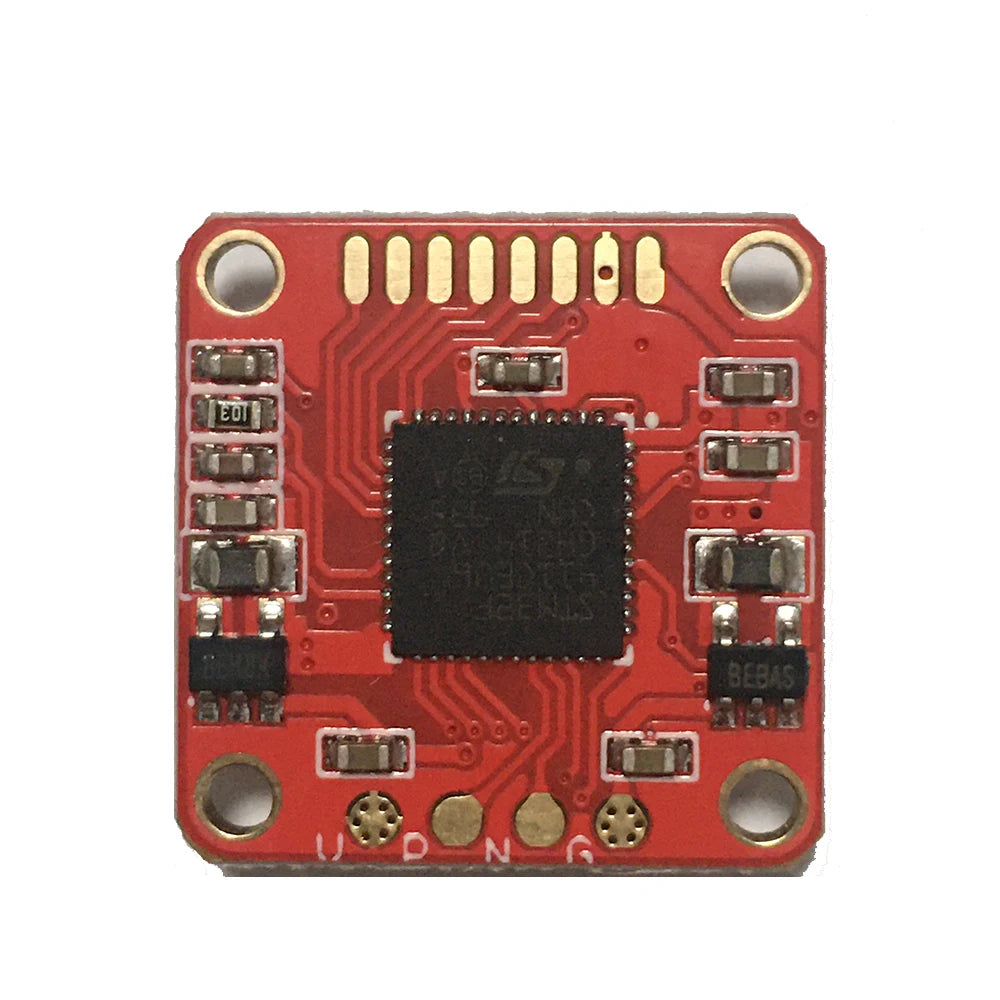

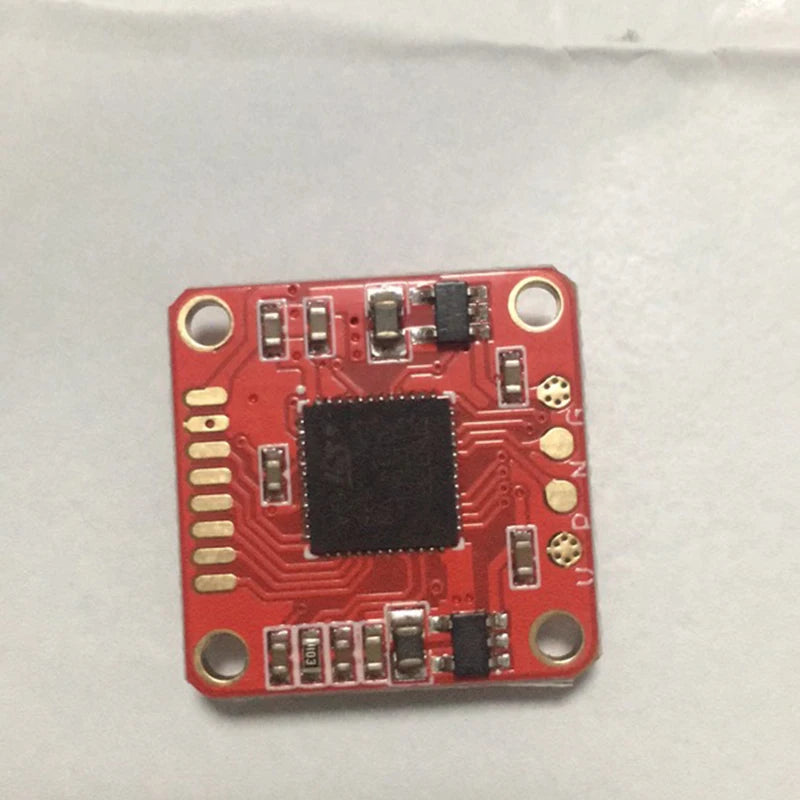

Using PureThermalMini or PureThermal2 expansion board can turn the Lepton infrared camera into a common UVC camera that can be recognized by the computer. It does not require a driver and can be directly connected to the computer with usb to display the infrared image. For detailed development materials such as software codes and hardware schematics
Package:
1PCS
