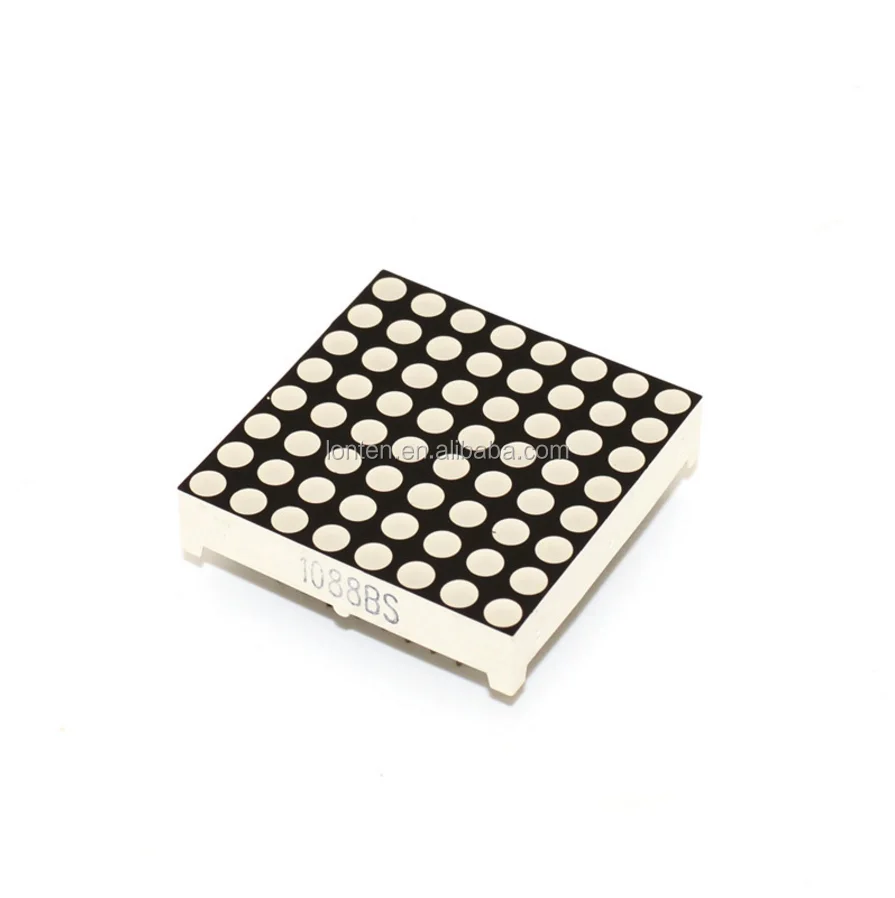

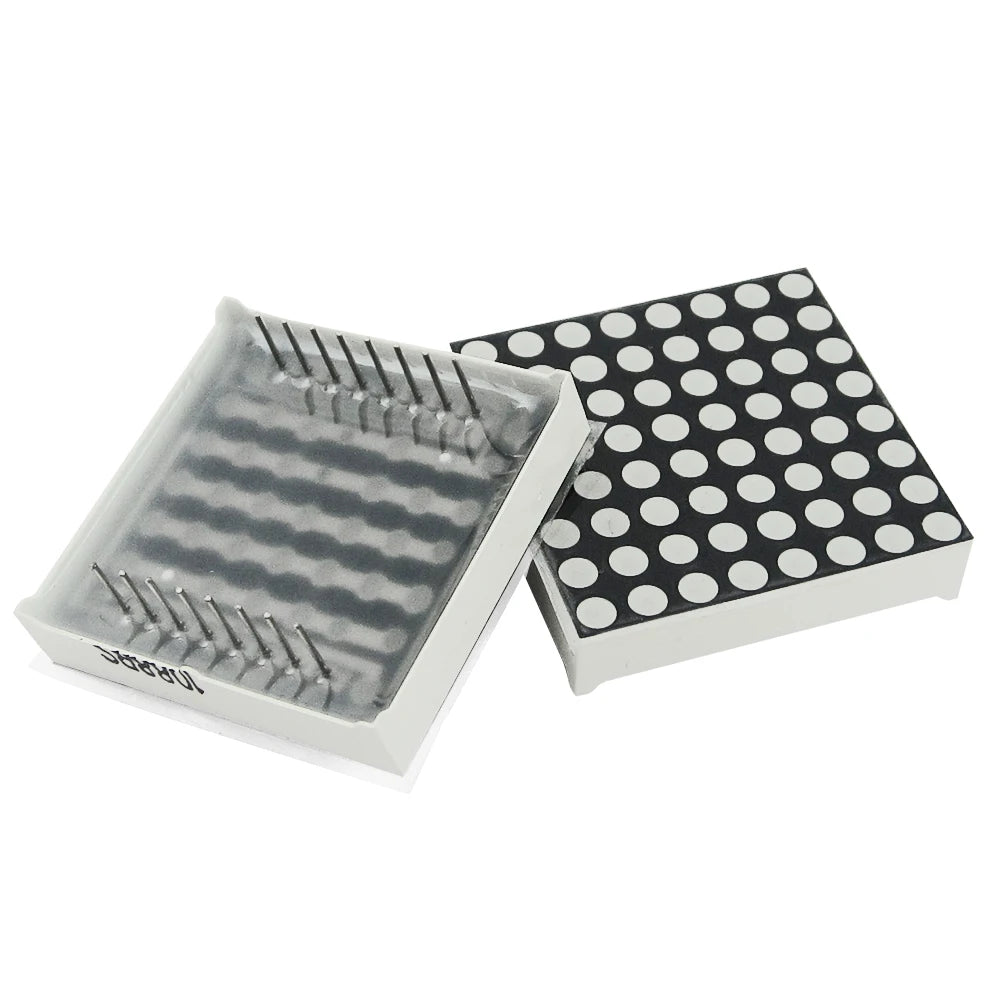

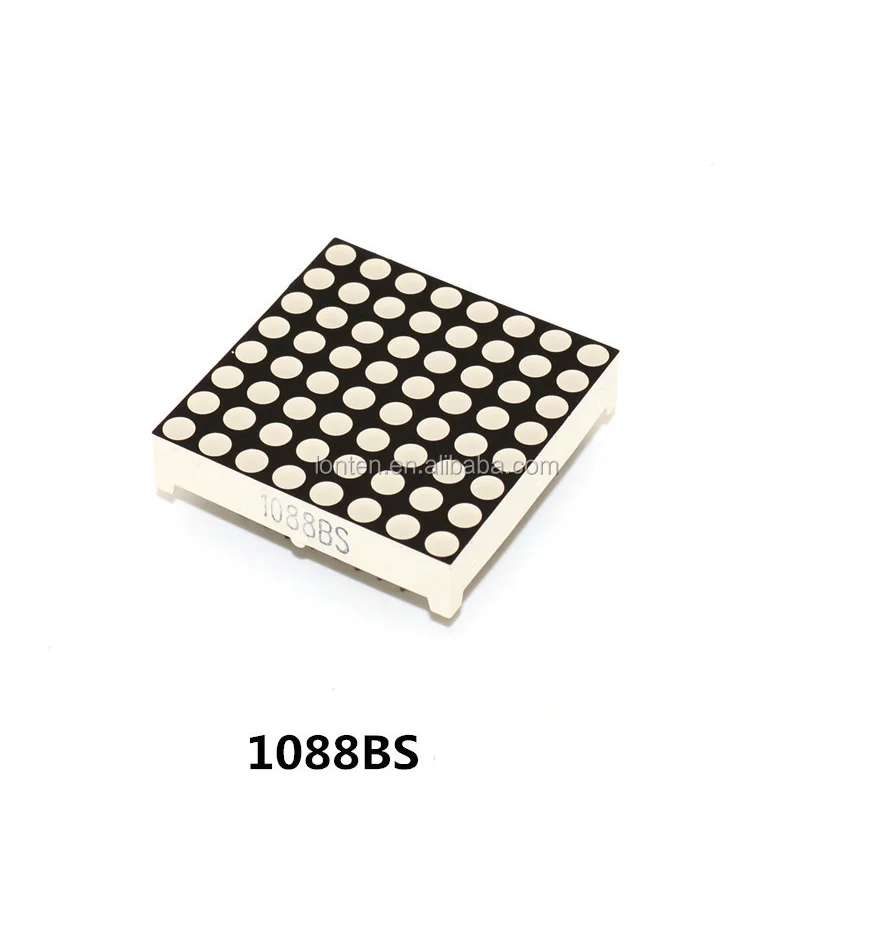

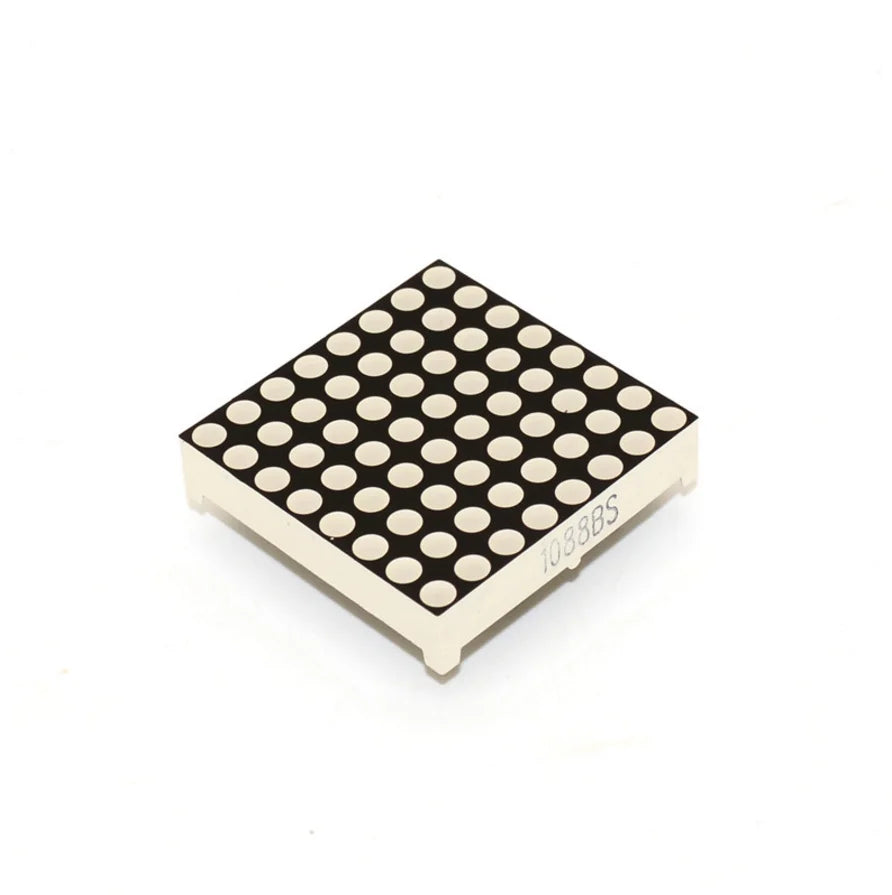

Custom LED Dot Matrix Display 16pin 8*8 3mm Red Common Anode For Arduin AVR 1088BS Manufacturer

LED Dot Matrix Display 16pin 8*8 3mm Red Common Anode For Arduin AVR 1088BS

Features:

Brand new and high quality.
Emitted Colour: Red.
Type: common anode.
Led Size: 3mm.
Peak Wave Length (nm) : 625 ~ 630.
Forward Voltage (V) : 2.1 ~ 2.5.
Reverse Current (uA) : <= 20.
Max Power Dissipation(PM): 40mW.
Max Peak Forward Current(IFP): 100mA.
Max Continuous Forward Current(IFM): 20mA.
Lead Soldering Temperature : 260 Degree (<5Sec).
Operating Temperature Range : -30 ~ +70 Degree.
Preservative Temperature Range : -40 ~ +85 Degree.

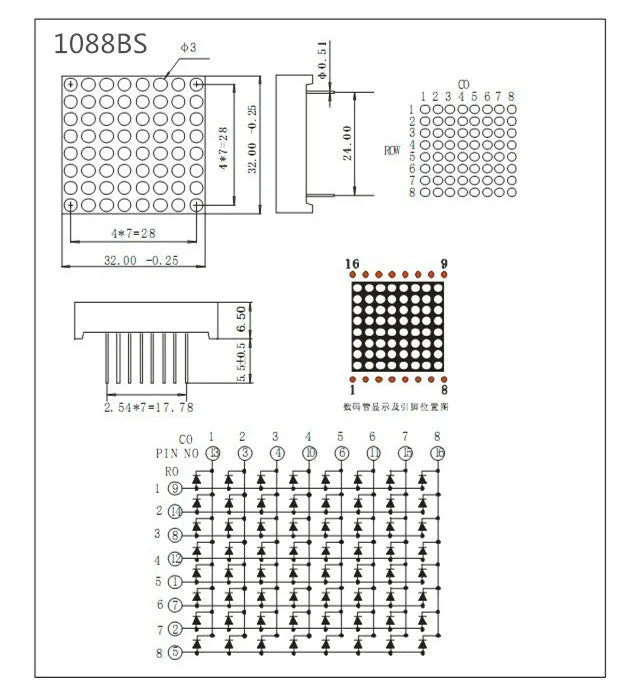

Size: 32mm X 32mm X 8.0mm.

Package Included:

1 * Led Display Dot Matrix
NO Retail Box. Packed Safely in Bubble Bag.
