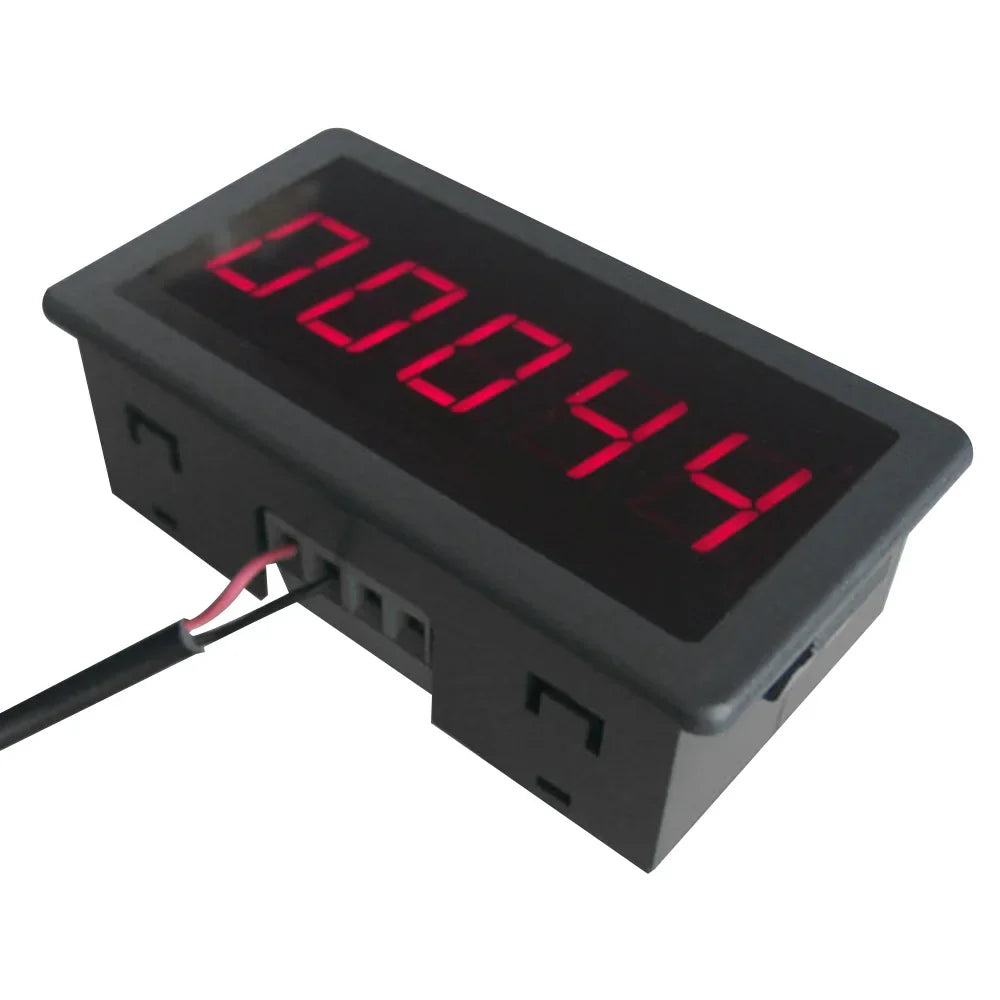

LCD Digital Counter Module DC12V-24V Electronic Totalizer with NPN Signal Interface 1~999999 Times Counting Range Electronic Counter



Product characteristics:

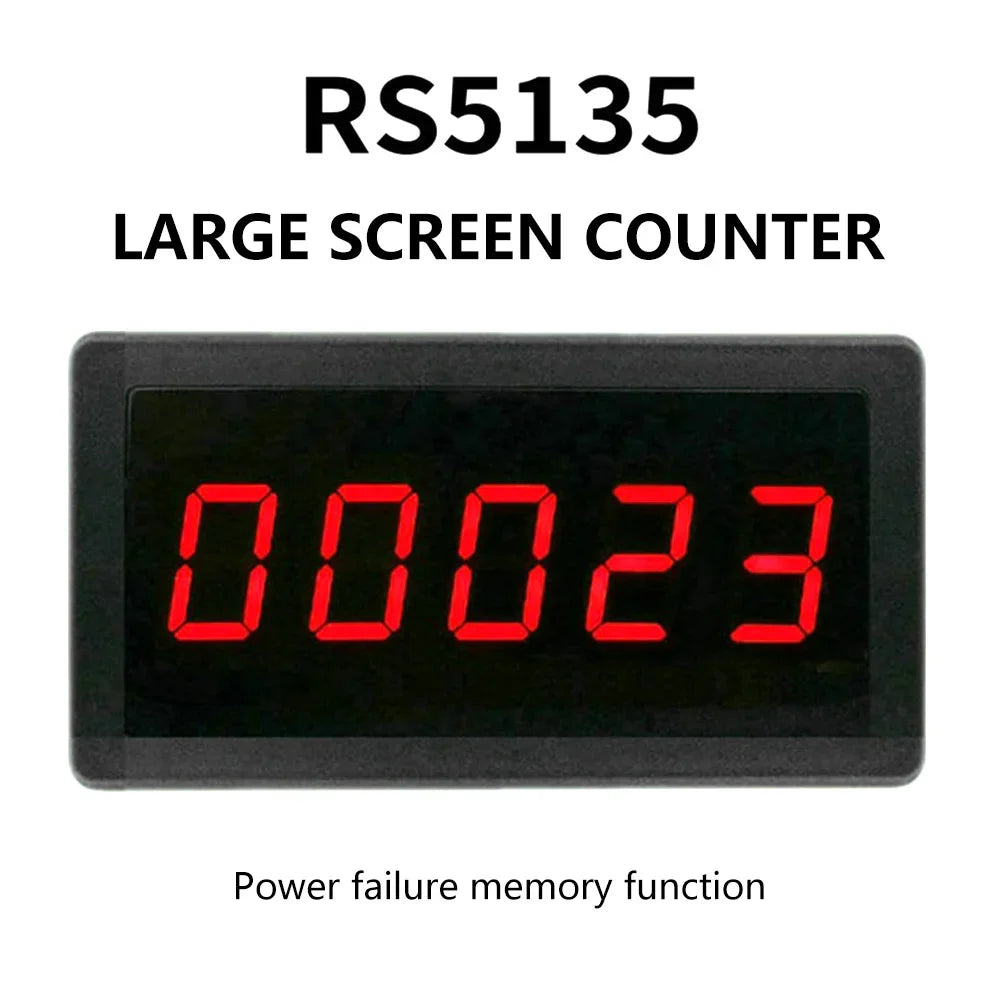

RS5135 is a totalizing type electronic counter, which can be connected to mechanical switch or NPN sensor as signal input to achieve the purpose of counting quantity.

The RS5135 adopts 12-24V DC power supply and the internal control unit adopts imported microprocessor, which has strong anti-interference ability and is suitable for various harsh industrial occasions, ensuring stable, reliable and continuous operation of the counter.

5-digit 0.56-inch (1.42CM high) large size LED display, more convenient to use

Power failure memory function, counting speed 100 times/second, counting range up to 0-99999PCS

The product is suitable for a variety of industrial applications, such as production line statistics, packaging, flow statistics, etc.





Product parameters:

Working power supply and power consumption.

Working voltage: DC12V-24V;

Power consumption: <2W

Display: 5-digit 0.56 inch high brightness digital tube display

Counting range: 0-99999PCS

Counting speed: 100 times/second

Reset function: external dip switch is required as reset input, low level is valid

Use environment: -10℃～50℃

Memory for power failure: Long-term memory for count values after power failure.

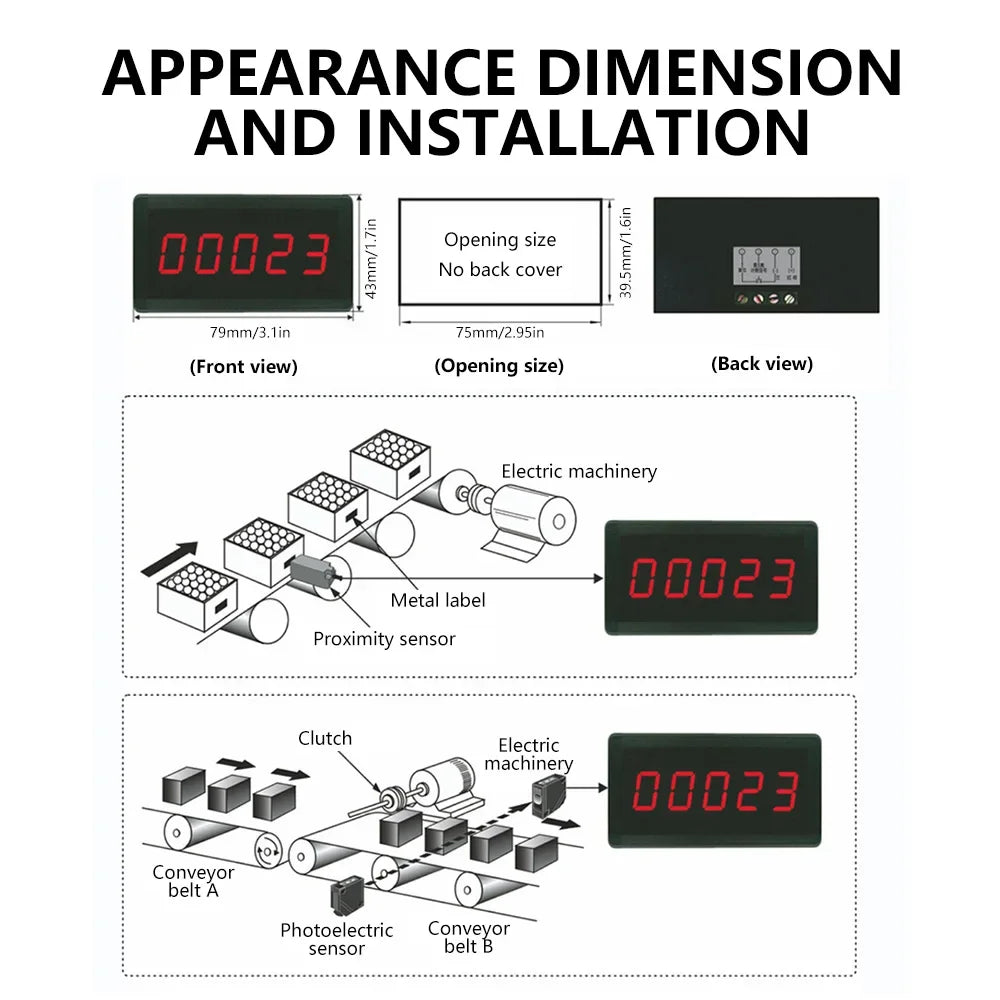

Dimensions(mm): 79(L)×43(W)×26(Thickness)

Installation method and size (mm): Open hole installation:75(L)×39.5(W)

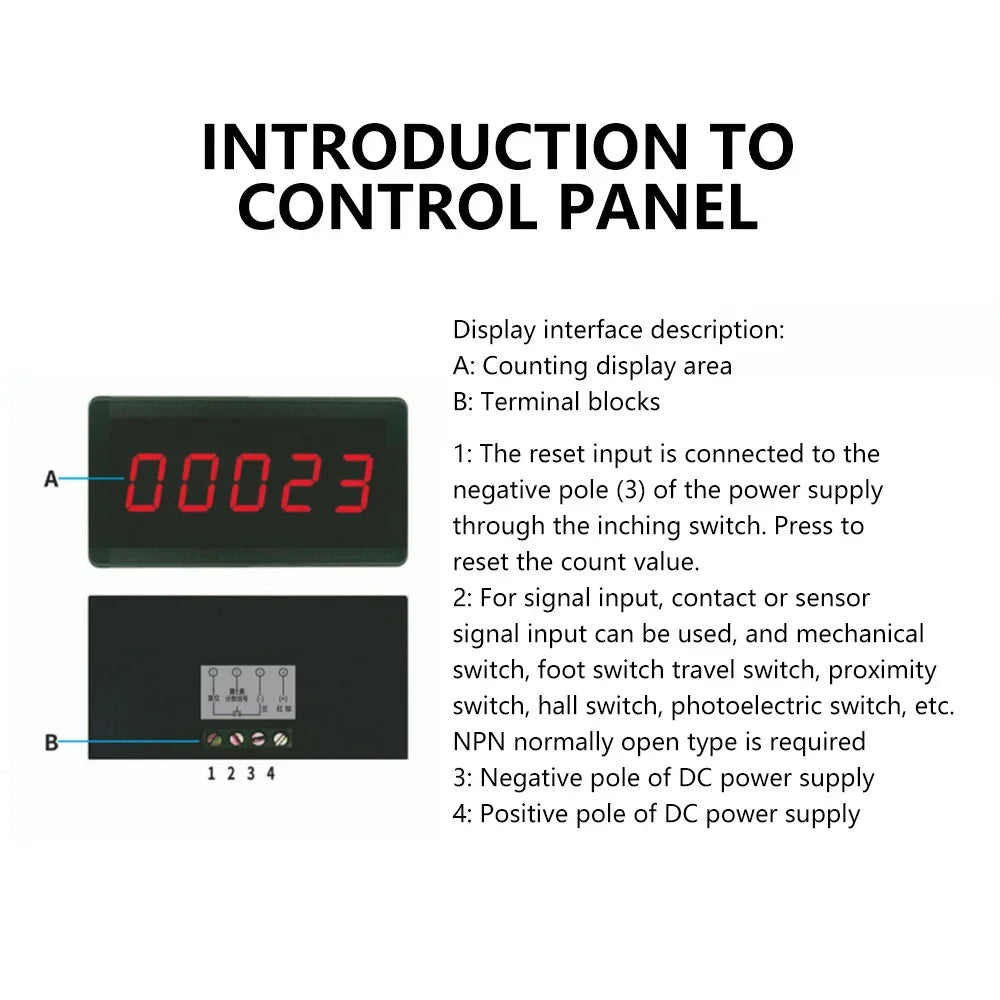

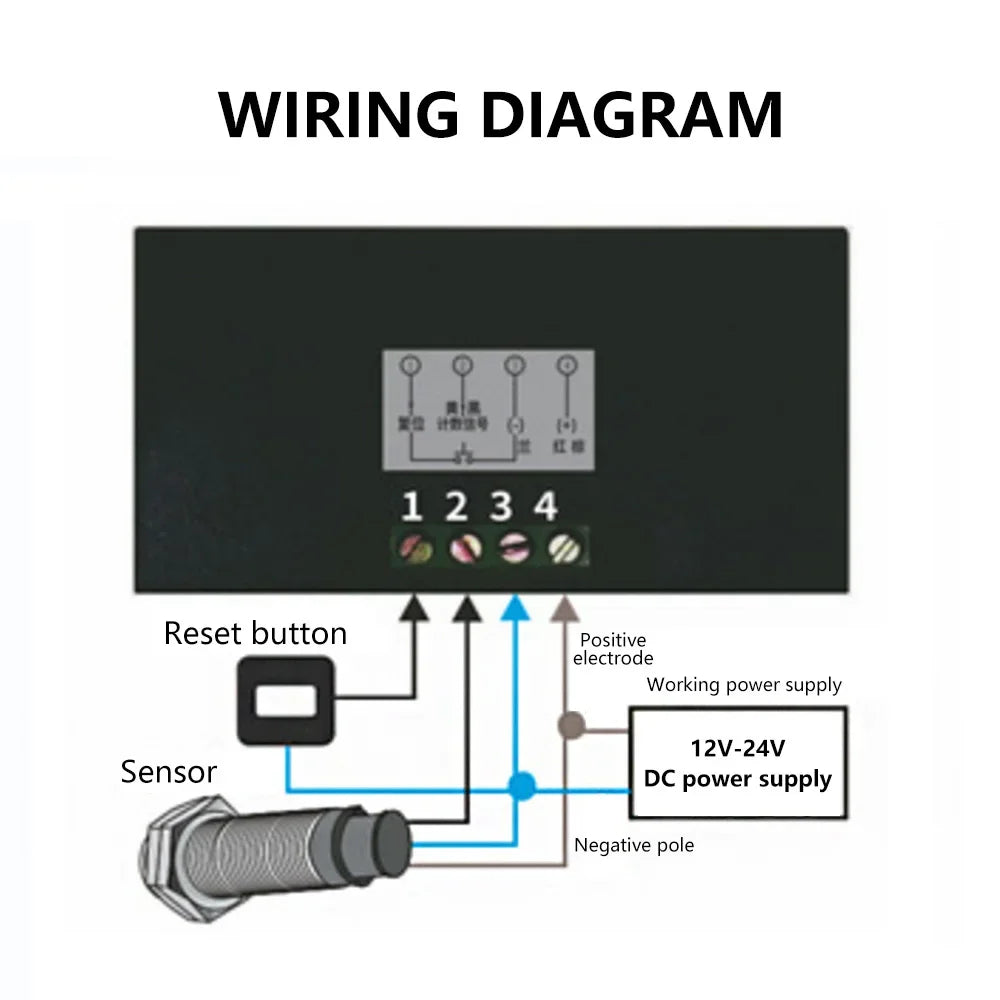

Four terminal counter wiring guide:

1: Reset input, connected to the negative pole of the power supply (3) through the dip switch, press to clear the count value that is reset.

2: Signal input, available contact or sensor signal input, can be used with mechanical switches, foot switches, travel switches, proximity switches, Hall switches, photoelectric switches, etc. need to choose NPN normally open type.

3:Negative DC power supply

4:Positive DC power supply





Note:

1. Contact signal: generally refers to mechanical switches, such as light contact switches, travel switches, foot switches, etc., the switch is connected once equivalent to a short circuit, resulting in a counting signal. The input signal is low effective. No high voltage signal can be input.

The standard counting speed of a peal counter is 100 times/second, high speed 500 times/second is available on request. High speed is achieved at a duty cycle of 1:1. Duty cycle is the ratio of time between high and low signal levels.

3. The contact input should be reliable, if the contact jumps back to cause more counts, please connect 2.2UF capacitors in parallel at both ends of the contact, to eliminate

4. The signal input line should be as short as possible. Avoid running with other strong wires and power lines, please use shielded wires if necessary.





Product list:

1X counter meter
