Custom Laser Ranging Sensor Module ToF Time of Flight Ranging Matchable optical cover

Optical Cover Description:   The optical cover is matched with VL53L0X V2 for more accurate measurement, while also protecting the sensor and extending its service life. Customers can choose to match it themselves.

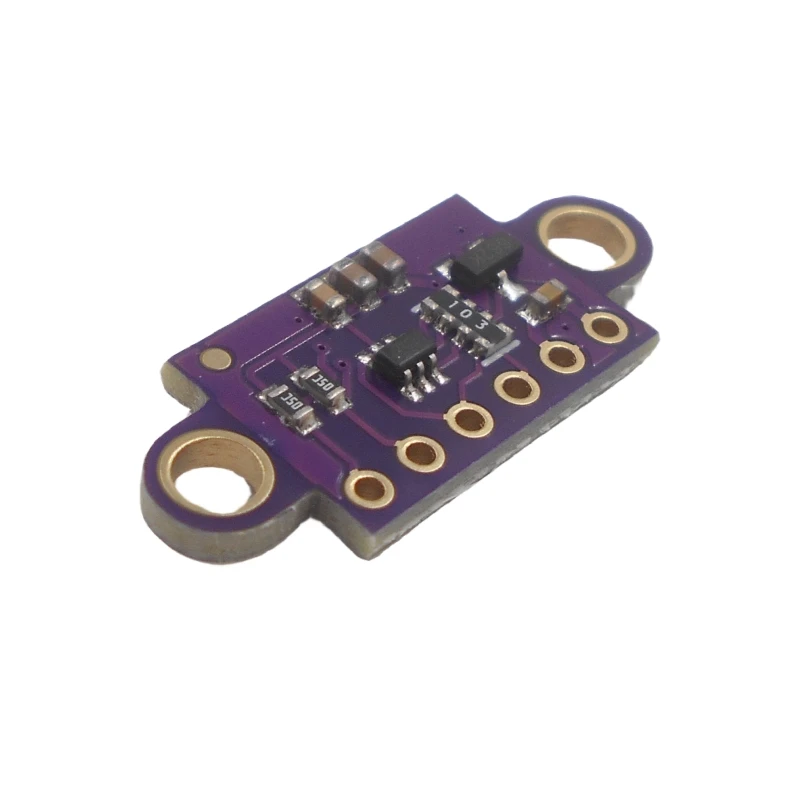

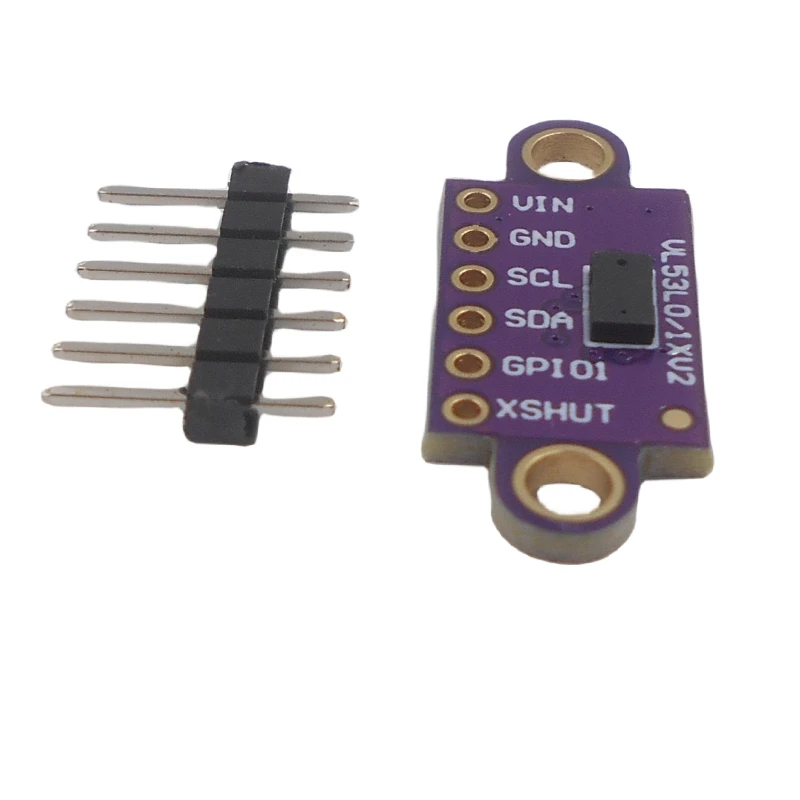

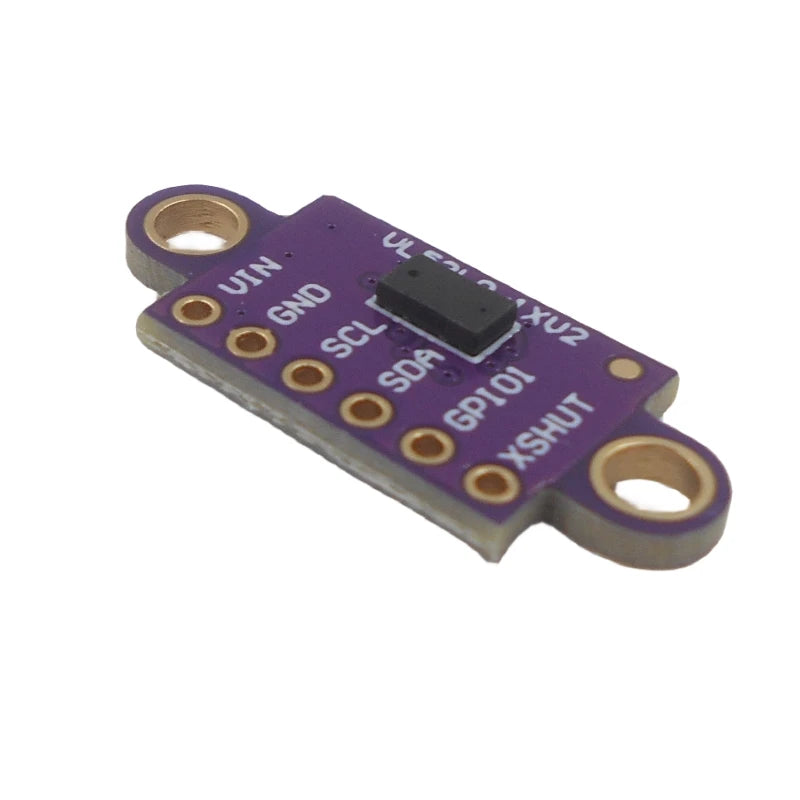

VL53L0X V2 laser ranging sensor module

The VL53L0X Time of Flight Ranging Sensor is a next-generation laser ranging module. VL53LOX is a fully integrated sensor equipped with embedded infrared, eye safe lasers, advanced filters, and an ultra fast photon detection array, providing longer measurement distances, higher speed and accuracy.

The sensing capability of VL53L0X can support various functions, including gesture or proximity detection for various innovative user interfaces, obstacle detection and collision avoidance systems for sweeping robots and service robots, user presence detection or power on/off monitors for home appliance sensing panels, laptops, as well as drones and Internet of Things (IoT) products.

Product parameters

1. Working voltage: 3-5 V

2. Communication method: IIC

3. Absolute distance measurement: 2m

4. Xshutdown/GPIO

5. Size: 25MM * 10.7MM
