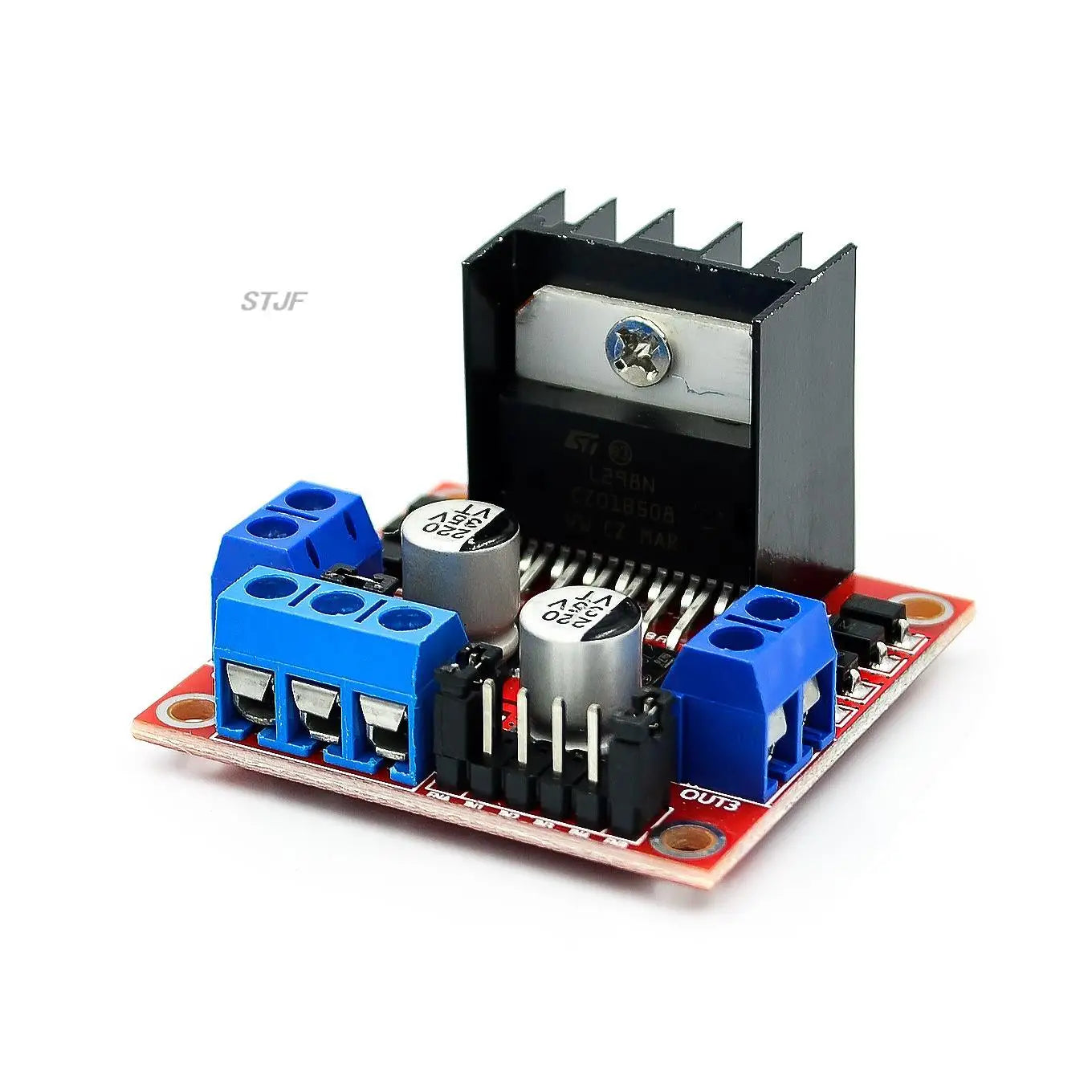

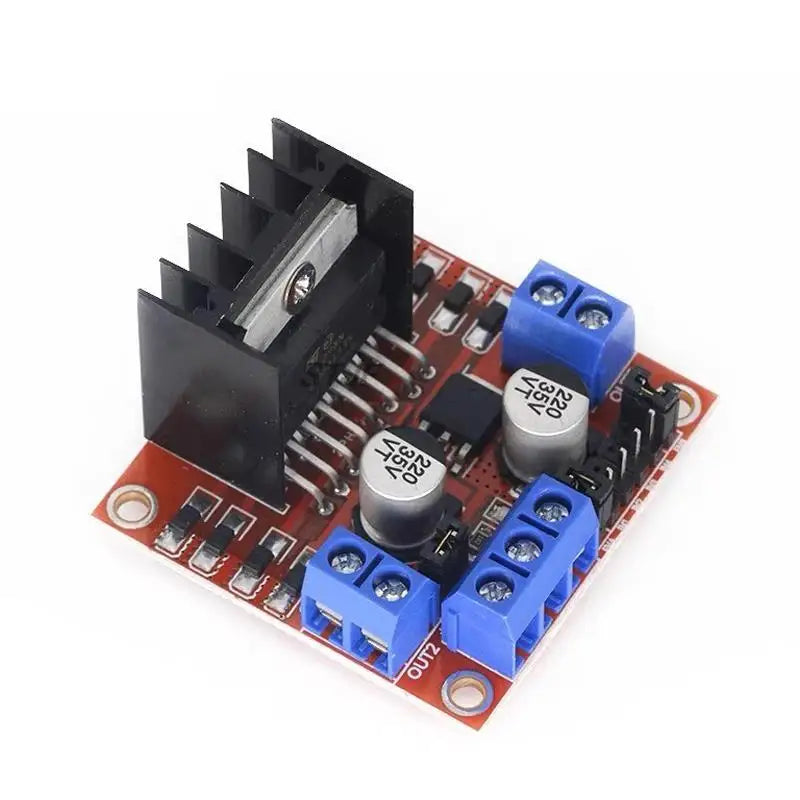

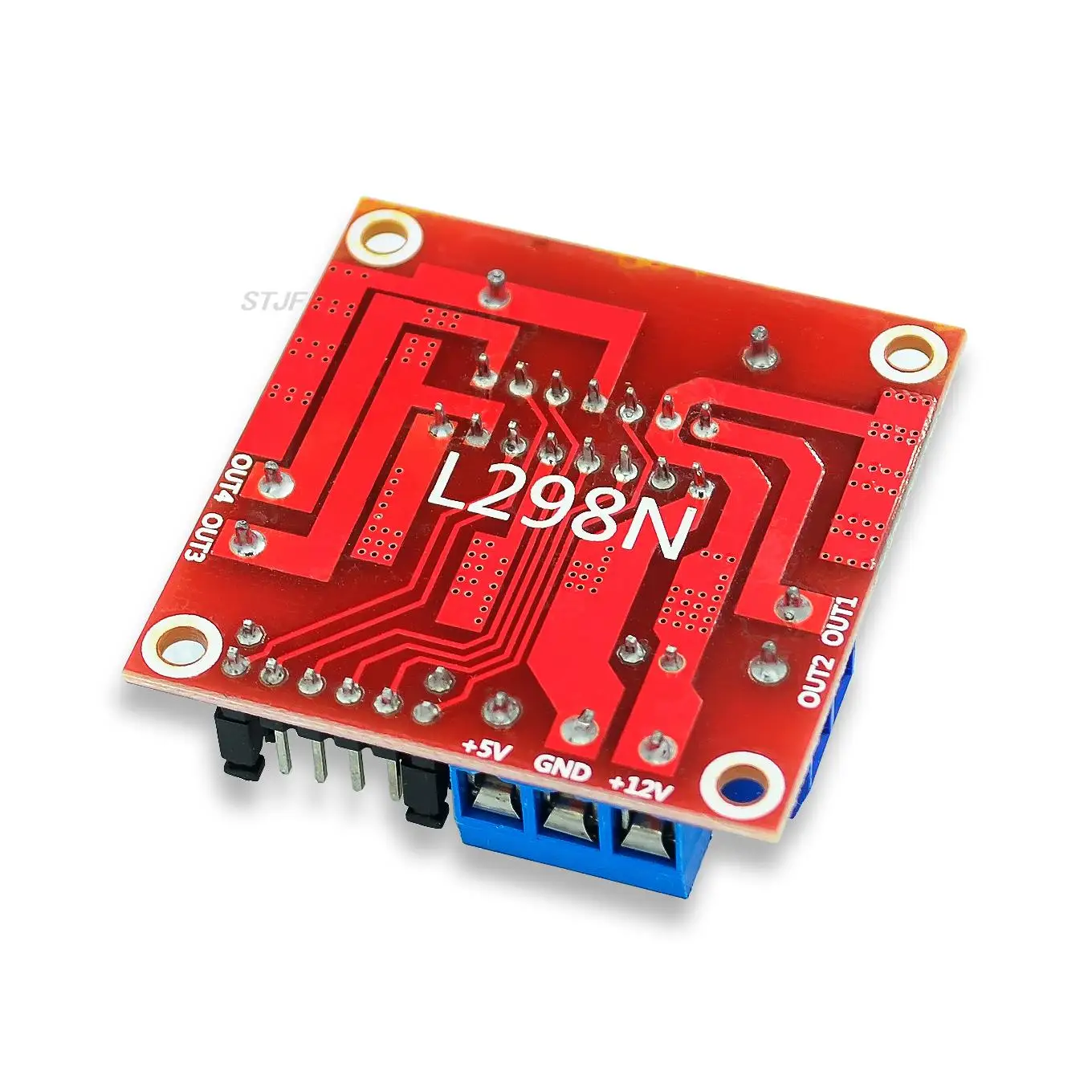

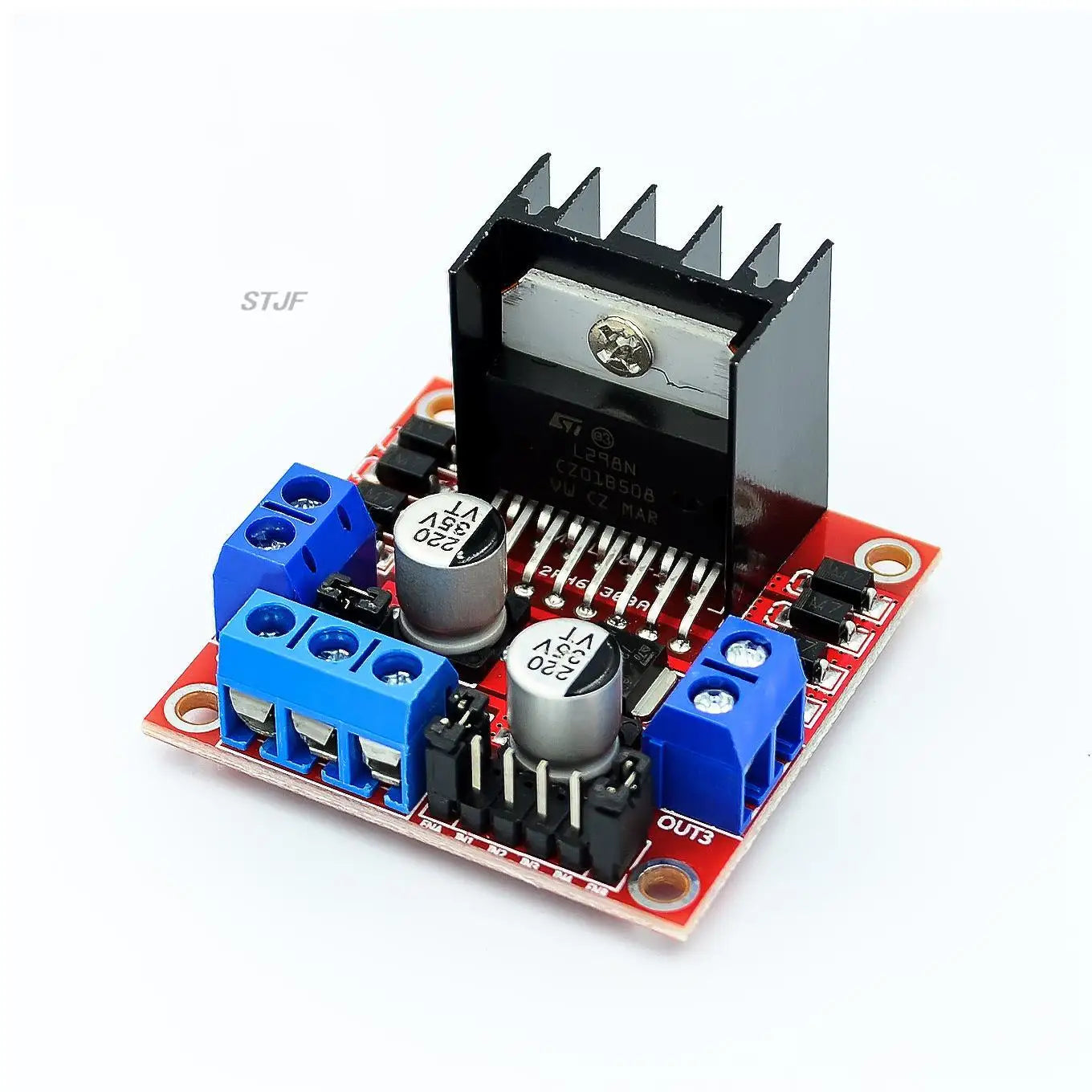

Custom L298N motor driver board module L298 for arduino stepper motor smart car robot
Custom L298N motor driver board module L298 for arduino stepper motor smart car robot
Couldn't load pickup availability
Warm prompt: Dear buyer, Our cheapest transportation services Economic category logistics (SunYou Economic Air Mail ,China Post Ordinary Small Packet Plus ) can be traced only befor it arrive your country,please choose Standard category logistics if you want a full tracking info.
Features:
100% Brand New.
Working mode: H bridge (double lines)
Control chip: L298N (ST)
Logical voltage: 5V
Driving voltage: 5V-35V
Logical current: 0mA-36mA
Driving current: 2A (MAX single bridge)
Storage temperature: (-20 °C)-(+135 °C)
Maximum power: 25W

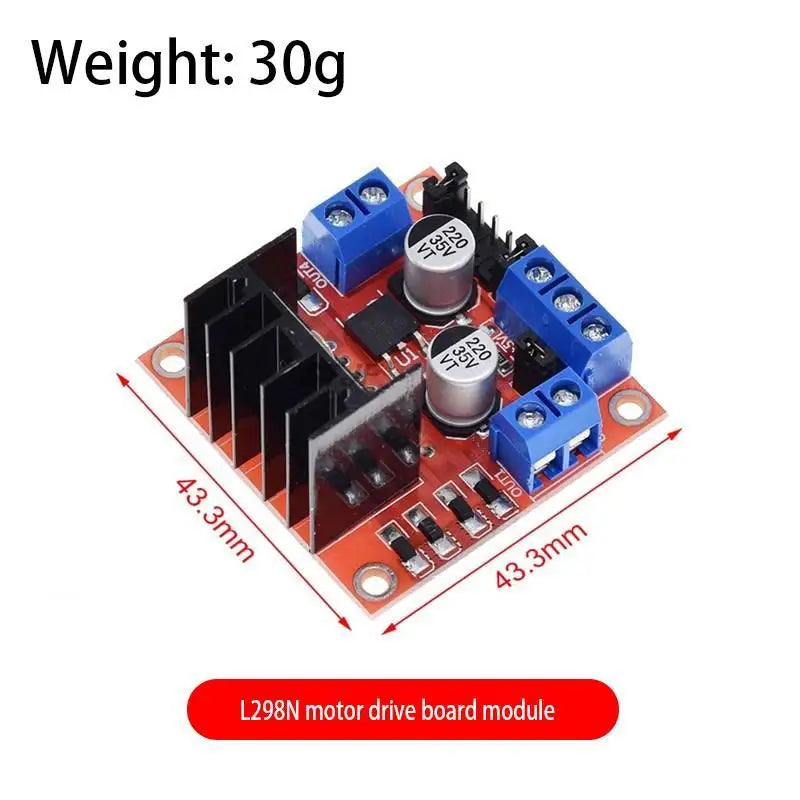

Weight: 30g

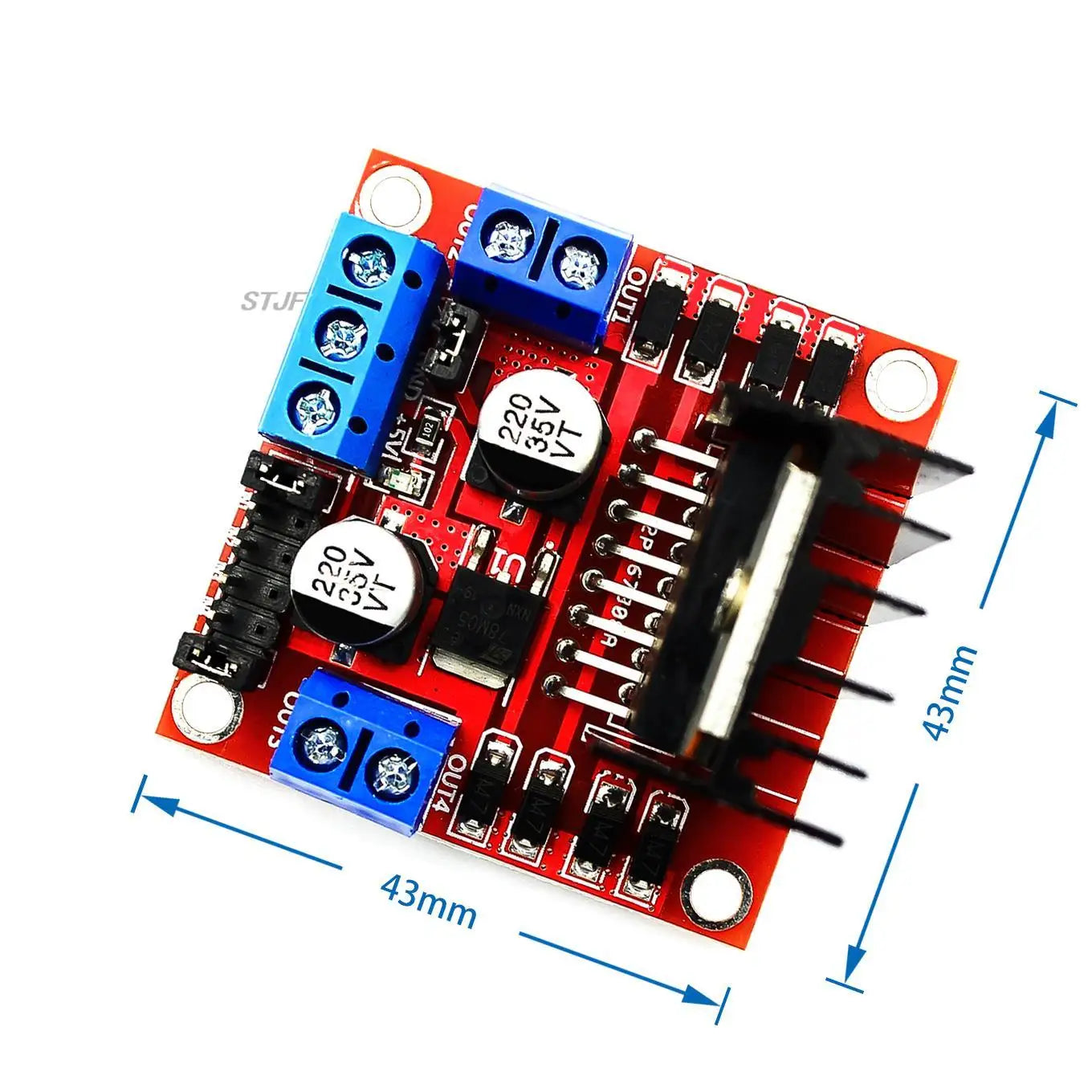

Periphery dimension: 43 x 43 x 27mm(L x W x H)
Using L298N made by ST company as the control chip, the module has such characteristics as strong driving
ability, low calorific value and strong anti-interference ability.This module can use built-in 78M05 for electric work via a driving power supply part. But to avoid the damage
of the voltage stabilizing chip, please use an external 5V logic supply when using more than 12V driving voltage.Using large capacity filter capacitor, this module can follow current to protect diodes, and improve the reliability.
Package Content
Dual H Bridge DC Steper Motor Drive Controller
