Custom KS25 Sound Control VU Meter Crystal Sound Column Audio Level Meter LED Music Spectrum DIY Kits VU Tower for Home Theater Manufacturer
Custom KS25 Sound Control VU Meter Crystal Sound Column Audio Level Meter LED Music Spectrum DIY Kits VU Tower for Home Theater Manufacturer
Regular price
$32.52 USD
Regular price
$32.52 USD
Sale price
$32.52 USD
Unit price
per
Couldn't load pickup availability
1,25 segments of the column design
2,KS25 using 1T single-chip,high-speed acquisition of signals,accurate response

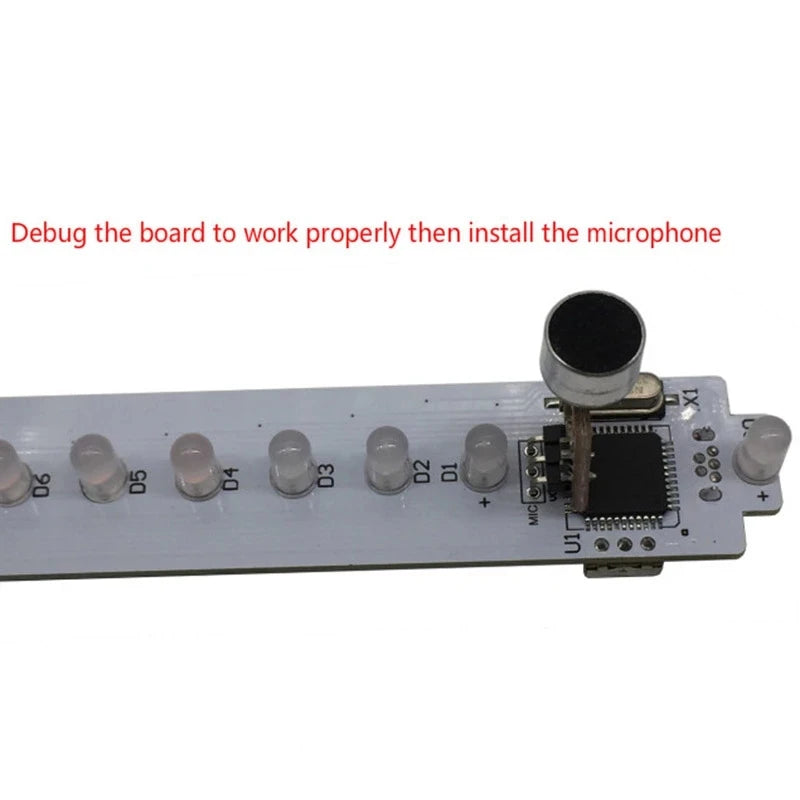

3,KS25 increase the voice function,you can set the key to open and close,with MIC independent module,
4,KS25 has 10 drop speed adjustment function
5,8 kinds of classic mode,key control,with power-down memory
6,7 level gain settings,the signal can be enlarged or reduced,long press the button to set
7,there are left channel,right channel,MIC mode,set by button
8,fog frosted LED,soft colors

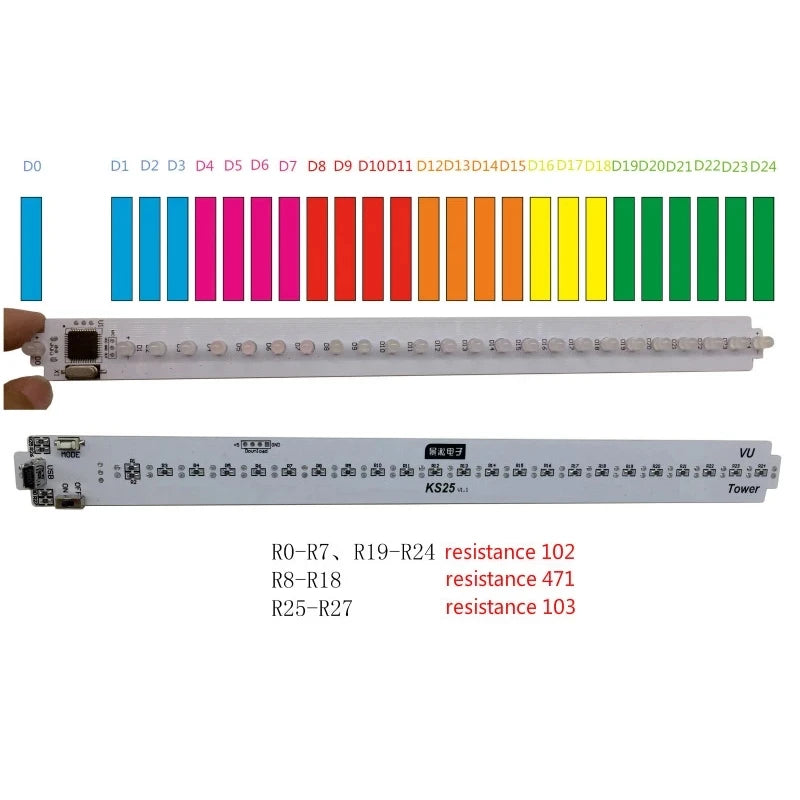

9,white PCB design
KS25 has 8 kinds of classic display mode,through the key settings,set with memory function.
Mode 1:Columnar mode
Mode 2:Cylindrical peak hold mode
Mode 3:Cylindrical peak,peak up mode
Mode 4:Mirror mode,middle to both sides
Mode 5:Single point mode
Mode 6:Peak up mode
Mode 7:Single peak mode
Mode 8:mute all-bright mode(can be used to test the LED)
Key operation and instructions:
Short press:mode adjustment;
long press 1 second:10 speed adjustment,the top of the LED will display(the default value of 4,1-10,the more bright the slower)
long press 3 second:Level 7 gain adjustment,the bottom of the blue part will have a corresponding display;(default 4)
long press 6 second:channel and voice conversion,
pink LED light Keep on-left channel(pink L);
red LED light keep on-right channel(orange R);
orange LED light keep on-voice activated(voice activated State,line input is automatically turned off)
Product Size:29 * 4 * 7.5cm
Maximum Power Per Channel:25W
Channels:2(2.0)
color:White
Material:plastic+metal

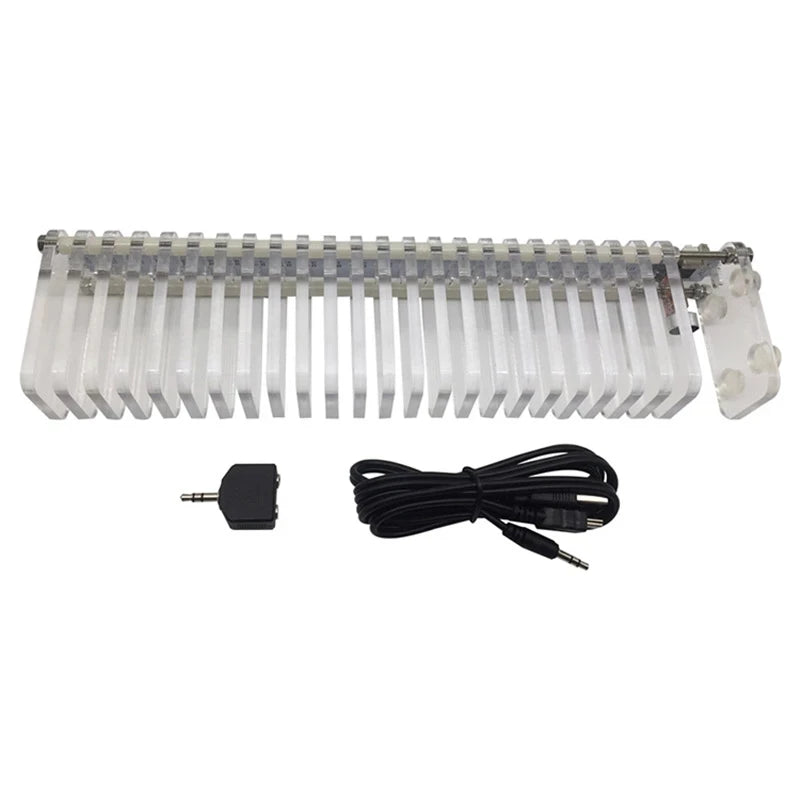

Package Contents:
1* KS25 sound column set
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing.
The measurement allowed error is +/- 1-3cm.
