Lonten Tech

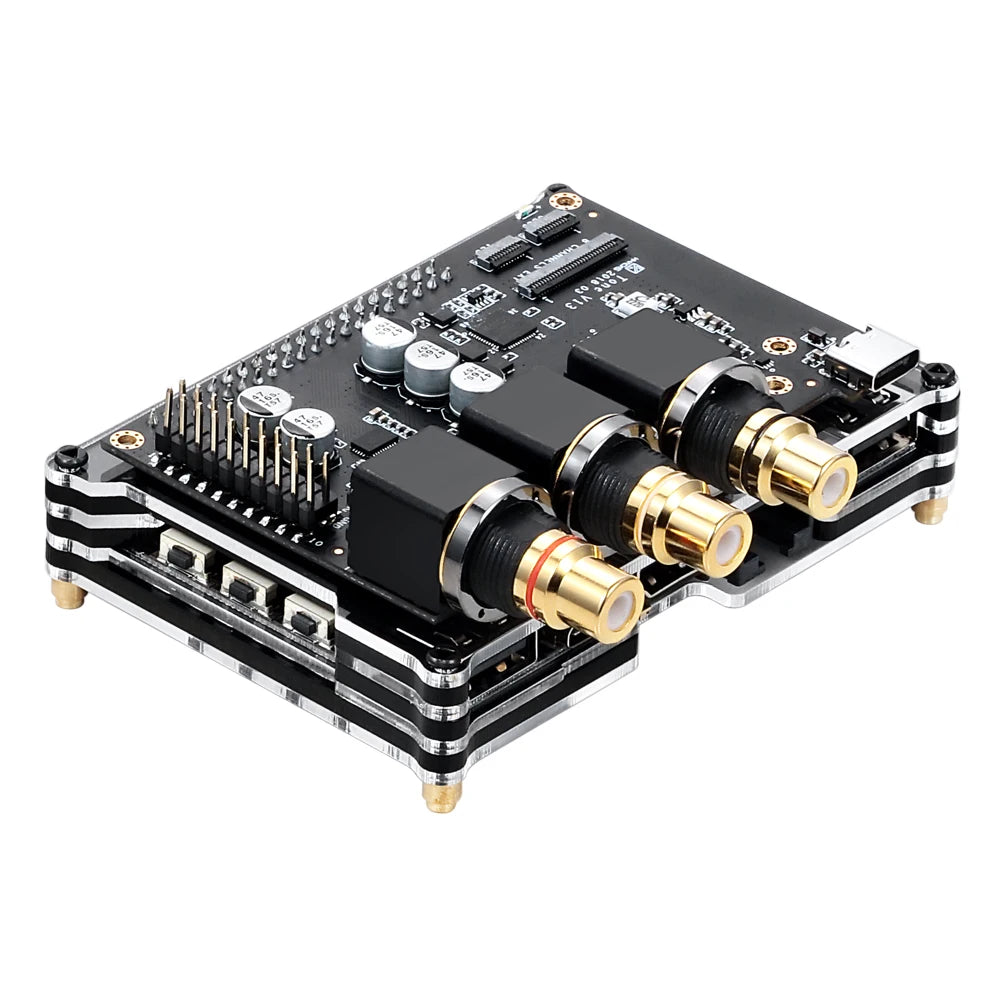

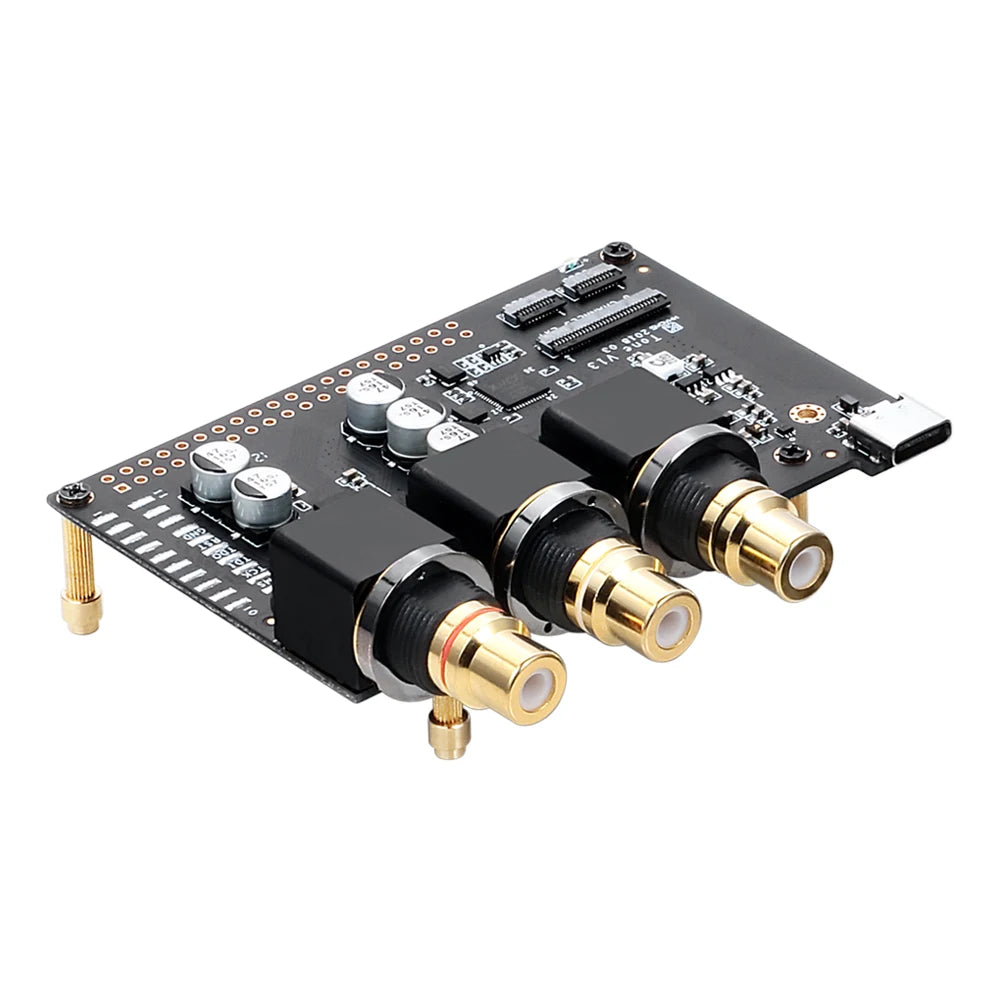

Custom Khadas Tone Board ES9038Q2M USB DAC Hi-Res Audio Development Board with XMOS XU208-128-QF48Custom PCB pcba Manufacturer

Custom Khadas Tone Board ES9038Q2M USB DAC Hi-Res Audio Development Board with XMOS XU208-128-QF48Custom PCB pcba Manufacturer

Regular price $100.00 USD
Regular price $0.00 USD Sale price $100.00 USD
Sale Sold out

TONE 1
Professional Hi-Fi DAC for Audiophiles
2
XMOS XU208-128-QF48
8 cores up to 500MIPS, compatible with USB 2.0.

Ultra-Quiet Power
Ultra-low noise, high PSRR LDO designed to power Hi-Fi applications.

RCA Connector
High-quality RCA, let you enjoy audio with delicate, clear, powerful and rich sound details.

ESS ES9038Q2M DAC
The industry's highest performance 32-bit mobile DAC with unprecedented dynamic range and ultra-low distortion.

Accurate Low-Noise Clock
Ultra-low phase noise crystal oscillator with excellent phase noise characteristics.

Compatible Audio File Formats
APE, FLAC, OGG, WAV, ACC, ALAC, MP3, WMA, DSD, and more!




DESCRIPTION




Tone Board is a USB external HiFi sound card specially developed for Khadas VIMs by Khadas brand series products. Its superior performance and compatibility take the audiovisual experience to a whole new level. We integrated the advanced XMOS multi-core RISC microcontroller and ESS flagship 32-bit stereo mobile audio DAC ES9038Q2M into a small PCB. At the same time, we selected three independent high-performance OPAs and four ultra-low phase jitter oscillators for the audio system. As you can imagine, each power path is controlled by a separate ultra-low noise CMOS linear regulator with an OPA of ± 5.5V. In addition to the powerful hardware configuration, we also maximize the performance through excellent design.




PERFORMANCE
DATA FROM ESS PROFESSIONAL LABS
Tone 1
                                                                                    Total Harmonic Distortion + Noise ≤ 0.000337%
Tone 2
                                                                                                     Signal / Noise Ratio ≥ 120dB
Tone 3
                                                                                                  Dynamic Noise Reduction ≥ 120dB
Tone 4
                                                                                            Crosstalk (Channel Separation) ≥ 127dB
Tone 5
                                                                                                   Frequency Response ± 0.08dB
Tone 6
                                                                                                    Sampling Rate and Compatibility
Tone 7
                                                                                                       Ultra-Low Phase Noise Clock Jitter
Tone 8
                                                                                           Supports Multiple Lossless Audio Formats

TWO VERSIONS
GENERIC AND VIM EDITIONS
TONE 15
           Generic Edition                                                   VIM Edition
The universal version is designed to work with a                                            The VIM version is designed to "docking" with Khadas
standalone Mac, PC or SBC via the built-in USB-C data                                Edge V, VIM3L, VIM3, VIM2 and VIM1 SBC to form a
and power port. There are additional un-soldered GPIO                                complete Hi-Fi audio computer device. You can also
headers on the board.                                                                                     use radiators and fans with the Tone Board.

INTERFACES
FLEXIBLE I/O SUPPORTS DEVELOPMENT
TONE 13

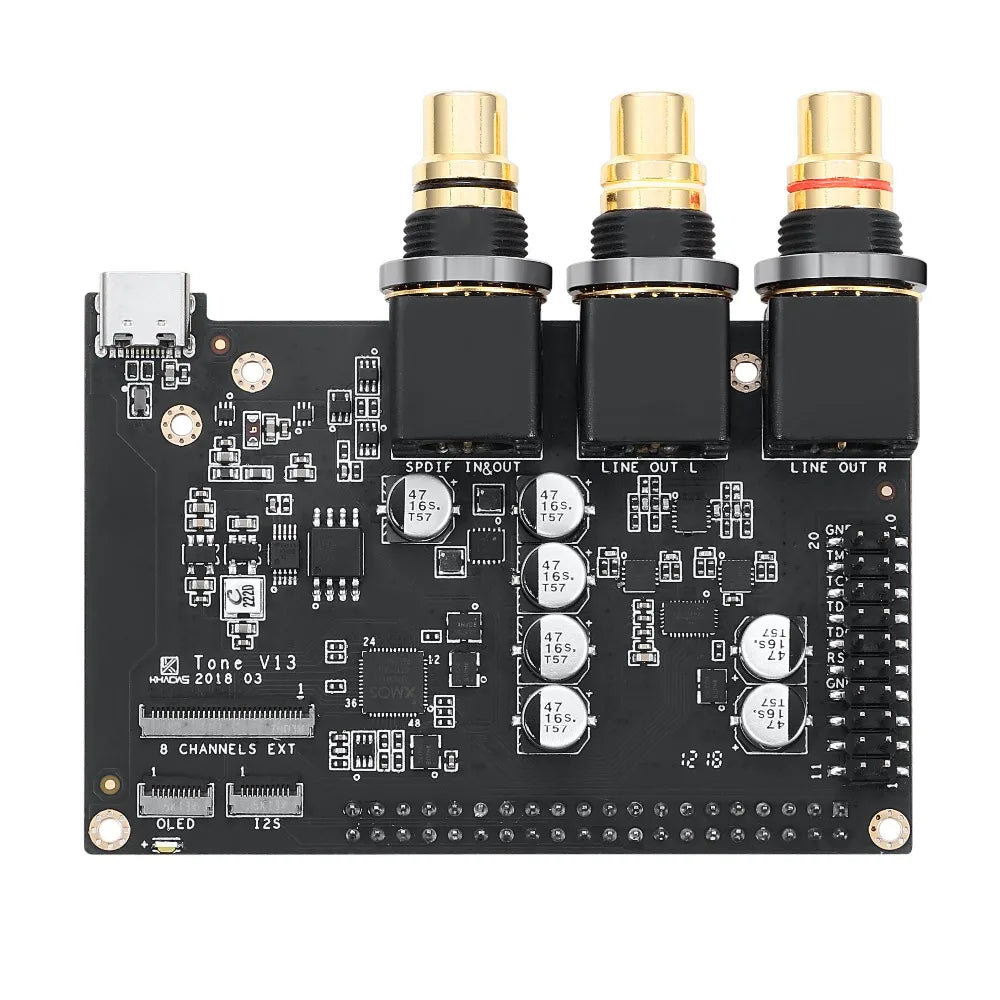

Khadas aims to gradually realize the ideas and dreams of developers to help makers grow. The two versions of the Tone Board's RCA output interface are the same, both have 2 RCA for analog output @ 2.0Vrms, and 1 RCA for S / PDIF input or output.

Expansion:
  • 1 30-pin FPC connector for 8-channel analog output expansion
  • Two 10-pin FPC connectors for OLED display and I2S expansio
Other:

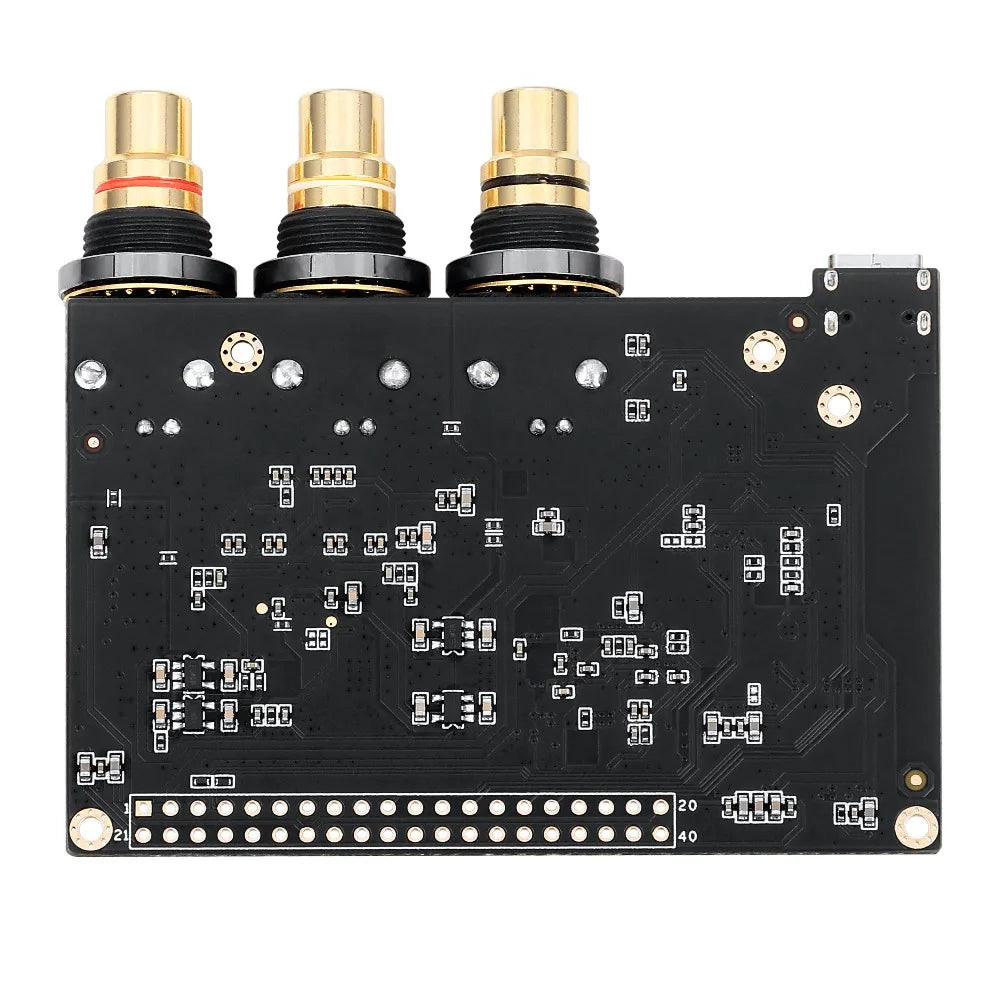

  • One 40-pin female connector for VIM
  • A 20-pin SMT header for debugging XMOS and VIM

Users can directly connect their Tone Board to the PC via the USB-C interface, and the Tone Board is the ideal choice for audio developers. Khadas' New VIM Heatsink can also be used with VIM and Tone Board.

COMPATIBILITY
TONE BOARD SUPPORTS MULTIPLE OSES

tone ROM
SPECIFICATIONS

TONE SPECT

















 Welcome Customize Order!
