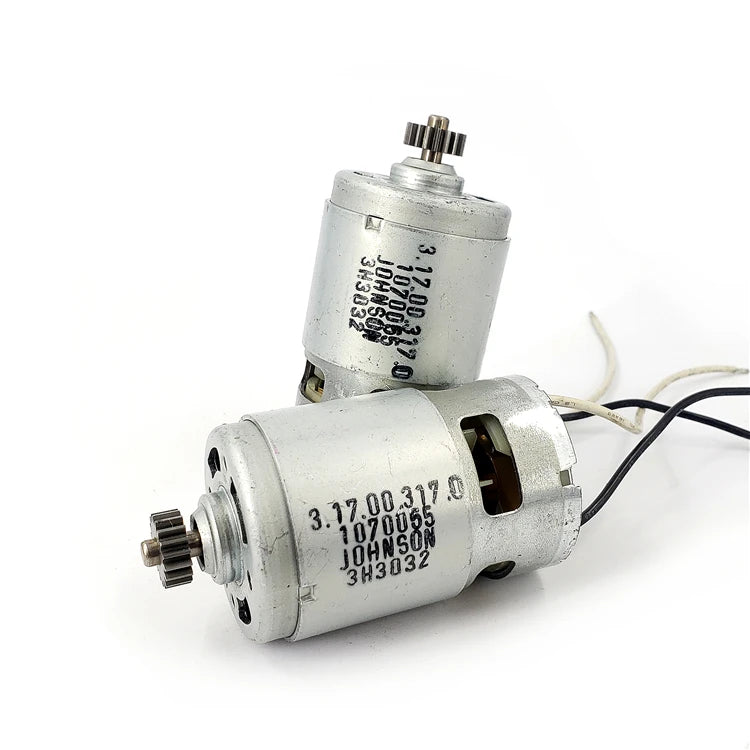

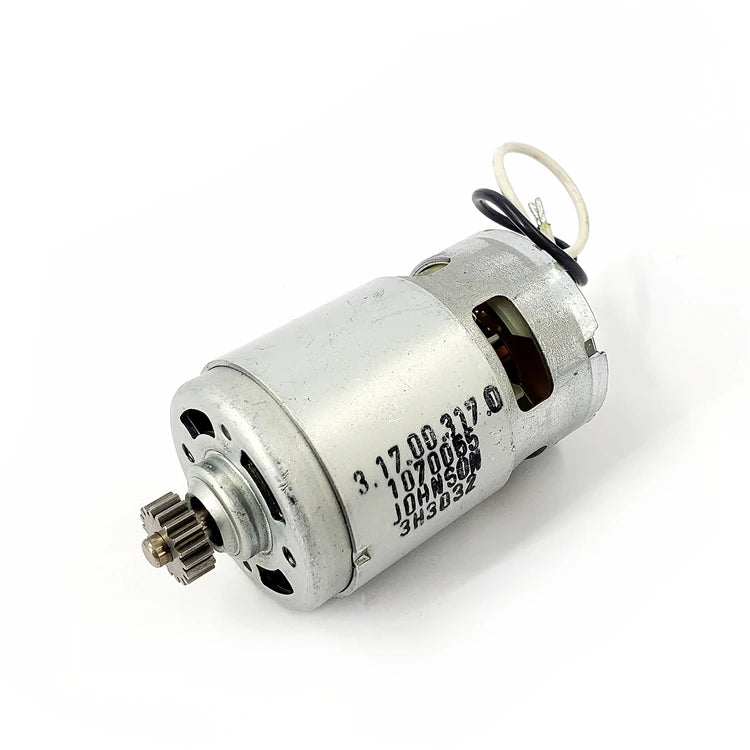

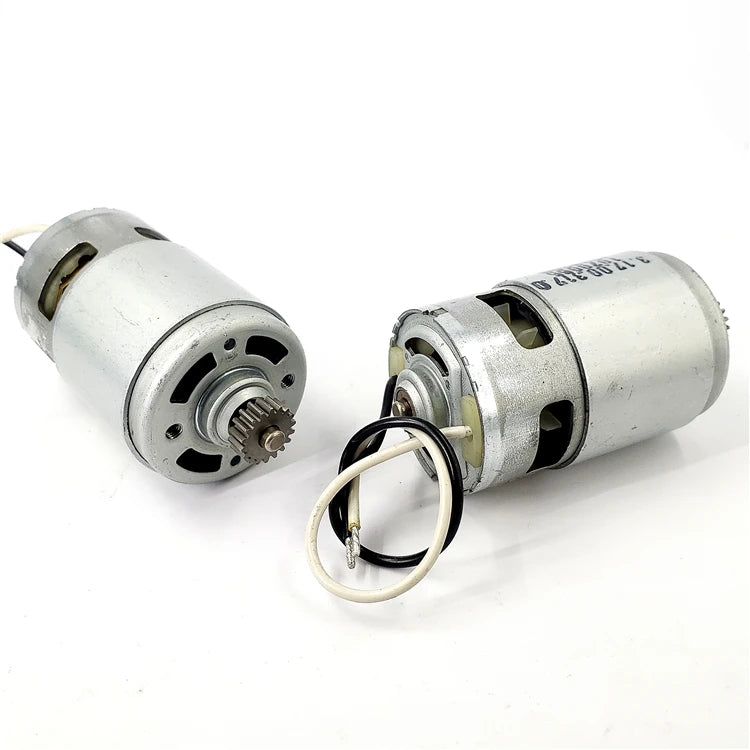

Custom JOHNSON RS-775 Motor with Cooling Fan DC 12V-20V 14000RPM-22000RPM High Speed Large Power For Electric Drill Garden Tool Manufacturer

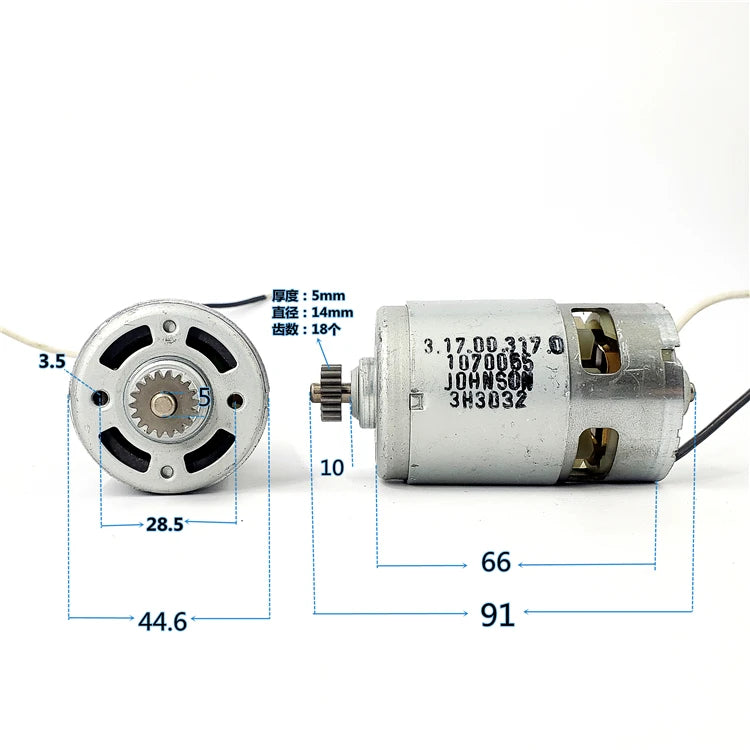

Motor diameter: 42 MM (44.6 MM with magnetic retainer)

Motor length: 66 MM

Motor shaft diameter: 5 mm

Output shaft length: 10 MM

Motor weight: 382.5g

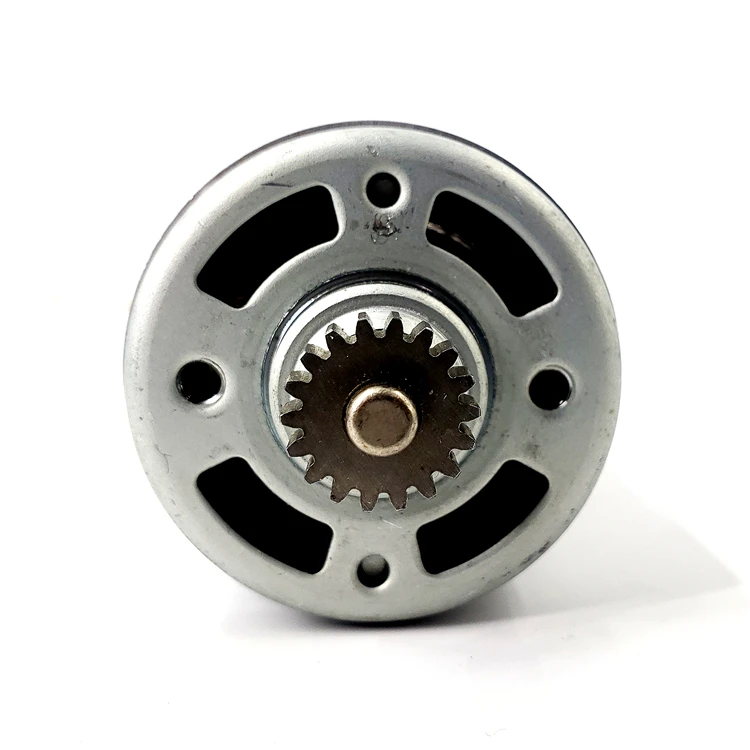

Gear data: diameter - 14 mm, thickness - 5 mm, number of teeth - 18

Lead wire length: about 13 CM


Rated voltage: DC18V

No load current: 2A

No load speed: 21000 rpm

The applicable voltage of this motor is DC 12V-20V (20V is easy to heat), and the speed under other voltages is measured as follows:

DC12V   1.1A   14000 rpm

DC18V   2.0A   20000 rpm

DC20V   2.2A   22000 rpm
