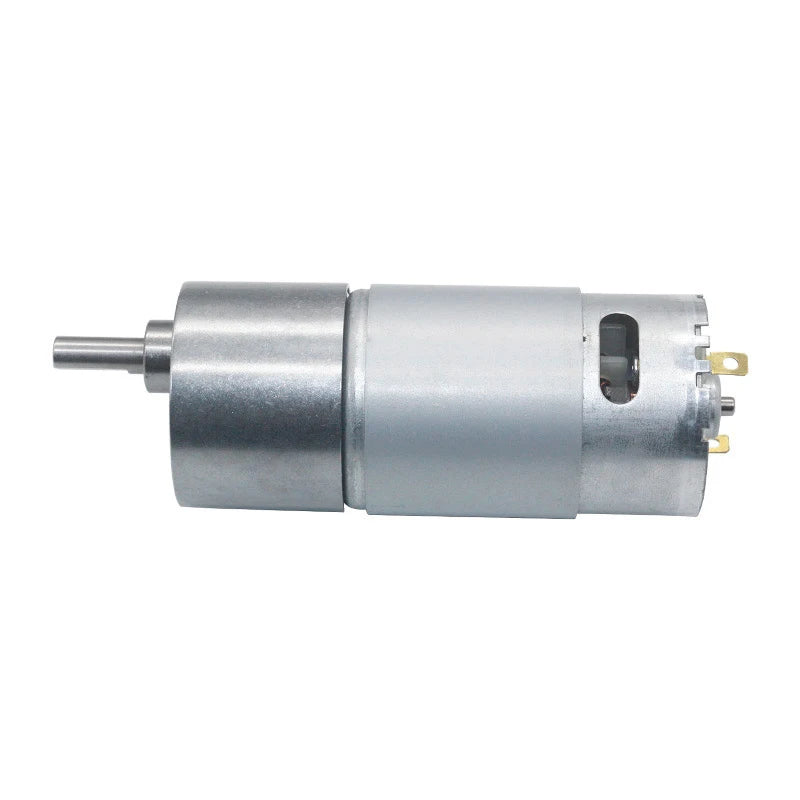

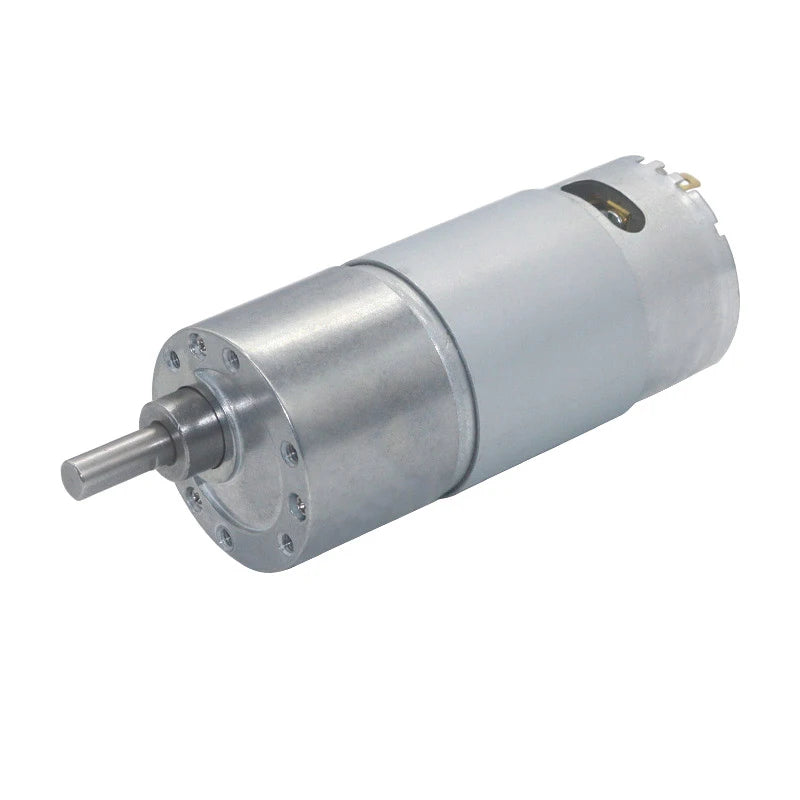

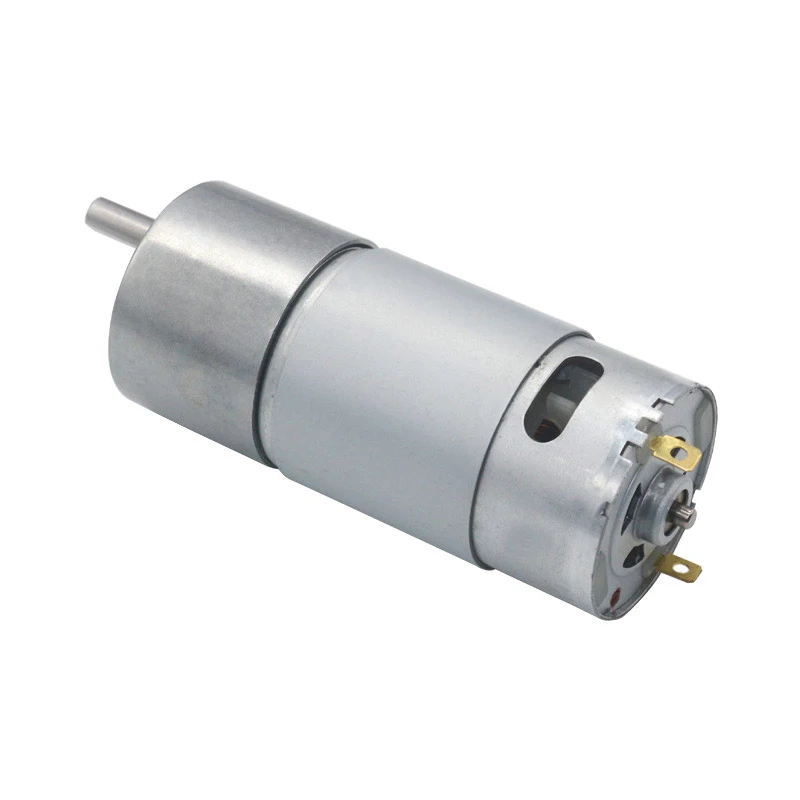

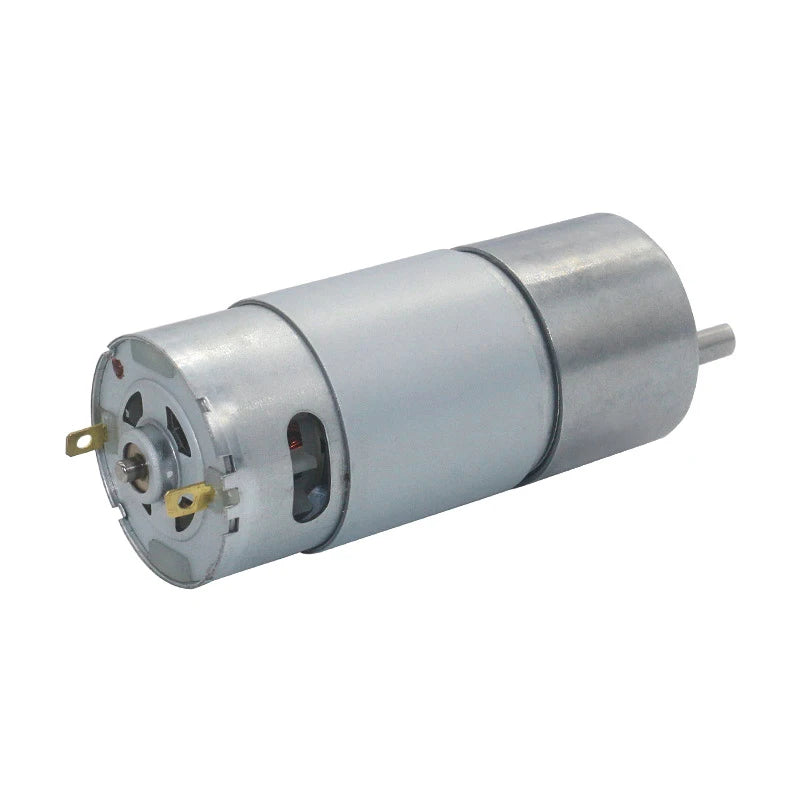

Custom JGB37-555 DC Gear Motor High Power 12V Gear Motor 5/10/20/30/45/50/80/100/200/300/600/1000rpm High Torque 37GB550 Manufacturer



Product parameters

Note: The product has high torque, the starting current of high-power motor is relatively large, the starting current of 12V is about 6A, and the current will return to normal 1-2A after starting, so customers should choose a high-power power supply when purchasing this motor. 12V should be above 10A. Otherwise, the motor will not be able to start. The original speed of the motor is relatively high, the all-metal gear, the sound is too loud, the torque of the motor itself is relatively large, the gear can withstand a maximum of 35KG, please do not block or reverse it instantly.



【Motor use precautions】:



▲1. Confirm that the motor voltage is correct before use, and whether it is a DC motor should also confirm whether the power supply current is sufficient.



▲2. It cannot be overloaded. The reasons for overloading are mainly divided into two parts, the torque and the force of the shaft. The load torque cannot exceed the rated torque of the motor, and the force of the shaft cannot exceed the axial and radial allowable forces of the shaft. After the load is applied, the measured current of the motor cannot exceed the rated current. Generally, the motor must be equipped with a fuse to avoid overloading the motor.



▲3. Do not store or operate in a high temperature or humid environment, and do not place it in corrosive gas, which will reduce the performance of the motor.



▲4. When assembling transmission parts such as gears and pulleys on the motor shaft, do not knock abnormally when pressing in.



▲5. When soldering is required on the motor terminals of the positive and negative poles of the power supply, the temperature of the soldering iron is 340°C±40°C, and the heating time is within 3 seconds, and the plastic cannot be deformed. During work, let the solder point flow into the motor or break the end of the wire. This will degrade the motor function.

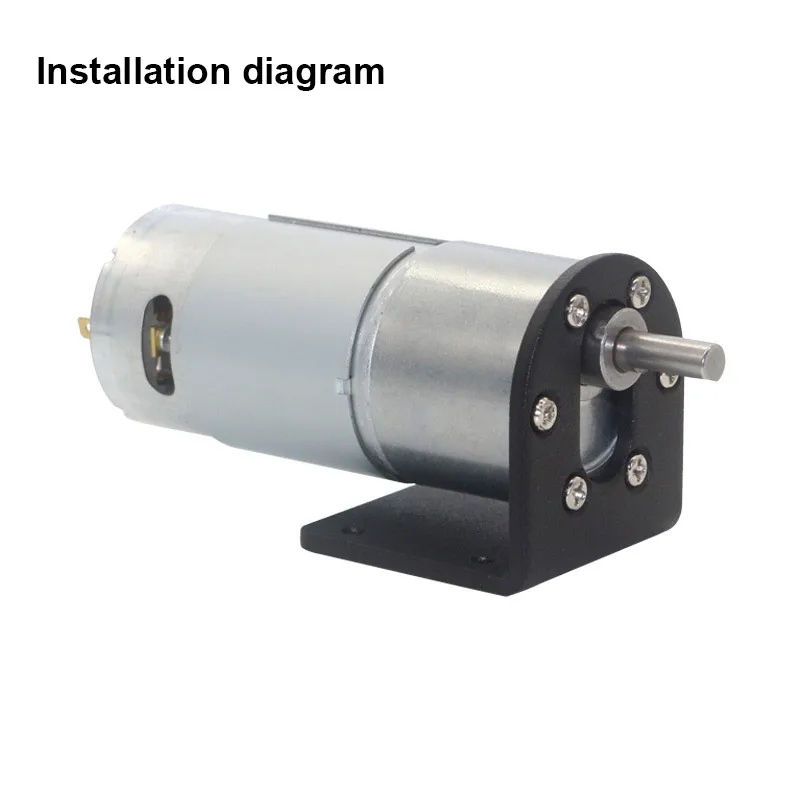

▲6. When installing the motor, pay attention to whether the screws are too long, and prevent the long screws from pressing the parts inside the motor.

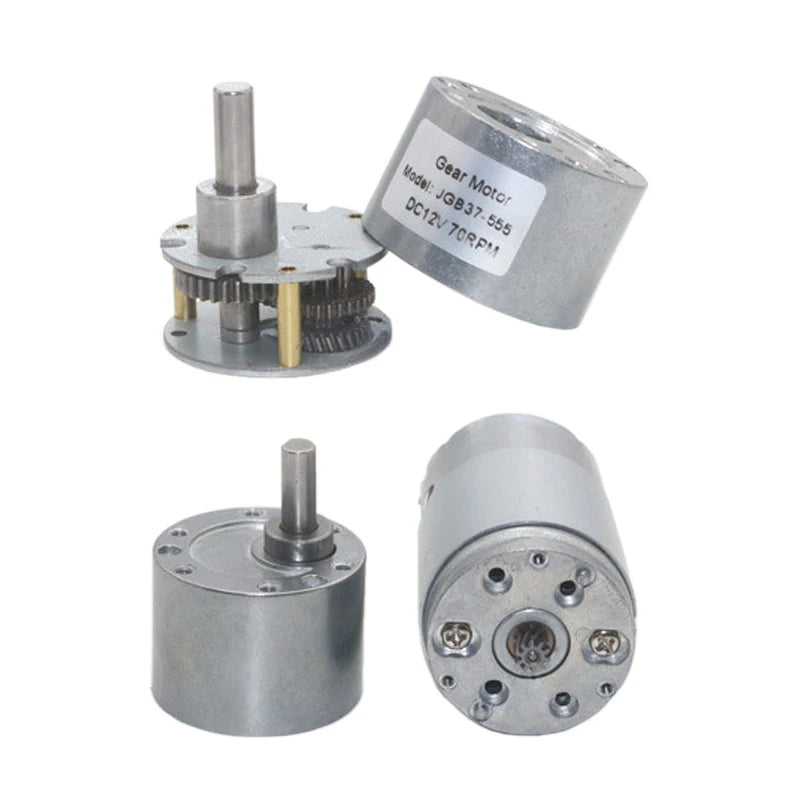

【Model】: JGB37-555



【12V No-load speed】: 5rpm/10rpm/20rpm/30rpm/45rpm/50rpm/80rpm

/100rpm/200rpm/300rpm/600rpm/1000rpm

If you need other speeds, we can also accept custom orders, please contact customer

service for inquiries.

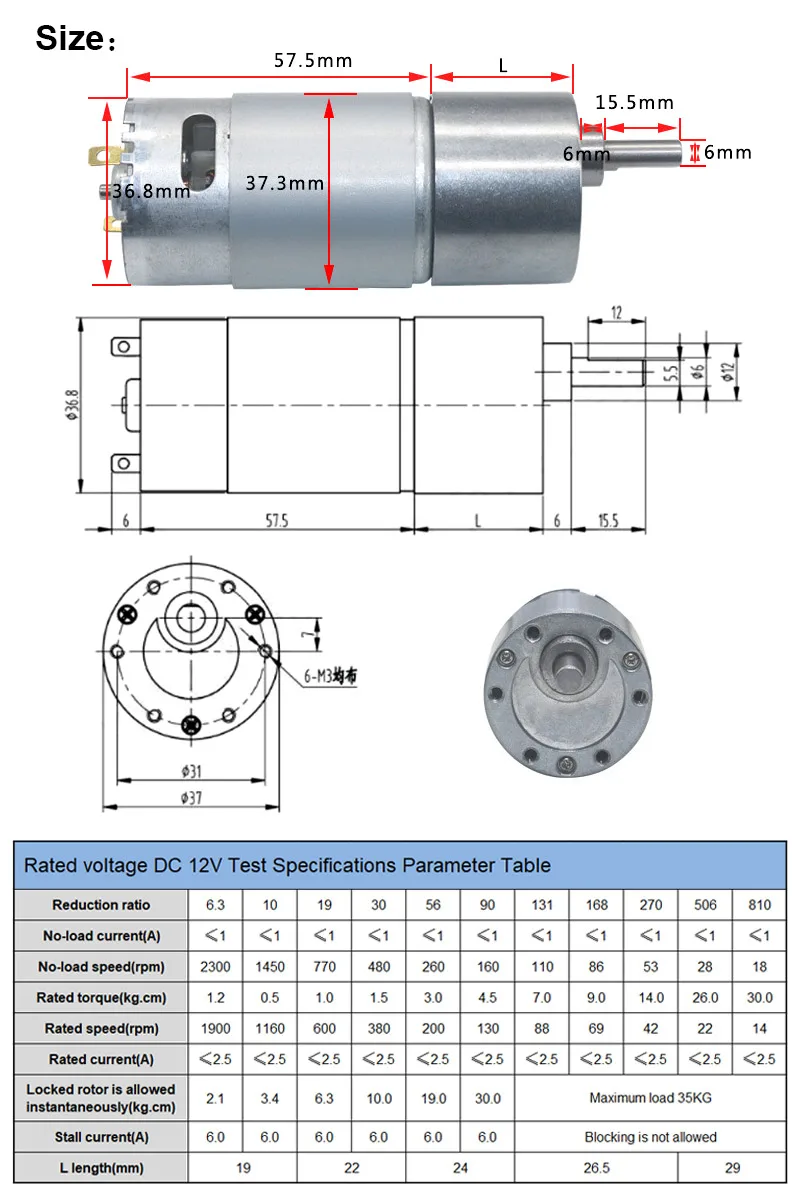

【Shaft length】:21mm D length 12mm



【Shaft diameter】:φ6mm D-Shaft



【Voltage】:12V



 Welcome Customize Order!
