Custom Jetson Nano mSATA SSD Storage Expansion Board T130 with USB3.1 Jumper for NVIDIA Jetson Nano Developer Kit A02/ B01 Manufacturer

[Overview]

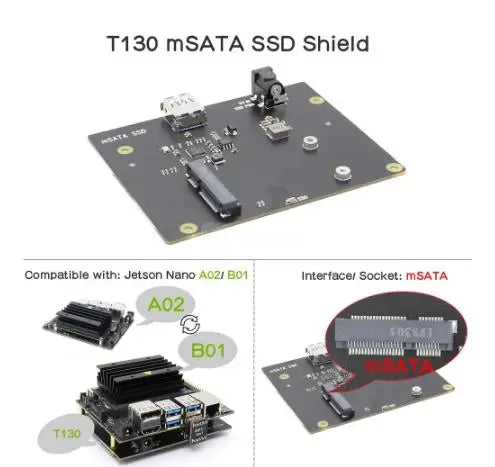

This T130 is an mSATA storage expansion board designed for NVIDIA Jetson nano developer kit, it supports up to 2TB mSATA solid-state drive (SSD), allowing you to expand your storage with high-speed SSD drives on NVIDIA Jetson nano developer kit.
Now it is time to build a mobile hard disk with a mSATA SSD for your Jetson Nano.

How to boot the rootfs from external drive: jetsonhacks.com/2019/04/25/jetson-nano-run-on-usb-drive/

[FOR USE WITH]
Jetson Nano
[Operating System]
All operating systems
[KEY FEATURES]
deal storage solution for Jetson Nano - mSATA SSD Shield
Supports up to 2TB mSATA solid-state drive (SSD)

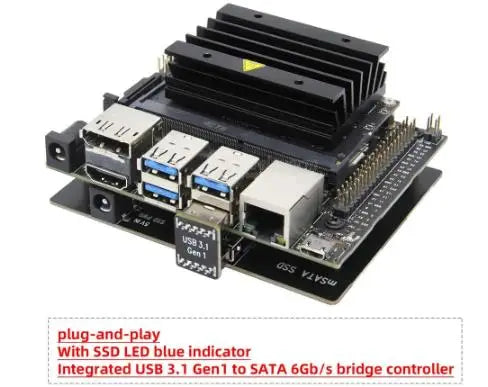

Integrated USB 3.1 Gen1 to SATA 6Gb/s bridge controller
USB3.1 Gen1 connectivity offers plug-and-play functionality on your Jetson Nano
With SSD LED blue indicator
On-board DC jack allows external power supply for high capacity SSD
PCB Size 100mm x 80mm

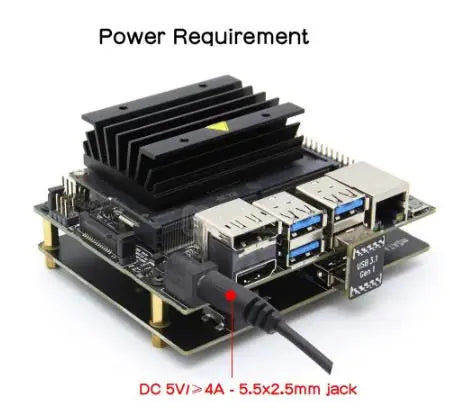

[Power Supply Requirement]
Power supply via DC jack : 5VDC ±5%.

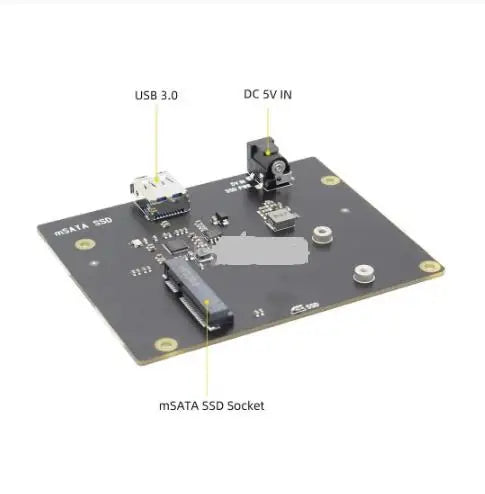

[I/O PORTS]
USB Type-A socket x 1
DC Jack 5.5x2.1mm x 1
26Pin SATA socket x 1
[Matching Metal Case]
So far there is no matching case for Jetson Nano & T130 mSATA Shield, but we will consider to make it.

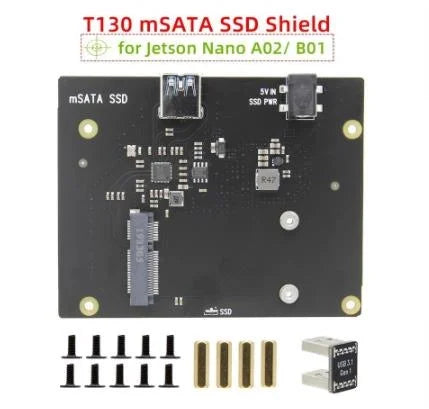

[Packing List]  NOT INCLUDING JETSON NANO
1x T130 mSATA SSD Shield
1x USB 3.1 Jumper
4x Spacer F/F M2.5 x 12mm
10x Screw M2.5 x5mm
