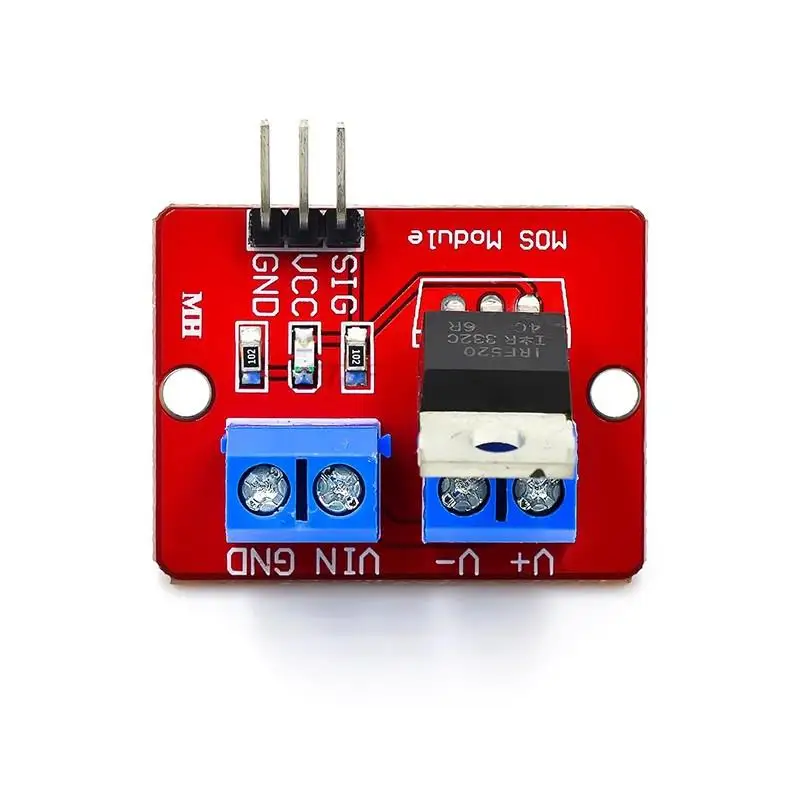

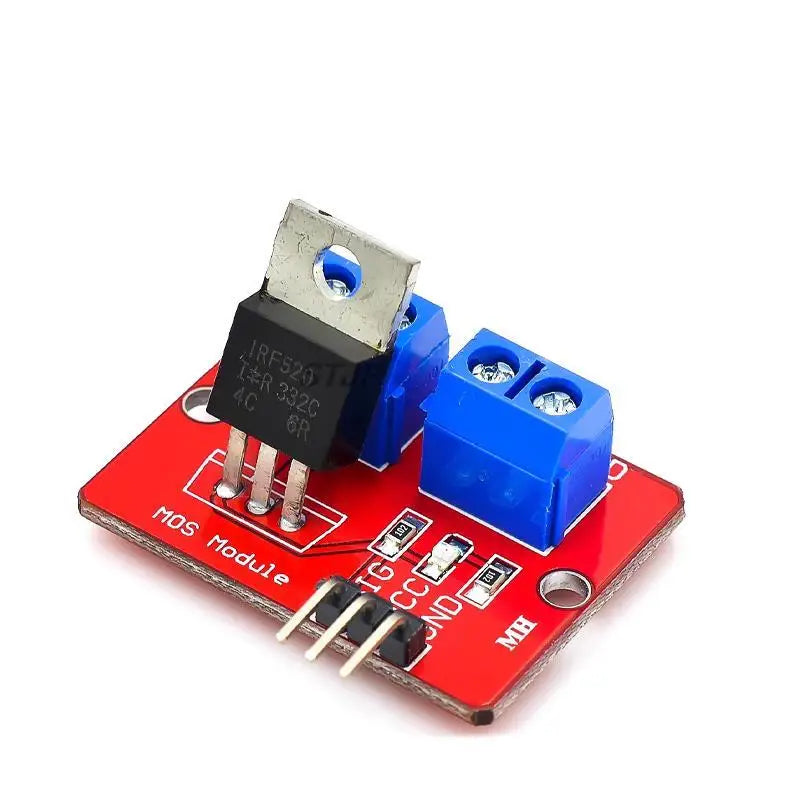

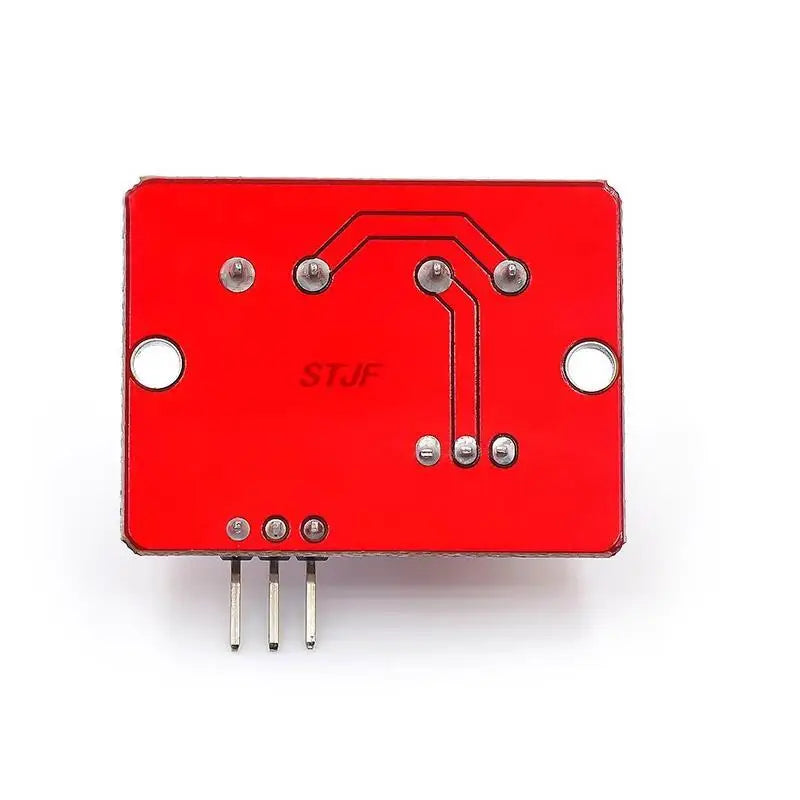

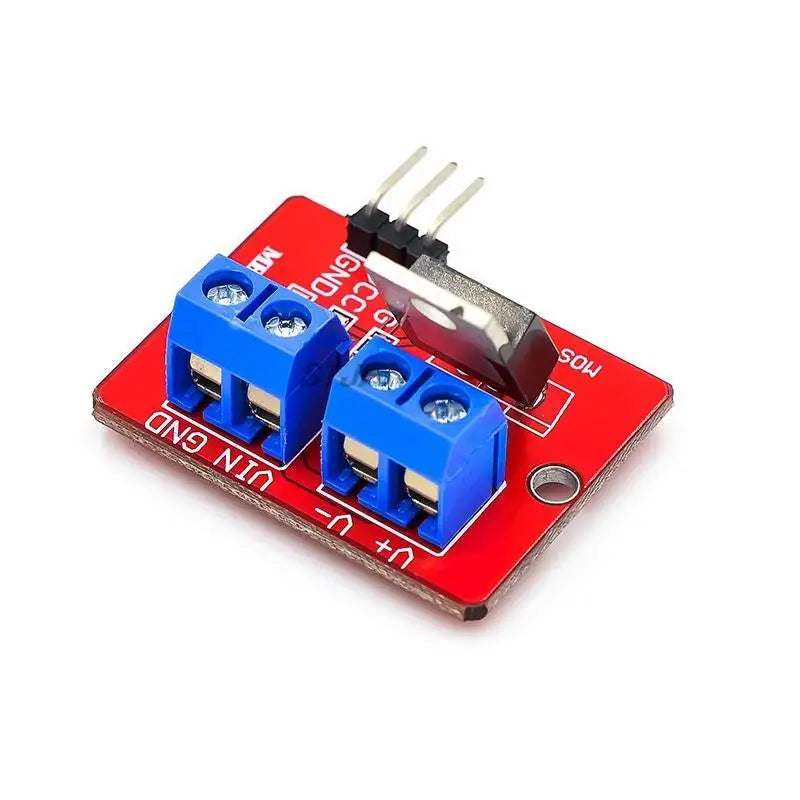

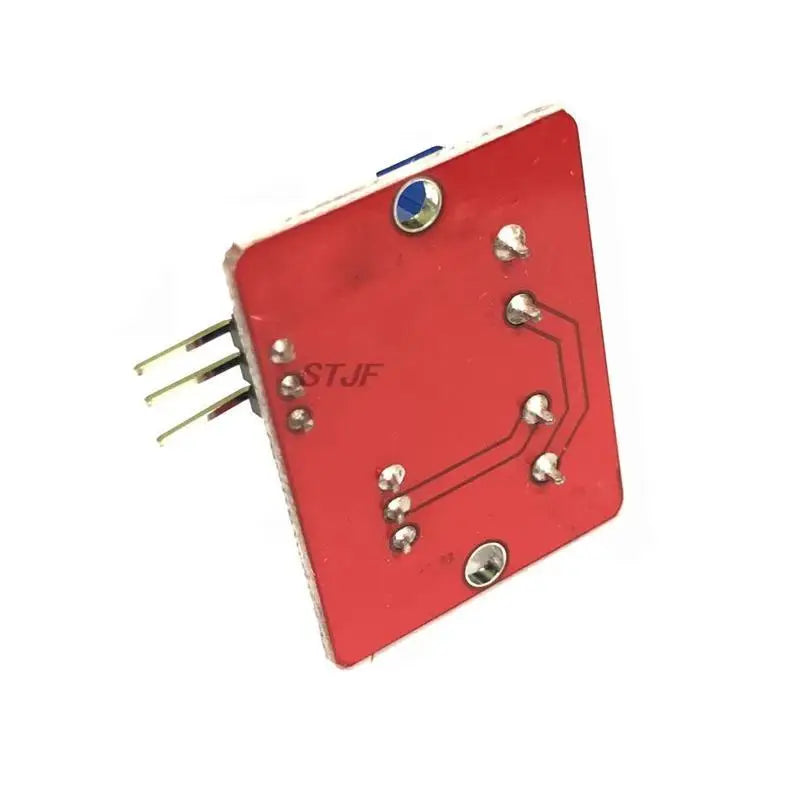

Custom IRF520 MOS Driver Module 0-24V Top Mosfet Button PWM Adjustment for Arduino MCU ARM Raspberry Pie
Custom IRF520 MOS Driver Module 0-24V Top Mosfet Button PWM Adjustment for Arduino MCU ARM Raspberry Pie
Product parameters:

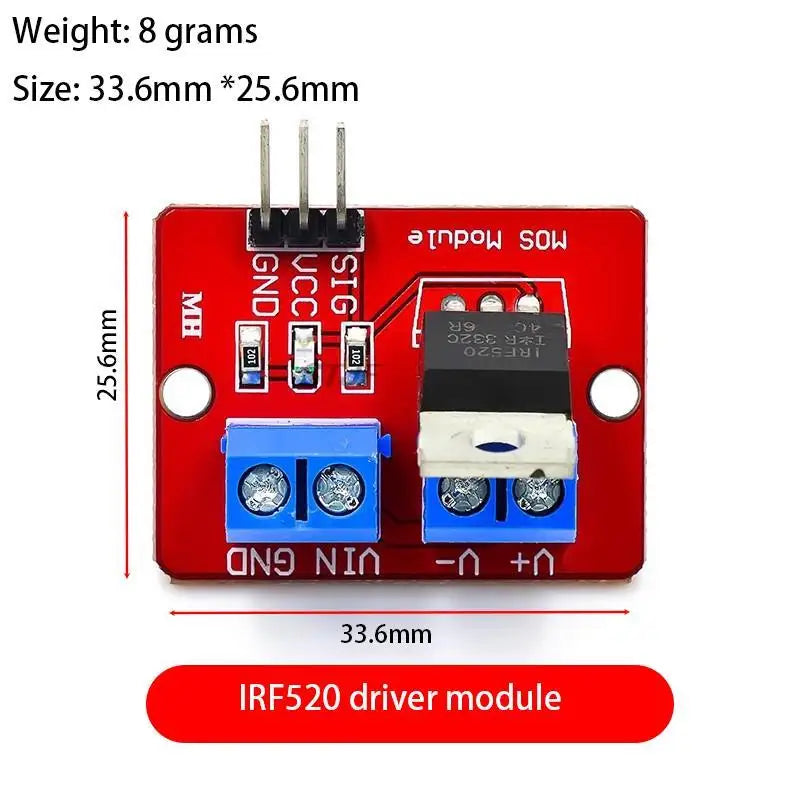

Size: 33.4 * 25.6MM
Voltage: 3.3V, 5V
Port: the digital quantity level
The output load voltage: 0 to 24V
The output load current:< 5A (more than 1A need to add heat sink)
Platform: the Arduino, MCU, ARM, raspberry pie
The product features:
Using original IRF520 power MOS tube, can adjustPWM output
Can let the Arduino drive up to 24 v load, such as LED lights belt, dc motor, micro pump, solenoid valve
By PWM adjustable can realize stepless dimming LED, motor stepless speed regulation
The product instructions:
PWM signal for high level effectively
When the PWM for high level (3.3 V to 3.3 V) :
As the power supply voltage, between V + and V - working indicator, work load
When the PWM is low level(0 V to 0.5 V):
V + and V - between 0, work lights out, don't work load
