Custom IR Flame Sensor Module Detector Smartsense For Temperature Detecting Suitable Wholesale

Warm prompt: Dear buyer, Our cheapest transportation services Economic category logistics (SunYou Economic Air Mail ,China Post Ordinary Small Packet Plus ) can be traced only befor it arrive your country,please choose Standard category logistics if you want a full tracking info.

Uses:

Various flame , fire detection

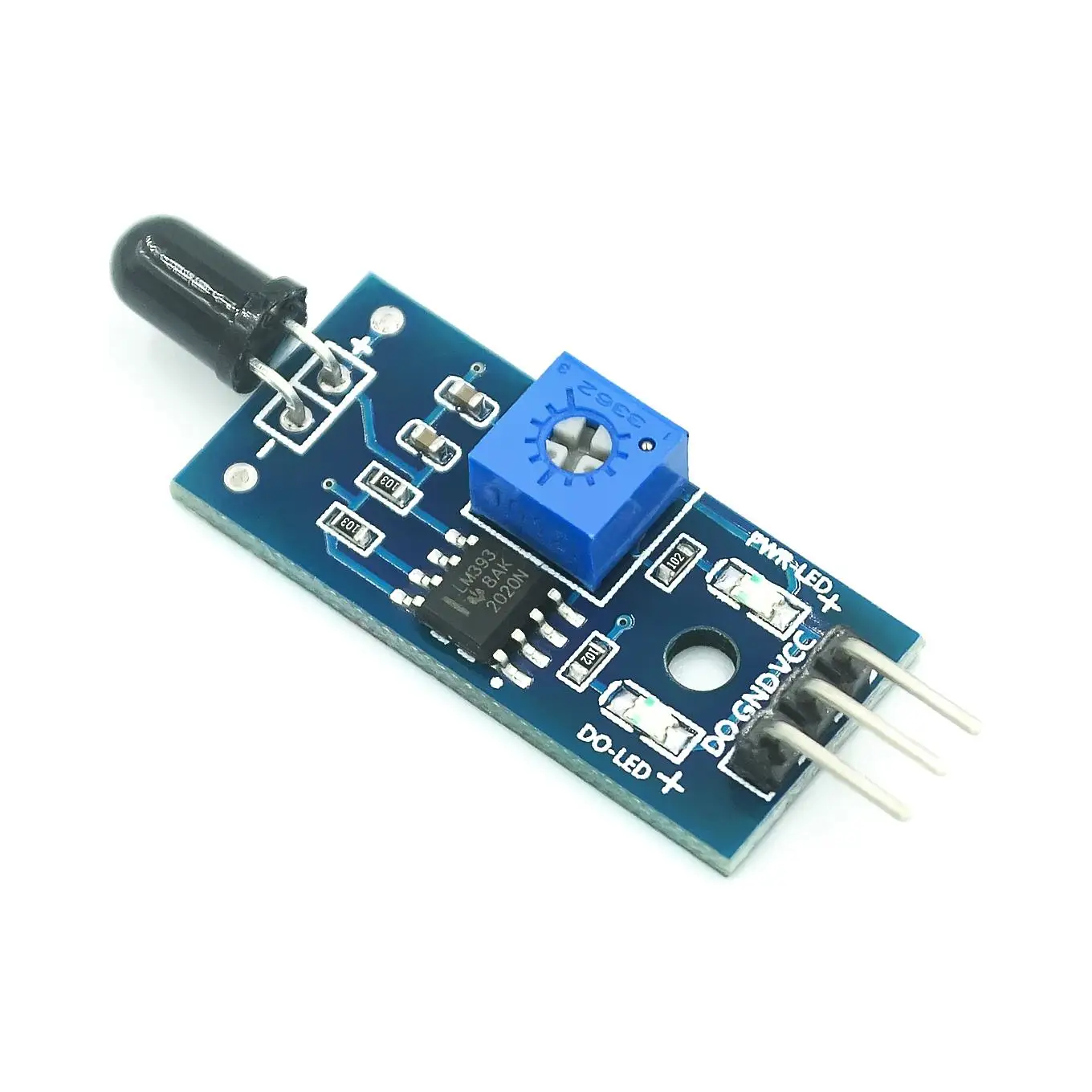

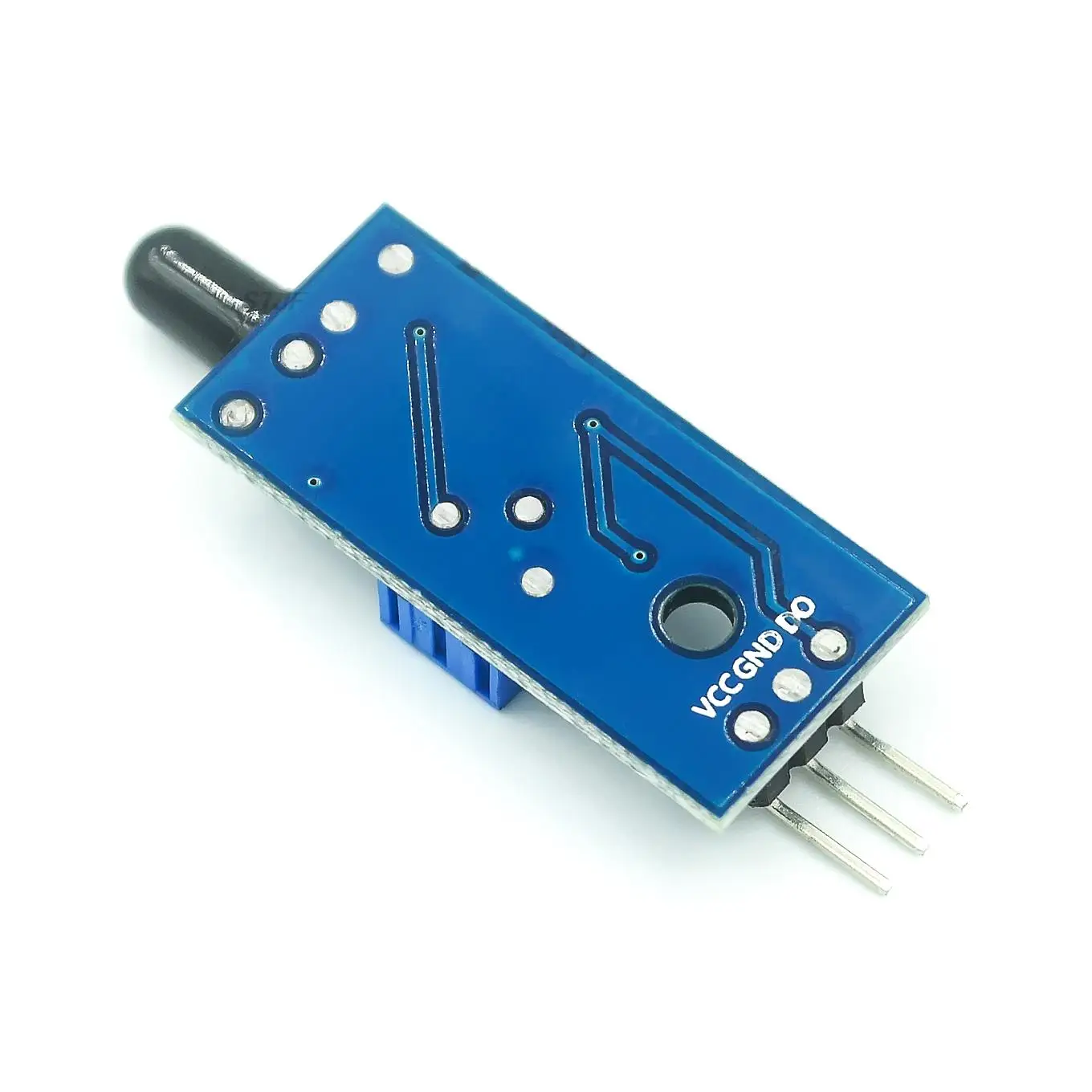

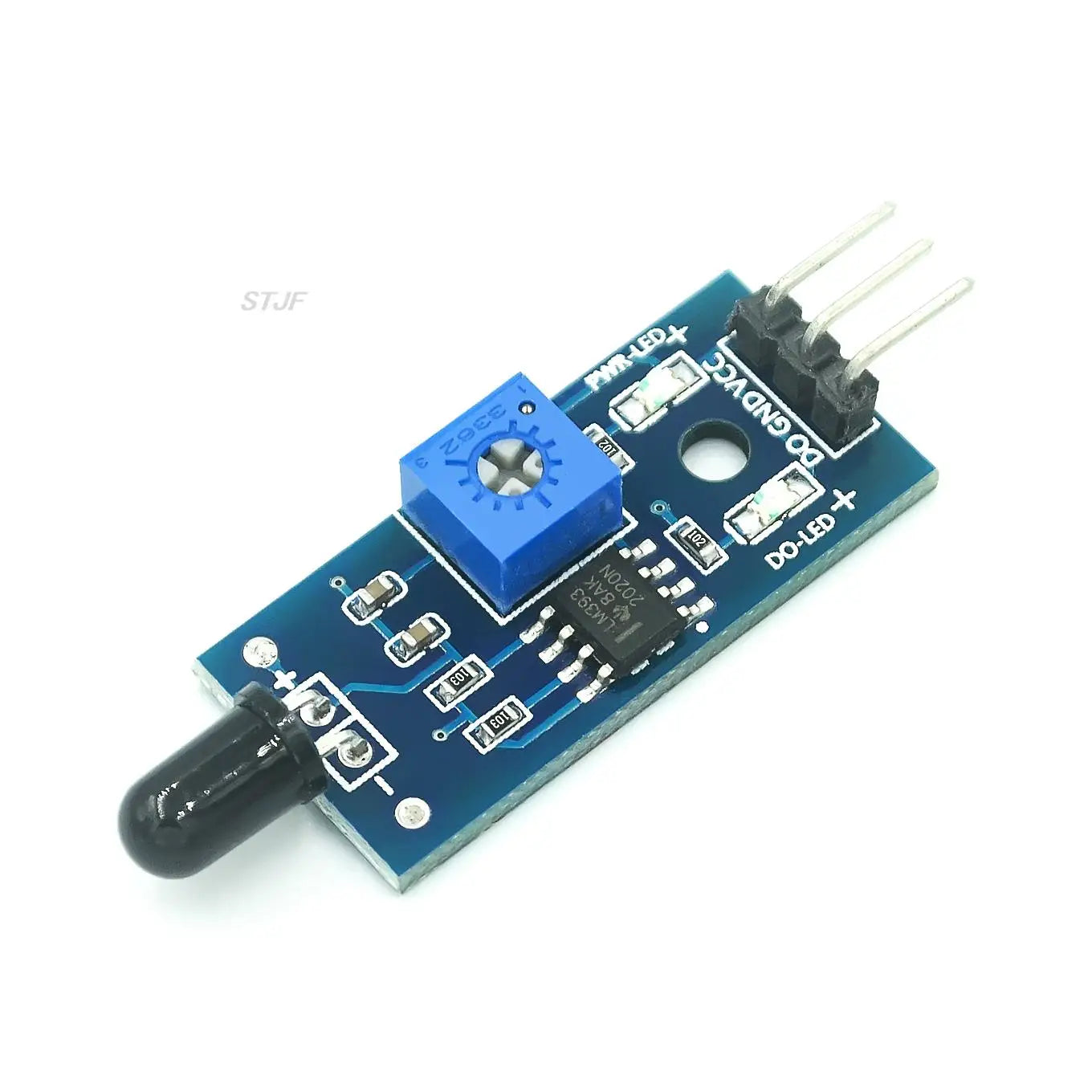

Module Features :

One can detect a flame or in a 760 nanometer wavelength of ~ 1100 nm range of the light, lighter flame test distance of 80cm, for the greater flame , the farther the distance test

2 , the detection angle of 60 degrees or so , particularly sensitive to the flame spectrum

3 , sensitivity adjustable ( shown in blue digital potentiometer adjustment )

4 , the comparator output signal clean, good waveform , driving ability , more than 15mA

5, with adjustable precision potentiometer sensitivity adjustment

6, the working voltage of 3.3V-5V

7, the output format : digital switching outputs ( 0 and 1 )

8 , a fixed bolt holes for easy installation

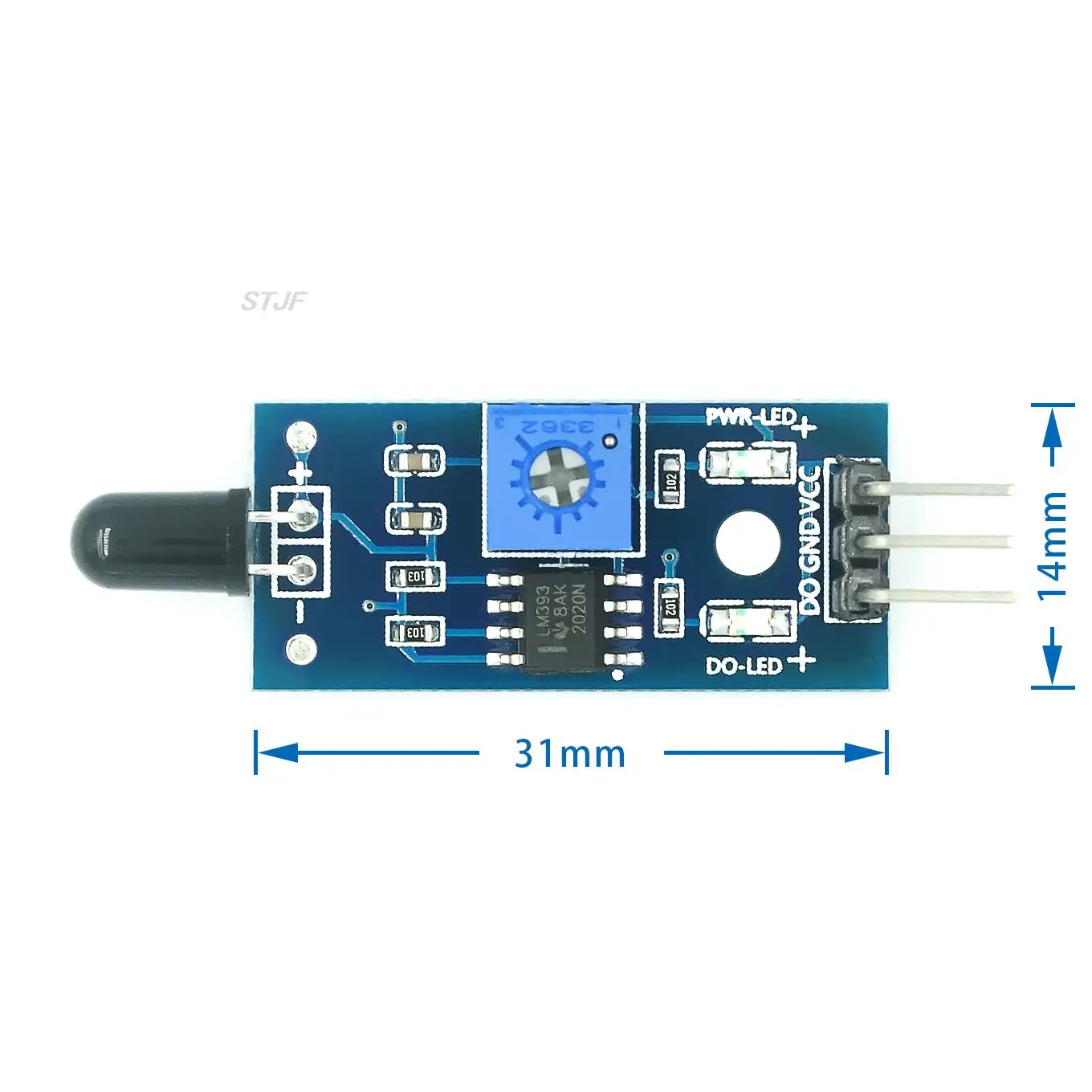

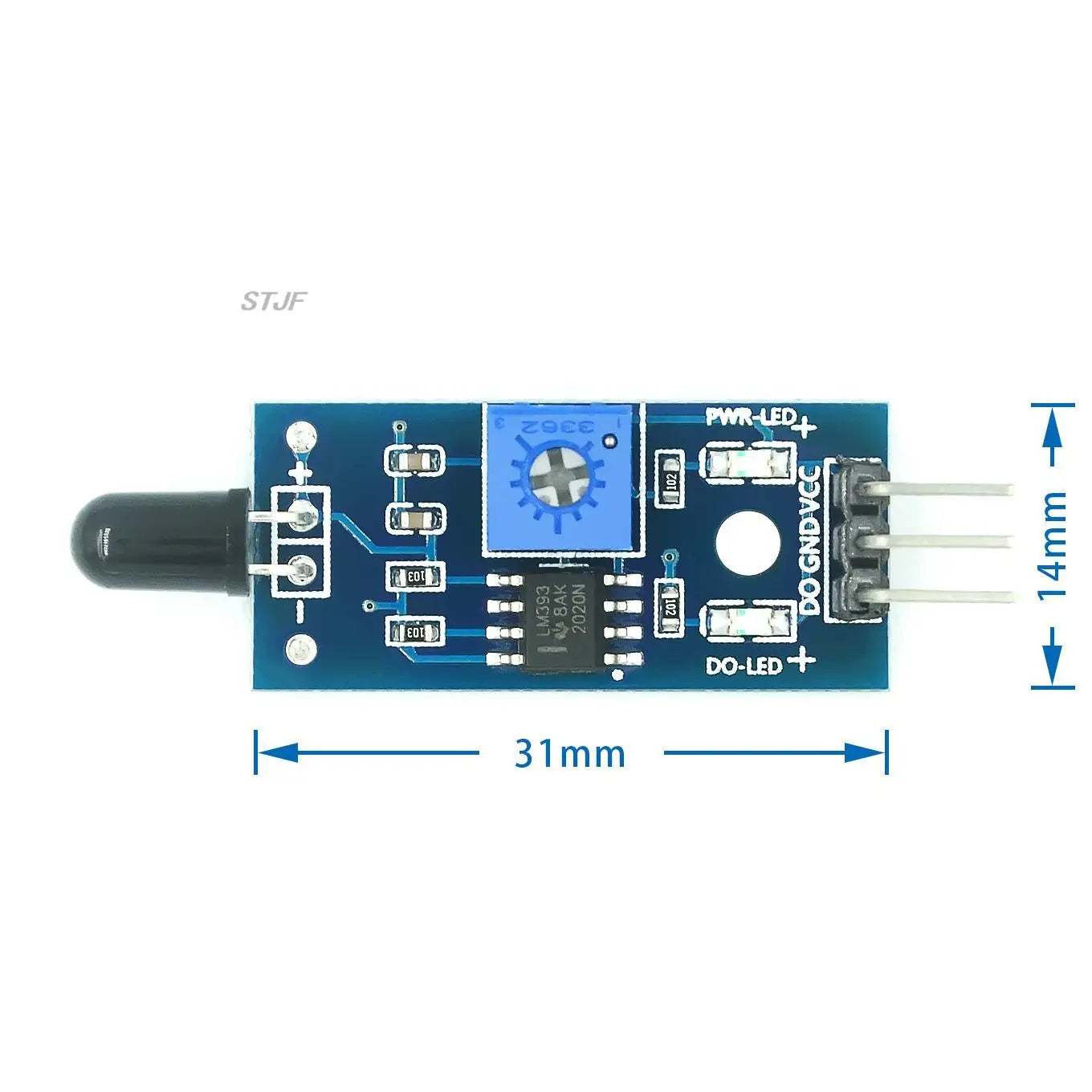

9 , small plates PCB Size : 3.2cm x 1.4cm

10 , using a wide voltage LM393 comparator

Module for use:

1, the flame sensor flame most sensitive to ordinary light is also a reaction , generally used as a flame alarm purposes.

2, a small plate output interface can be directly connected to the microcontroller IO port

3 , with the flame sensor to maintain a certain distance , so as not to damage the sensor temperature , the flame of a lighter test distance 80cm, for the greater flame , the farther the distance test



Shipping list :



Flame sensor module *1
