Custom IPS Display 0.96 Inch TFT LCD Display Screen 80*160 ST7735 Drive IC 3.3V 13PIN SPI HD Full Color For lcd Module 80x160 Dropship

Product parameter

Size: 0.96 inches

Material: HD IPS LCD

Resolution: 80 (H) RGBX160 (V)

Driver chip: ST7735S

Communication interface: 4Line SPI

Display color: Full color

Display area: 10 (H) X21.7 (V) mm

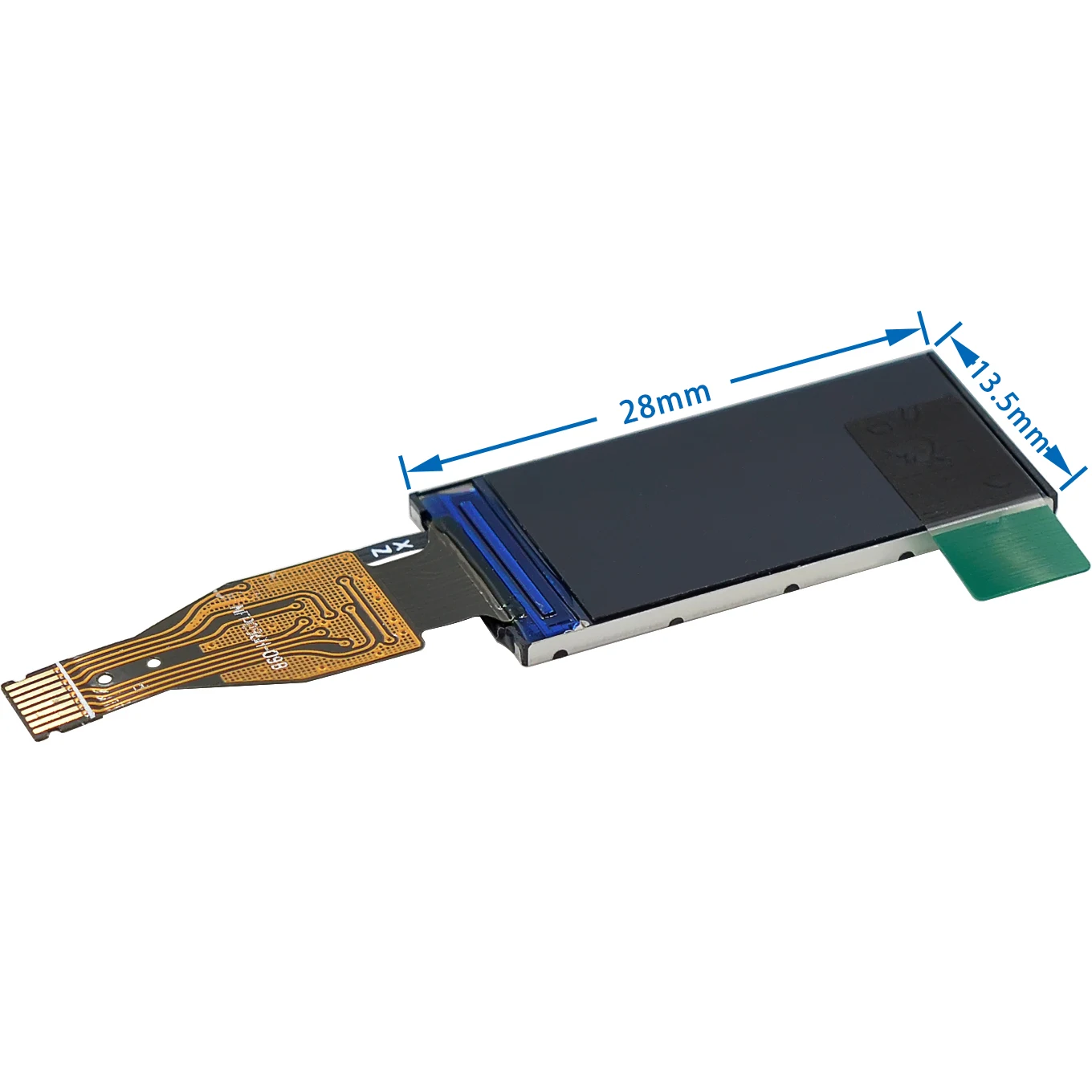

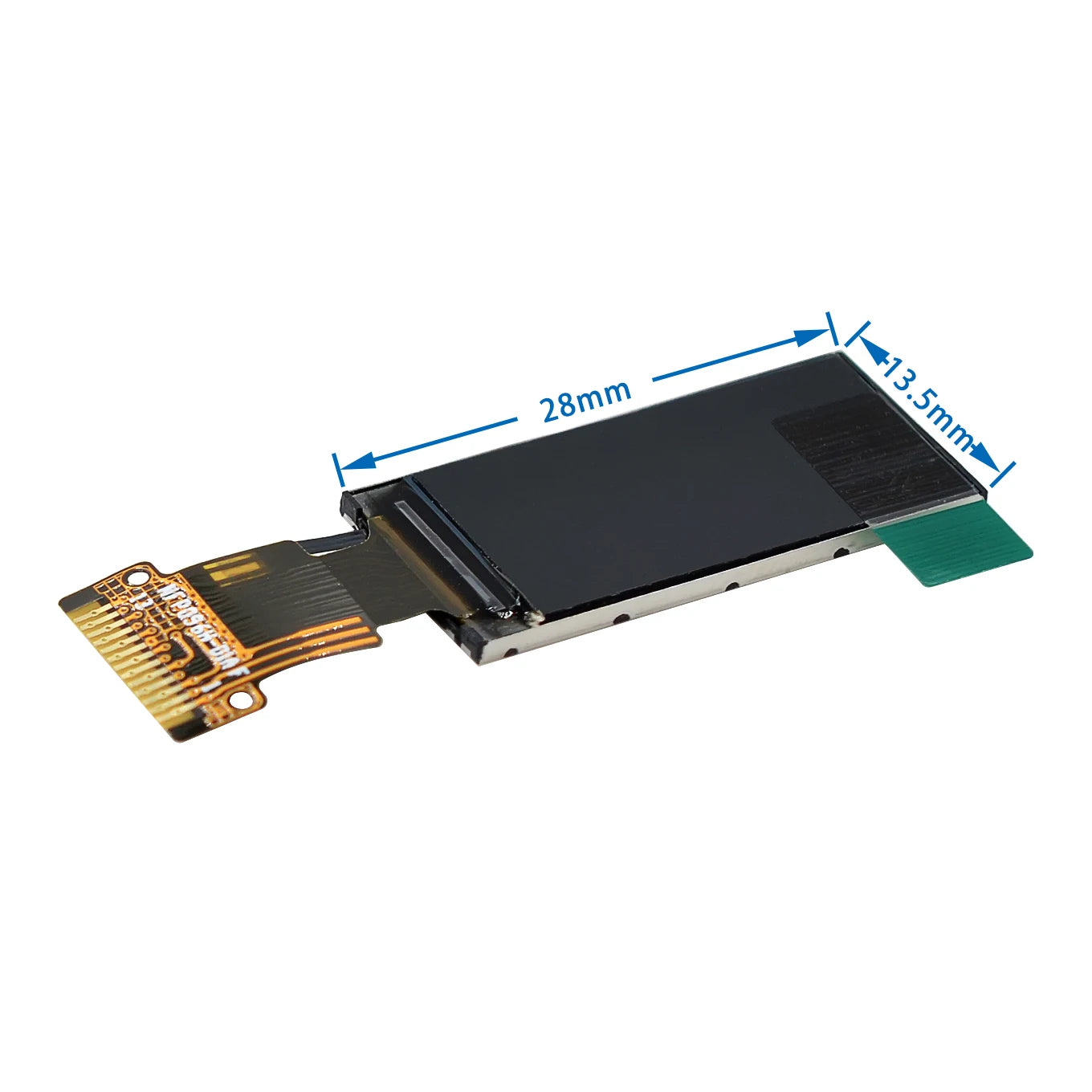

Panel size: 13.5 (H) X27.95 (V) X1.5max (D) mm

Connection: Plug type 8pin (0.5mm spacing plug type)

Welded 13Pin (0.7mm spacing welded)

View direction: ALLView

Operating voltage: 3.3V

Working current: 20ma

Backlight type: 1LED

Operating temperature: -20~70 degrees
