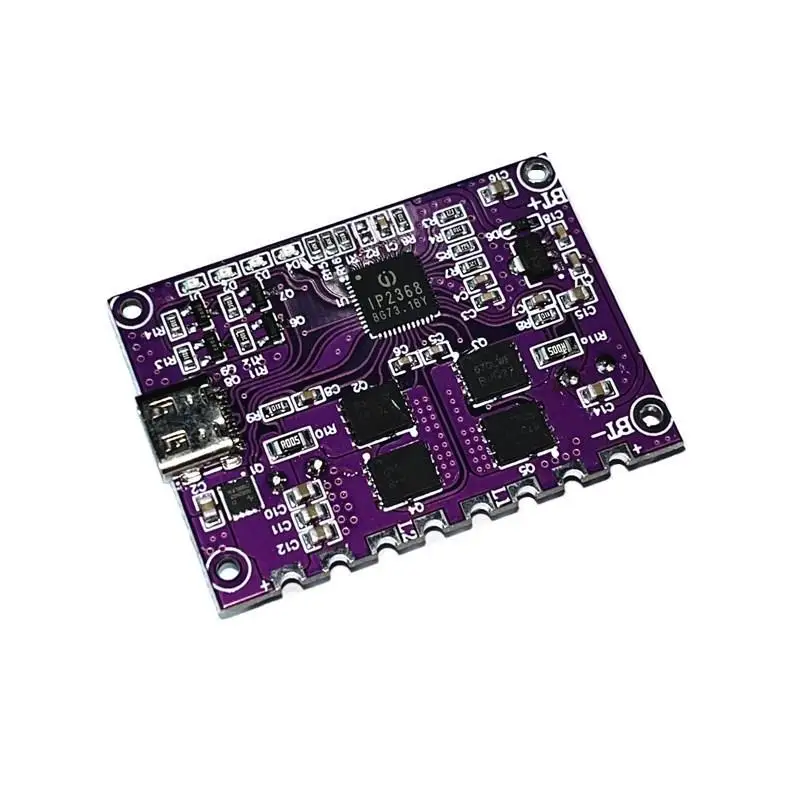

Custom IP2368 Bidirectional 100w Fast Charging Module Buck-Boost Type-c Interface 4S Lithium Battery High-Power Fast Charging Board

Use and pay attention to the link: https://pan.baidu.com/s/1dWCuCti4fVt9aUDe2Rl8FA?pwd=1234

Extract code: 1234

Size :60*40*3.6MM

Continuous working current :18A overcharge voltage :4.235V+0.025V

Instantaneous current :30A overcharge release voltage :4.19+0.05V

Charge voltage :16.8-17V Overdischarge voltage :2.8+0.08V

Charge current :1-10A overdischarge release voltage :3.0±0.1V

Balance starting voltage :4.19+0.05V

The two-way c port of the product can only be connected to one-way electrical appliances or chargers, such as charging heads, mobile phones and other electrical appliances. Do not link a bidirectional c port to a module with a bidirectional c port. As a result, frequent switching between modules may fail to be identified and serious damage may occur.

Note: After plugging in the battery, it needs to be charged and activated before normal use
