Lonten Tech

Custom Industrial IoT Mini-Computer Based on Raspberry Pi Compute Module 4 (NOT Included) PoE 5G/4G Metal Case Custom PCB potting pcba Manufacturer

Custom Industrial IoT Mini-Computer Based on Raspberry Pi Compute Module 4 (NOT Included) PoE 5G/4G Metal Case Custom PCB potting pcba Manufacturer

Regular price $100.00 USD
Regular price $0.00 USD Sale price $100.00 USD
Sale Sold out


DESCRIPTION

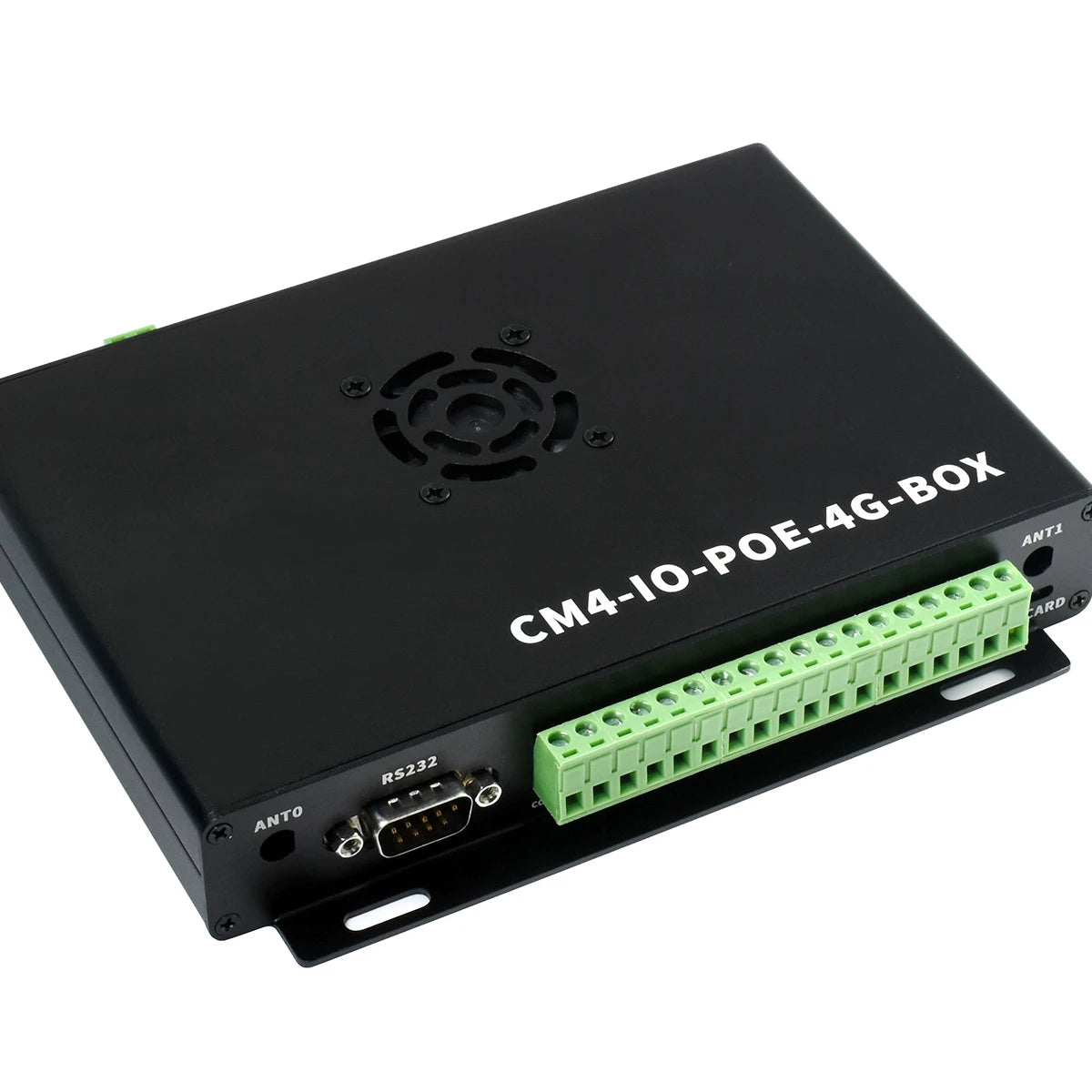

Industrial IoT Mini-Computer Based On Raspberry Pi Compute Module 4 (NOT Included), PoE, 5G/4G, Metal Case, With Cooling Fan

Industrial IoT Mini-Computer Based On CM4

Designed For Raspberry Pi Compute Module 4

Waveshare CM4 Industrial IoT Board Inside, Fast And Easy To Build A Mini-Computer

Part List Comparison



RAW BASE BOARD

MINI-COMPUTER KIT

MINI-COMPUTER KIT + 4G MODULE

CM4 Industrial IoT Board

Metal case



5000rpm cooling fan



12V 2A power adapter



Screwdriver and screws



4G module





Antenna





Antenna cable






Waveshare CM4 Industrial IoT Board Inside

Make It Easy To Build Your Own Raspberry Pi CM4 Mini PC

for reference only, CM4 is NOT included.
4G module and antenna are optional.
Base Board Specifications

CM4 SOCKET

suitable for all variants of Compute Module 4

NETWORKING

Gigabit Ethernet RJ45 connector, integrates 802.3af-compliant PoE circuit (5V/2.5A)

M.2 B KEY, supports 5G / 4G module

SIM card slot, supports standard SIM card for 5G/4G/3G/2G communication

CONNECTOR

Isolated RS485, Isolated RS232, PCIe Gen 2 x1, I2C, ADC, GPIO

USB

Dual USB 2.0 Type A

DISPLAY

Dual MIPI DSI display ports (15pin 1.0mm FPC connector)

CAMERA

Dual MIPI CSI-2 camera ports (15pin 1.0mm FPC connector)

VIDEO

Dual HDM1 ports, supports 4K 30fps output

RTC

Real-time clock with battery socket and ability to wake Compute Module 4

STORAGE

MicroSD card socket for Compute Module 4 Lite (without eMMC) variants

FAN HEADER

allows speed adjustment and measurement, 5V / 12V input

POWER INPUT

7V~36V wide range

DIMENSIONS

160 × 114mm

Comparing The Expansion Boards

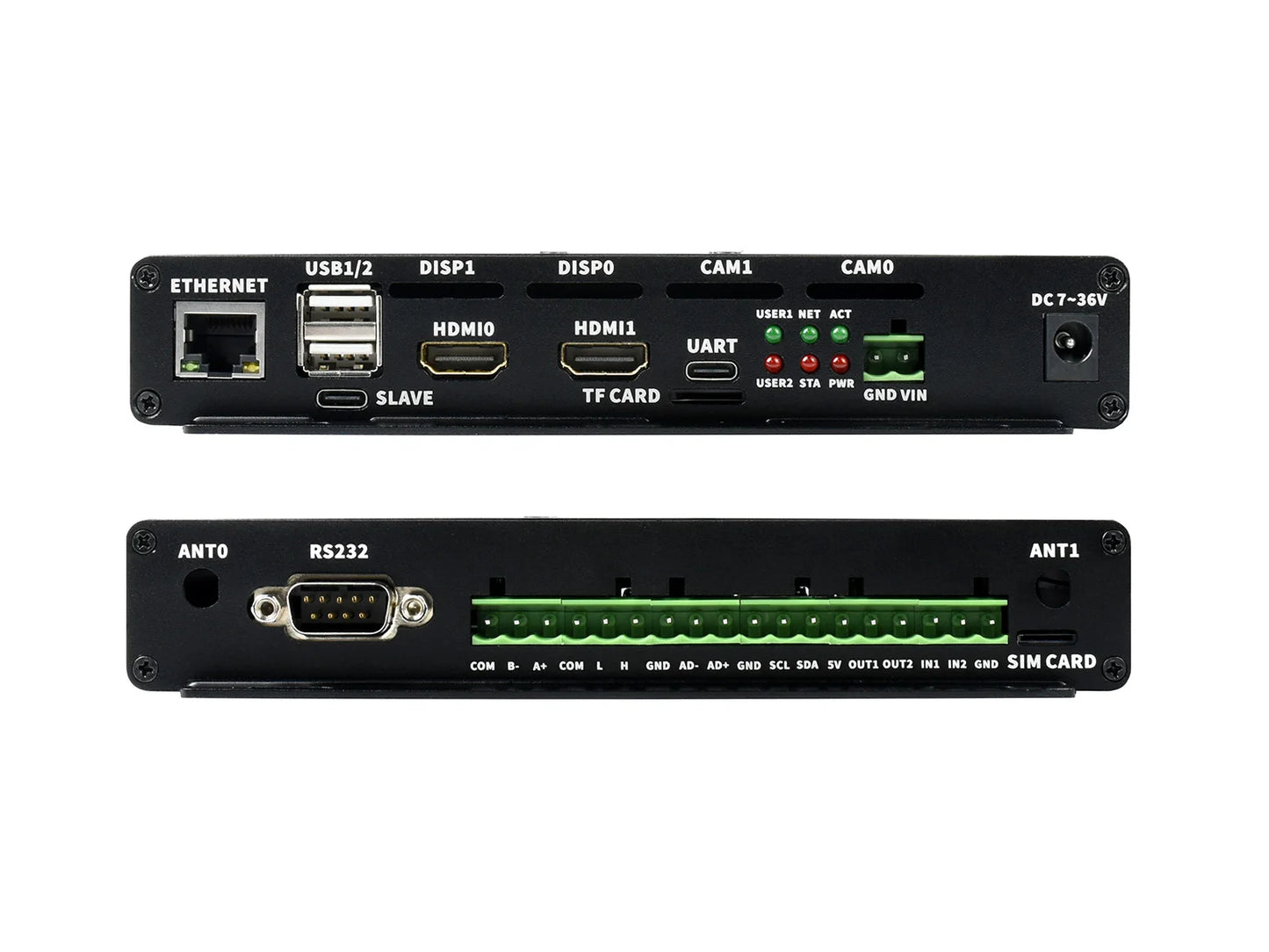

Precise Cut-Out With Clear Label

Each Cut-Out Is Completely Aligned With The Connector

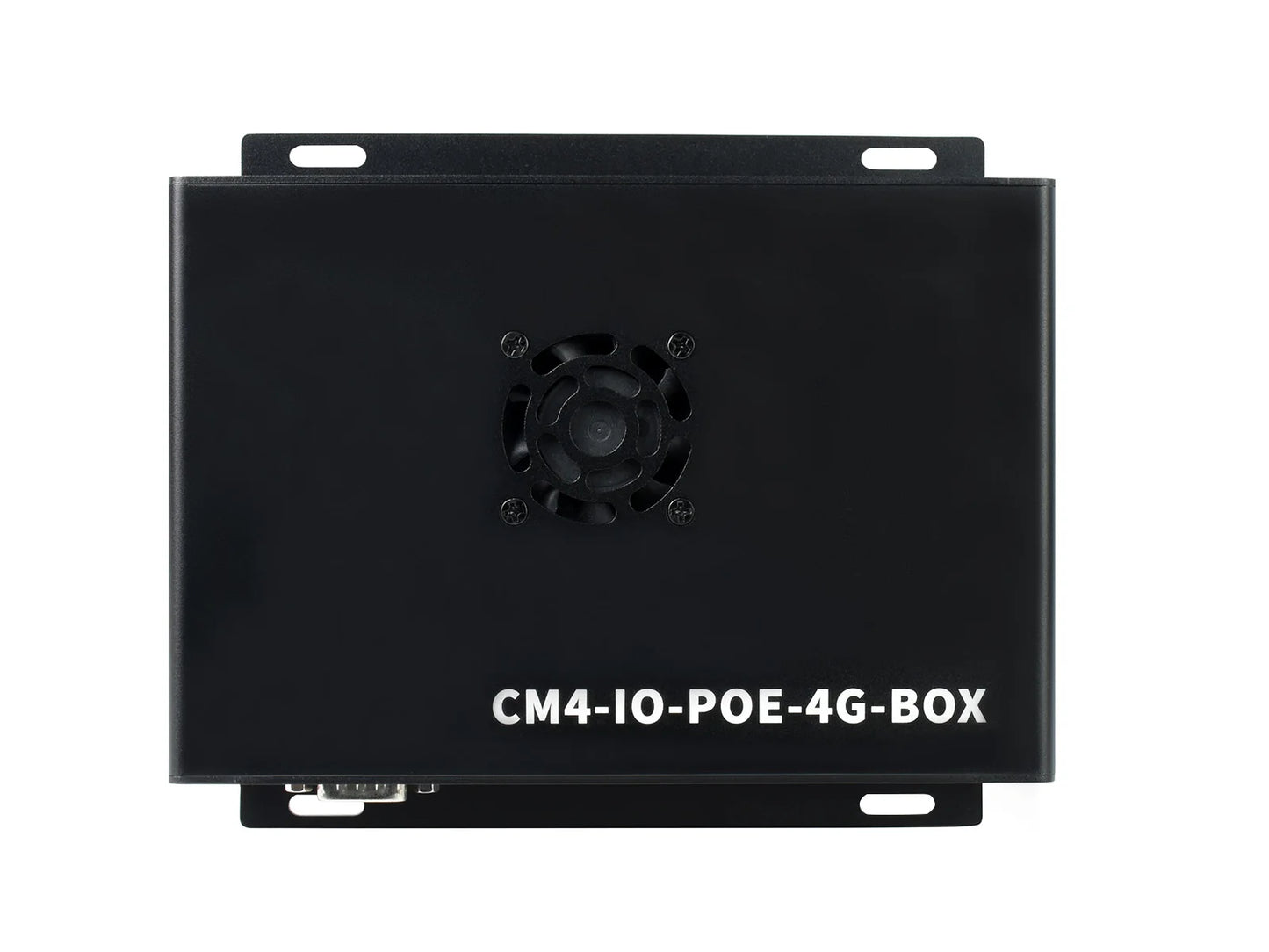

Cooling Fan Included

Comes With Cooling Fan, Combined With The Airflow Vent, Better Heat Dissipation

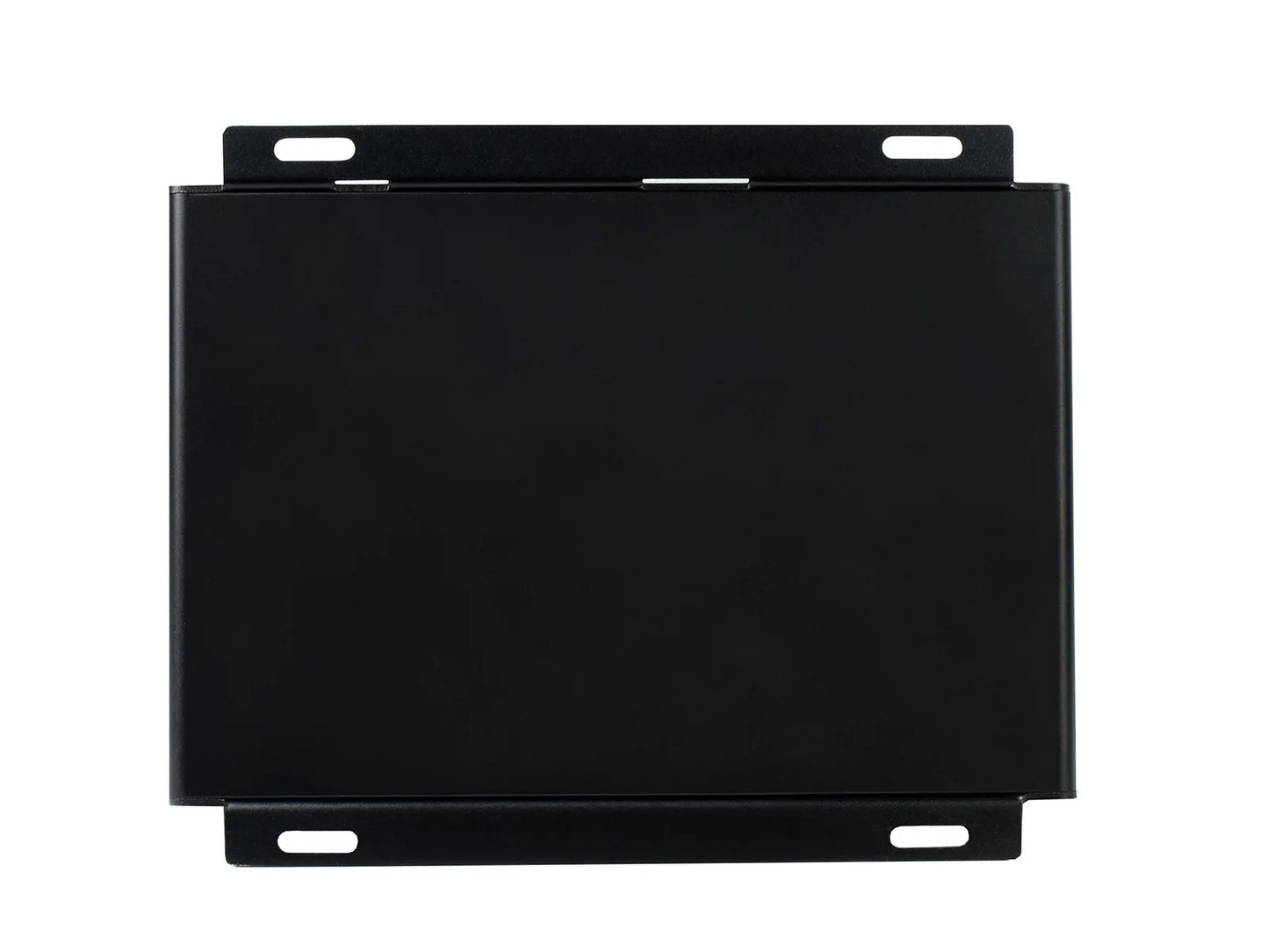

Wall Mount Support

Wall Mount Holes On Two Sides, Handy For Mounting

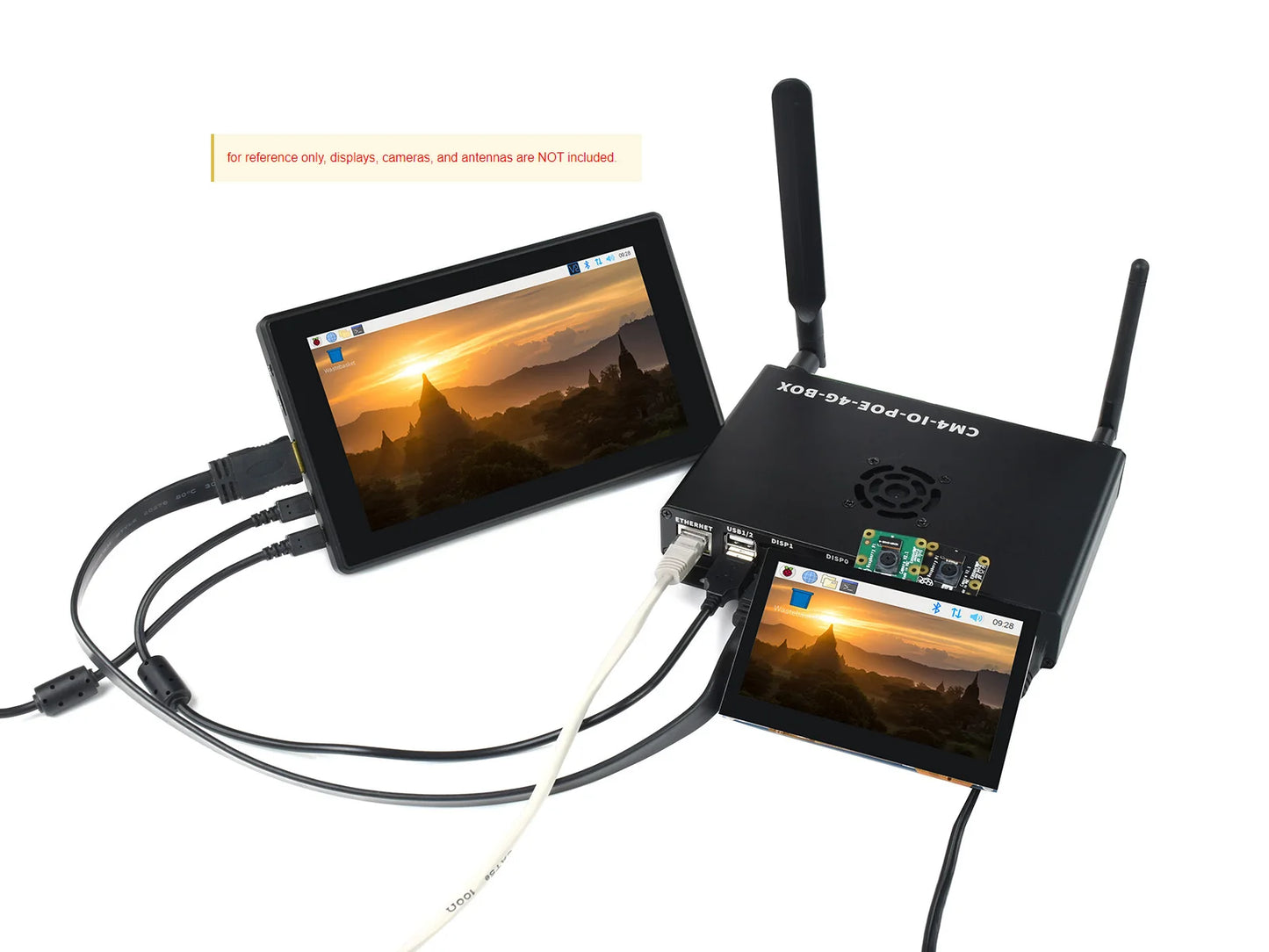

Application Examples

Binocular Vision, PoE Powered Raspberry Pi Projects, Or Other Industrial Context

for reference only, displays, cameras, and antennas are NOT included.
Outline Dimensions

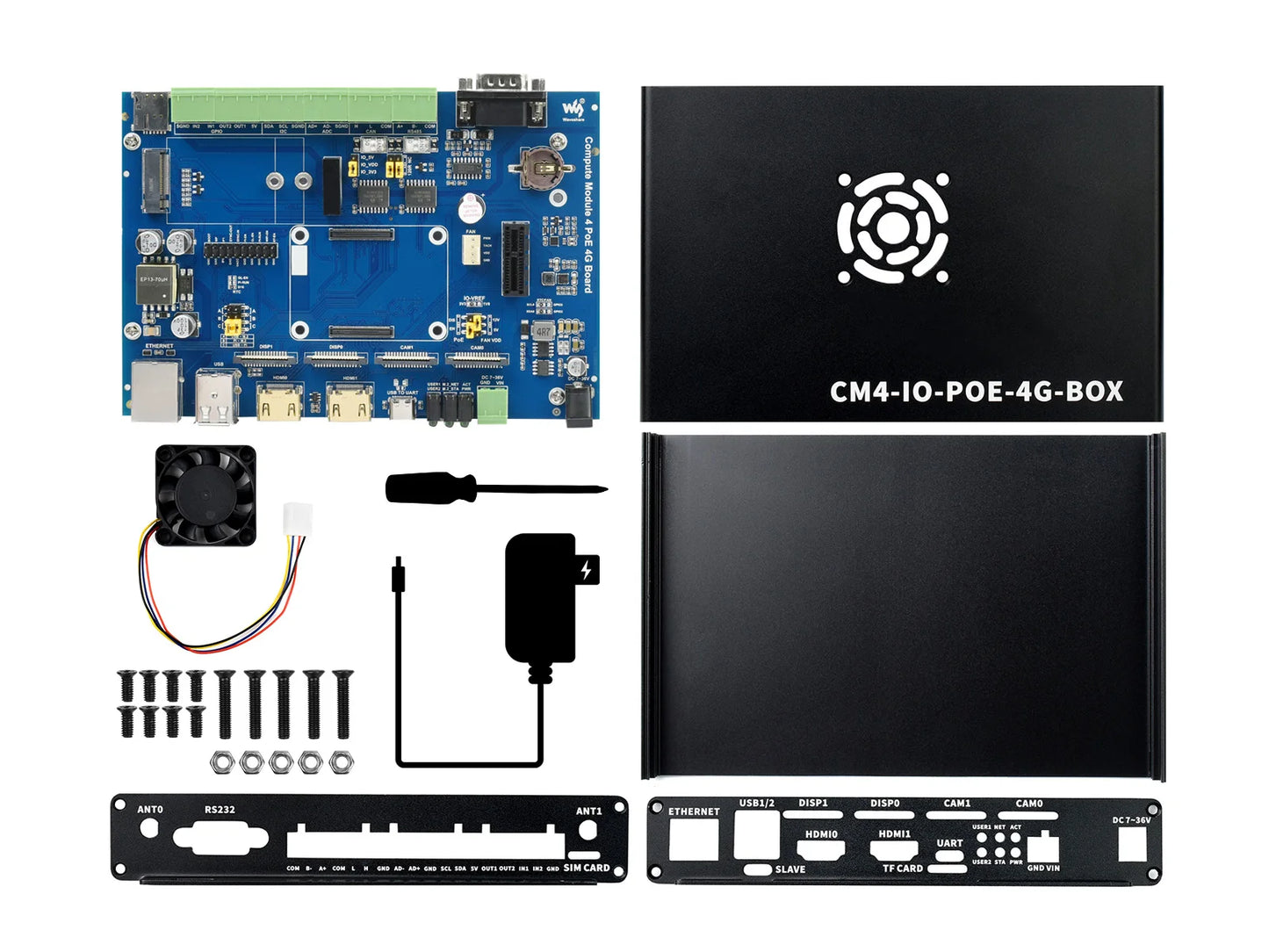

PACKAGE CONTENT



Weight: 0.66 kg

  1. Compute Module 4 PoE 4G Board x1

  2. Metal case (top and bottom) x1

  3. Fan-4010-PWM-12V x1

  4. Screwdriver x1

  5. Screws pack x1

  6. OPTIONS 12V 2A power adapter x1

  7. OPTIONS 4G module
    SIM7600G-H-M.2
    IPEX4 to SMA cable ~15cm
    Antenna 4G 8DB SMA ~17cm









 Welcome Customize Order!
