Custom IMX219 Camera Module for official Raspberry Pi Camera Board V2,160 degree FoV. 3280*2464 pixel,8-megapixel IMX219 sensor,No PCB Manufacturer

Custom IMX219 Camera Module for official Raspberry Pi Camera Board V2,160 degree FoV. 3280*2464 pixel,8-megapixel IMX219 sensor,No PCB Manufacturer

$15.46 USD
$15.46 USD $15.46 USD
Sale Sold out
Item specifics
  • :
  • Model Number: IMX219-D160
  • Demo Board Type: ARM
  • CMOS size: 1/4inch
  • Aperture (F) : 2.35
  • Focal Length: 3.15mm
  • Field of View: 160 degree (while the original V2 camera is only 62.2 degree)
  • Distortion: < 14.3%
  • Focusing Range: 20cm ~ infinity
  • Still picture resolution: 3280 x2464
  • Support video record: 1080p30, 720p60 and 640x480p90
Product Description

MX219 Camera Module, 160 degree FoV
IMX219 Camera Module for the official Raspberry Pi Camera Board V2, 160 degree FoV

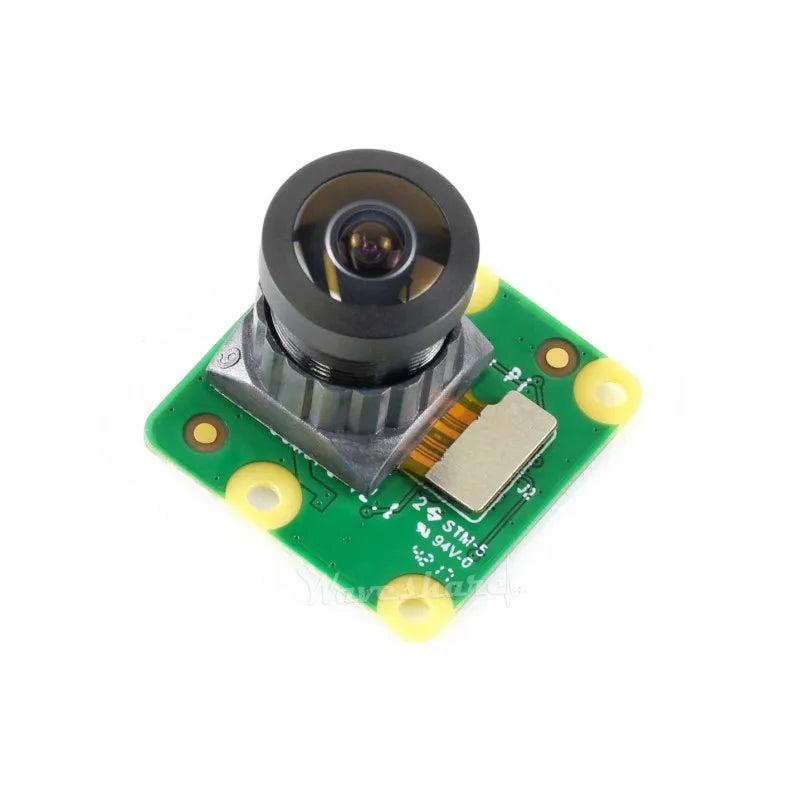

Note: this is a raw camera module without driver PCB, the Raspberry Pi and Raspberry Pi Camera Board V2 PCB in the photos are NOT included

Overview

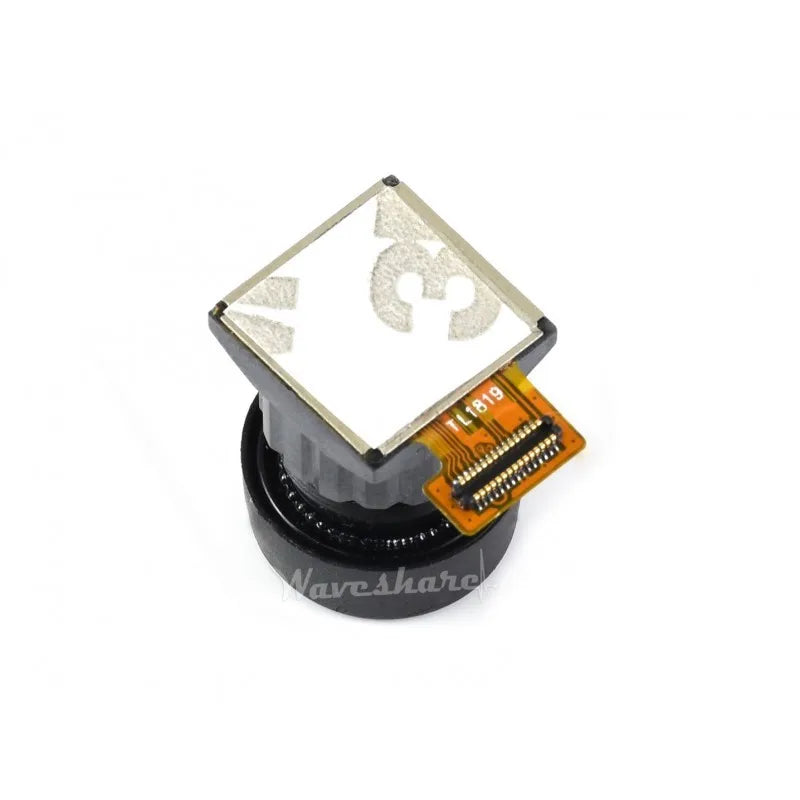

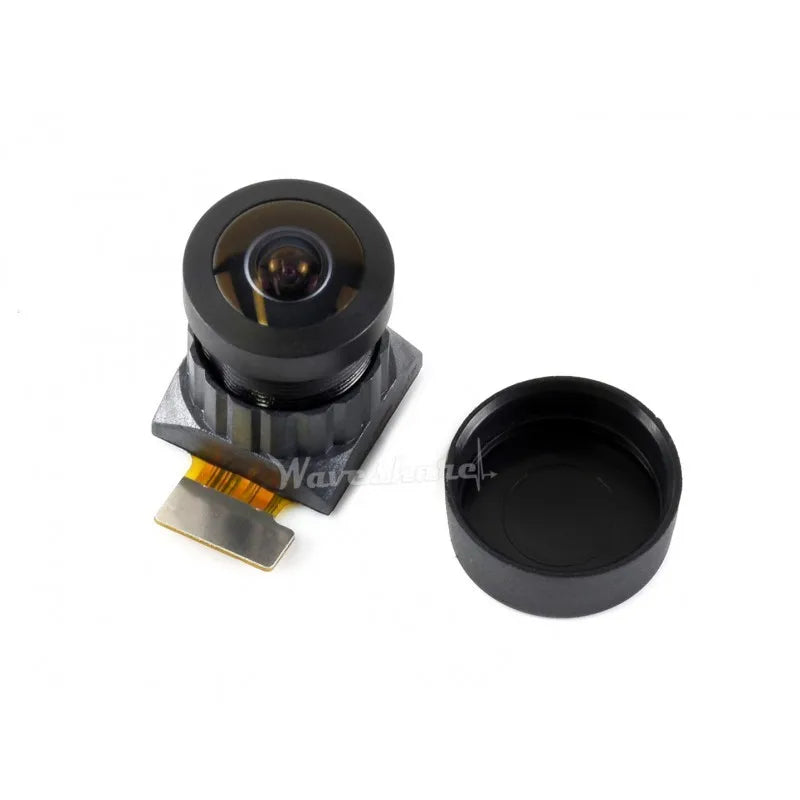

This is a camera module (without driver PCB) compatible with the official Raspberry Pi Camera Board V2, with 8-megapixel IMX219 sensor and features 160 degree field of view.

If you got a Raspberry Pi Camera Board V2 and just want to try something new, here it is.

Features

  • IMX219 8-megapixel sensor
  • Camera specifications
    • CMOS size : 1/4inch
    • Aperture (F) : 2.35
    • Focal Length : 3.15mm
    • Angle of View (diagonal) : 160 degree (while the original V2 camera is only 62.2 degree)
    • Distortion: < 14.3%
    • Focusing Range: 20cm ~ infinity
  • 3280 x2464 still picture resolution
  • Support 1080p30, 720p60 and 640x480p90 video record

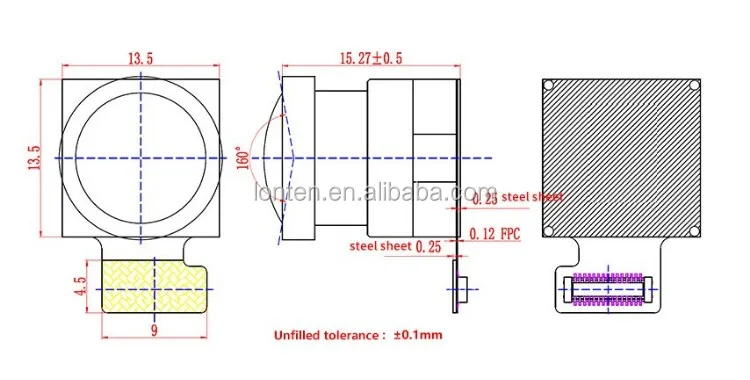

Dimensions

QQ20180907111549


Selection Guide

Camera Module Pixels Sensor Infrared Field of View (degree) Aperture (F) Focal Length (mm)
RPi Camera V2 original camera module 8 Mega IMX219 × 62.2 2.0 3.04
RPi NoIR Camera V2 original camera module 8 Mega IMX219 √ 62.2 2.0 3.04
IMX219-D160 8 Mega IMX219 × 160 2.35 3.15
IMX219-D77 8 Mega IMX219 × 77.6 2.0 2.96

Note: thanks to the interface compatibility, camera modules listed above are interchangeable according to your needs.

PACKAGE CONTENT

Weight: 0.004 kg

Note: this is a raw camera module without driver PCB, the Raspberry Pi and Raspberry Pi Camera Board V2 PCB in the photos are NOT included

  1. IMX219-D160 x1

QQ20180907111720





Packaging Details
  • Unit Type: piece
  • Package Weight: 0.084kg (0.19lb.)
  • Package Size: 10cm x 10cm x 4cm (3.94in x 3.94in x 1.57in)
