Custom I2C / SPI BMP280 3.3 Digital Barometric Pressure Altitude Sensor High Precision Atmospheric Module for
Custom I2C / SPI BMP280 3.3 Digital Barometric Pressure Altitude Sensor High Precision Atmospheric Module for
Regular price
$0.56 USD
Regular price
$3.56 USD
Sale price
$0.56 USD
Unit price
per
Couldn't load pickup availability
Package Included:

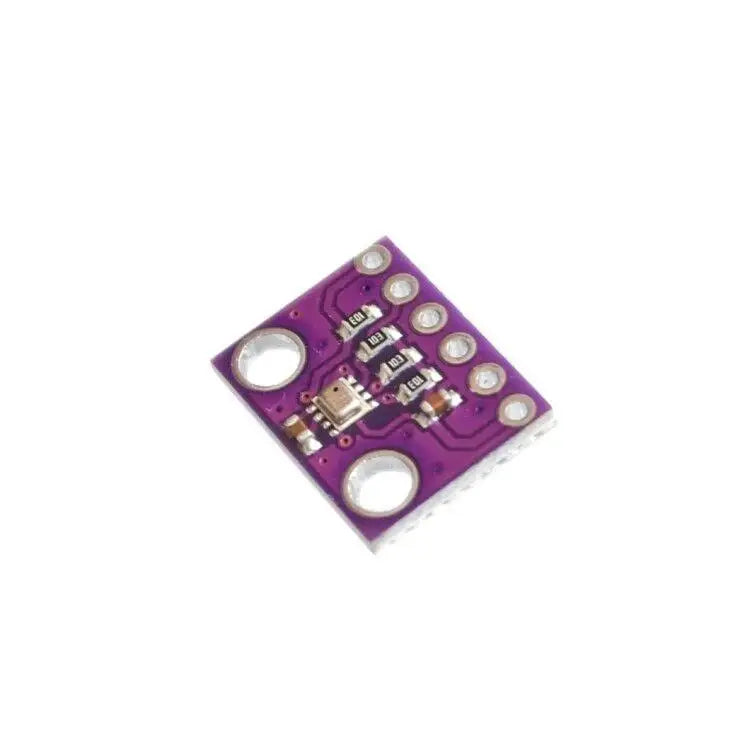

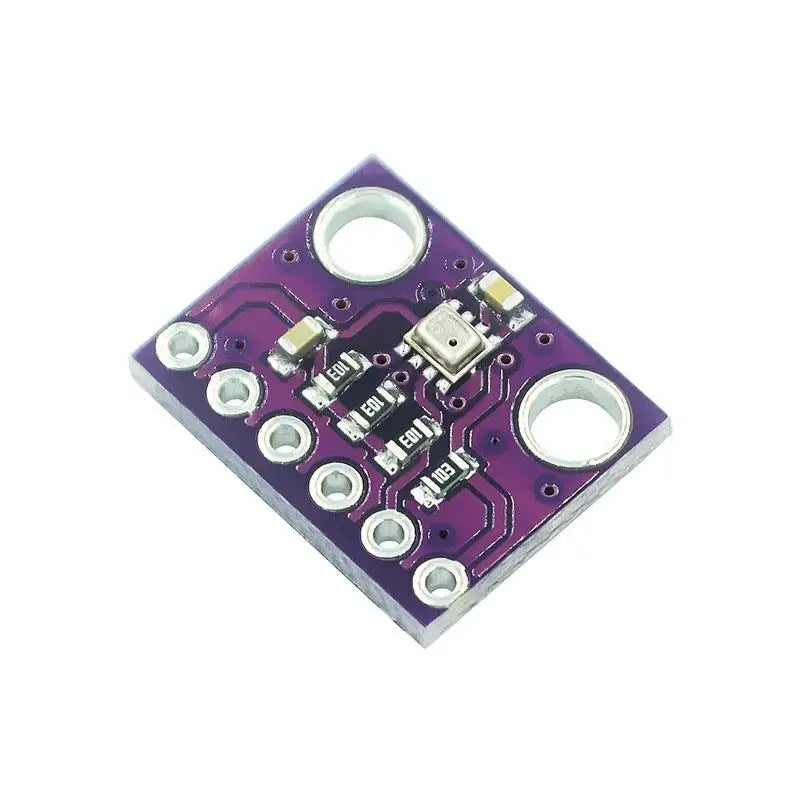

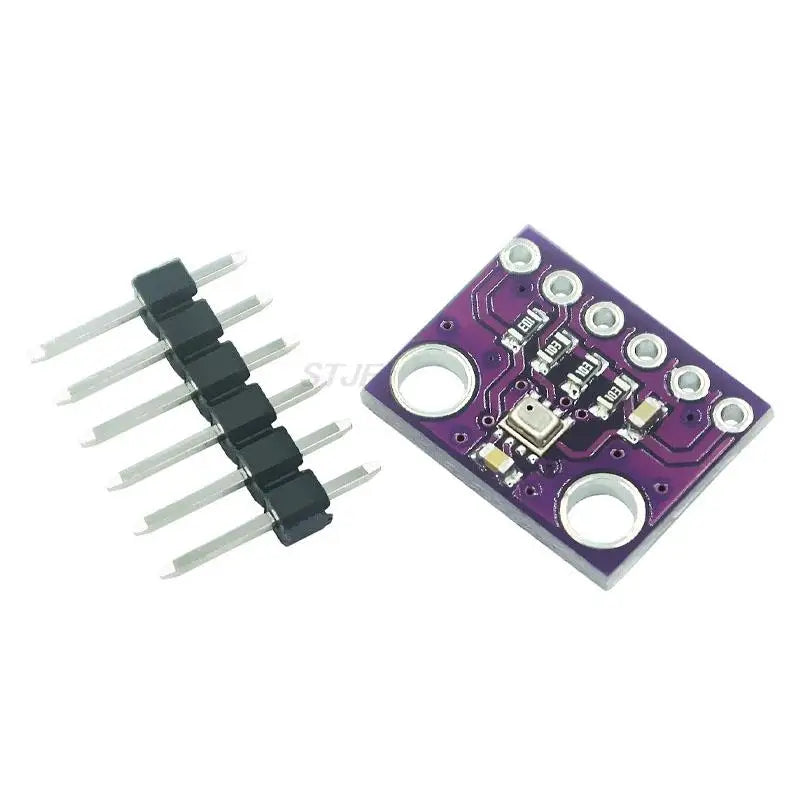

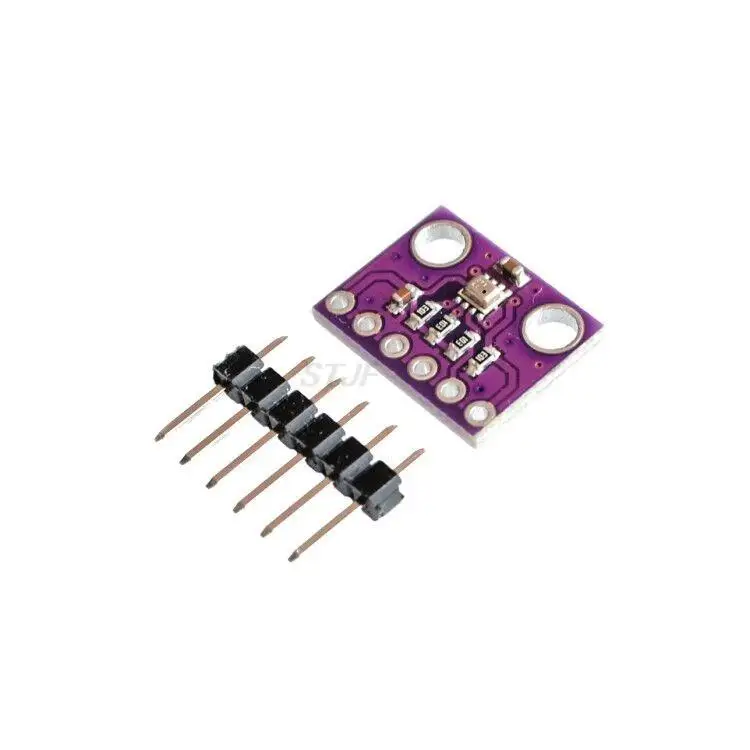

1 X GY-BMP280-3.3 Pressure Sensor
1 X GY-BMP280-3.3 Pressure Sensor
BME280 is a small package low power digital digital composite sensor, it can measure ambient temperature and humidity and atmospheric pressure. It is backward compatible with the BMP280, and the barometric temperature register control and data readout operation are the same. The humidity sensor has fast wake up and response time, high precision and wide temperature operating range; The pressure sensing element is a piezoresistive low noise, high precision and high resolution absolute atmospheric pressure sensing element. The temperature sensing element has the characteristics of low noise and high resolution, and the temperature value can be self-corrected by temperature compensation for humidity and air pressure. Humidity sensing elements and pressure sensing elements can be independently enabled/disabled. By configuring the sample rate register, you can set the sample rate of the sensor. Ideal for mobile devices with limited space, such as smart phones, tablets, smartwatches and wearables, weather forecasts, vertical speed indicators, flight control devices, indoor and outdoor navigation, smart home devices.
Product parameter
Operating voltage: 1.7-3.6V DC
Temperature measurement range: 0° C^ 65°C
Temperature measurement error: soil 0.5°C MAX 1°C; Resolution 0.1°C.
Relative humidity measurement range: 0%~ 100%
Humidity Response time: greater than 1s
Relative humidity measurement error: soil 2%; Humidity lag: soil 1%; Resolution 0.8%
Pressure measurement range: 300~ 1100hPa (HPA)
Pressure measurement error: soil 1hPa resolution 0.18Pa
Digital interface type: IIC (slave mode 3.4MHz) or SPI (3-wire or 4-wire slave mode)
1 OMHz)

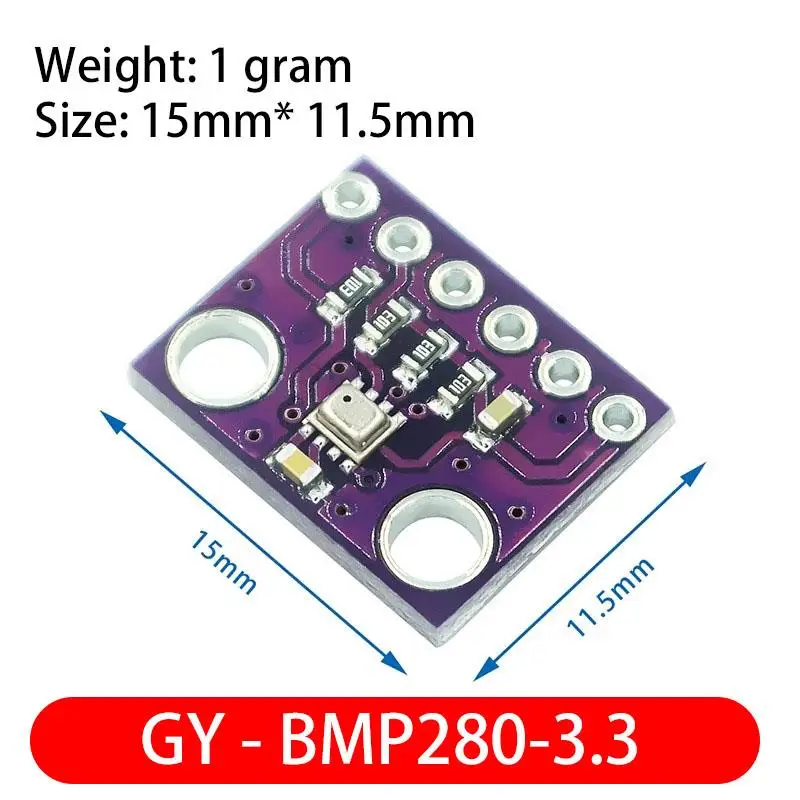

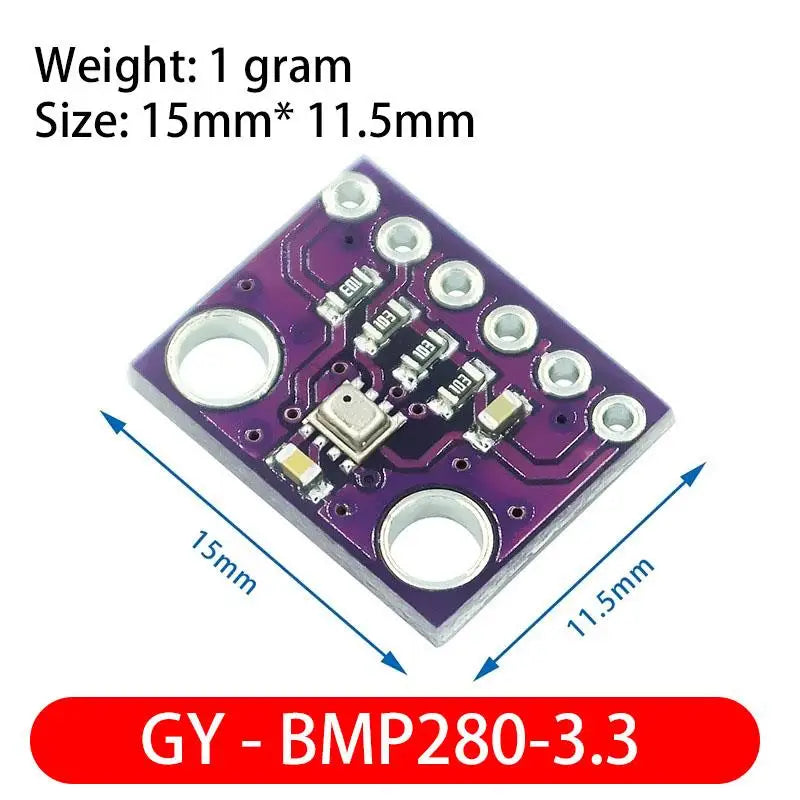

Size: 15.4mm (L) *11.6mm (W) *2.4mm (H)
With M3 fixing screw hole, easy to install and fix.
Operating voltage: 1.7-3.6V DC
Temperature measurement range: 0° C^ 65°C
Temperature measurement error: soil 0.5°C MAX 1°C; Resolution 0.1°C.
Relative humidity measurement range: 0%~ 100%
Humidity Response time: greater than 1s
Relative humidity measurement error: soil 2%; Humidity lag: soil 1%; Resolution 0.8%
Pressure measurement range: 300~ 1100hPa (HPA)
Pressure measurement error: soil 1hPa resolution 0.18Pa
Digital interface type: IIC (slave mode 3.4MHz) or SPI (3-wire or 4-wire slave mode)
1 OMHz)
Size: 15.4mm (L) *11.6mm (W) *2.4mm (H)
With M3 fixing screw hole, easy to install and fix.

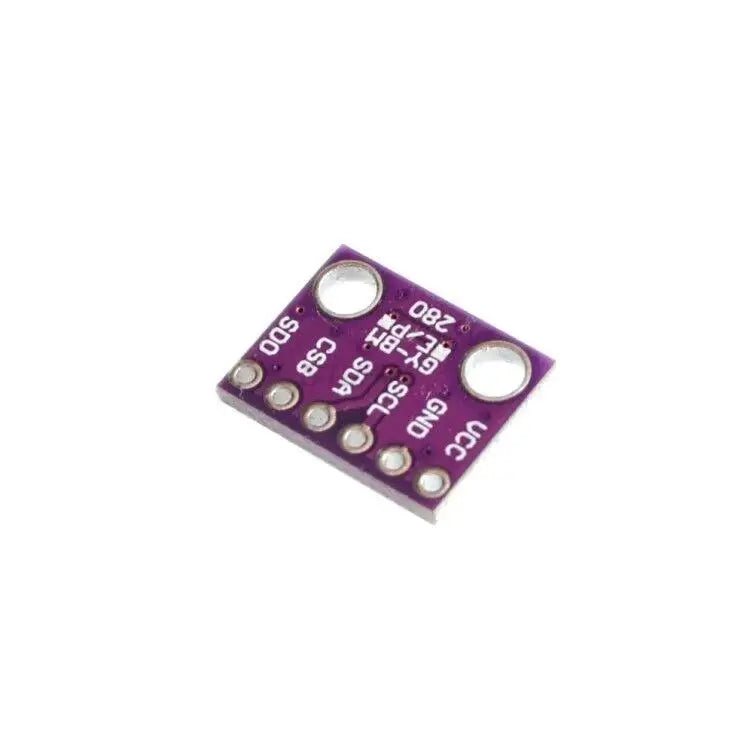

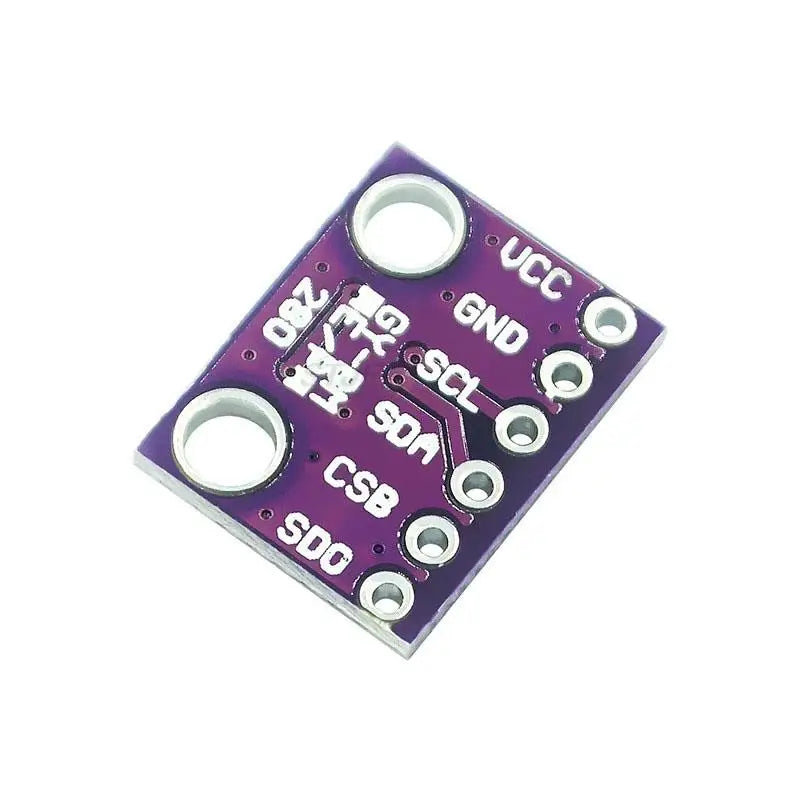

Product pin
VCC: Power supply positive
GND: ground
SCL:12C/SPI serial clock line
SDA: 12C serial data cable
3-line SPI serial data input/output terminal 0
4-wire SPI serial data entry port
CSB: Chip selector pin, connected to IIC communication interface for high level (default), SPI communication interface for low level
SDO: 12C address selection bit
4-line SPI serial output terminal 0
Instructions for use
In 12C mode, the module determines the device address through the SD0 pin. The SD0 GND low-level slave address is 1110110 (0x76), and the default of this module is 0x76. High level slave address 1110111 (0x77)
VCC: Power supply positive
GND: ground
SCL:12C/SPI serial clock line
SDA: 12C serial data cable
3-line SPI serial data input/output terminal 0
4-wire SPI serial data entry port
CSB: Chip selector pin, connected to IIC communication interface for high level (default), SPI communication interface for low level
SDO: 12C address selection bit
4-line SPI serial output terminal 0
Instructions for use
In 12C mode, the module determines the device address through the SD0 pin. The SD0 GND low-level slave address is 1110110 (0x76), and the default of this module is 0x76. High level slave address 1110111 (0x77)
