Custom Hot for Raspberry Pi 3 Model B 3.5 Inches Touch Screen Display Monitor 480x320 LCD Kit Manufacturer

Name: Custom Hot for Raspberry Pi 3 Model B 3.5 Inches Touch Screen Display Monitor 480x320 LCD Kit Manufacturer
Brand: Lonten Tech
Price: 10.30 USD
Availability: InStock

$10.30 USD

~~$10.30 USD~~ $10.30 USD

Sale Sold out

Quantity

Note: The price is Bundle(optiona)1,Lonten is a manufacturer and provide Raspberry PI electronic component ,for more please contact.

Item specifics

:
Demo Board Type: ARM
Model Number: 3.5 inch tft lcd Module
Type: TFT
LCD Interface: SP1
Touch Screen Controller: XPT2046
Backlight: LED
Color Levels Index: 65536
Resolution: 320*480 (Pixel)
Packing: Carton
Operating Temp: (Centigrade) TBD
Aspect Ratio: 8:5
Backlight Current: TBD

var PAGE_CONFIG = { videoEnv:"" }

Product Description

Description

Pls use the Raspbian Mirroring which before 2017-01-11,do not update the latest mirroring (2017-03-02), because the latest mirroring will influence the touch. Pls waiting for the official release update file to resolve this problem.

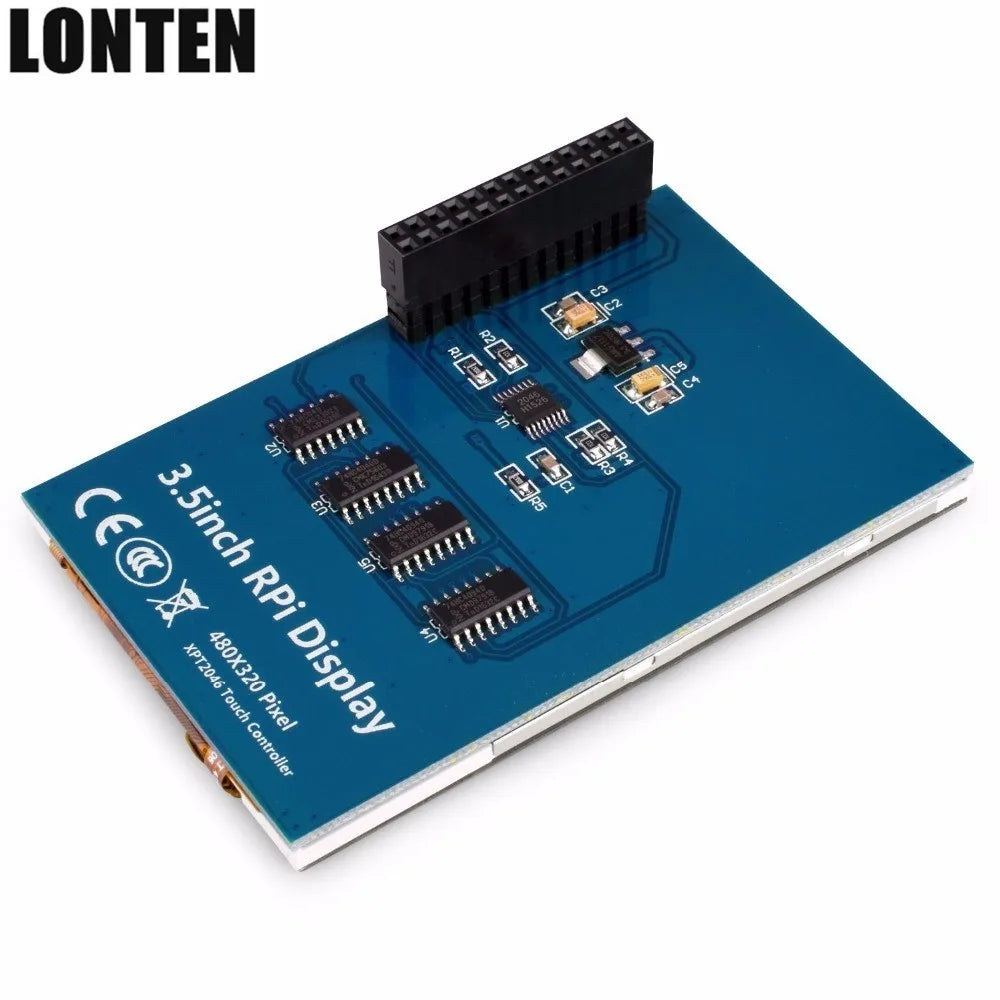

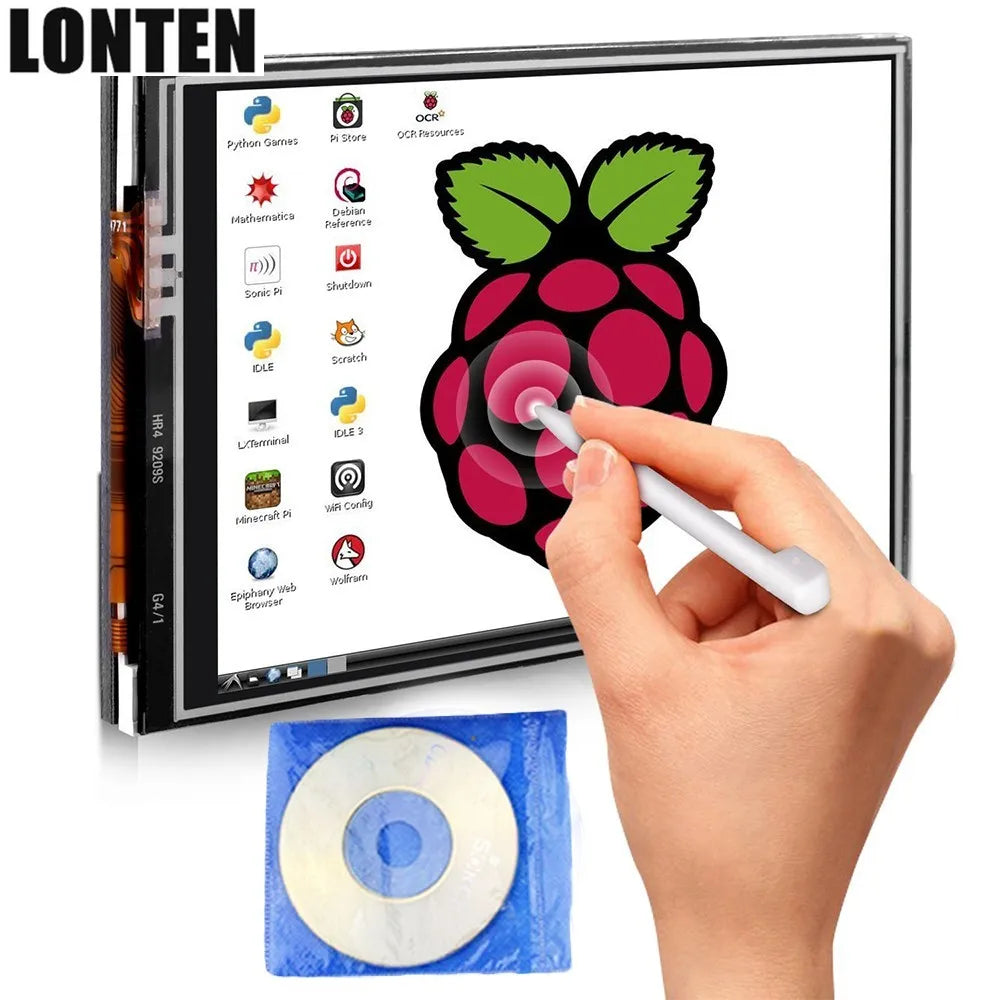

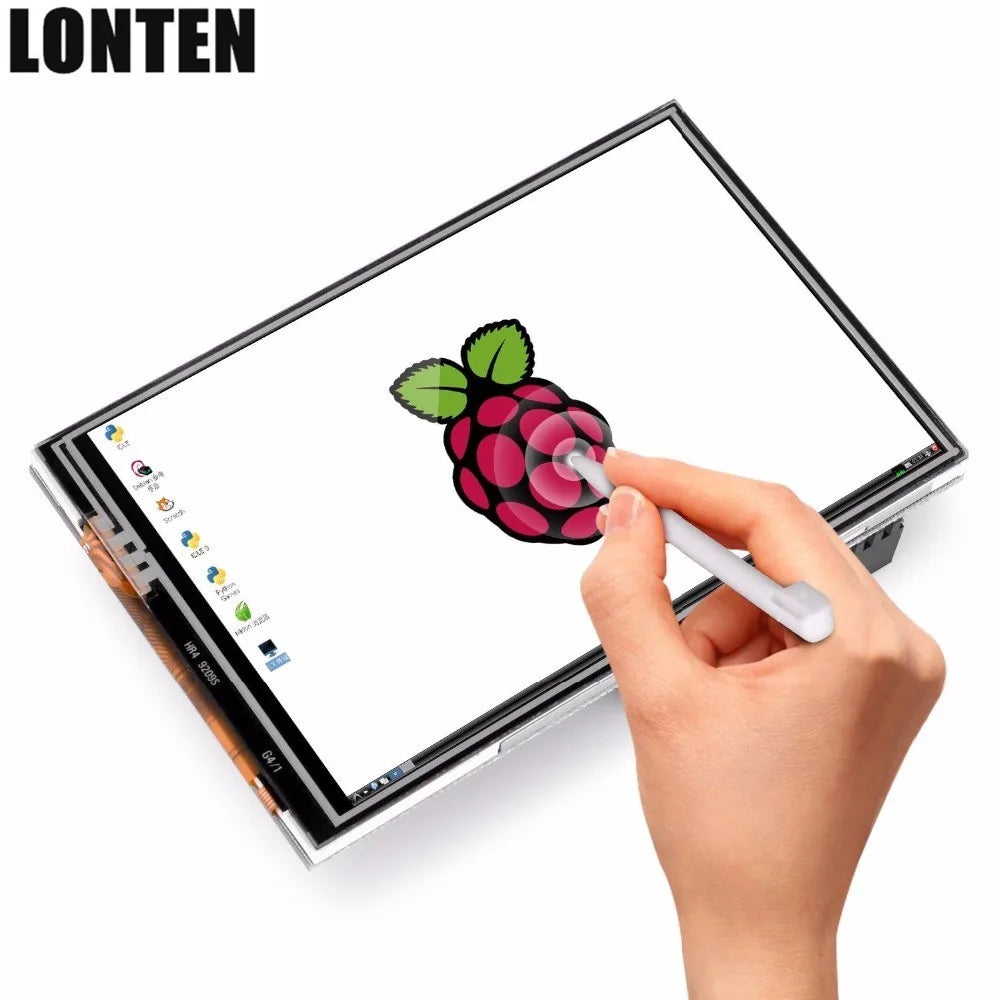

This 3.5 inch touch screen module is designed especially for Raspberry Pi, using the latest Linux Core system (vision 3.18.9), the latest Raspberry Pi official UI desktop file system and the fastest SPI transmission data, an ideal alternative solution for monitor and convenient Men-Machine interface for Raspberry Pi, combined with the portable power, DIY anywhere anytime.

Specifications

1. Type:TFT

2. LCD Interface:SP1

3. Touch Screen Controller: XPT2046

4. Backlight: LED

5. Color Levels Index: 65536

6. Resolution: 320*480 (Pixel)

7. Power Consumption/Backlight Current

Package includes:

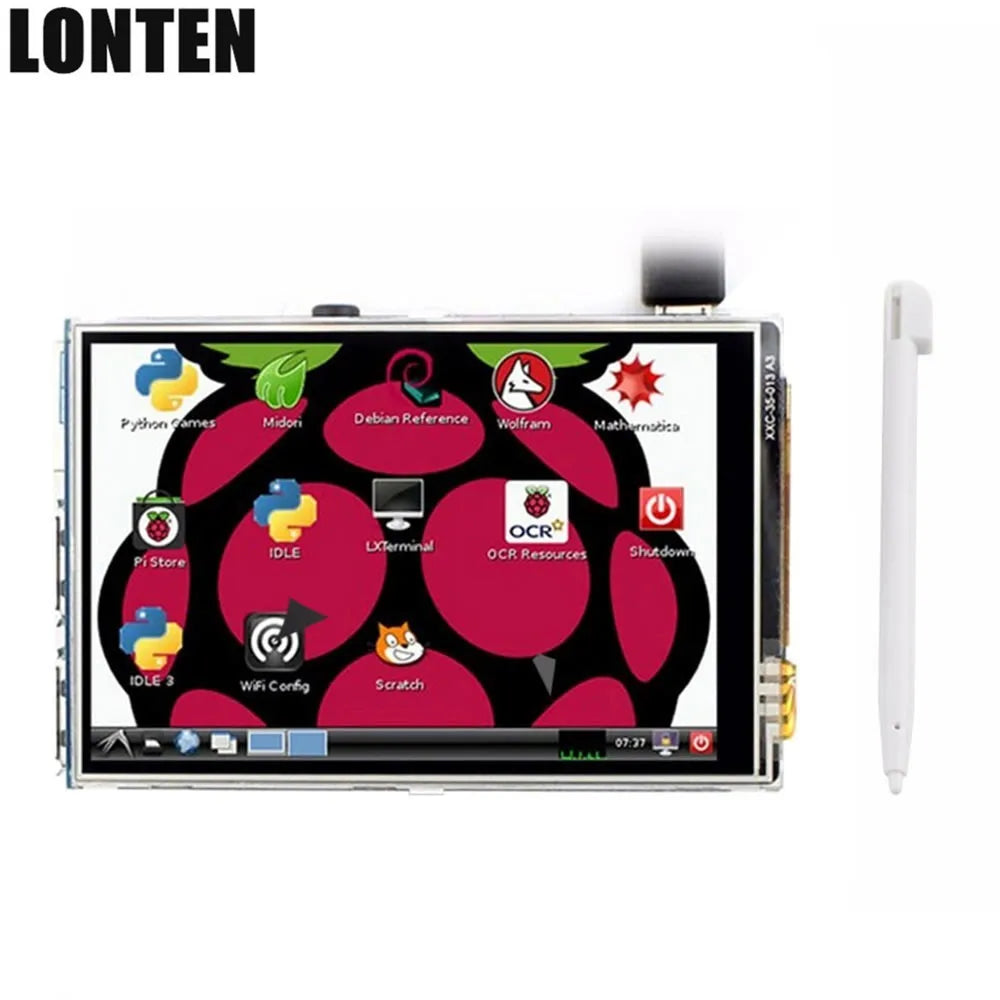

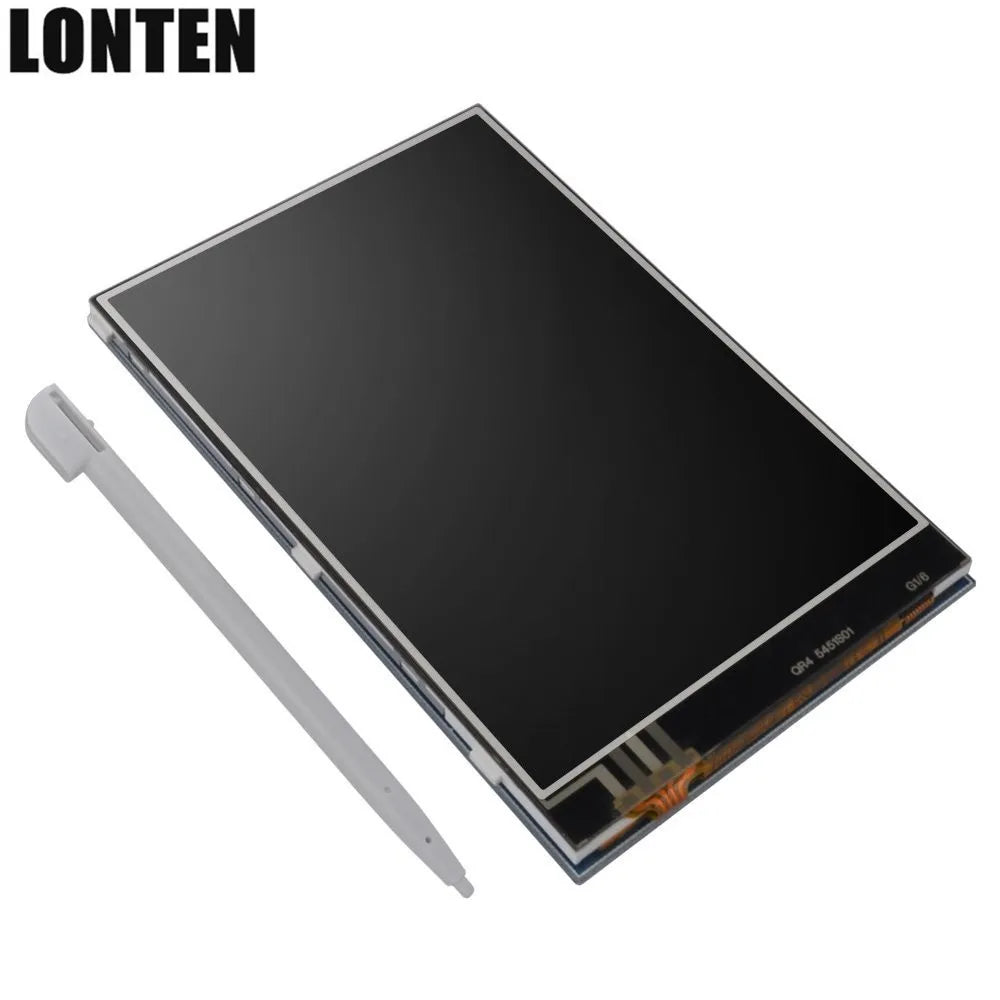

1 * 3.5" LCD for Raspberry Pi

1 * pen for 3.5 LCD Touch Screen

Assembly drag

Specifications

Type:TFT
LCD Interface:SP1
Touch Screen Controller: XPT2046
Backlight: LED
Color Levels Index: 65536
Resolution: 320*480 (Pixel)
Power Consumption/Backlight Current

Interface
PIN NO.	SYMBOL	DESCRIPTION
1, 17	3.3V	Power positive (3.3V power input)
2, 4	5V	Power positive (5V power input)
3, 5, 7, 8, 10, 12, 13, 15, 16	NC	NC
6, 9, 14, 20, 25	GND	Ground
11	TP_IRQ	Touch Panel interrupt, low level while the Touch Panel detects touching
18	LCD_RS	Instruction/Data Register selection
19	LCD_SI / TP_SI	SPI data input of LCD/Touch Panel
21	TP_SO	SPI data output of Touch Panel
22	RST	Reset
23	LCD_SCK / TP_SCK	SPI clock of LCD/Touch Panel
24	LCD_CS	LCD chip selection, low active
26	TP_CS	Touch Panel chip selection, low active

HTB1MJ1cGXXXXXXuapXXq6xXFXXXH

pc_02

Raspberry Pi 3 Model B Starter Kit Pi 3 + Case + US Power Supply + USB Cable + 16G card + heat sink with Wifi USD 48.12-49.94/piece

raspberry pi 3 model b kit pi 3 board / pi 3 case / European power supply/16 G memory card /heat sinkUSD 48.62/piece

Raspberry Pi 3 kit + Acrylic Case + EU Power Supply + USB Cable with switch + 16G card + heat sink with Wifi USD 43.89-50.36/piece

Dual Fan Optional Version Heatsink Cooler with Double Cooling Fans For Raspberry Pi 3 B Plus / 3 BUSD 6.95/piece

Raspberry Pi 3 Model B Raspberry Pi Raspberry Pi3 B Pi 3 Pi 3B With WiFi & USD 36.67/piece

for Raspberry Pi 3 Model B 3.5 Inches Touch Screen Display Monitor 480x320 LCD Kit USD 10.91/piece

Raspberry Pi 3 kit Raspberry Pi 3 Model B + Case + EU power plug + USB Cable + 16G card + heat sinkUSD 50.49/piece

raspberry pi 3 / 3 B+ case Official ABS Case for Pi 3B 3 Model B+ Plus ( Fits 2018 New Version Pi )USD 1.51/piece

Packaging Details

Unit Type: piece
Package Weight: 0.15kg (0.33lb.)
Package Size: 15cm x 10cm x 5cm (5.91in x 3.94in x 1.97in)

Welcome Customize Order!
