Temperature regulation controller power board IIC intelligent communication custom development Power

1. Input: AC180V-264V
Output voltage: DC voltage output +4V, +5V, +7V, +9V, AC voltage output 220V
2. Power:
Under AC180V-264V voltage input 100% load condition, its DC power is 40W maximum, AC power is 2200W maximum
3. Electrical description

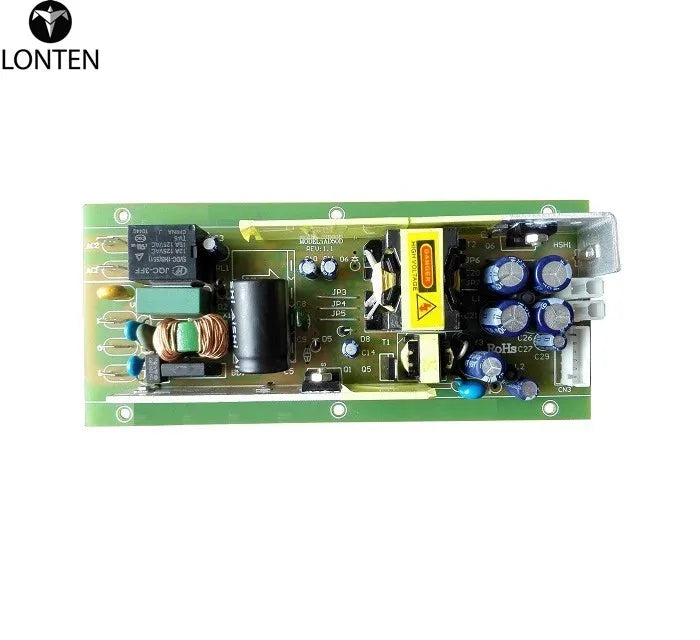

The product is AC-DC40W power supply, single output can transform 4 sets of different voltages, mainly used in household heating equipment, etc.

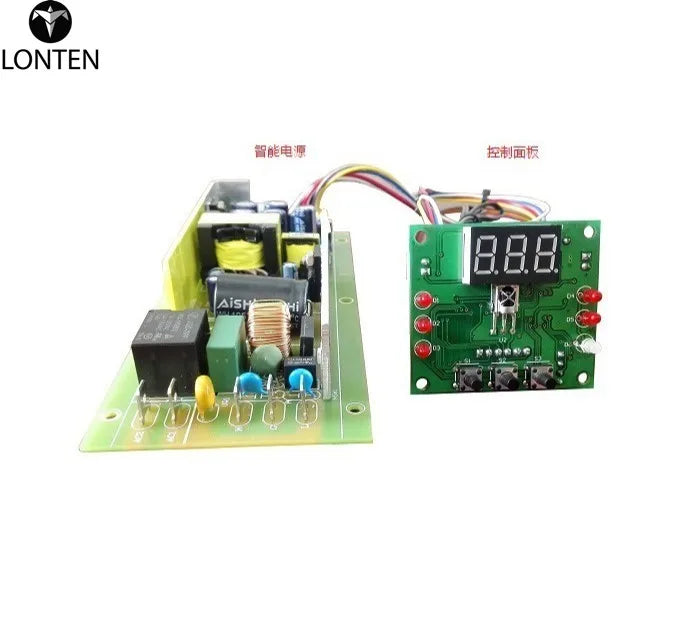

+5VSB powers the control board and AC220V output controls the heater
4. Error detection code

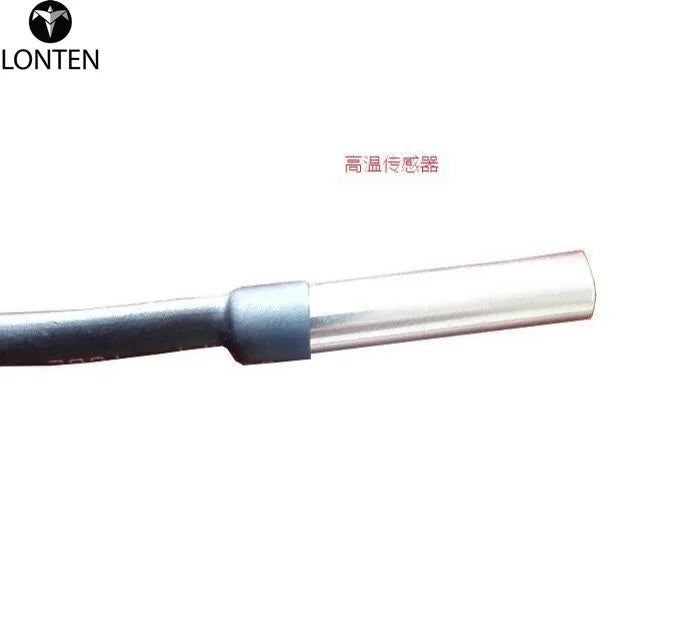

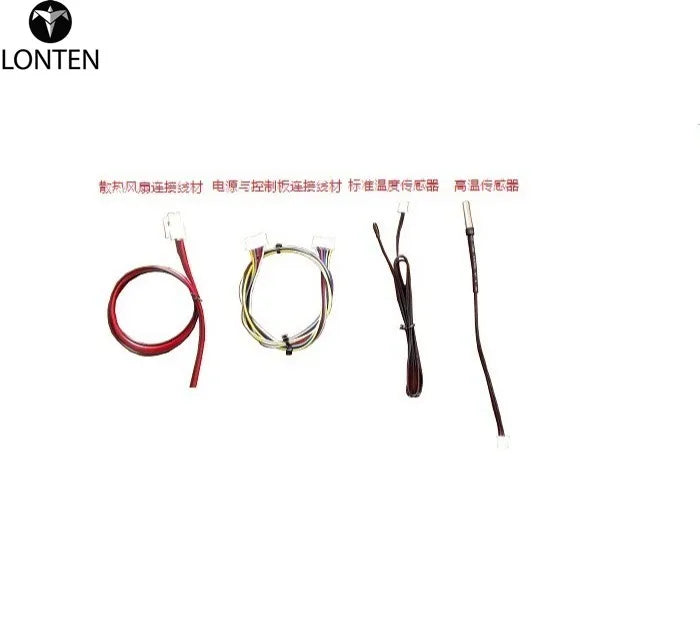

E-1 Tube temperature sensor short circuit
E-2 Tube temperature sensor connector is loose or tube temperature sensor is not installed
E-3 Room temperature sensor short circuit
E-4 Room temperature sensor connector is loose or the room temperature sensor is not installed
5. Demonstration of automatic control:
The room temperature is 15 degrees, the set temperature is 25 degrees. According to the intelligent parameters, the electric heating is ted first, the tube temperature reaches above 28 degrees, and the fan ts;
When the room temperature reaches 26 degrees, the electric heating and the fan stop. When the room temperature drops to 24 degrees, then press the intelligent parameter to t the cycle of this function.
6. Manual control example: (Fixed Gale)
The room temperature is 15 degrees, and the set temperature is 25 degrees. According to the set gear (high wind), the electric heating ts first, the tube temperature reaches above 28 degrees, and the fan (high wind) ts;
When the room temperature reaches 26 degrees, the electric heating and the fan stop. When the room temperature drops to 24 degrees, then press the intelligent parameter to t the cycle of this function
7. Working principle diagram:
