Custom HM-TRP wireless data transmission module TTL transparent transmission 3DR aircraft model APM flight control wireless module

Custom HM-TRP wireless data transmission module TTL transparent transmission 3DR aircraft model APM flight control wireless module

$6.37 USD
$9.37 USD $6.37 USD
Sale Sold out
color

Remarks:

Default firmware/3DR firmware optional

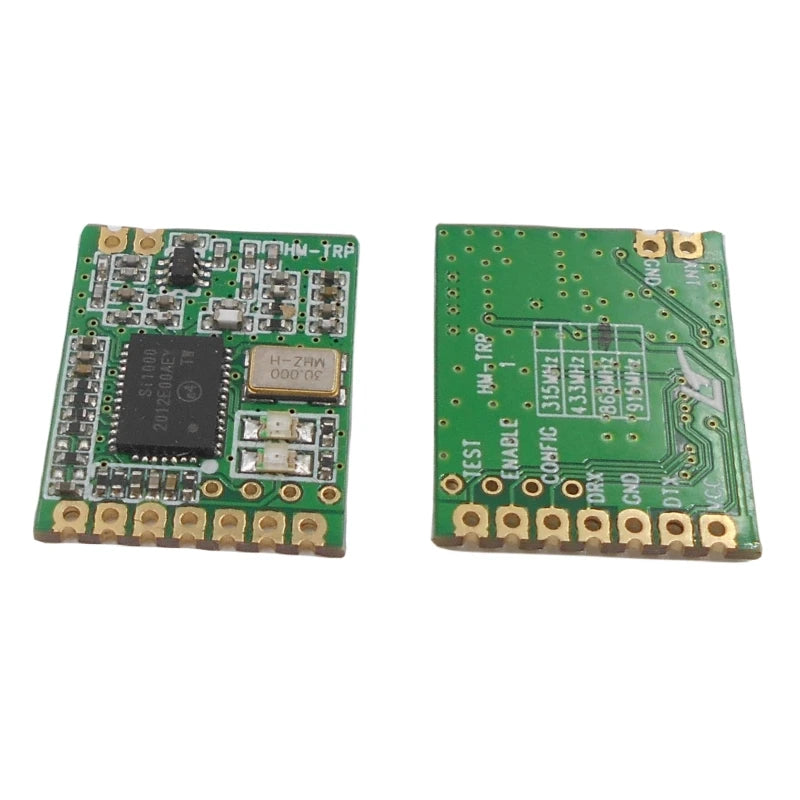

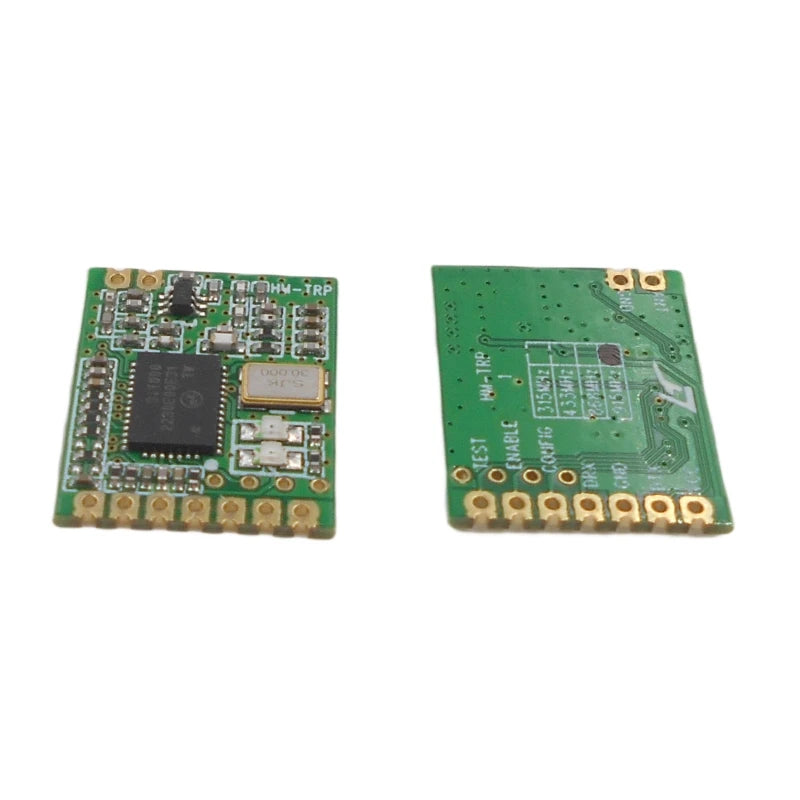

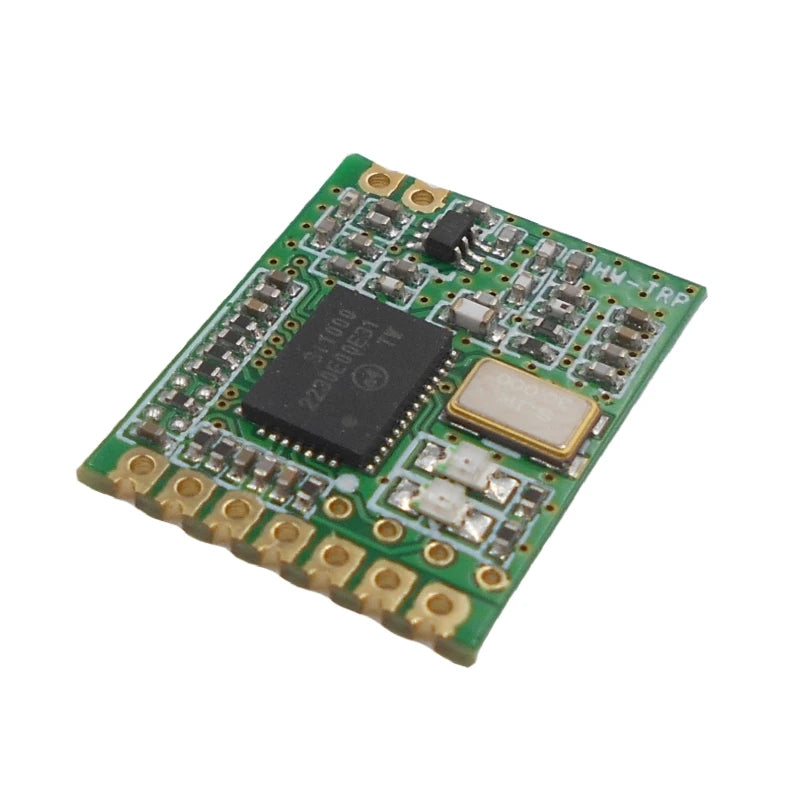

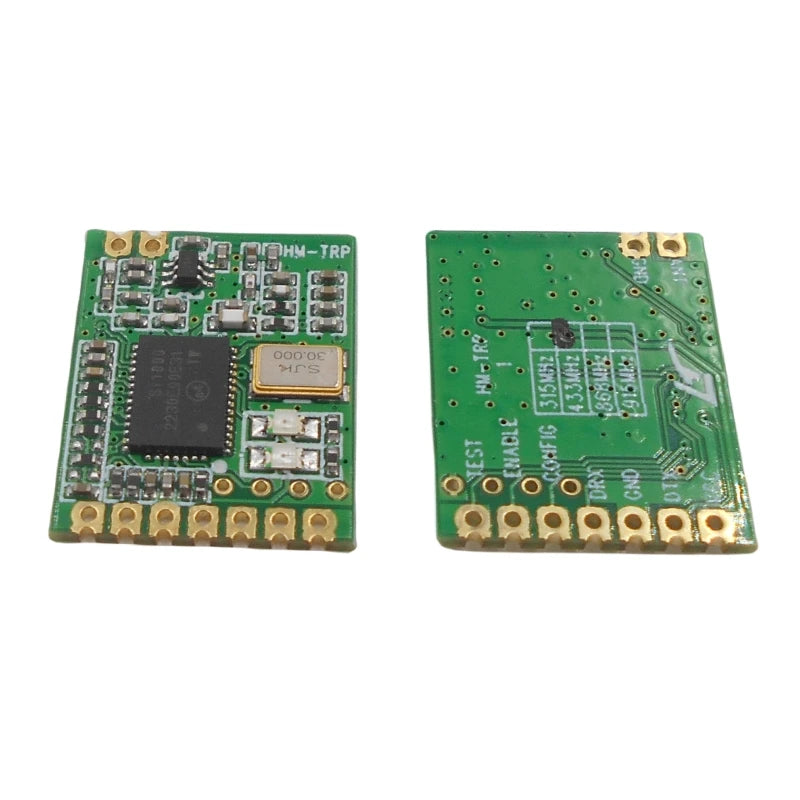

Wireless data transceiver module

HM-TRP series is a low cost, high performance FSK wireless transparent data transceiver module. It works in 434/470/869/915MHz ISM band. The utility model has the advantages of small size, large power, high sensitivity, long transmission distance and high communication rate


HM-TRP-RS485 is a low-cost, high-performance FSK wireless transparent data transceiver module. Can work in the 433/470/868/915MHz ISM band. It has the characteristics of small size, large power, high sensitivity, long transmission distance, high communication rate, automatic completion of communication protocol conversion and data transceiver control. The module provides RS-485 serial data interface, which can easily realize wireless data transmission by simply providing serial data. Users can also flexibly configure the parameters such as serial rate, operating frequency, transmit power, communication rate, modulation frequency offset, and receiving bandwidth according to their own needs. HM-TRP-RS485 series modules can be widely used in various wireless data transmission fields and are ideal for designing wireless data transmission products.

main application:
Remote telemetry
Wireless meter reading
Access Control System
Identification
data collection
Information appliances
Smart home
Baby care
Basic parameters:
Low cost, high performance, high reliability.
FSK modulation, half duplex communication, strong anti-interference ability.
433/470/868/915MHz ISM band, no need to apply for frequency points.
The maximum output power is 100mW (20dBm), and the output power can be adjusted within the range of 1-20dBm.
Receiver sensitivity -117dBm.
Emission operating current 100mA@20dBm, 40mA@14dBm.
Receive working current 25mA.
Low-power sleep mode current 1uA.
The operating frequency can be set to allow multiple modules to be frequency-division multiplexed without disturbing each other.
Modulation frequency offset and receive bandwidth are optional, users can configure via software.
Communication protocol conversion and RF transceiver switching are completed automatically. Users do not need to intervene and it is easy to use.
Communication rate 1.2kbps -115.2kbps, users can configure through software.
Provide ENABLE control signal, user control duty cycle to meet different needs.
RSSI function.
LED indication function.
The transmission distance is far, more than 1Km in open area without interference.
PCB volume 44.1*30X1.2MM.
Production free debugging.
Meets FCC, ETSI standards.
