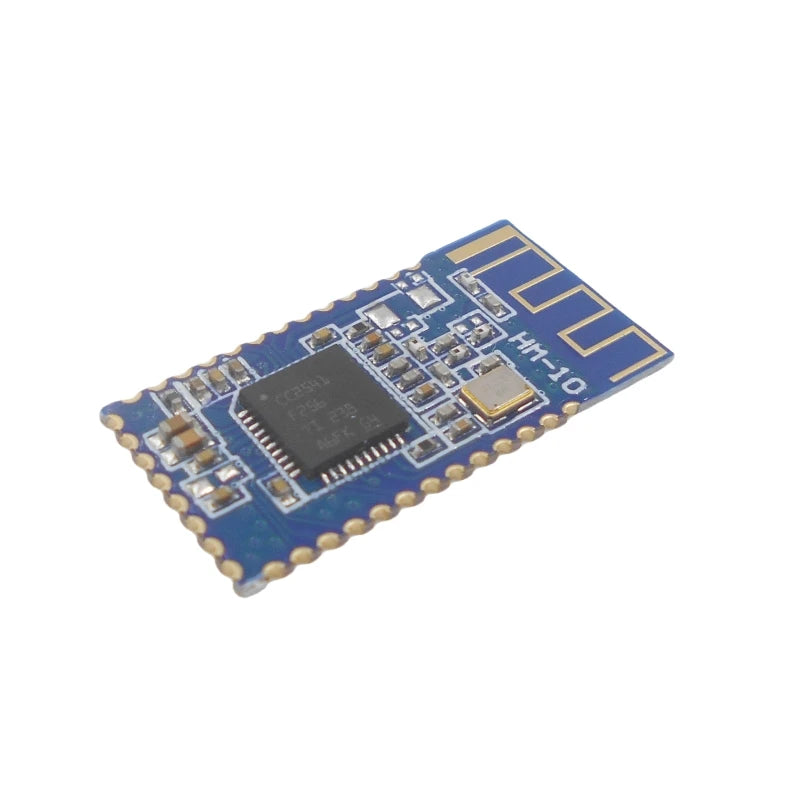

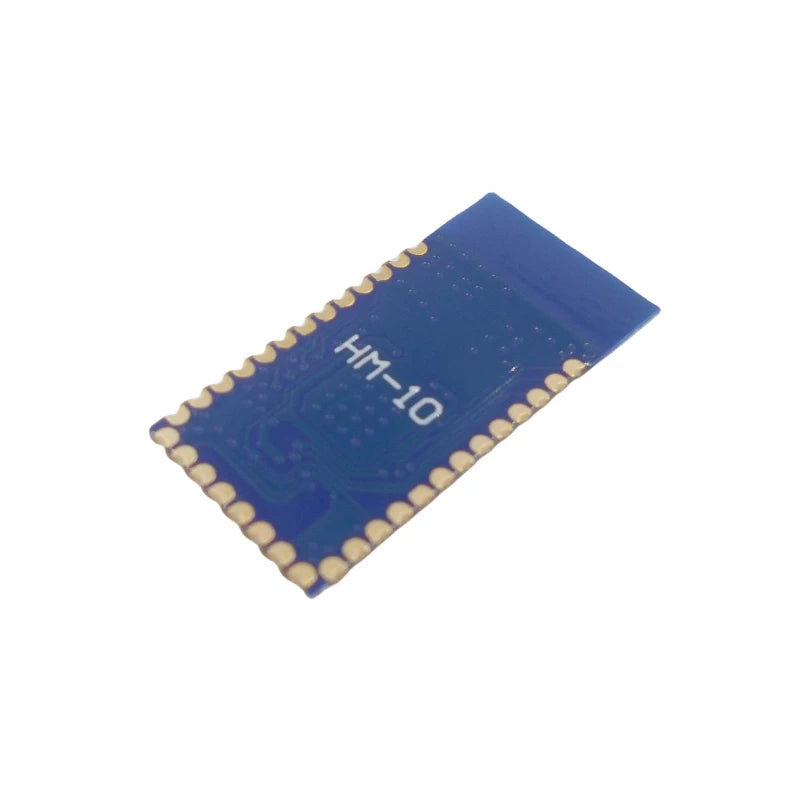

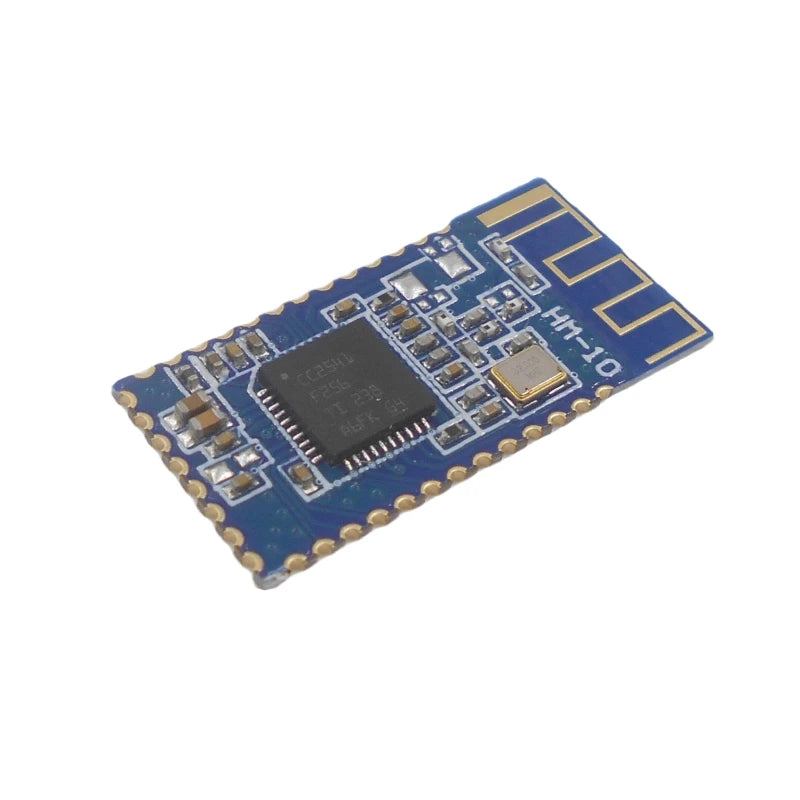

Custom HM-10 Bluetooth Module ble4.0 Serial Port Transmission Master Slave Integrated Shake iBeacon Test Recommendation Stable

Product parameters

Bluetooth Protocol: Bluetooth Specification V4.0

Android, Apple, PC, and MAC are all universal

Ideal environment can achieve ultra long connection distance of 100 feet/60 meters

Working frequency: 2.4GHz ISM band

Modulation method: GFsK (Gaussian Frequency Shift Keying)

Transmission power: -23dbz, -6dbz, odbz, 6dbz, can be modified through AT commands

Sensitivity:<-84dBm at 0.1% BER

Security features: Authentication and encryption

System Function: Master Slave Integrated Central&Peripheral

Service: 0xFFE0 (can be modified with AT+UUID)

Characteristic: 0xFFE1 (can be modified with AT+CHAR)

Characteristic: otify&Trite (can be modified using ATHRESP)

Power consumption: In automatic sleep mode, the standby power is 50uA~400uA, and the transmission is 8.5mA.

Power supply:+3.3TDC 50mA

Working temperature: -20~+95 Centigrade

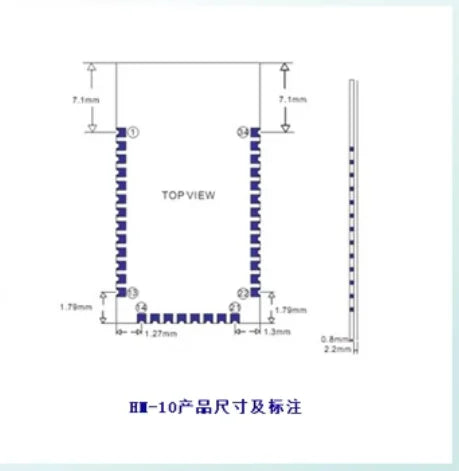

Appearance dimensions: HM-10 27mmx13mmx2.2mm;

2、 System functions

Module factory default configuration: default baud rate 9600, N, 8,1, slave mode, iBeacon off, no sleep, transparent mode equipped with the latest firmware V610, main functions are as follows

-Integrated master-slave system

-Supports iBeacon

-Supports firmware upgrades

-Support custom UUID from mode

-Supporting intelligent self-learning function in main mode

-(Can communicate with other manufacturers' 16bit BLE4.0 modules)

-Supports transparent transmission mode - supports remote control mode

-Support collection mode

-Supports eight channels of data acquisition and two channels of remote control in data acquisition mode

-Supports Apple ANCS, one line of IOS code does not need to be written, and the notification center of iPhone can also be transferred to the module

-Supports automatic/manual working modes in host mode

-Power adjustable

-Gain adjustable

-Write or write without Response is optional

-On chip built-in power monitoring and temperature sensor

-More than 100 AI instructions, only not used, not unexpected
