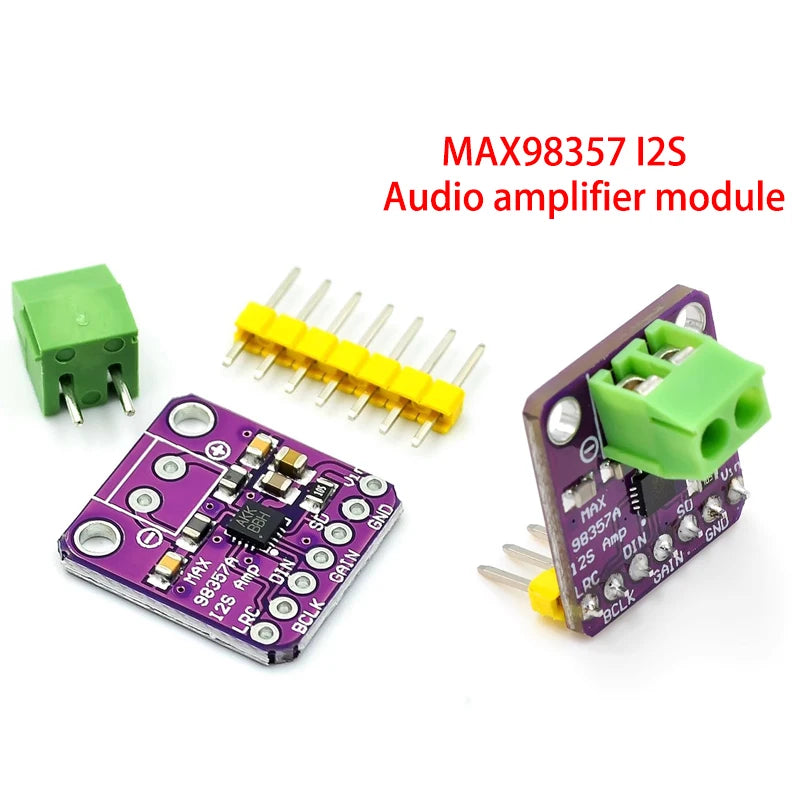

Custom High Quality MAX98357 MAX98357A I2S 3W Class D Amplifier Breakout Interface I2S DAC Decoder for Audio

$1.24 USD

~~$2.00 USD~~ $1.24 USD

Sale Sold out

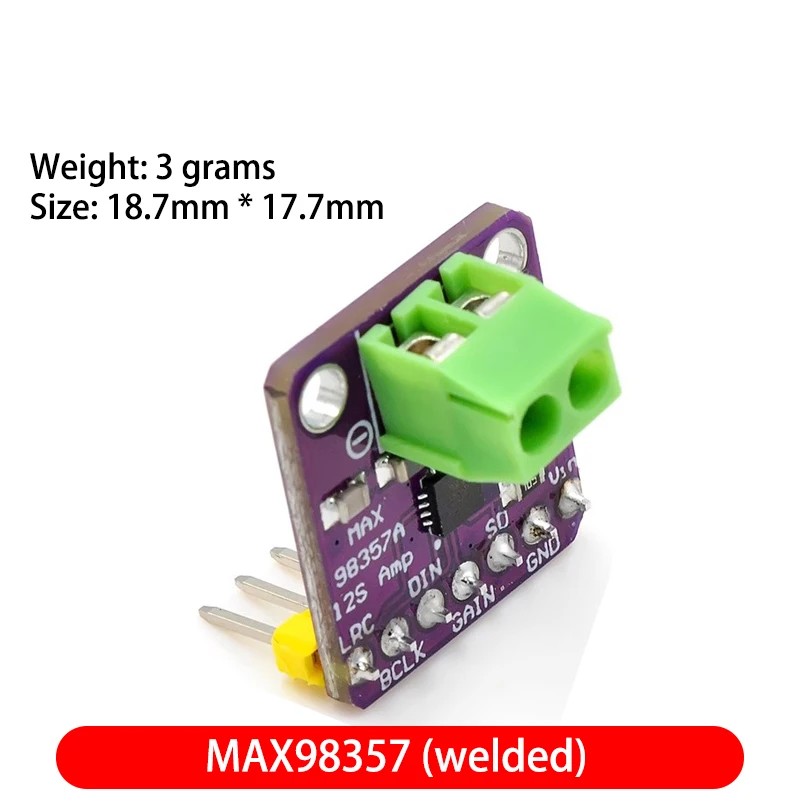

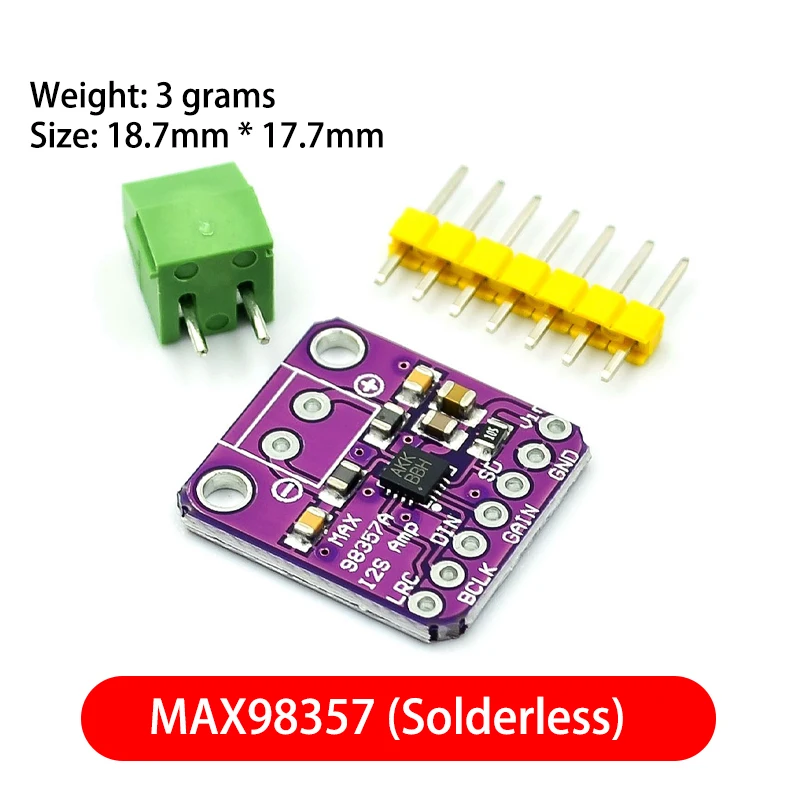

color 1PCS MAX98357 5PCS MAX98357 1PCS MAX983571 5PCS MAX983572

Quantity

Product introduction

Maxim announced the launch of the MAX98357 and MAX98358 digital input Class D audio power amplifiers to help designers achieve compact, efficient, plug-and-play solutions at a cost-effective cost. In addition to its small form factor, the device delivers Class AB amplifier sound quality of 3.2W with Class D amplifier efficiency for excellent high-fidelity sound, suitable for a variety of product applications.

The MAX98357 Pulse Code modulation (PCM) and MAX98358 Pulse Density modulation (PDM) plug-and-play speaker amplifiers take full advantage of the flexible Maxim pin arrangement. Compared with the typical analog amplifier scheme, the number of components is greatly reduced and the scheme size is greatly reduced. Since most users control volume digitally up, these features enable users to take full advantage of Maxim's cost-effective wafer-level package (WLP) without the need for expensive PCB VIA. To achieve excellent sound quality, the device uses digital inputs with high noise resistance and has a high jitter tolerance (at least 8dB better than competing solutions). The device also provides excellent electromagnetic interference (EMI) suppression

The system allows the use of long lines to connect speakers without the need to add external filtering. In addition, the device offers the industry's highest Class D efficiency.

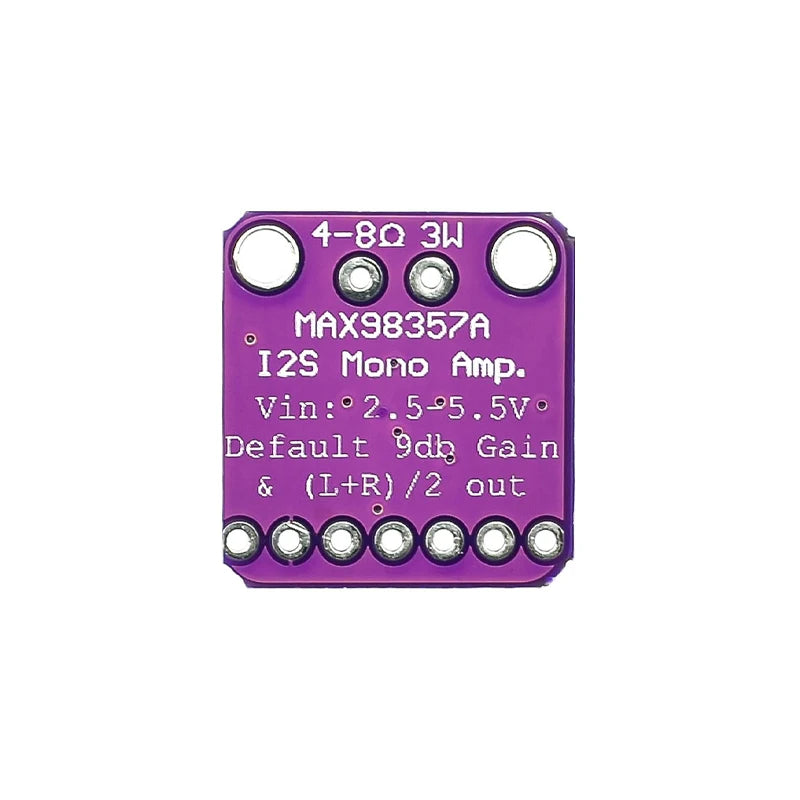

Product characteristics

● Output power: 3.2W at 49, THD is 10%

At 8Q, it is 1.8W and THD is 10%

●I2S sampling rate: 8Khz~ 96Khz

● Class D amplifier gain optional: 3dB/6dB/9dB/12dB/15dB, no master clock (MCLK) required

Plug and play: With a single power supply, 35 different clocks and 128 digital audio formats can be automatically configured

● Suitable for Raspberry Pi, Arduino, ESP32 and other tools, with 12S audio output of the microcontroller or development board system

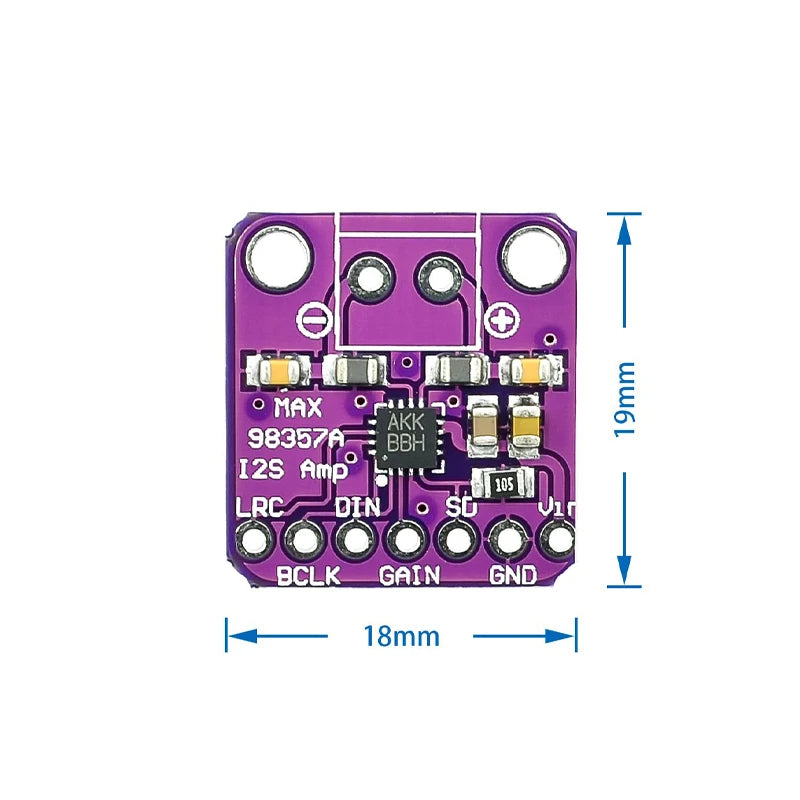

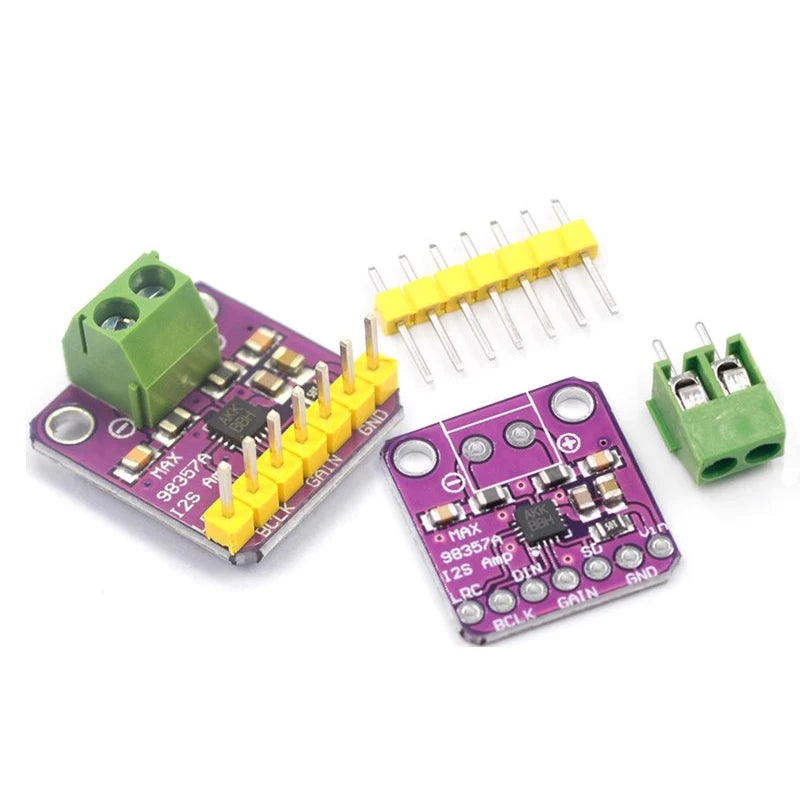

Pin specification

LRC: I2S and LJ mode left/right clock synchronization clocks are used in TDM mode

BCLK: bit clock input

DIN: digital input signal

GAIN: indicates the gain and channel selection. In TDM mode, the gain is fixed at 12DB

SD: Off and channel selection, SD_ MODE pulls down to put the device in the off state

GND: Power source

VCC: positive power supply, DC 2.5V-5.5V
