Description:

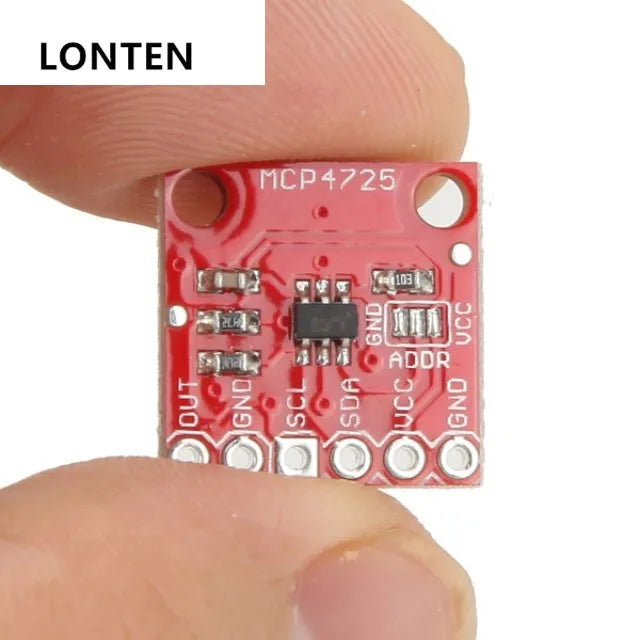

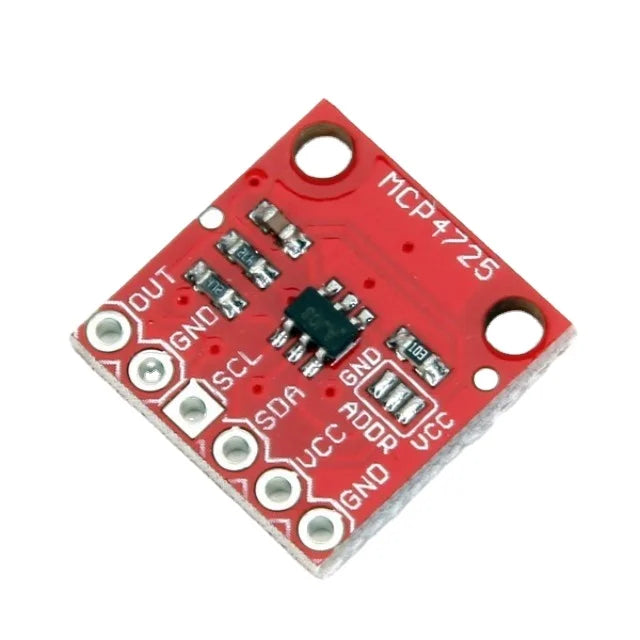

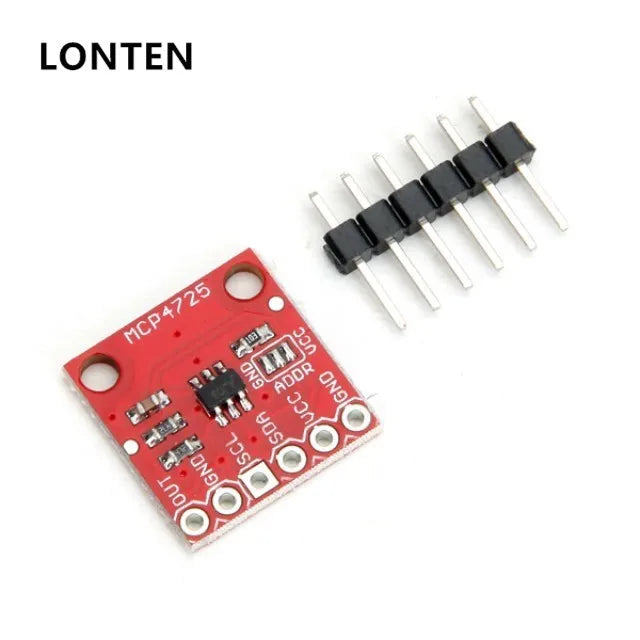

Youve always wanted to output analog voltages from a microcontroller, the MCP4725 is the DAC that will let you do it! The
CJMCU-MCP4725 is an I2C controlled Digital-to-Analog converter (DAC). A DAC allows you to send analog signal, such as a sine wave,
from a digital source, such as the I2C interface on the microcontroller. Digital to analog converters are great for sound
generation, musical instruments, and many other creative projects!

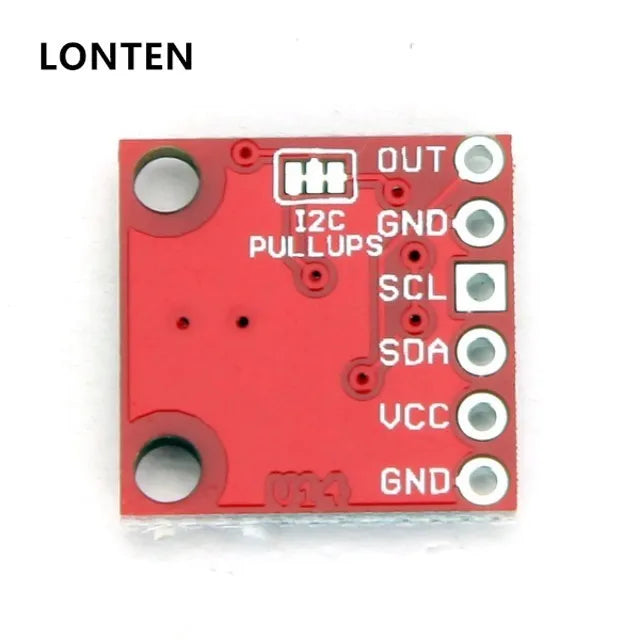

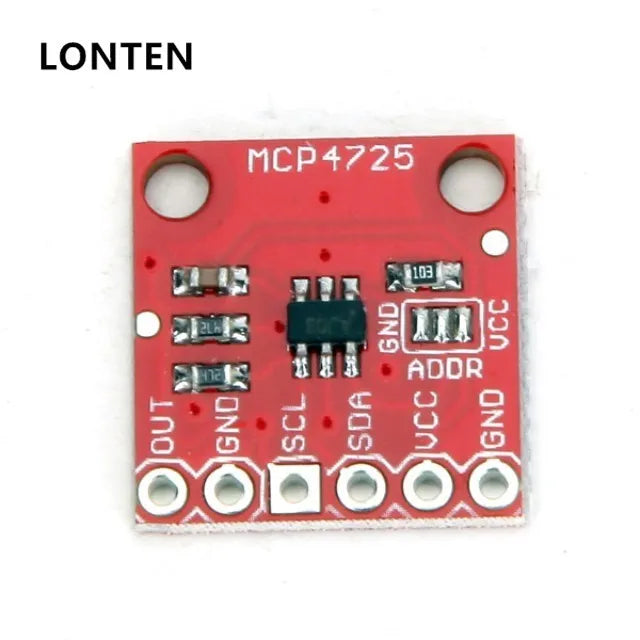

This version of the CJMCU-MCP4725 Breakout fixes a few issues with the board including the IC footprint, the I2C pinout, changes
the overall board dimensions to better fit your projects, and a few more minor tweaks. This board breaks out each pin you will
need to access and use the MCP4725 including GND and Signal OUT pins for connecting to an oscilloscope or any other device you
need to hook up to the board. Also on board are SCL, SDA, VCC, and another GND for your basic I2C pinout. Additionally, if you are
looking to have more than one MCP4725 on a bus, the pull-up resistors on this board can be disabled just check the Hookup Guide in
the Documents section below for instructions and tips on doing this.

Feature:

12-bit resolution
I2C Interface (Standard, Fast, and High-Speed supported)
Small package
2.7V to 5.5V supply
Internal EEPROM to store settings
