Custom HelperA64 development board With 500W camera RAM 2GB 1080P60Hz decoding Manufacturer

Name: Custom HelperA64 development board With 500W camera RAM 2GB 1080P60Hz decoding Manufacturer
Brand: Lonten Tech
Price: 100.00 USD
Availability: InStock

$100.00 USD

~~$0.00 USD~~ $100.00 USD

Sale Sold out

Quantity

The use of this product requires a certain LINUX foundation, not suitable for beginners!

About open information:

1. Software: software source code based on the development board, including Android SDK, LINUX kernel, UBOOT

2. Hardware: except the core board only provides the PDF version of the schematic diagram, the rest are provided with original design documents

V2 compared to V1:

1. Convert WIFI from USB version of RTL8188 to SDIO version of RTL8723BS, supporting BT (BT baud rate is only 115200, audio is not supported)

2. Add charging instructions

3. Add LVDS interface and MIPI interface

4. Add 4G module socket (optional support 4G module)

Introduction

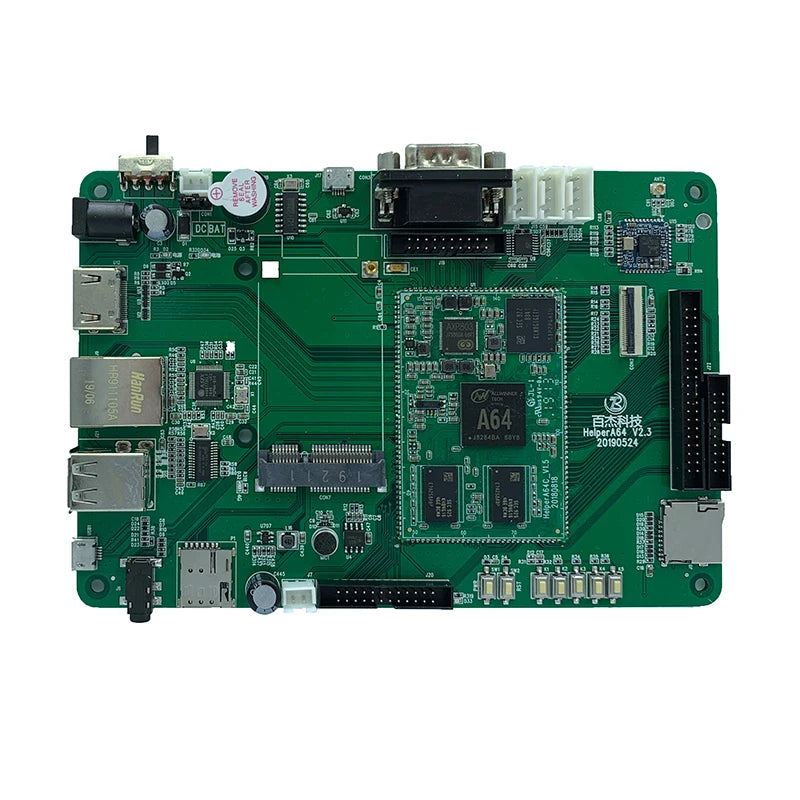

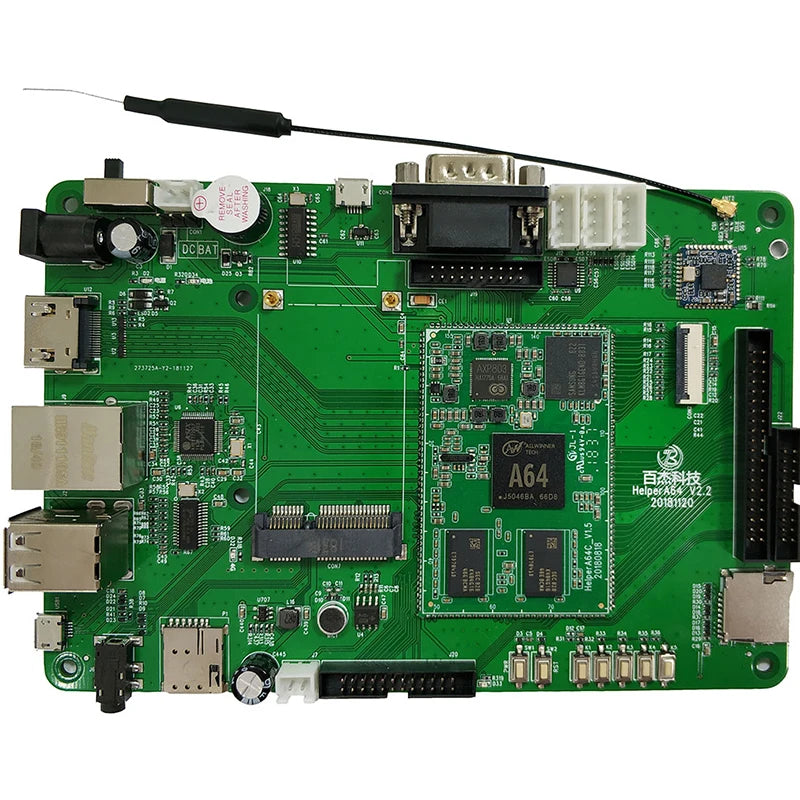

HelperA64 development board is the second development board of Baijie Technology’s Helper series. It inherits all the excellent features of Helper2416. It is simple, beautiful, stable, and efficient. At the same time, the performance has been improved by more than 10 times, which is suitable for higher-end application requirements.

HelperA64 development board is a low-cost and high-performance 64-bit reference board for 4-core Cortex-A53, which is independently developed, produced and sold by our company. It adopts Allwinner's latest 64-bit processing A64, on-board rich resources and interfaces, and complete drivers and application software. It is an ideal choice for enterprise early product evaluation.

1.1 System characteristics

u CPU: 64-bit 4-core A53, the highest frequency: 1.1GHz

u Memory: 2GB

u Storage: 8G EMMC (MLC is not TLC)

u Decoding: 1080P@60Hz decoding

u Display: Support HDMI output 4K@30Hz, 1080P@60Hz, LVDS 1366x768@60Hz, MIPI 1920x1080@60Hz, RGB 1920x1080@60Hz

u 2 high-speed USB HOST, 1 high-speed USB OTG

u 4 TTL serial ports (can be used as ordinary IO ports)

u One 40-pin RGB TTL LCD interface, which can support various RGB interface LCD screens, up to 1920x1200@60Hz

u 1 way TF card interface, 1 way leads to SDIO interface

u 1 CSI camera interface, can do time-sharing front and rear dual cameras, complete power supply, up to 5M pixels (camera needs to be equipped separately)

u 1 headphone output

u 1 LINEOUT output

u 1 MIC interface

u 1 PWM, can be connected to backlight control

u 1 buzzer

u 5 normal buttons

u Built-in USB to serial port, directly plug in USB to see serial port debugging information

u 1 way 10/100BASE Ethernet interface

u 1 2.4G WIFI interface (Note: Since there is no special antenna debugging equipment, the quality of the antenna on the development board will be poor, just for reference)

u Extended 24-pin IO interface, including 14 3.3V ordinary IO ports, 1 I2C, 4 1.8V ordinary IO ports, two 3.3V power supplies and two grounds

u Power supply: DC 5V, battery 3.7V

u One speaker output interface, support external 4 ohm 2W output

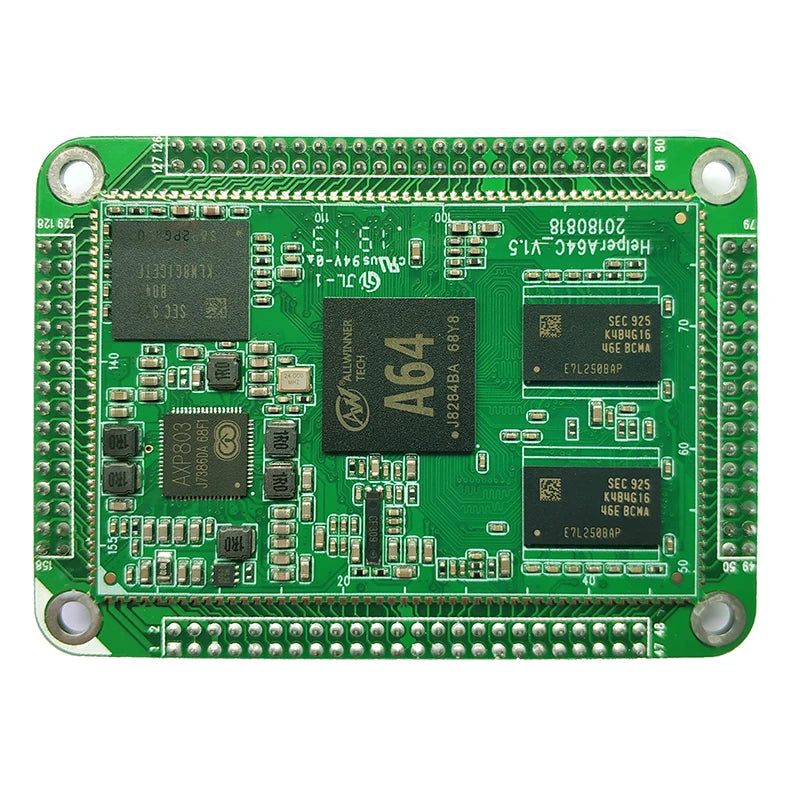

u Core board size 60x40x3(mm)

Software system

1. Android 6.0

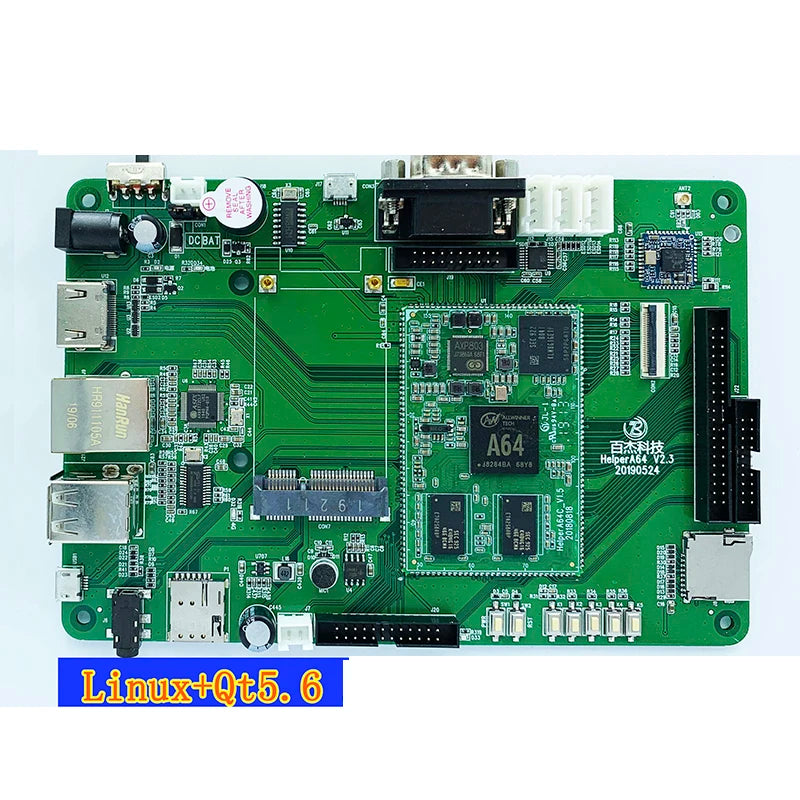

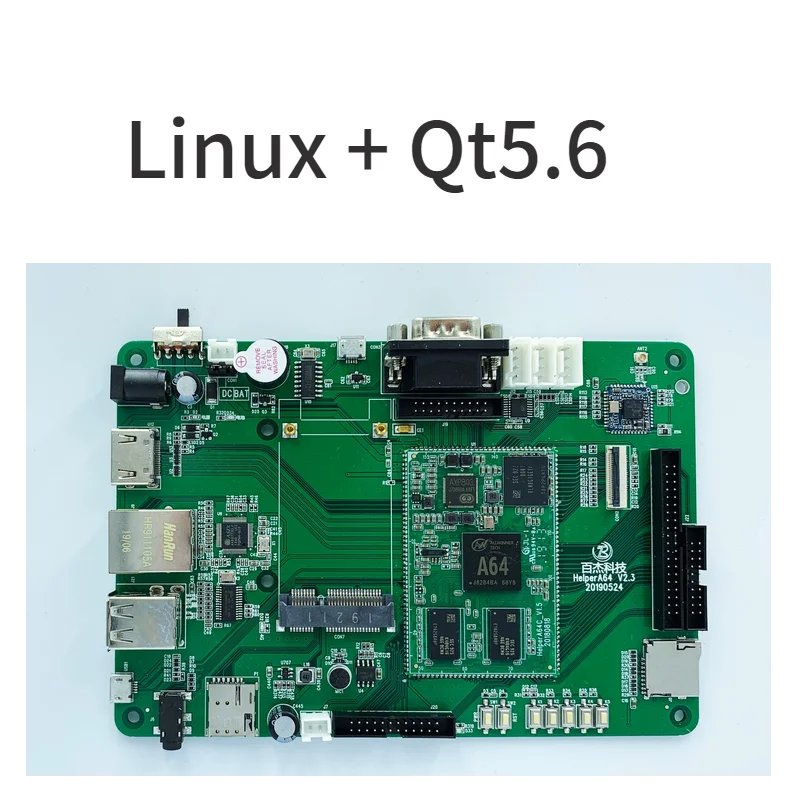

2. LINUX+QT5.6

3. UBUNTU MATE

4. UBUNTU 18.04(xfce)

5. UBUNTU 18.04(core)

Package:

1PCS
