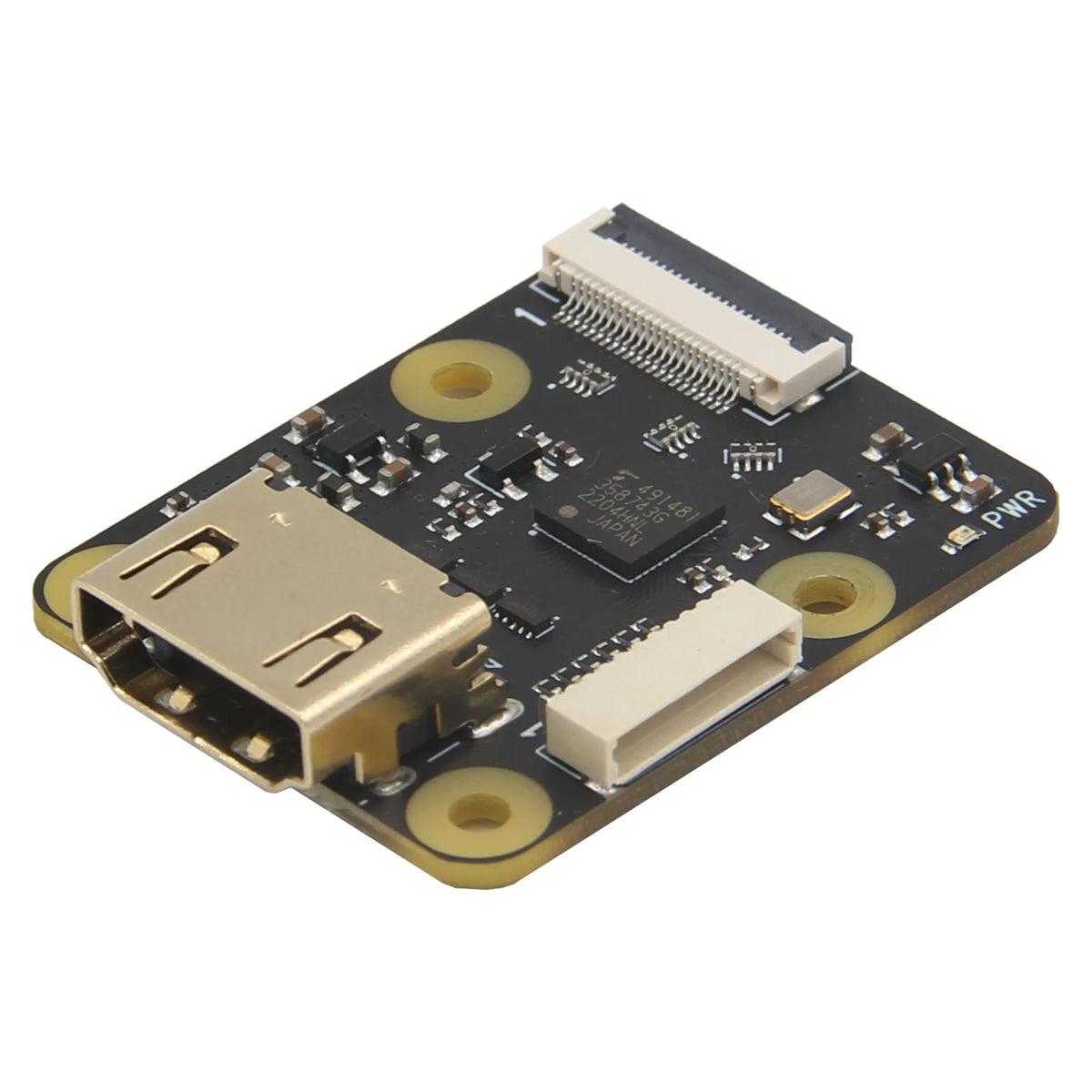

[Overview]

• The X1300 HD to CSI-2 bridge with I2S audio interface has been specifically designed for the Raspberry Pi 5. It features the Toshiba TC358743XBG bridge chip, supporting HDinput up to 1080P at a refresh rate of 60 fps.

Note: To capture HD audio via I2S, additional wiring or the X1300-A2 accessory board is necessary.



[Features]

• Compatible With : Raspberry Pi 5B

• Capable of handling video formats up to 2K Full HD (1920x1080, 60fps).

• Equipped with the HDMto CSI-2 bridge chip: Toshiba TC358743XBG

• Supports MIPI CSI-2 with 4 data lanes, each with speeds of up to 1 Gbps per lane

• Enables HDaudio input and transmission over I²S - (Note: To capture HDaudio via I2S, additional wiring or the X1300-A2 accessory board is necessary.)

• Prevents HD backpowering to the Raspberry Pi CSI

• Features a CSI-2 connector: 22-pin FPC with 0.5mm pitch

• Boasts an ultra-compact design: 30 x 37.5 mm (PCB size)

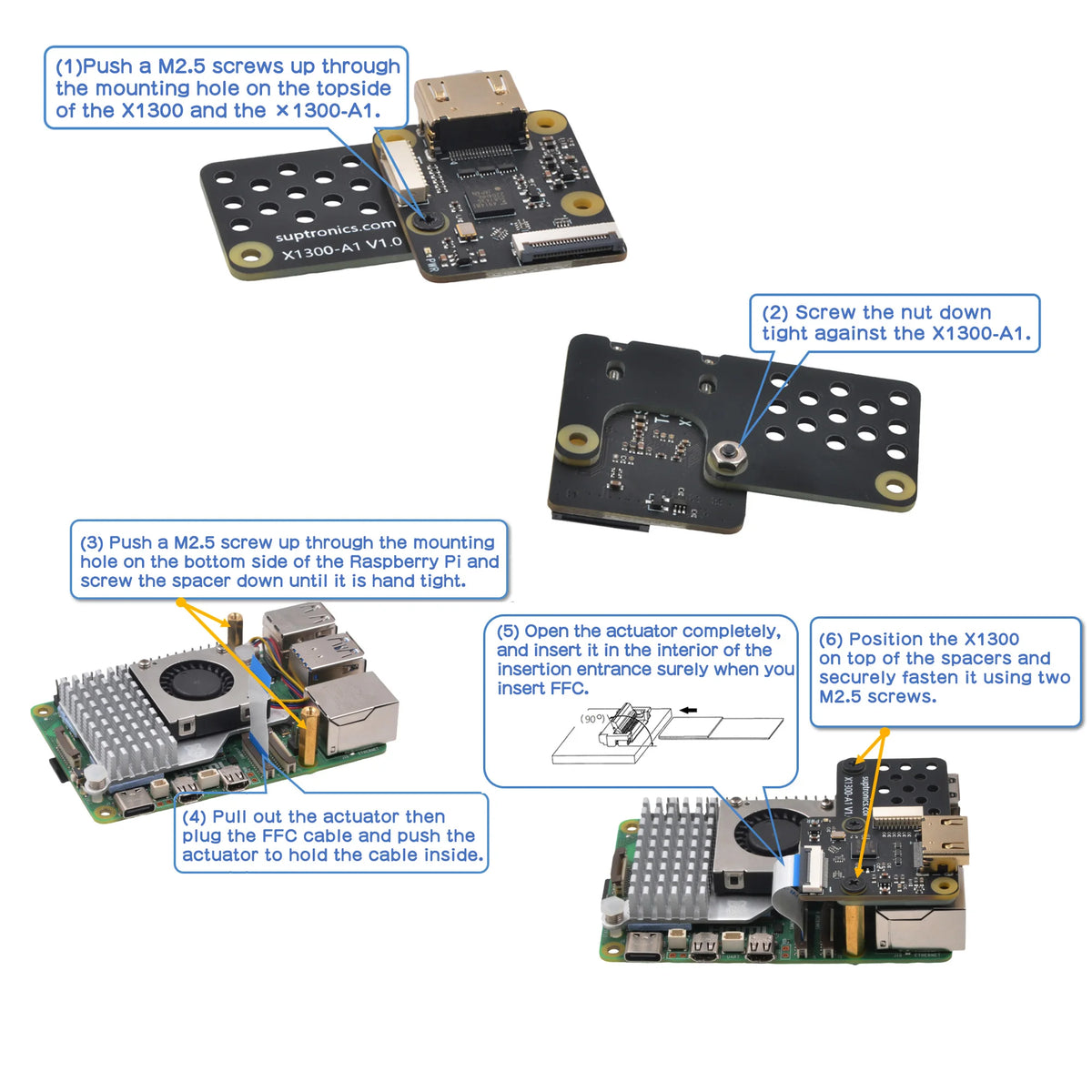

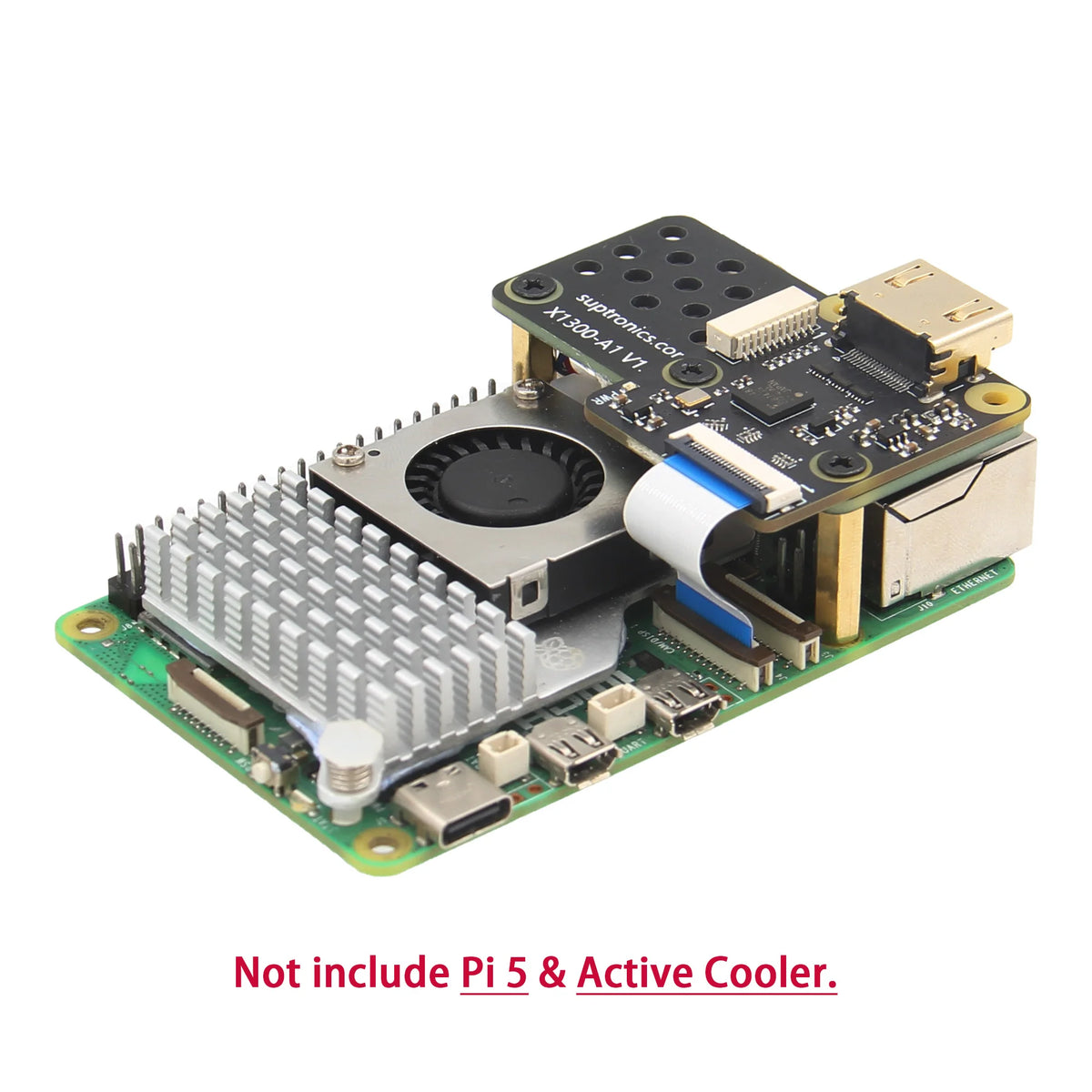

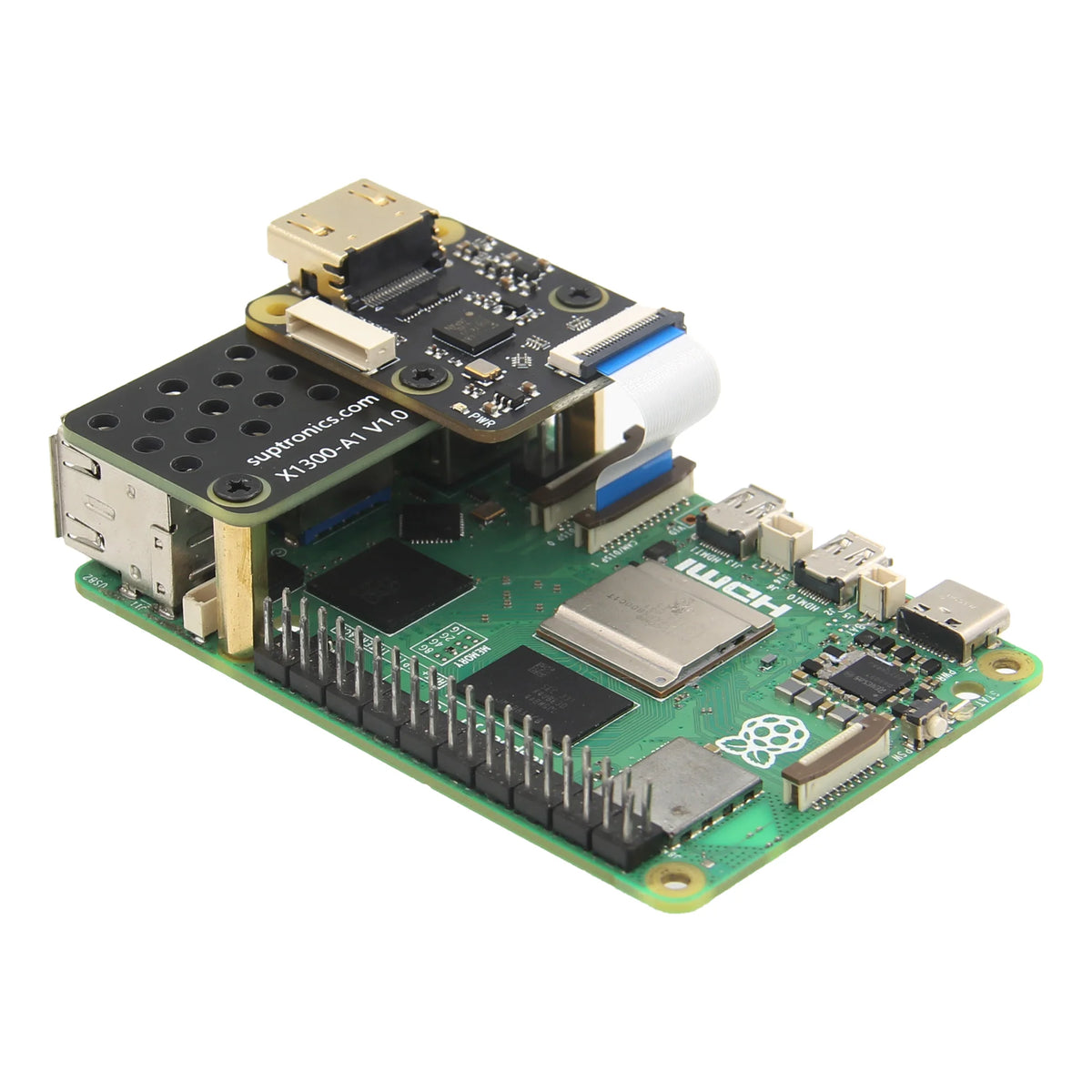

• Easily mountable on the Raspberry Pi 5, allowing you to customize your perfect case

[Applications]

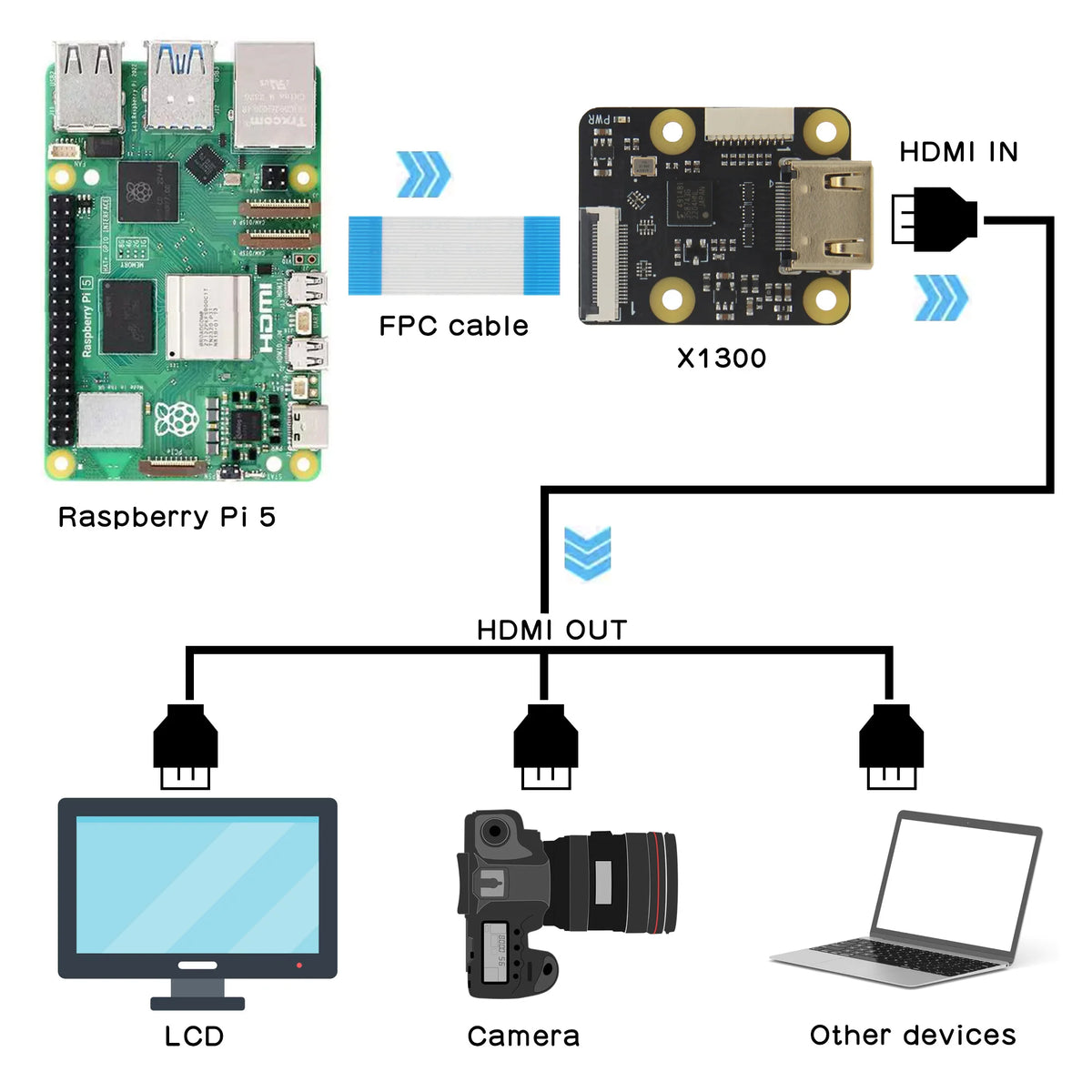

Here are some applications of HD to CSI (Camera Serial Interface) conversion:



1. Digital Media Adapters: HD to CSI adapters allow HD cameras to be used just like standard Raspberry Pi CSI cameras. This is useful for digital media adapters that need to process HD input.



2. Smart Monitors: Smart monitors can benefit from HD to CSI conversion, enabling them to accept HD video streams and integrate them into their display systems.



3. Set-Top Boxes (STBs): STBs often require video input from various sources. HDto CSI conversion allows STBs to handle HD signals efficiently.



4. Smart TVs: Some smart TVs may need to process HDinput for features like picture-in-picture or video conferencing. HD to CSI bridges facilitate this integration.



5. Entertainment Screens: Whether it's for gaming consoles, streaming devices, or other entertainment systems, HDto CSI conversion ensures compatibility with HDsources.



6. KVM over IP: IP-KVM (Keyboard, Video, Mouse over IP) solutions using a Raspberry Pi, This bridge allows you to capture full HD video with low latency and supports H.264 video encoding of your desktop.



Remember that HDto CSI adapters are particularly useful when interfacing HD cameras with Raspberry Pi boards. They provide a seamless way to incorporate HD video streams into various applications.





[Technical Specification]

Power supply        3.3Vdc via FFC

Ports & Connectors HD video input connector x1 - Type-A 19-pin

                                        MIPI connector x1 - 22pin 0.5mm pitch



                                       10-pin functional connector x1 - 10-pin 1.0pitch



MIPI cable length       30mm

PCB Size                       37.5mm x 30mm

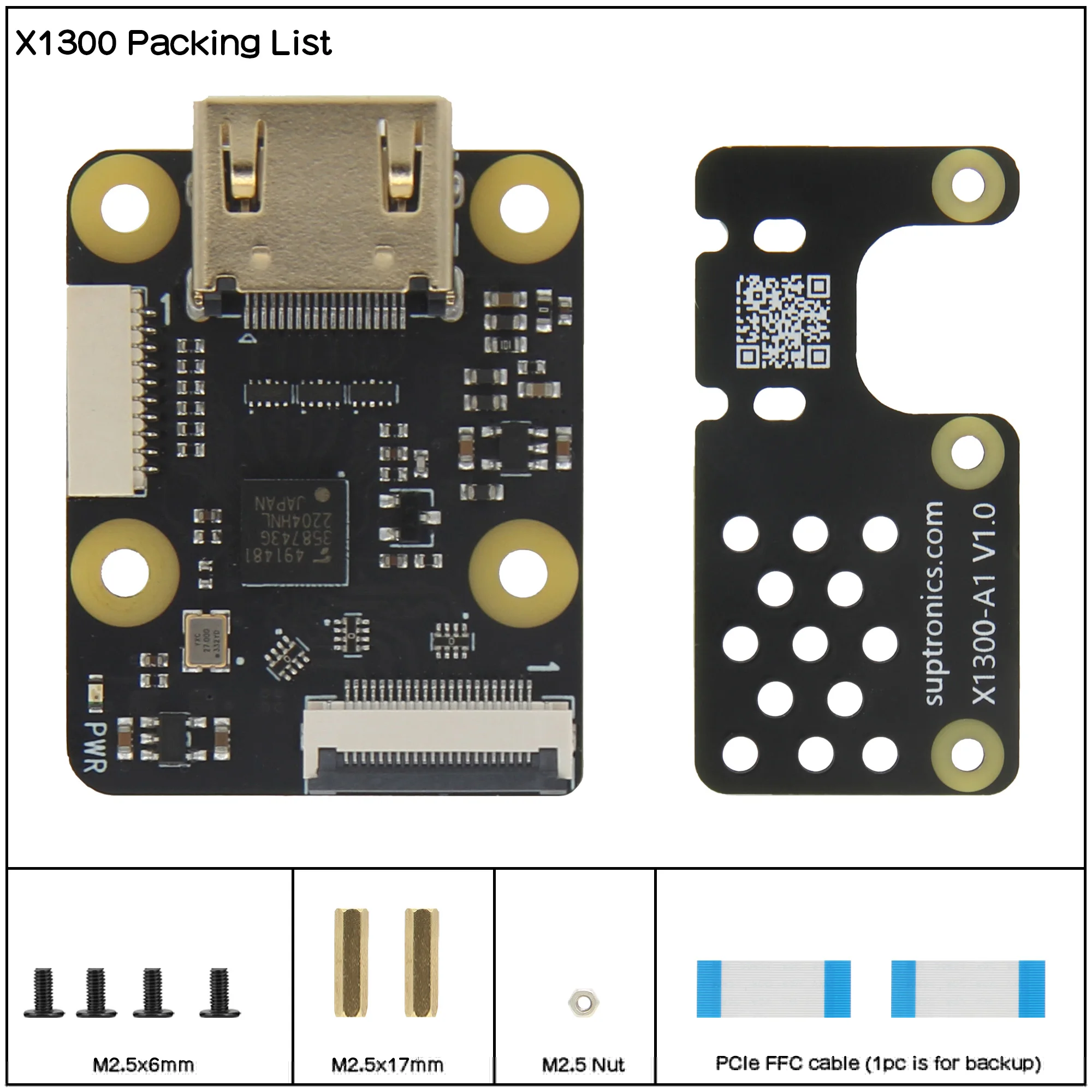

[Packing List]

Bundle 1

1x X1300 V1.0 HDto CSI-2 module

2x 22-pin MIPI FFC 30mm

1x Screw pack

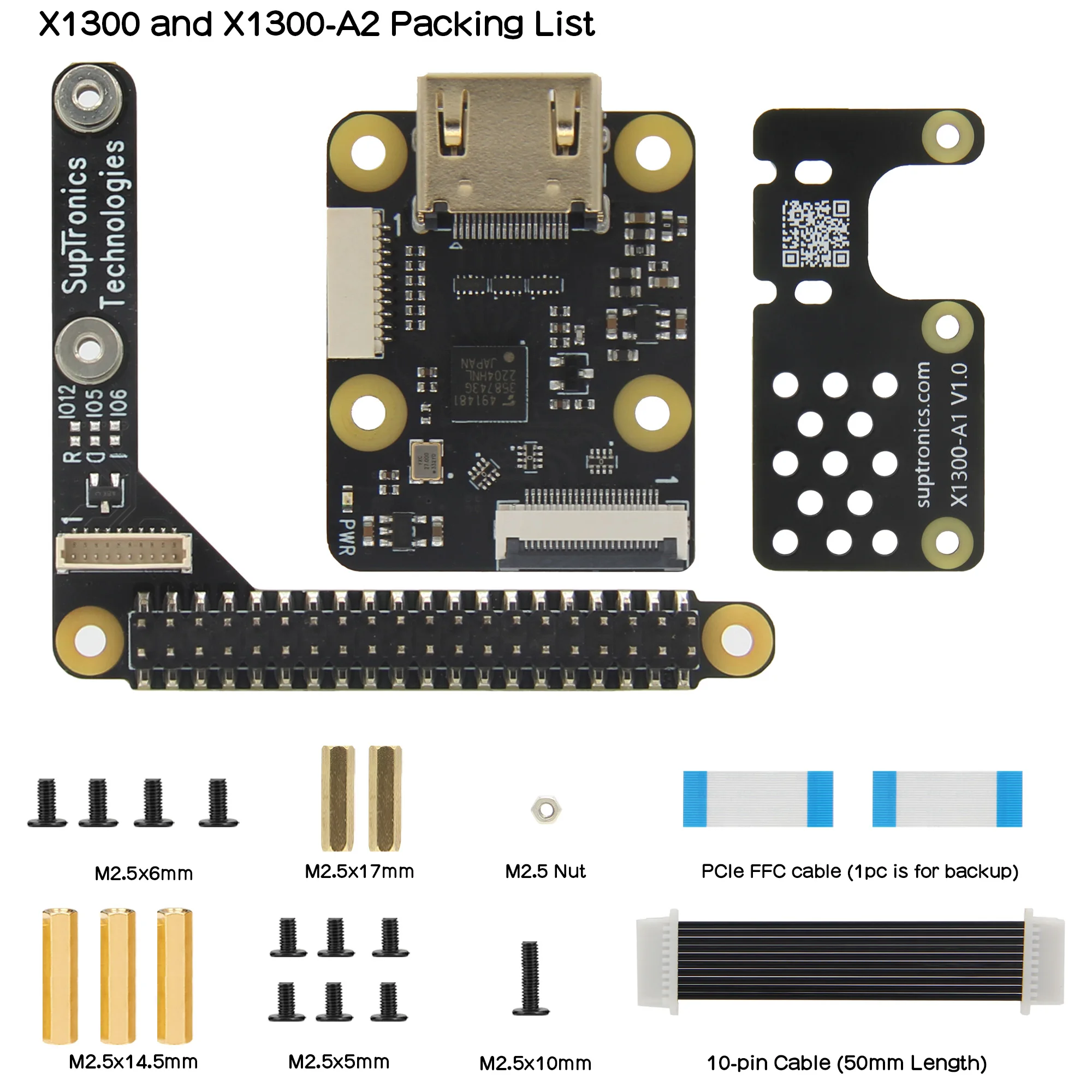

Bundle 2

• 1x X1300 V1.0 HD to CSI-2 module

• 2x 22-pin MIPI FFC 30mm

• 1x Screw pack



• 1x X1300-A2 V1.0 accessory board

• 1 x 10-pin I2S cable

• 3 x M2.5* 14.5 F/F Spacers

• 6 x M2.5* 5 Screws

• 1 x M2.5* 10 Screw

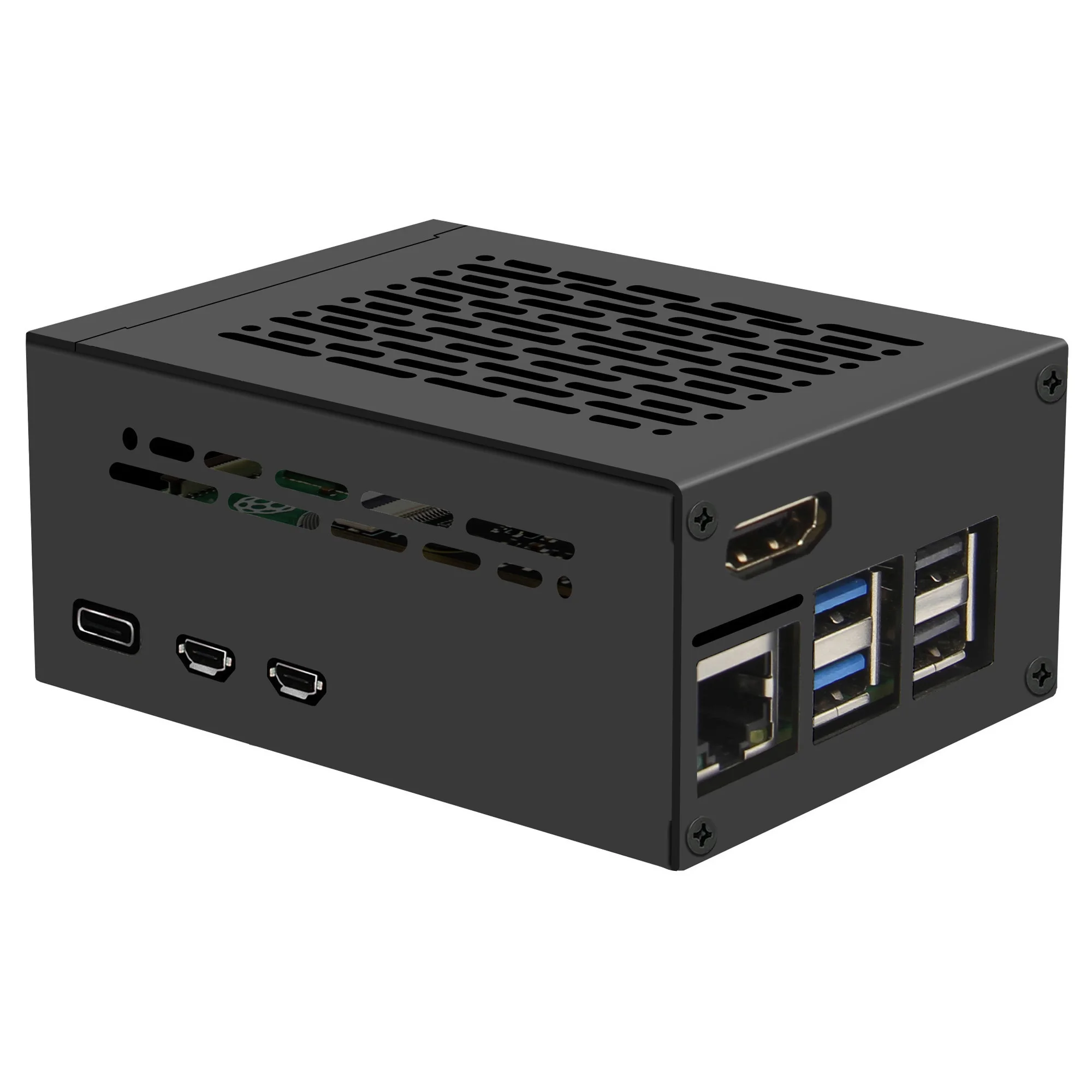

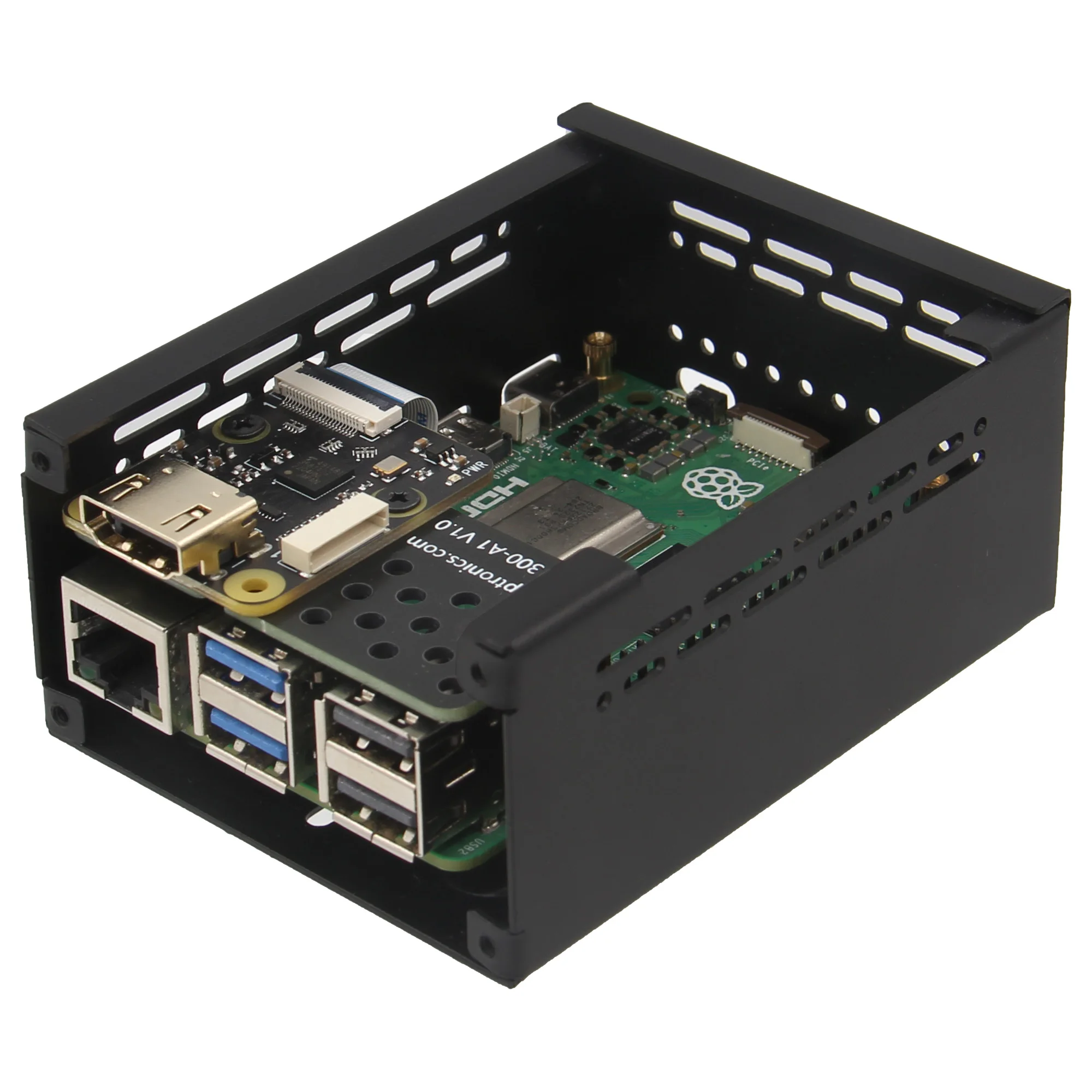

[Metal Case X1300-C1]
