HD+DVI+VGA+AUDIO LCD Controller Board kit For 20"  LM200WD3 TLC7 1600*900  LCD controller board DIY kits

This is a great set of easy-reassembling LCD controller kit which is used to turn a bare LCD panel 20"  LM200WD3 TLC7 1600*900 into a desktop/PC monitor. It will be a surprise that your bare LCD will be of good use, and no longer be a waste. Or it is a very insteresting things that we make a monitor successfully by ourselves.  Giving your lcd a new life with your fantastic idea.

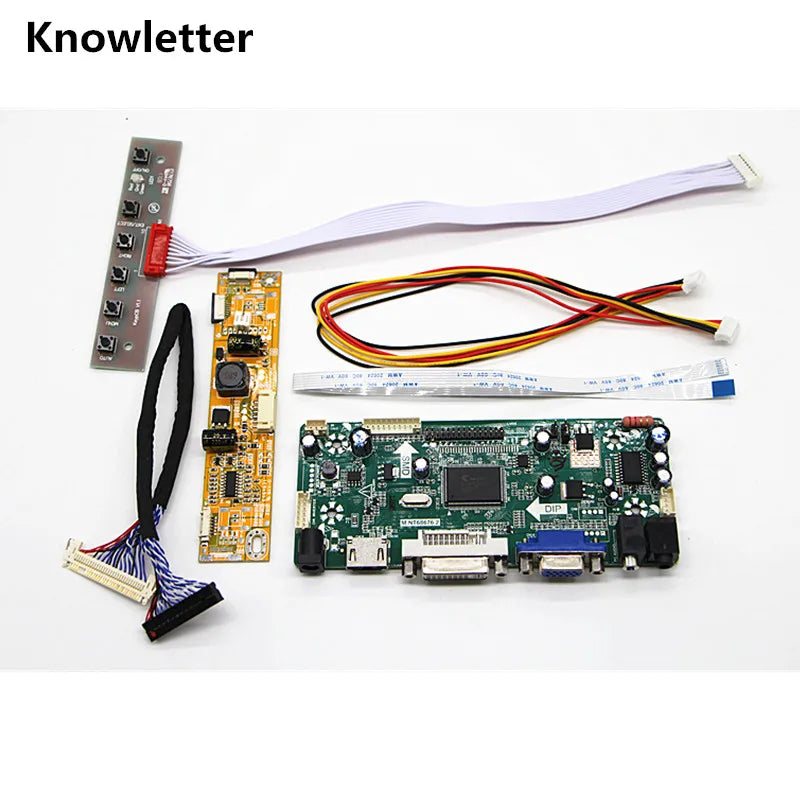

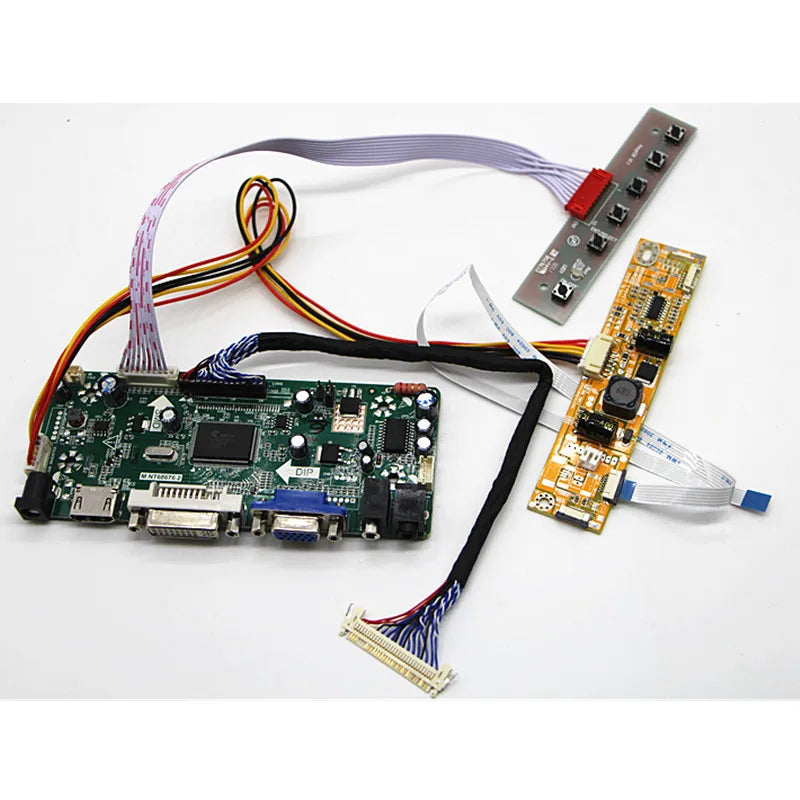

 Necessary Accessories for turning a LCD to desktop monitor: LCD Controller board, Inverter, LVDS cable, Keypad, VGA cable, Power Adapter. If you have already had a VGA cable and a power adapter (12V,4A),

Necessary for a desktop display LCD light fittings:

1. LCD controller board

2. inverter

3. An LVDS cable

4. 5 key keyboard and cable

5. VGA cable/DVI cables/HDMI cable (not included)

6. The power adapter. (not included)

M.N T68676.2 A monitoring board, can support the LED/LCD panel. It can support 2048 x1152 resolution.

M.N T68676.2 A can be automatically synchronized with the computer. The horizontal and vertical synchronization need to sync sync separation.

M.N T68676.2 A can support dynamic contrast control, at the same time headset input and digital volume control.

The controller board size: 139 mmx58mmx17mm

This tool: the important steps to deal with your order

Step 1: please provide your LCD panel model no. By sending us a message before bidding for this project, so we can suggest the right tools for your LCD. (usually, model no. You can find a sticker on the back of the LCD panel. If necessary, remove the plastic shell, you'll find tags). If possible, please give us more specification of LCD. And then wait for our reply.

Step 2: we will reply you as soon as possible in carefully selected by our technical support and testing equipment, and then you can order and pay it.

Step 3: waiting for the parcel.

We will write the corresponding program to to match your LCD LCD controller board, so the kit will match a very specific LCD panels or other the same specification. However, the programmer can in different liquid crystal display, that is to say, change the board of directors of the LCD controller firmware. Please note that different an LVDS cable and inverter need to match different LCD display.

Note:

1. Please make sure your LCD can bid before the project, you will be responsible for the incompatibility.

2. If you worry a lot about the resolution Settings, please consider before bidding!

3. We will do our best to prepare the right equipment, for example, write the corresponding program controller, select the appropriate an LVDS cable and suitable inverter. But we have no LCD completely according to you, we can use our own test of LCD controller. For you, you need to test it yourself check whether work well. As you know, there are a lot of LCD market, there are many varieties, sometimes we can't guarantee accurate compatibility. Please consider before bidding! However, we have a lot of success in the real store equipment for customers. So why don't you try to surprise!

4. If you are not specialized in operating electronic or have any questions, please contact our instruction, we cannot be responsible for wrong operation.

5. Connection is complete, please do not be eager to power! First, use the grounding of the multimeter to test the LCD controller is grounded. If not, please contact us again. If yes, please test whether there is a short circuit between the red line and black line an LVDS cable. If there is a short circuit, which means the opposite connection or other errors. Any questions, please feel free to contact us. DIY needs certain professional knowledge, please take the responsibility of the risk. Metal contact is not allowed on the controller driver board, or short circuit can occur, which may lead to controller is not available.
