Custom HD+Audio 40pin LCD Driver Controller Board Kit for LCD Panel EJ101IA-01G 1280*800 Raspberry Pi android Micro USB 5V Manufacturer
Custom HD+Audio 40pin LCD Driver Controller Board Kit for LCD Panel EJ101IA-01G 1280*800 Raspberry Pi android Micro USB 5V Manufacturer
Product description:

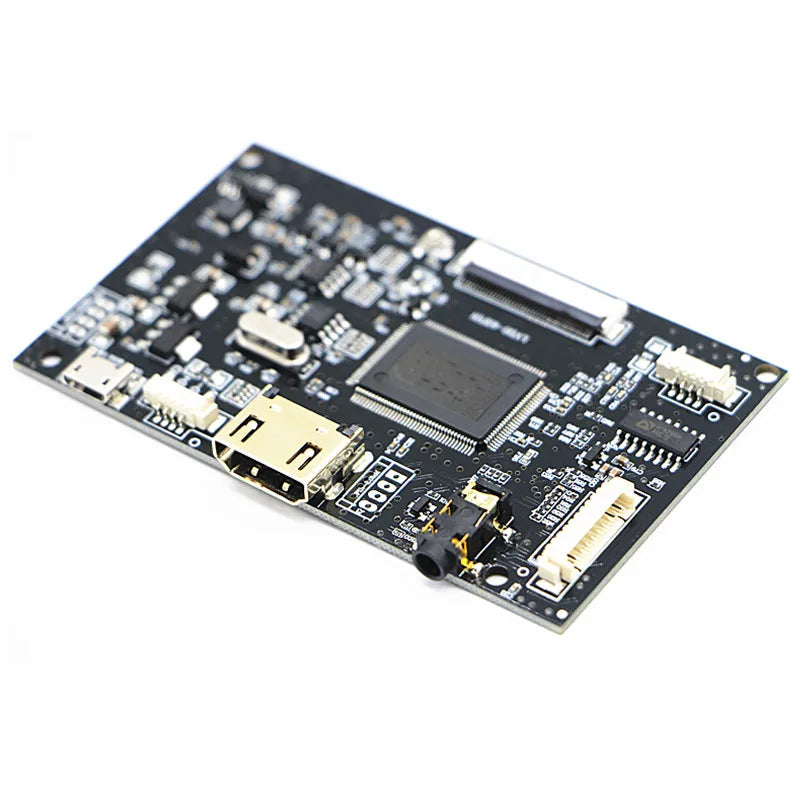

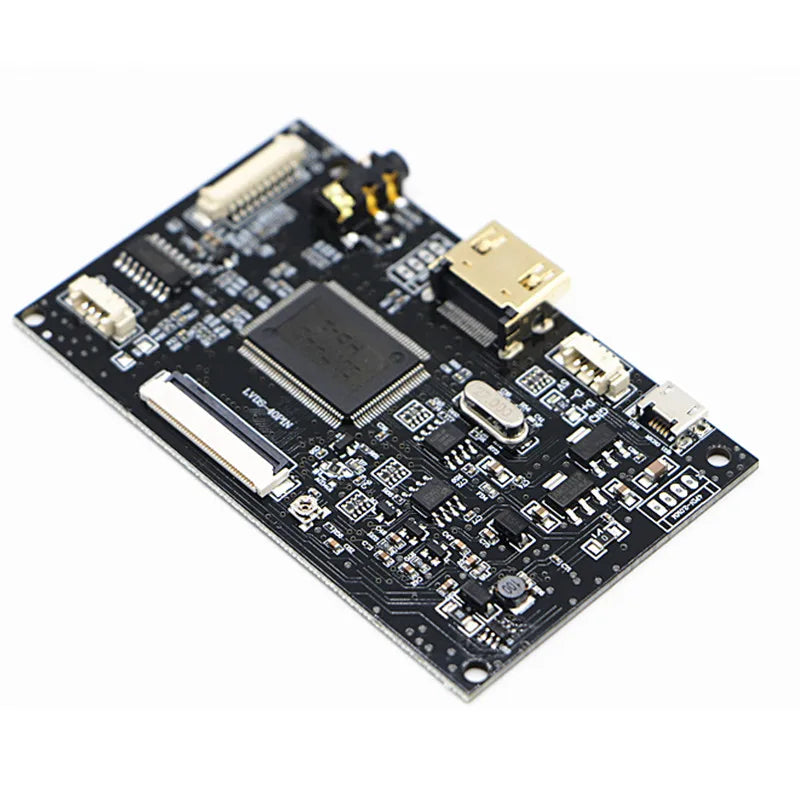

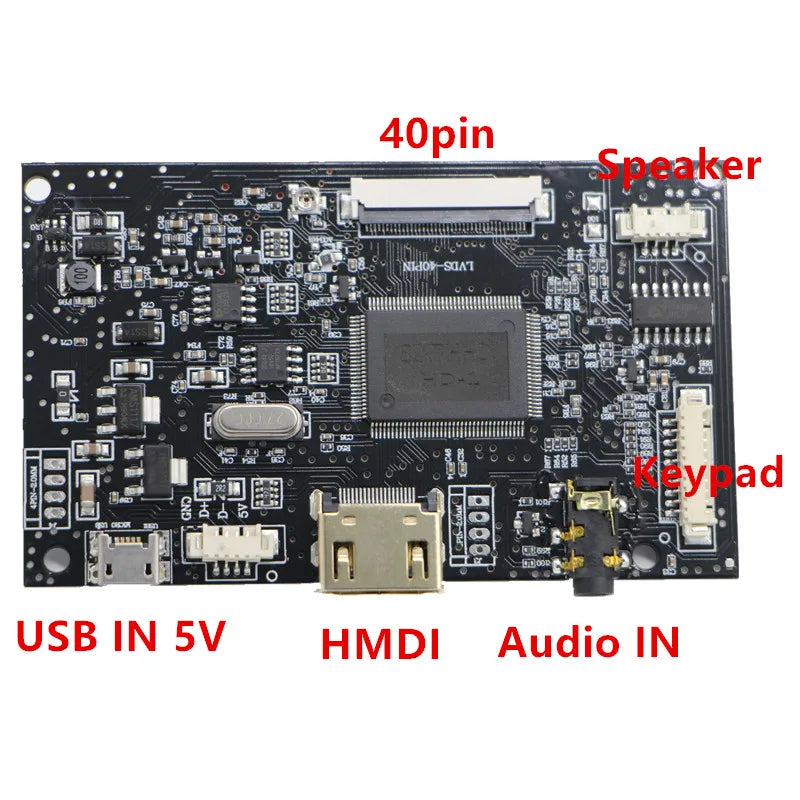

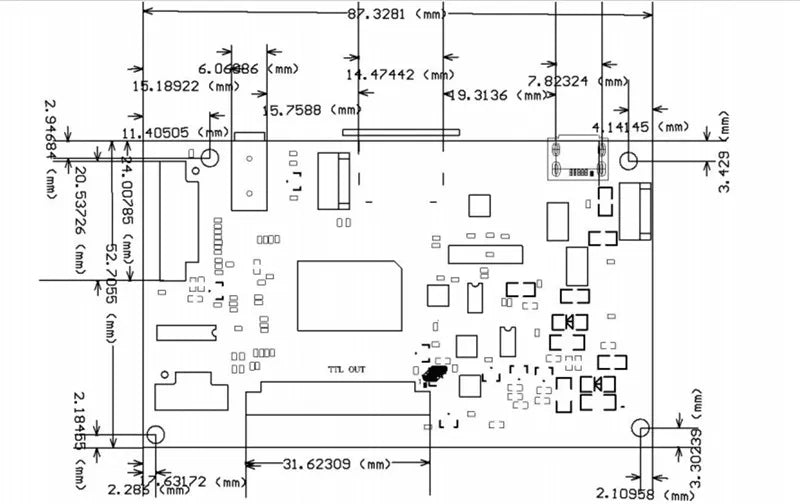

The external dimensions of the product are 87.5*52.8MM*7MM This drive board can 1. MIRCO USB power interface, 5V standard power supply, need to be greater than 2a 2. All plug-in sockets shall be 1.25mm with patch sockets 3,1 channel HDMI signal input, and this IC support is HDMI1.2 4, HDMI for high-quality gold-plated mount 5. The screen interface is defined by high-quality gold-plated connector - 40pin-EJ101IA-01G 6. Power amplifier output is supported, 8-2w / 4-2w 7. Special circuit design is adopted for the driver board, which can drive about 10V LED backlight and support 200MA current output at most. 8, support, ttl-40p standard interface (see ej070na-13a,), 9, standard 5 key press key board interface, and support two-color LED light display
prompt
1.Please pay attention to the negative and positive pole. 2. when you connect power please don't hot plug, which may break the main IC 3.don't touch the driver board, and keep it insulation, don' let metal touch it. 4.please take care of the flat cable.
contenido del paquete

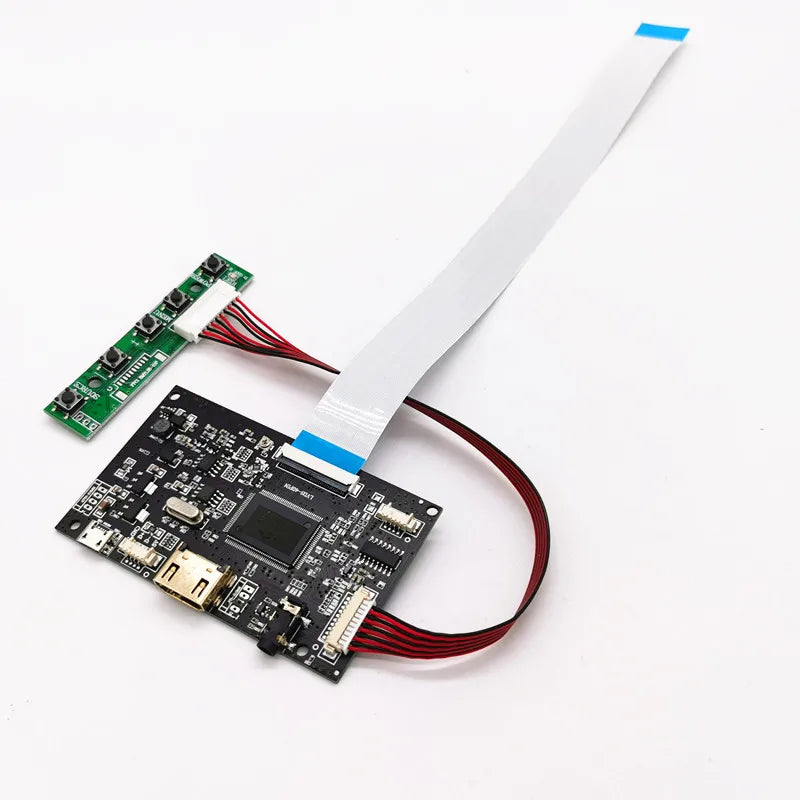

1xPCS LCD controller board 1xPCS 40pin flat cable 1xPCS keyboard and cable
