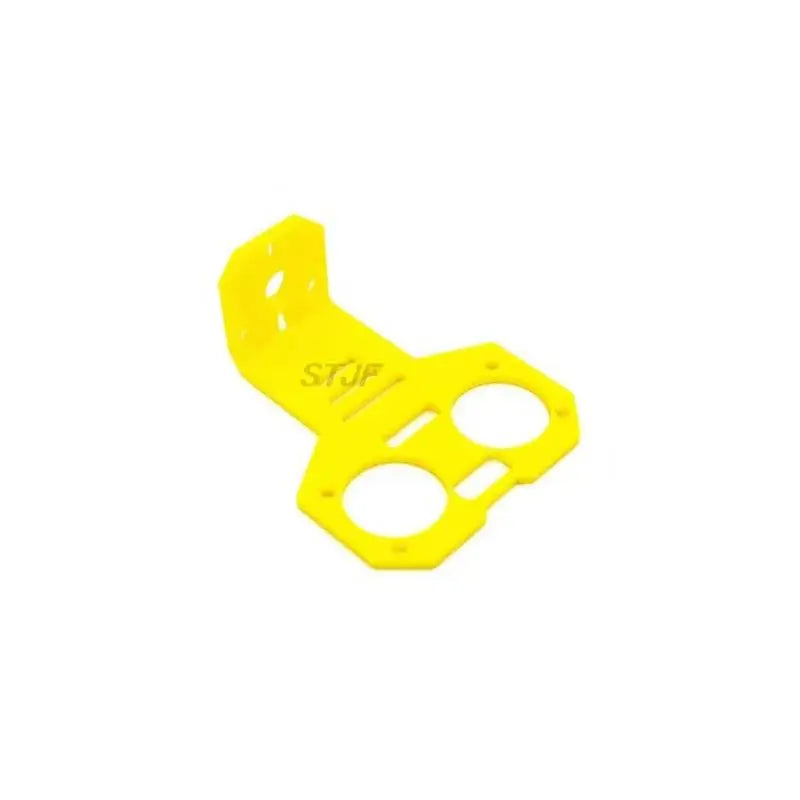

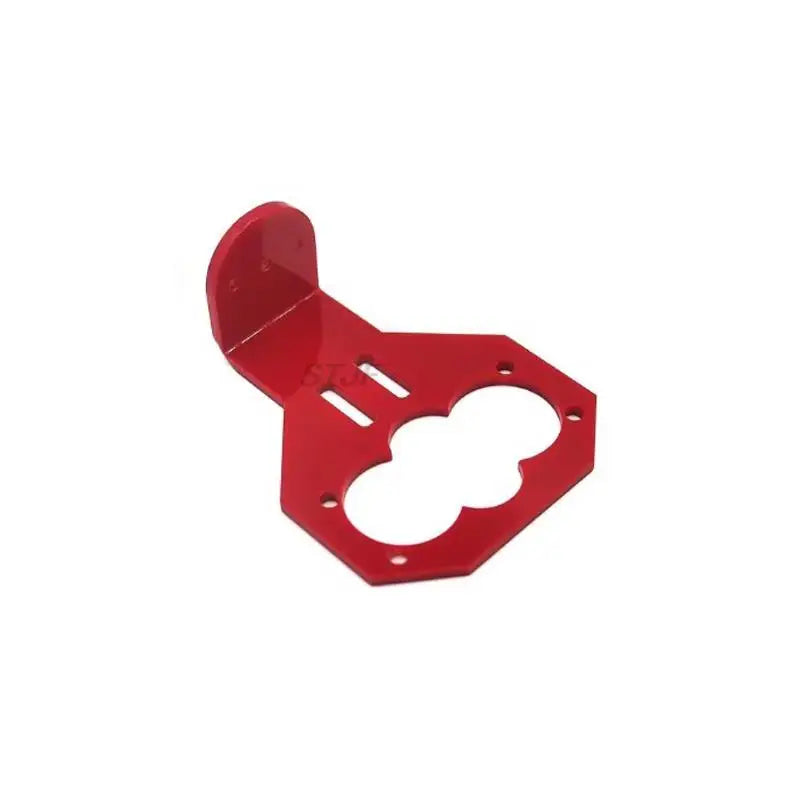

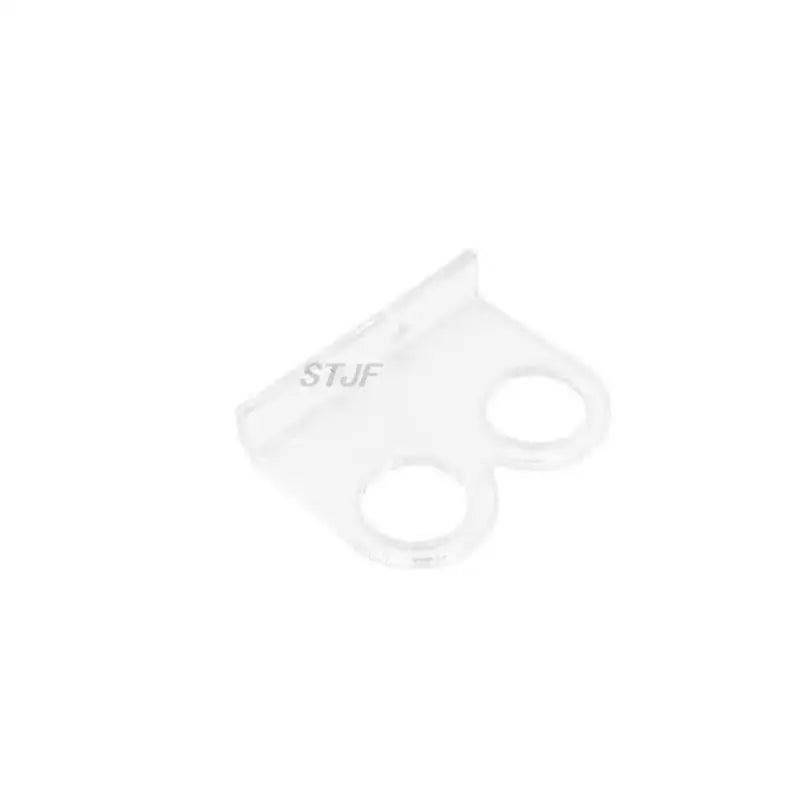

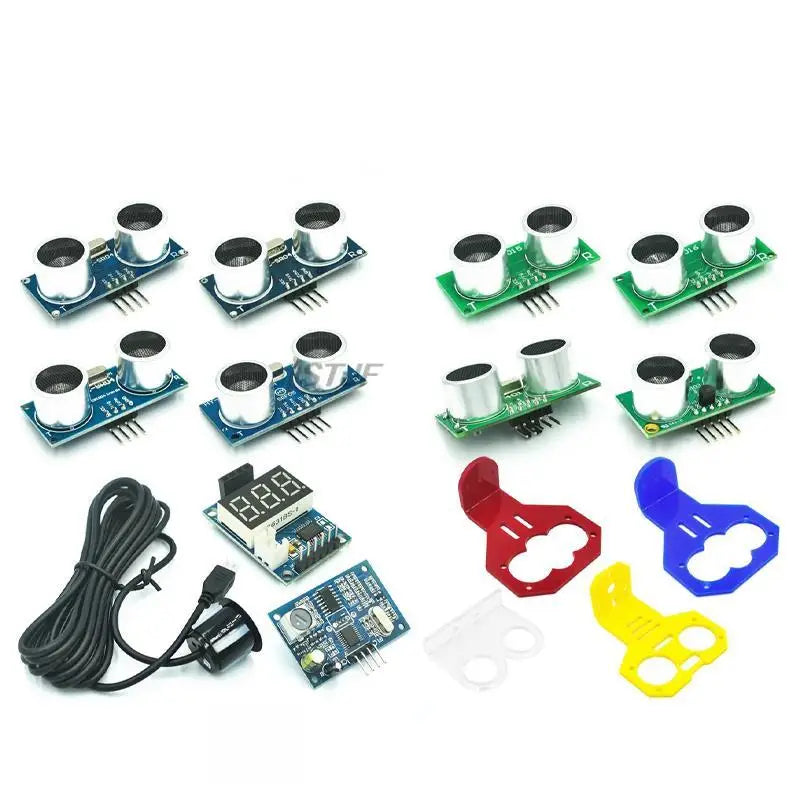

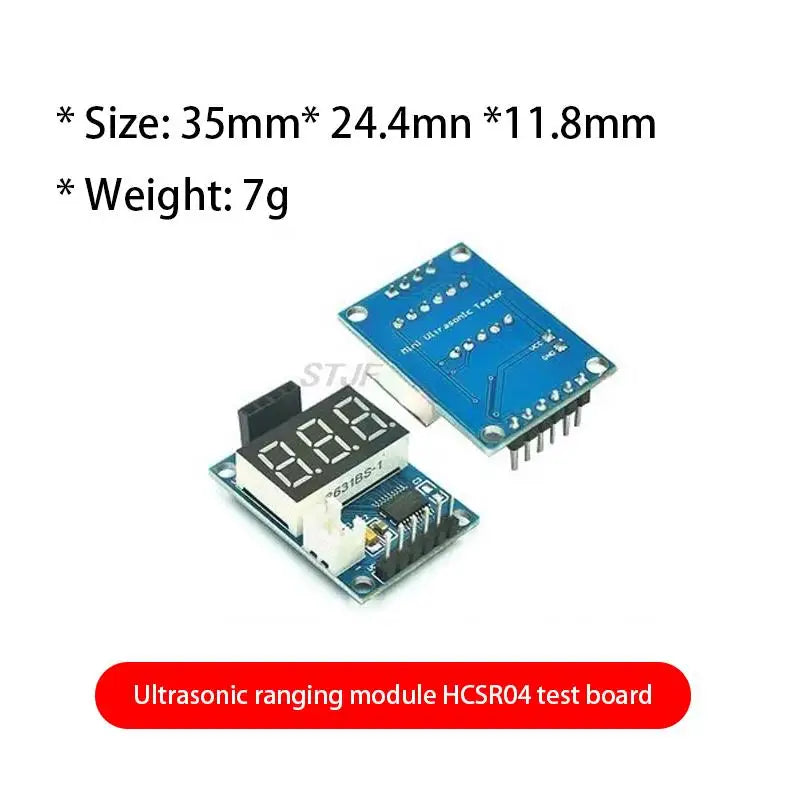

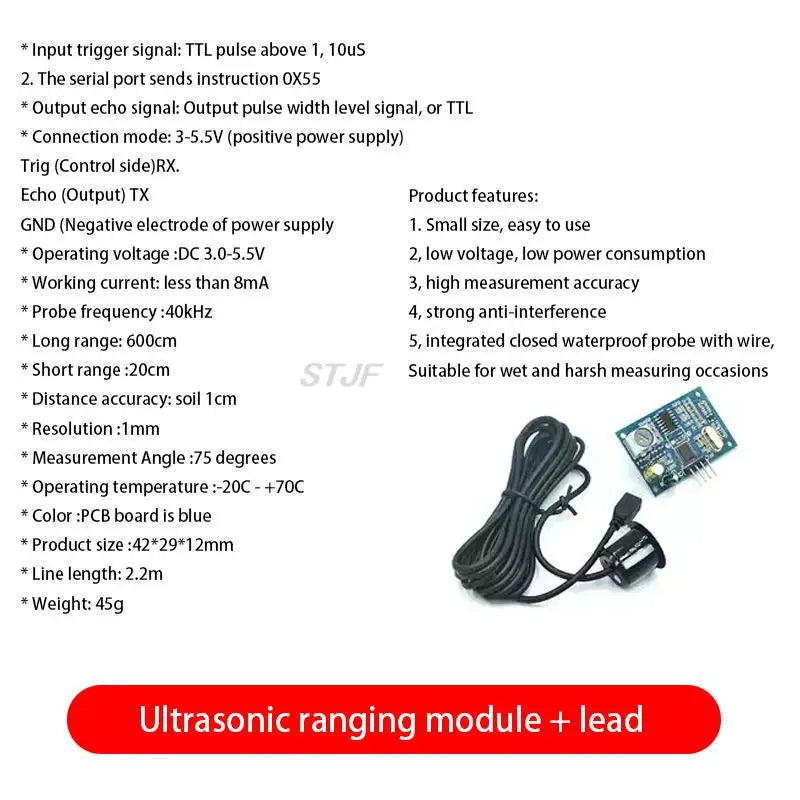

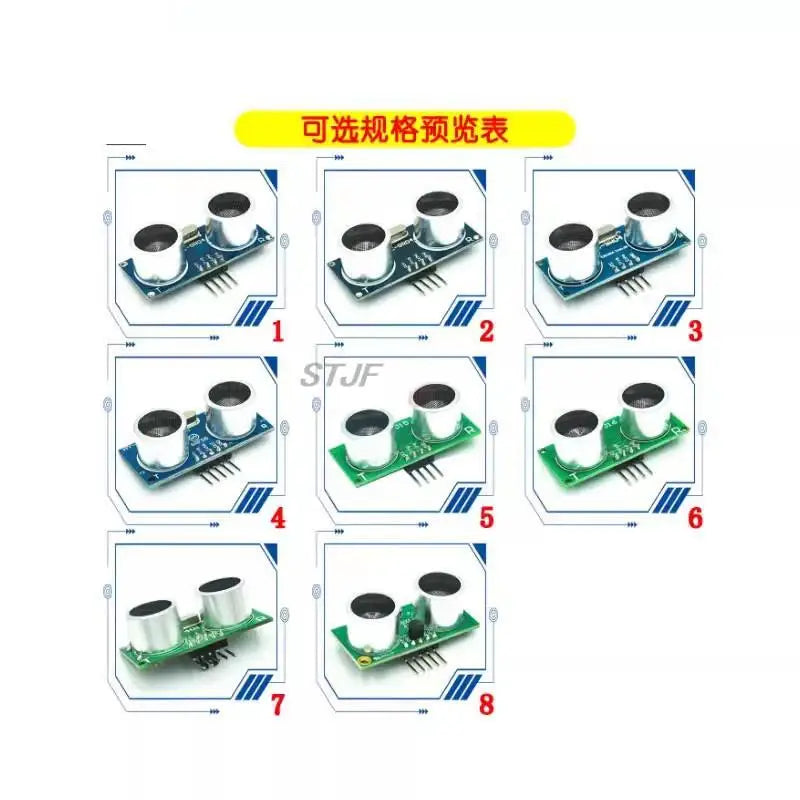

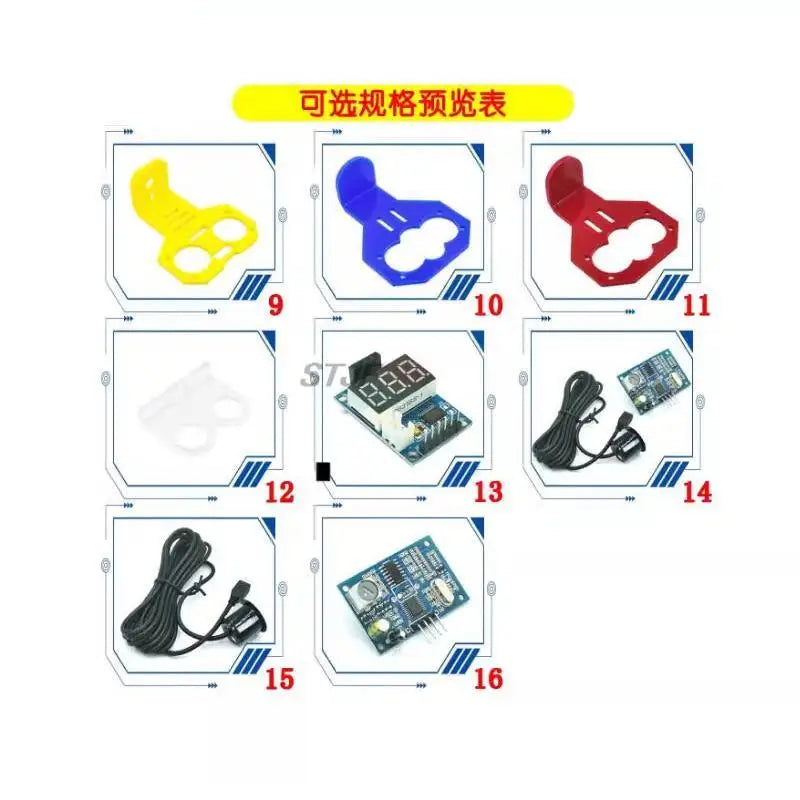

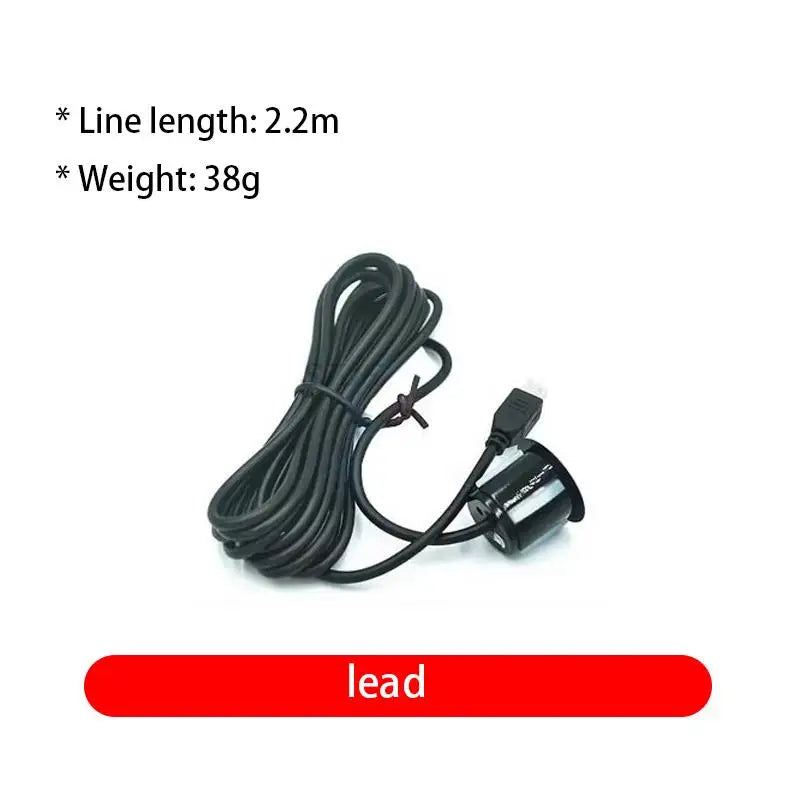

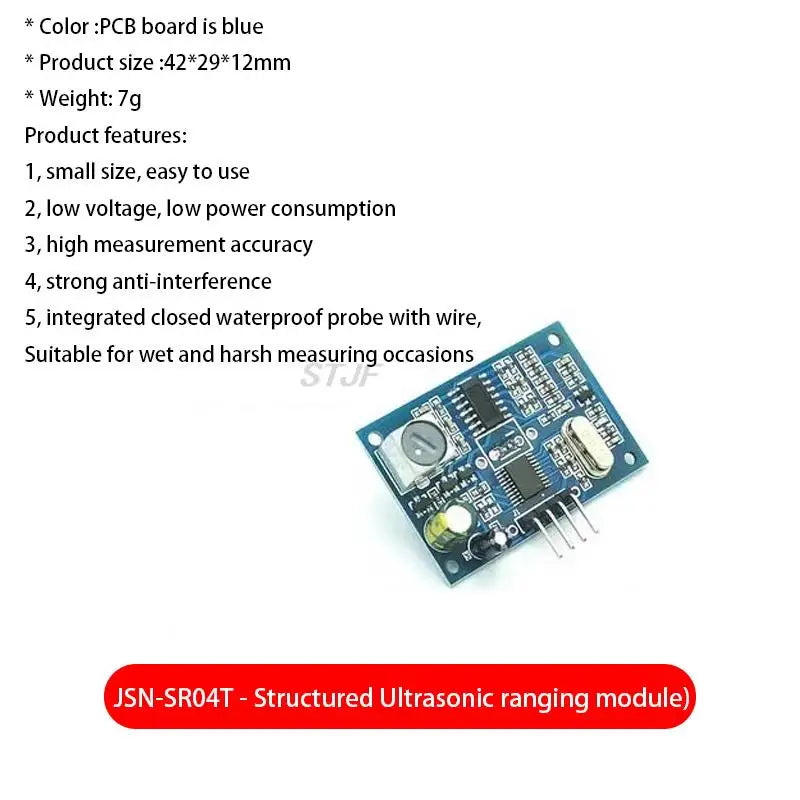

Custom HC-SR04 HYSRF05 US-15/16/26/25/100 ultrasonic ranging module sensor bracket
Custom HC-SR04 HYSRF05 US-15/16/26/25/100 ultrasonic ranging module sensor bracket

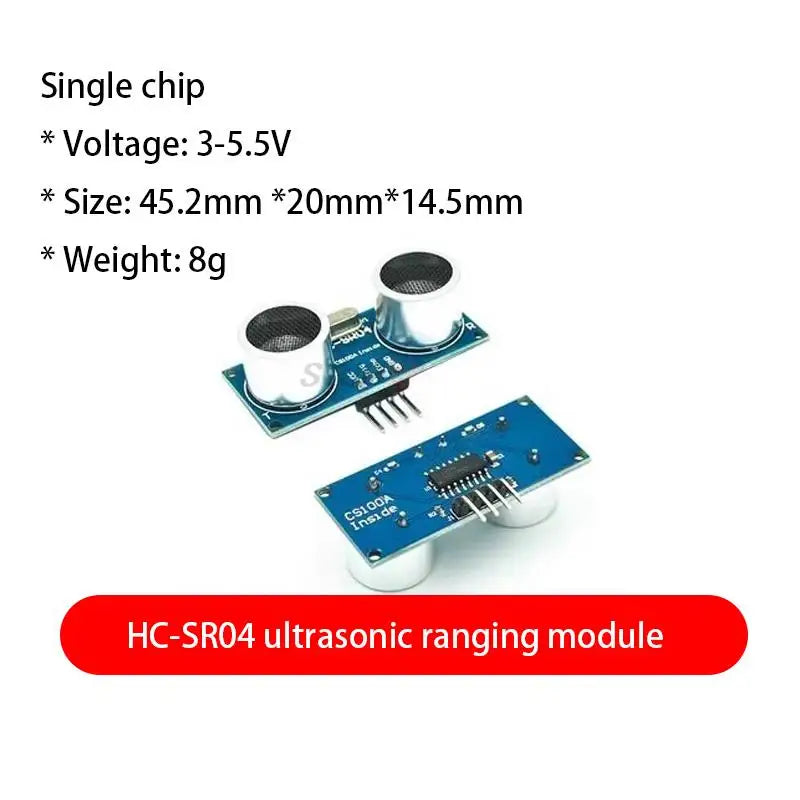

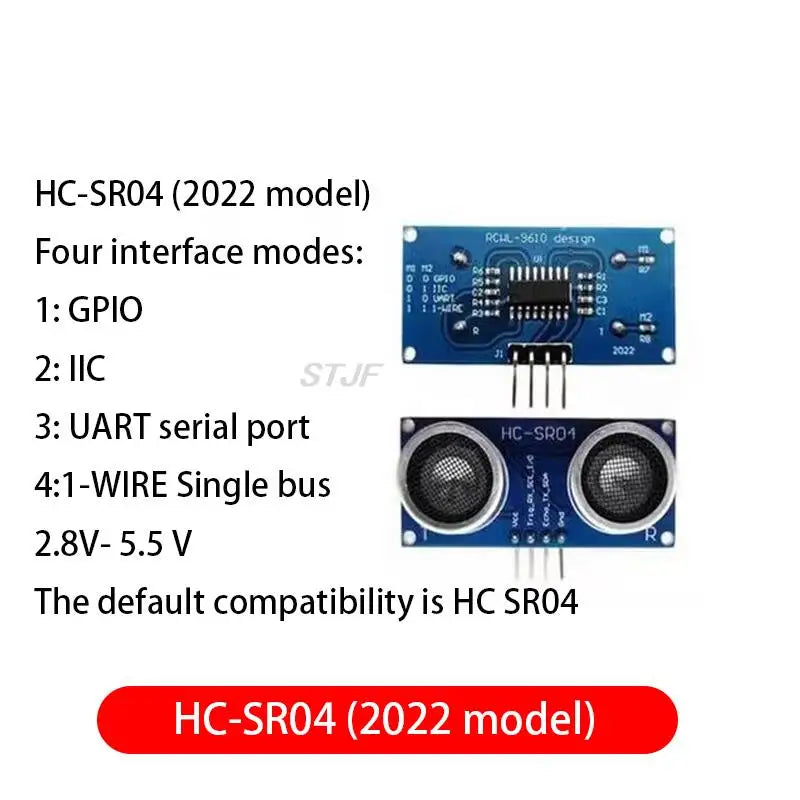

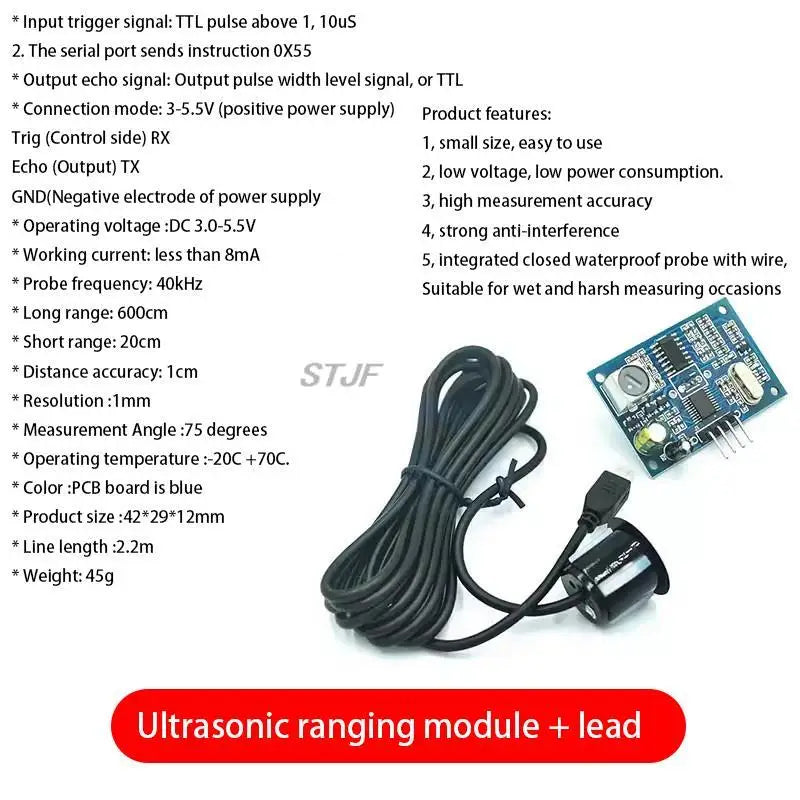

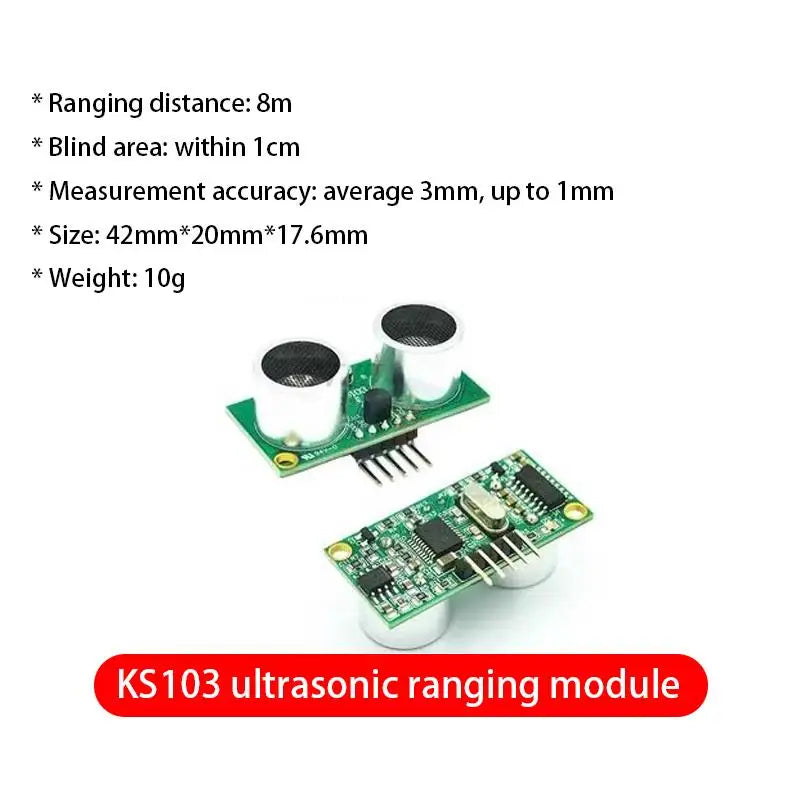

Description

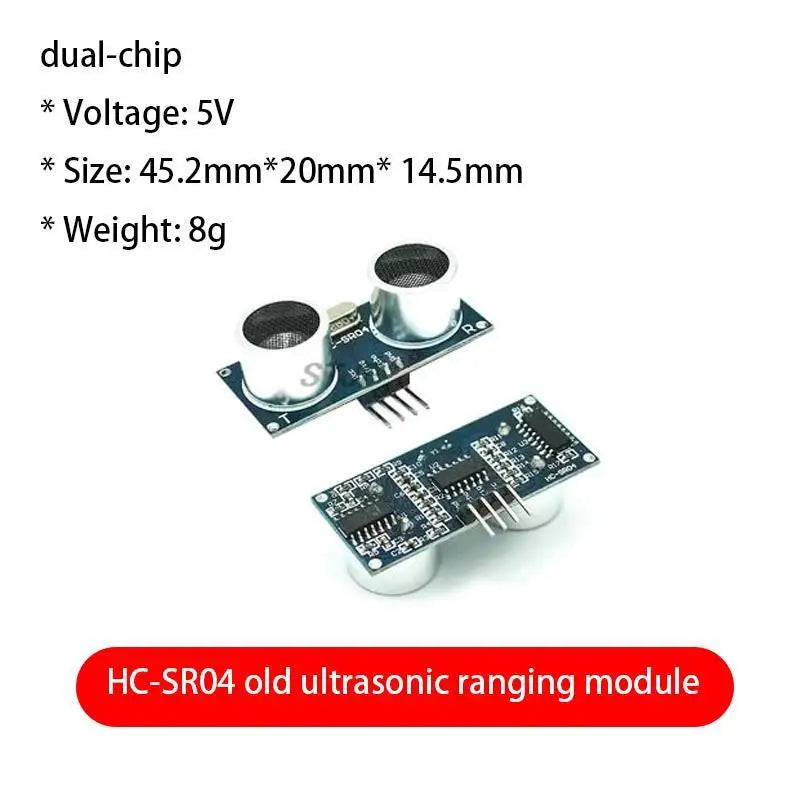

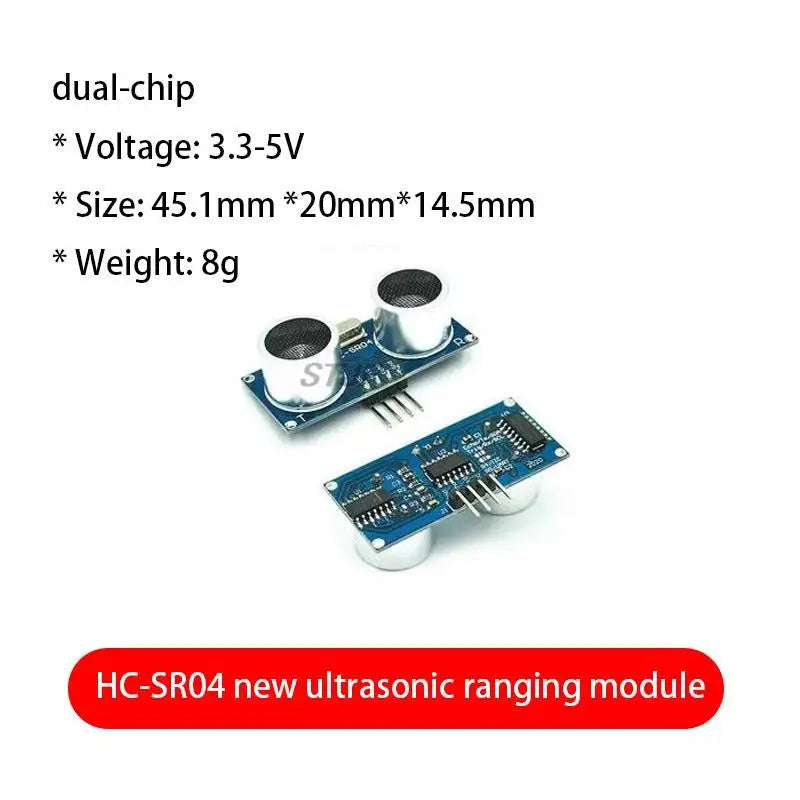

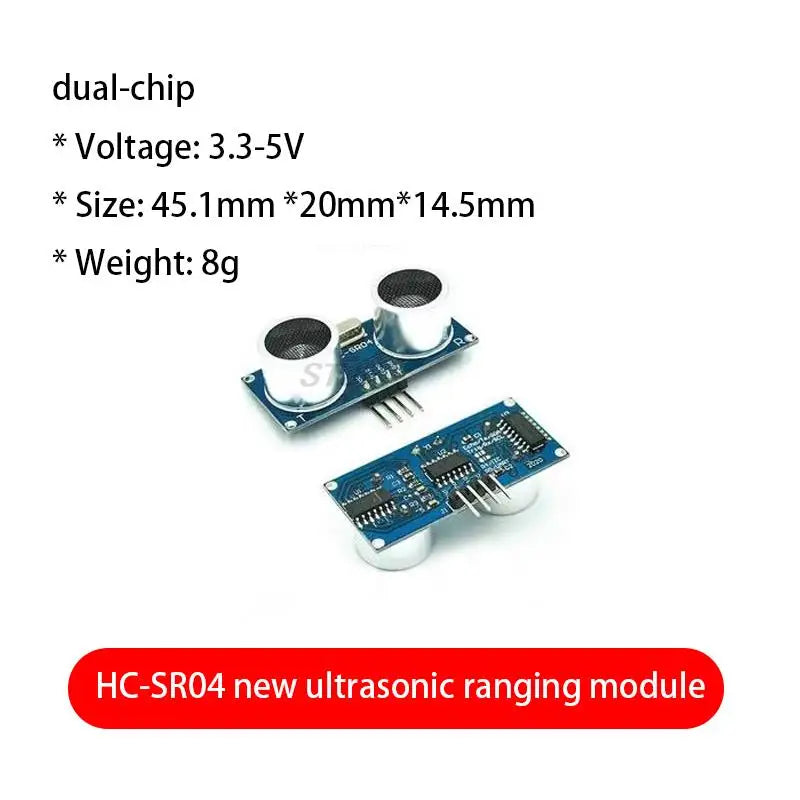

How to use this product: A control port sends a high level above 10US, and you can wait for the high level output at the receiving port. Once there is an output, you can start the timer to count, and when the port becomes low, you can read the timing The value of the device, at this time, is the time of this ranging, to calculate the distance. Such continuous periodic measurement, you can reach the value of your mobile measurement~~~ The working principle of the module:
(1) Use IO to trigger the ranging and give a high level signal of at least 10us;
(2) The module automatically sends 8 40khz square waves, and automatically detects whether there is a signal return;
(3) There is a signal return, a high level is output through IO, and the duration of the high level is the time from the ultrasonic wave to the return. Test distance = (high level time * speed of sound (340M/S))/2;
Working voltage: DC 5V
*Working current: 2.2mA
*Working temperature: 0~+70 degrees
*Output method: GPI0
*Induction angle: less than 15 degrees
*Detection distance: 2cm-400cm
*Detection accuracy: 0.3cm+1%
*Size: 44mm*20mm*14.8mm
Weight: 7 grams

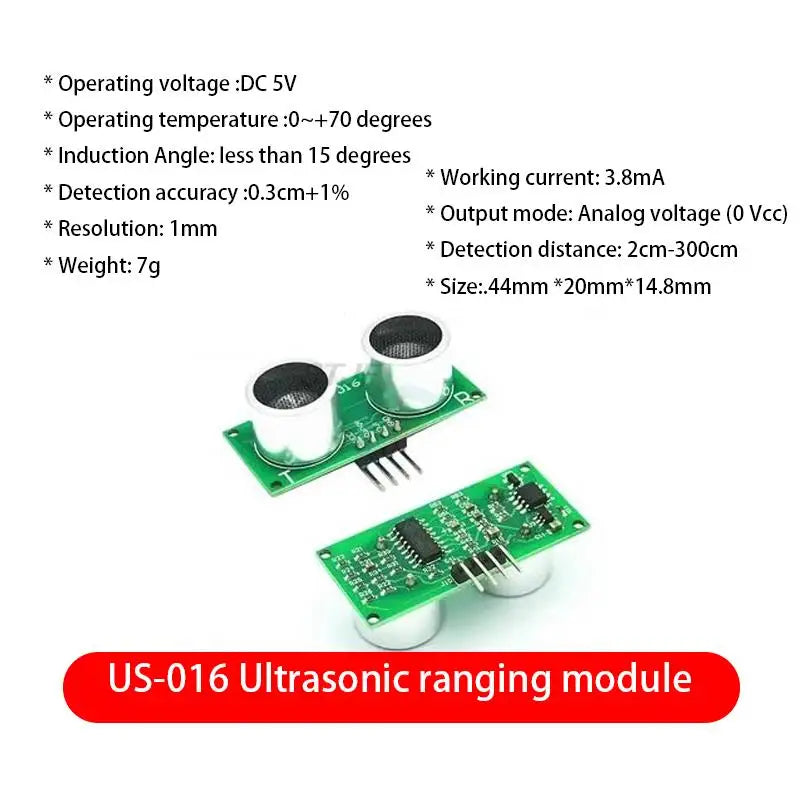

US-016 Ultrasonic Ranging Module
Note: US-016 is the only ultrasonic distance measuring module with analog output on the market. The output analog voltage is proportional to the distance value and can be easily connected to other systems. US-016 works stably and reliably.
Overview: The US-016 ultrasonic distance measurement module can realize the non-contact distance measurement function of 2cm~3m. The power supply voltage is 5V and the working current is 3.8mA. It supports analog voltage output and is stable and reliable. This module can be set to different ranges according to different application scenarios (the maximum measuring distance is 1m and 3m respectively); when the Range pin is suspended, the range is 3m.
US-016 can convert the measured distance into an analog voltage output, and the output voltage value is proportional to the measured distance. *Working voltage: DC 2.4V~5.5V*Working current: 2mA
Working temperature: -20~+70 degrees*Output mode: level or UART*Induction angle: less than 15 degrees
*Detection distance: 2cm-450cm
*Detection accuracy: 0.3cm+1%
*Size: 44mm*20mm*14.8mm
*Weight: 8g

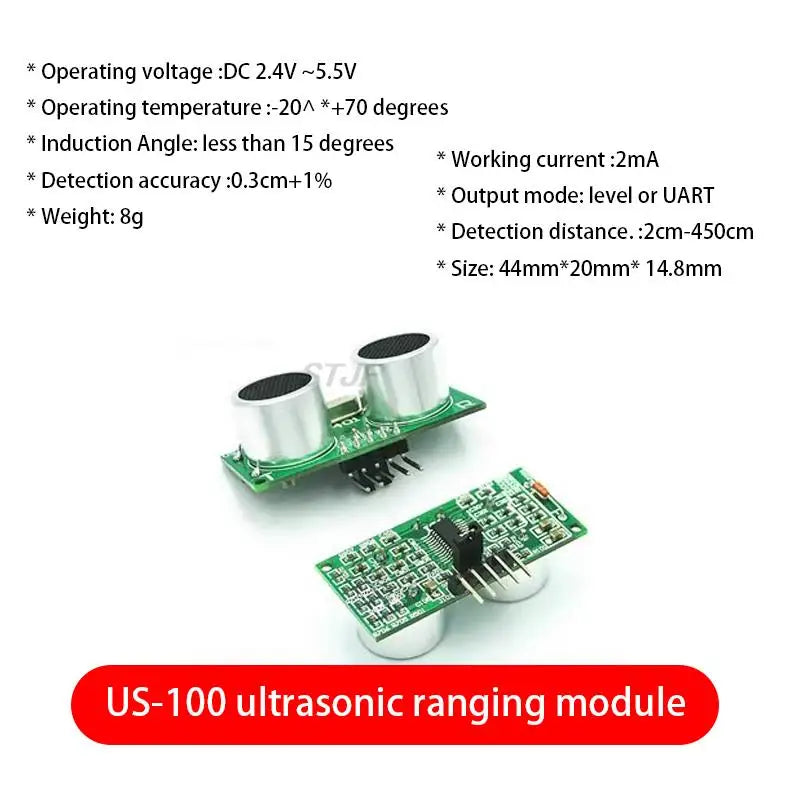

US-100 Ultrasonic Ranging Module
This module is an improved type, and the module itself has temperature compensation.
1. The performance of this module is stable, and the distance is measured:
High module accuracy, blind zone (2cm), stable ranging
2. Main technical parameters:
1) Operating voltage: DC5V
2) Quiescent current: less than 2mA
3) Level output: high 5V
4) Level output: bottom OV
5) Induction angle: no more than 15 degrees
6) Detection distance: 2cm-450cm
7) High precision: up to 1mm
3. Wiring method:
VCC, trig (control terminal), echo (receiving terminal), GND
4. How to use:
A control port sends a high level above 10US, and you can wait for a high level output at the receiving port. Once there is an output, you can start the timer to count. When this port becomes low, you can read the timer value. Time is the time of this range measurement to calculate the distance. Such continuous periodic measurement can reach the value of your mobile measurement~1~
5. Module working principle:
(1) Use IO to trigger the ranging and give a high level signal of at least 10us;
(2) The module automatically sends 8 40khz square waves, and automatically detects whether there is a signal return;
(3) There is a signal return, a high level is output through I0, and the duration of the high level is the time from the ultrasonic wave to the return. Test distance = (high level time * speed of sound (340M/S))/2;
Overview
The US-100 ultrasonic distance measurement module can realize the non-contact distance measurement function of 2cm~4.5m, has a wide voltage input range of 2.4~5.5V, static power consumption is less than 2mA, and has a temperature sensor to correct the distance measurement results. It has multiple communication methods such as GPIO, serial port, and has a watchdog inside, which makes it stable and reliable.
Interface Description
This module has two interfaces, namely the mode selection jumper and the 5 Pin interface. The mode selection jumper interface is shown in the figure below:
The spacing of the mode selection jumpers is 2.54mm. When the jumper cap is plugged in, it is in UART (serial port) mode, and when it is unplugged, it is in level trigger mode.
